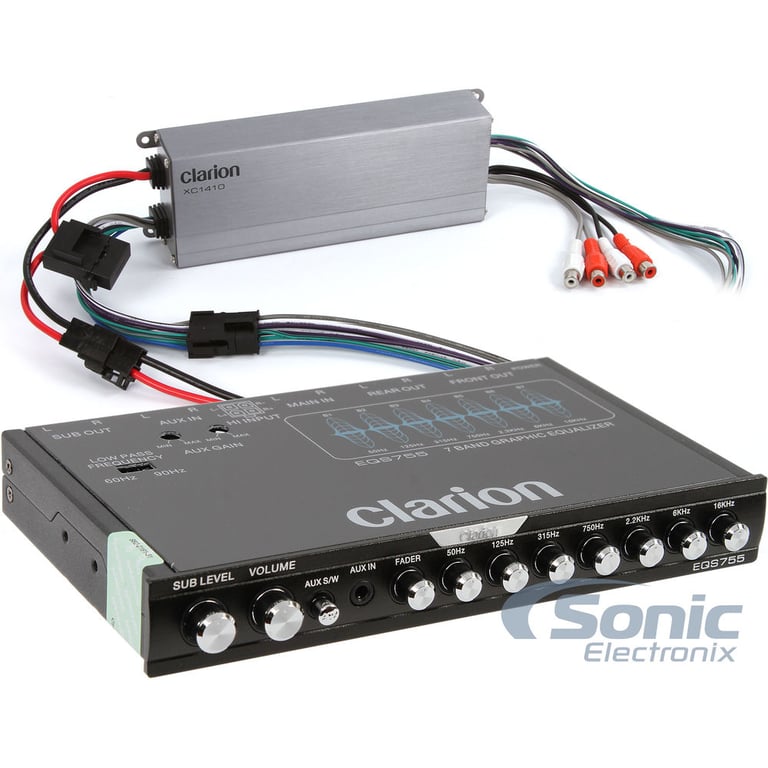

Clarion Equalizer + Amplifier Bundle (EQS755 + XC1410)

7-Band Graphic Equalizer with Front and Rear Auxiliary Input + Micro 4-Channel Class-D Compact Design Car Amplifier

Clarion
Shop all Clarion
highlight-star-icon

• 6-Channel / 8-Volt RCA Outputs
• Blue Illmination
• Gold-plated contacts for optimum signal transfer
• Selectable 12dB Low-Pass Filter (60Hz or 90Hz)
•RCA and High Level Speaker Inputs
• 50W x 4-Chan. @ 4 ohm
• 75W x 4-Chan. @ 2 ohm
• 3-Way System Protection
• 4-Channel Operation
• 8 Gauge Power and Ground Inputs
• Micro Size Amplifier for Maximizing Space Saving Applications

Learn more about the eqs755_xc1410

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

Description


Clarion brand icon

Authorized dealer

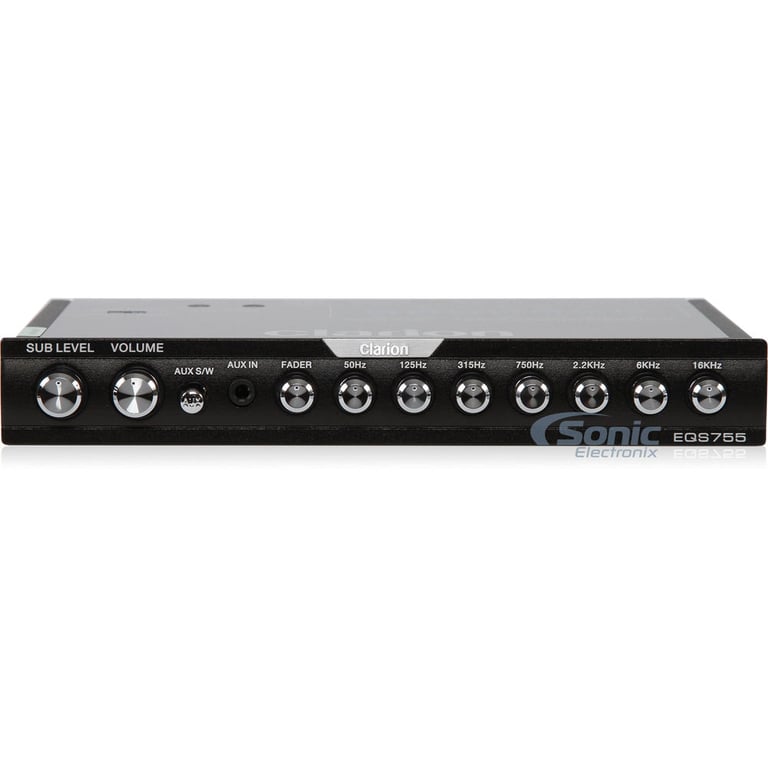

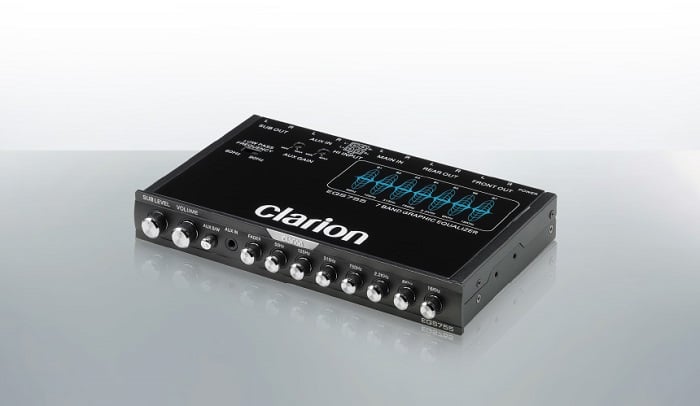

Clarion EQS755

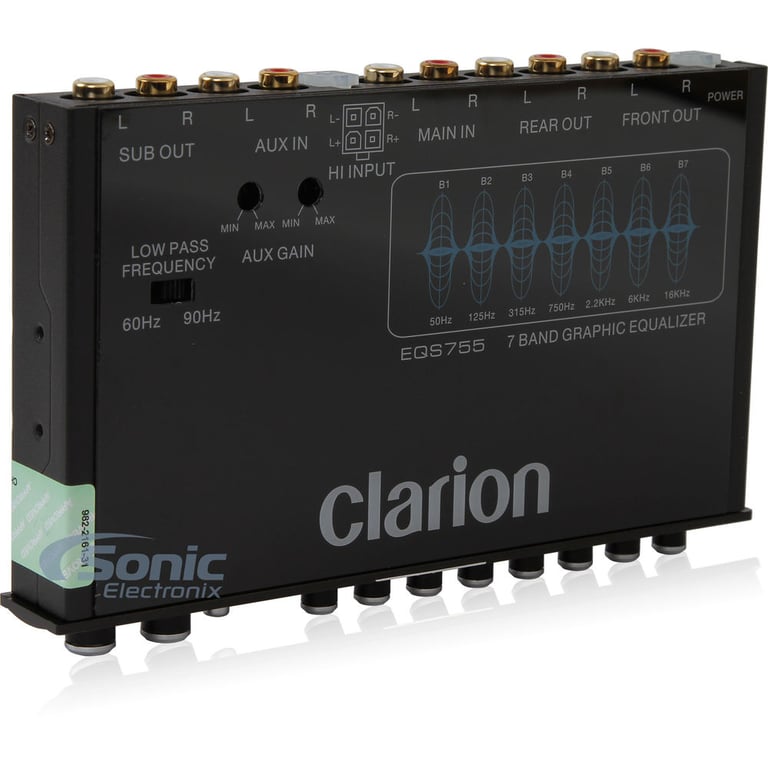

Clarion EQS755 - 7-Band Graphic Equalizer

Building off of the legendary Clarion EQS746 platform, Clarion now introduces the EQS755. The EQS755 features a Front 3.5mm Auxiliary Input to add equalizer control to any external device. Be it a smartphone, mp3 player or laptop the EQS755 allows you to directly connect any device's output straight to the equalizer without having to get to the Rear of the EQs chassis. For those that prefer the clean-look of having No wires hanging off the front of the EQ, the EQS755 inherits the traditional Rear RCA Auxiliary Input. In addition, the EQS755 offers more flexible connection options than its predecessors with its High Level Input option - Installs are no longer limited to aftermarket headunits.


Clarion EQS755 - Car Equalizer (Replaces EQS746)

7-Band Car Audio Graphic Equalizer with Front 3.5mm Auxiliary Input, Rear RCA Auxiliary Input and High Level Speaker Inputs
Quantity: 1



General Features:

  • 7-Band Graphic Equalizer

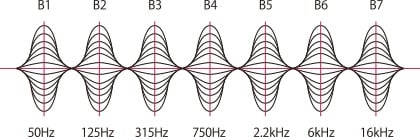

    • 50Hz, 125Hz, 315Hz, 750Hz, 2.2kHz, 6kHz, 16kHz

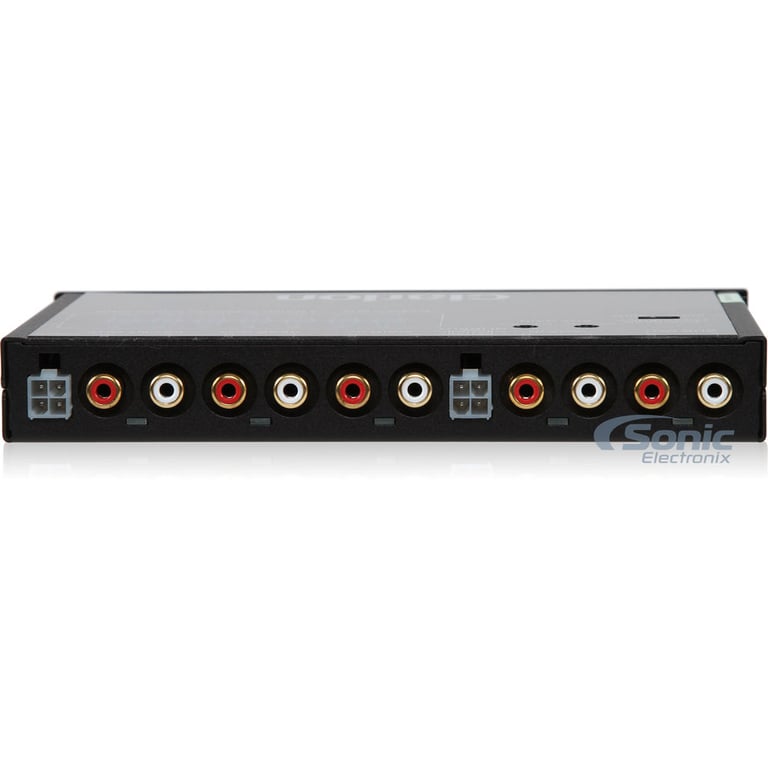

  • 6-Channel / 8-Volt RCA Outputs (Front, Rear, and Subwoofer)
  • Blue illumination
  • Gold-plated contacts for optimum signal transfer
  • Master and subwoofer volume control
  • 3.5mm Front AUX Input
  • 2-Channel Rear RCA AUX Input with Variable Gain Adjustment
  • Selectable 12dB Low-Pass Filter (60Hz or 90Hz)
  • Fader Control
  • Ground Loop Isolation Circuit

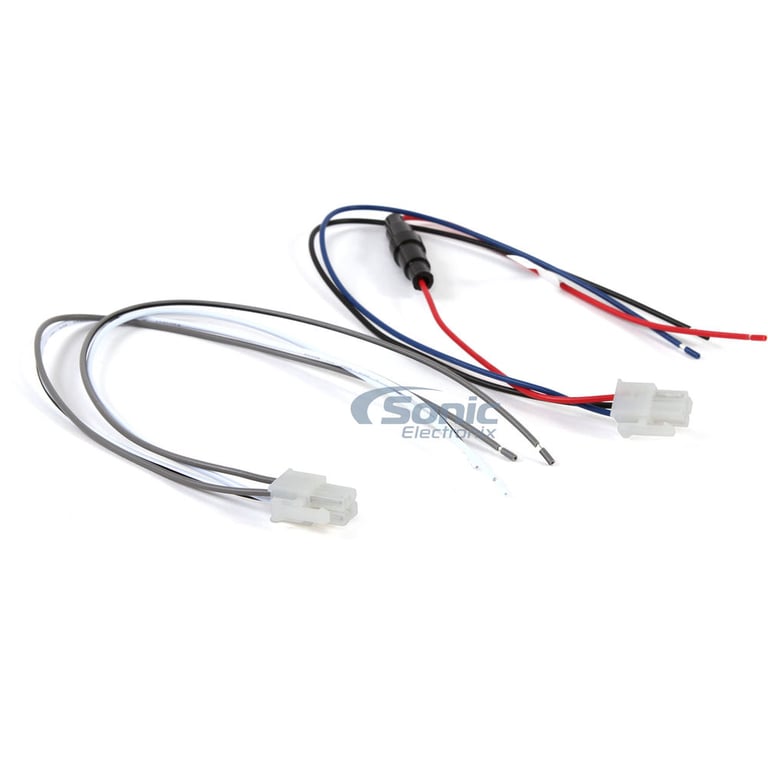

  • RCA and High Level Speaker Inputs
  • Dimensions: 7.00"W x 4.25"D x 1.00"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Product Specifications:

  • Number of Bands: 7
  • EQ Center Frequencies: 50Hz, 125Hz, 315Hz, 750Hz, 2.2KHz, 6KKz, 16KHz
  • Input sensitivity: AUX Inputs 3.6v
  • Input sensitivity: Speaker Inputs 10.8v
  • Signal-to-noise ratio: 83dB
  • Max Output level: 8V
  • Cut/Boost: +/- 12dB
  • Frequency response: 8Hz-40,000Hz
  • Channel separation: 73dB/1KHz

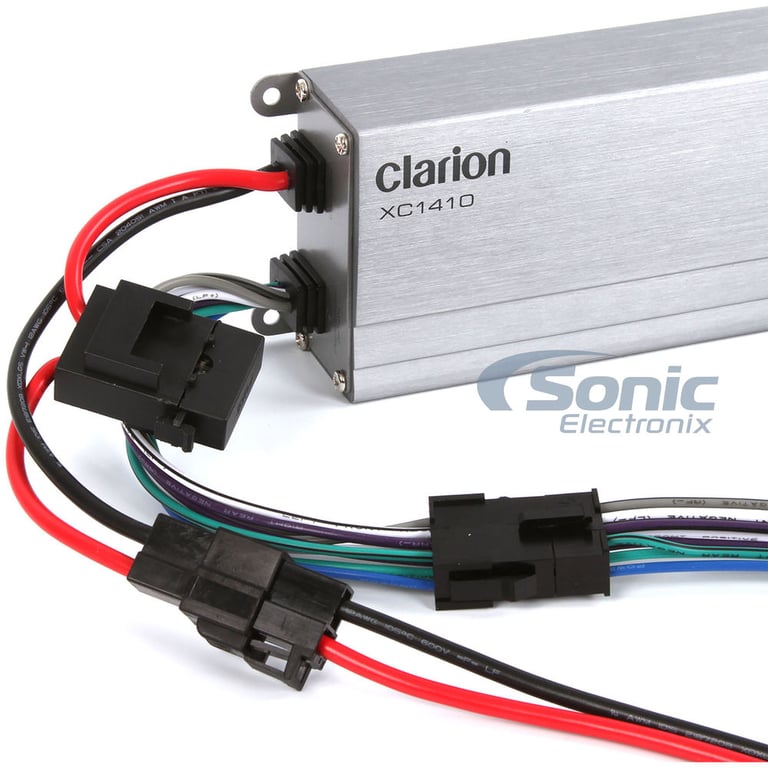

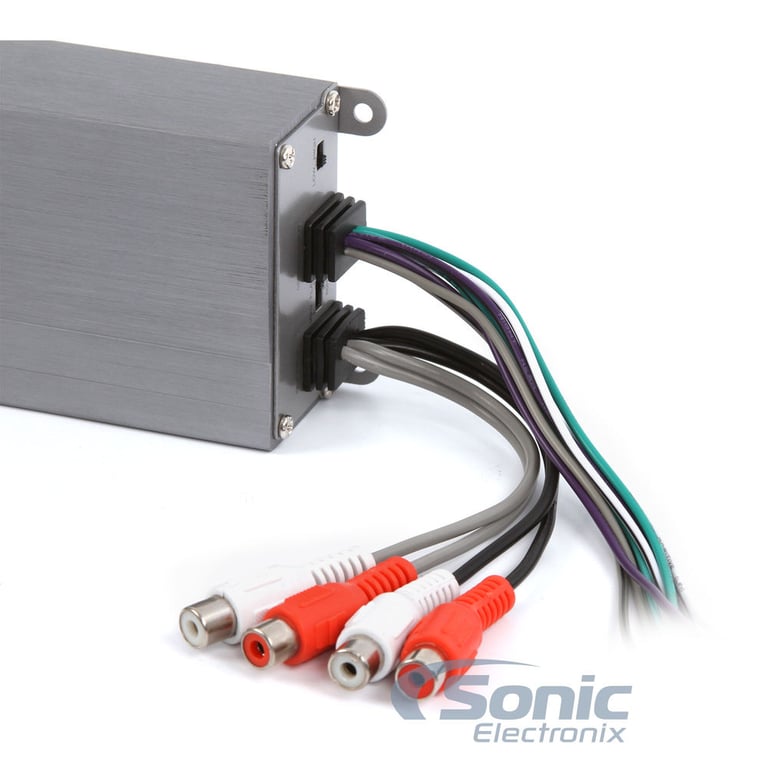

Clarion XC1410

300W XC Series Micro 4-Channel Class-D Compact Design Car Amplifier
Quantity: 1

General Features:

  • XC Series 4-Channel Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 50 watts x 4 chan.
    • 2 ohm: 75 watts x 4 chan.
  • Pulse Width Modulated MOSFET power supply

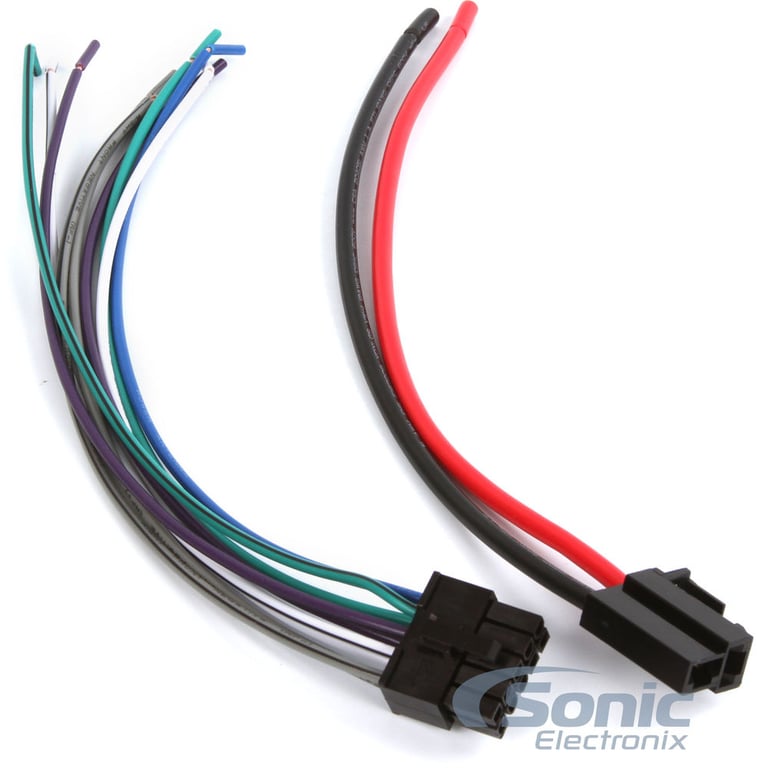

  • Speaker-level inputs
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Input sensitivity:
    • Low level: 125mV-5V
    • High level: 250mV-10V
  • Selectable high-pass filter (60 Hz, 90 Hz, FLAT)
  • CEA-2006 compliant amplifier
  • 8 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 7-1/8"W x 2-3/4"D x 1-3/8"H
  • 1-year Manufacturer's Warranty

Best selling similar products

DAX800XR_MRR_S8FO1 small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(40)

$1383.97

List price $2029.97

DAX800XR_MRR_S8GM1_8 small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(39)

$1456.96

List price $2074.96

KWZ1000AW_MRR_FLFO1_S small

JVC KW-Z1000AW Direct-Fit Digital Receiver Package

• Bluetooth Digital Multimedia Receiver for select Ford vehicles
• 10.1" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(38)

$1883.96

List price $2282.96

DAX1050XR_MRR_FLCH2_D small

Kenwood eXcelon DAX1050XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 10.1" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(38)

$1883.97

List price $2479.97

DAX800XR_MRR_S8GM3_CI small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(39)

$1605.96

List price $2254.96

DAX800XR_MRR2_S8FO1_S small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(9)

$1473.96

List price $2143.96

DAX800XR_MRR_S8FO2_s small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(39)

$1348.96

List price $1973.96

DAX1050XR_MRR_FLFO1 small

Kenwood eXcelon DAX1050XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for select 2011-2023 vehicles from Ford
• 10.1" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(38)

$1913.97

List price $2509.97

KWZ800AW_MRR_S8FO1 small

JVC KW-Z800AW Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for select 2011-2022 vehicles from Ford, Lincoln
• 8" Capacitive Touchscreen Display
• Supports wireless Apple CarPlay and wireless Android Auto
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM and iDataLink Ready

(39)

$1383.97

List price $1778.97

DAX800XR_MRR_S8FO1_S small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(40)

$1403.96

List price $2053.96

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
50 watts x 4 channel
RMS Power @ 2 ohms
75 watts x 4 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
4-Channel
Total RMS Power Output
300 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
0.1%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
High-Pass (HP)
High-Pass Crossover Frequency
Selectable 60-80 Hz
Signal-to-Noise Ratio
80 dB
Remote bass/level controller
No
Fuse Rating
25A x 1
Strappable
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

EQS755_XC1410

Weight:

5.10lbs

Internal SKU:

eqs755_xc1410

Internal Product ID:

122071

Customer Ratings & Reviews


Clarion Equalizer + Amplifier Bundle (EQS755 + XC1410) thumbnail image

5 star
78%
4 star
17%
3 star
5%
2 star
0%
1 star
0%



Durability
4.7
Value
4.9
Features
4.5
Design
4.7
Usability
4.9

Customer Reviews

Sort by:

Loading...

Small in size, Big in power!

The following review is for XC1410, which is a part of the bundle you are viewing.

I bought this to add to my stock Jeep head unit . I bought it for the size and wattage. Excellent choice as the amp fit right next to the stock radio behind the dash. This means not having to run long wires. I'm impressed with the sound and the subs have some bump. For the price size and output it can't be beat!

By Bruce on September 3, 2014

83 found this helpful


Great amp

The following review is for XC1410, which is a part of the bundle you are viewing.

Easy install, small in size so can go almost anywhere, really brings out the sound of my Infinity kappas!! I would say a big YES on recommendation of this product.

By Pappy on April 21, 2014

83 found this helpful


2010 f150 supercrew

The following review is for XC1410, which is a part of the bundle you are viewing.

Fast shipping!!! Easy install!!!! Great product!!! I bought it to boost my stock stereo in my 2010 f-150. I changed the 4 door speakers too the kicker and added this amp to gain overall volume and clarity. It is amazing. I am so happy with the outcome. I was able to keep my stock head unit and hide this small amp in my center console so that the truck would keep its stock appearance. The sou d quality is great and the volume is 10 times better than stock.

By Jay on February 24, 2014

82 found this helpful


Small space amp

The following review is for XC1410, which is a part of the bundle you are viewing.

Looking for better sound quality but not looking for rolling thunder? Then this is it. Installed in a Jeep Wrangler TJ that pretty much stays open year round. This amp tucked up nicely under the dash to the firewall, yes, it's small. Doesn't offer much tunabilty for those that like to dial and tweak their sound but with the right head unit it's just fine. Easy wiring made it a breeze to connect.

By Vassago on January 6, 2014

80 found this helpful


Surprised

The following review is for XC1410, which is a part of the bundle you are viewing.

Surprised is the only way to describe the XC1410. I don’t typically post reviews, but this amp is was worth my time. Amazing power and clarity for the size. The install took about 20 minutes and the unit fit under my center console. This amp should be a mandatory accessory for all head units as it is just that good. Longevity has yet to be determined.

By CP on May 12, 2014

78 found this helpful


Installed in Ultra Classic

The following review is for XC1410, which is a part of the bundle you are viewing.

I bought this little amp for my 09 Harley Ultra Classic. Installed in batwing on top of radio and it fit great!

By Scott on August 30, 2014

77 found this helpful


Clarion XC1410

The following review is for XC1410, which is a part of the bundle you are viewing.

Great value and quality, just what I needed to complete my system!!

By Dwight on April 9, 2014

77 found this helpful


Great product

The following review is for XC1410, which is a part of the bundle you are viewing.

I would recommend this product because of its ease of installation and it's "bang for your buck".For the price I find it to be one of the better amplifiers out there

By chief on December 16, 2014

76 found this helpful


Small Amp with Big Clean Sound

The following review is for XC1410, which is a part of the bundle you are viewing.

This small amp is excellent for the money, and the size and power is perfect. Installed on my boat and what a night and day difference. Using it for some 6x9s and 6.75s. The amp works really well for this size of speakers. I am very pleased with my purchase. I was not sure about quality and size of amp but i was wrong. It would be hard to beat the quality and power of this little amp. Thumbs up for anyone looking to add power to a radio.

By Family Guy on February 19, 2014

76 found this helpful


Small amp

The following review is for XC1410, which is a part of the bundle you are viewing.

This amp fits in the dash is easy to hook up and doesn't run too hot. Works good with factory radios.

By vic on August 22, 2014

73 found this helpful




C-ONE EP-BLUE small

Beyerdynamic C-ONE-EP-BL - Blue Ear-Pads

Replacement Cushion Earpads For Custom One Pro Headphones

(1)

$24.00

List price $40.00

A Aluminum Case (714194) small

Beyerdynamic Aluminum Headphone Case - 714194

Aluminum Headphone Case For T1, T5p, DT Premium and Tesla Model Headphones

$24.99

List price $149.00

D-EJ017CK small

Sony DEJ017CK (D-EJ017CK) Portable CD Walkman with Car Kit

Portable CD Walkman with Car Kit Mobile Cassette (Tape Deck) Adapter, Charger, & Earbuds Accessories

$59.95

List price $69.99

P1683, XBAF68, SDSK2, SDRLR1, BTK106 small

Rockford Fosgate P1683 with Accessories

260W Peak (130W RMS) 6"x8" Punch Series 3-way Coaxial Car Speakers

(237)

$153.52

List price $192.70

ICD-UX523 small

Sony ICD-UX523 (ICDUX523/SLV) Digital Voice Recorder - Silver

Digital Flash Voice Recorder w/ 4GB Built-In Internal Memory

$74.99

List price $99.99

No picture

Kicker 09ZW16400-1 (ZW16400)

Kicker ZW16 16 Gauge AWG Z-Series Speaker Wire Cable Available by the Foot

$1.79

List price $2.09

MA65B small

MA Audio MA65B

6-1/2" Midbass Drivers

(3)

$49.99

List price $99.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1992 Toyota Celica

2022 Mitsubishi Mirage

2007 Ford Edge

2015 Mazda 3

2017 BMW 6 Series

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
