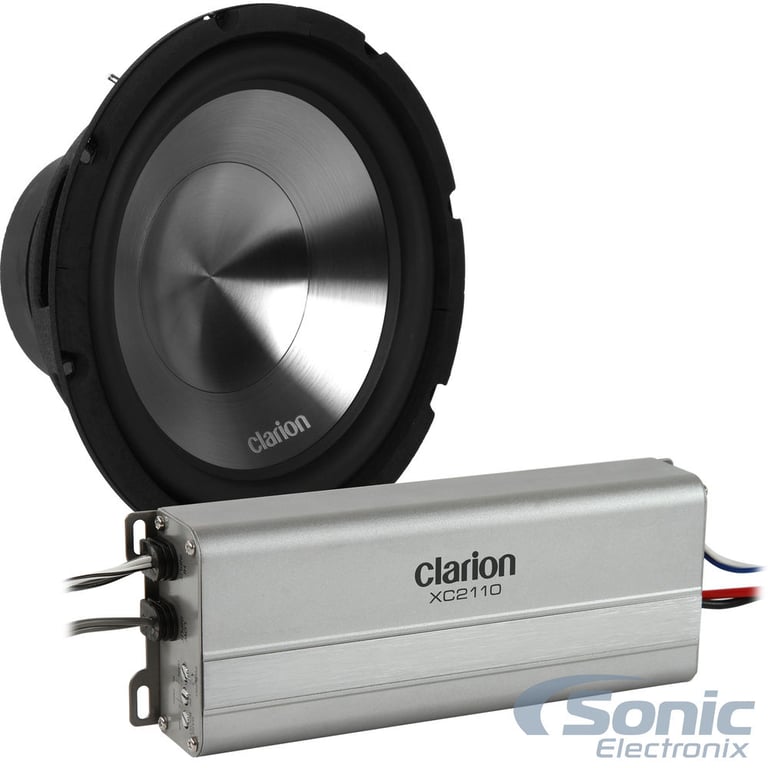

Clarion 300 Watt RMS 10" Bass Package (WG2520D + XC2110)

10" Clarion WG Series Dual 4 Ohm Subwoofer + Ultra Compact Monoblock XC Series Micro Class D Amplifier

Clarion
Shop all Clarion
highlight-star-icon

• 1000W Peak
• 300W RMS
• Dual 4 ohm Voice Coil
• Aluminum-Coated PolyPropylene Cone
• Nitrile Butadiene Rubber High Excursion Surround
• Custom Stamped Steel Powder Coated Basket
• Reinforced SPP Cone

Amplifier
• 200 Watts RMS x 1 @ 4 ohm
• 300 Watts RMS x 1 @ 2 ohm
• Total Peak Power: 400 Watts
• CEA-2006 Compliant
• 0 to +12 dB bass boost at 50 Hz
• Nickel heat-sink for extreme heat dissipation

Learn more about the wg2520d_xc2110

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
72-7800 main

Metra 72-7800

Install New Speakers in select 1990-2024 vehicles from Honda, Acura, Isuzu

90
-33.36%

$9.99

List price $14.99

70-1721 main

Metra 70-1721 Wiring Harness

Install a new car stereo in select 1998-2013 vehicles from Honda, Suzuki, Acura

27
99-7814 main

Metra 99-7814

Single DIN or Double DIN Stereo Dash Kit for select 1988-2006 vehicles from Honda, Acura, Isuzu

4
-12.50%

$27.99

List price $31.99

HA08BCB main

Scosche HA08BCB Wiring Harness

Install a new car stereo in select 1998-2019 vehicles from Honda, Acura

4
-16.74%

$9.95

List price $11.95

HonK831 main

American International HonK831

Double DIN Stereo Dash Kit for select 1988-2006 vehicles from Honda, Acura, Isuzu

4
-70.62%

$9.99

List price $34.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

117
-37.15%

$21.99

List price $34.99

GX608C main

JBL GX608C (GX608CAM)

420W Peak (140W RMS) 6.5” GX Series 2 Way 2.3-ohm Component Speaker System

7
R169X2 main

Rockford Fosgate Prime R169X2

260W Peak (130W RMS) 6x9" Prime Series 2 Way Coaxial 4-ohm Speakers

49
NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Description


Clarion brand icon

Authorized dealer

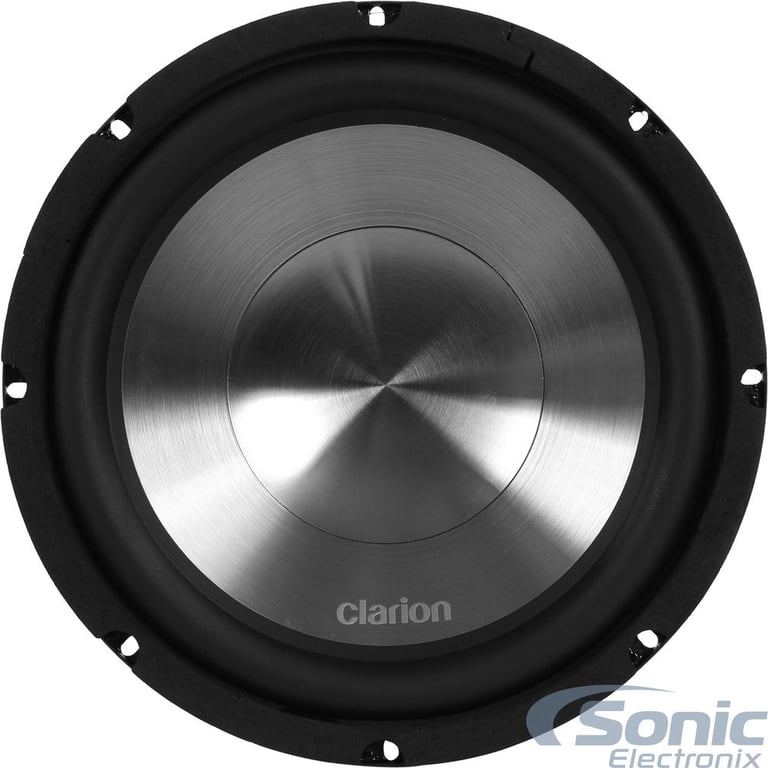

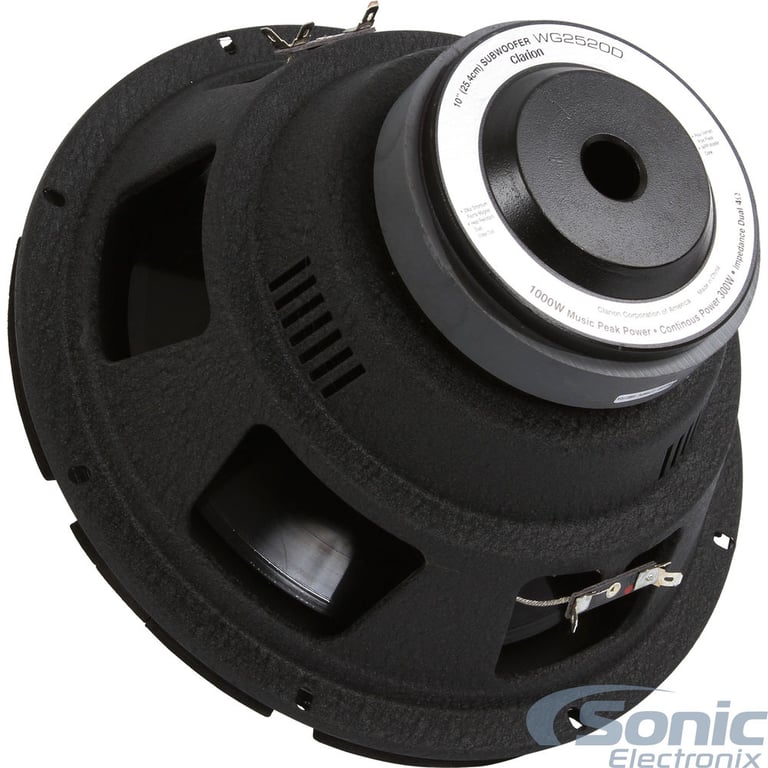

Clarion WG2520D

1000W 10" WG Series Dual 4 Ohm Subwoofer
Quantity: 1

General Features:

  • 10" Dual 4 Ohm WG Series Subwoofer
  • Power Handling:
    • Peak: 1000 watts
    • RMS: 300 watts
  • Impedance: 4 ohm Per Coil
  • Aluminum-coated polypropylene cone
  • Nitrile butadiene rubber high excursion surround
  • Hyper extended rear vented pole piece
  • Custom stamped steel powder coated basket
  • Strontium high-conductivity magnet for powerful output
  • Frequency response: 30-1,000 Hz
  • Resonance Frequency (Fs): 34 Hz
  • Top-mount depth: 5-3/8"
  • Sensitivity: 87dB
  • 1-year Manufacturer's Warranty
Tips for Installing the your subwoofer

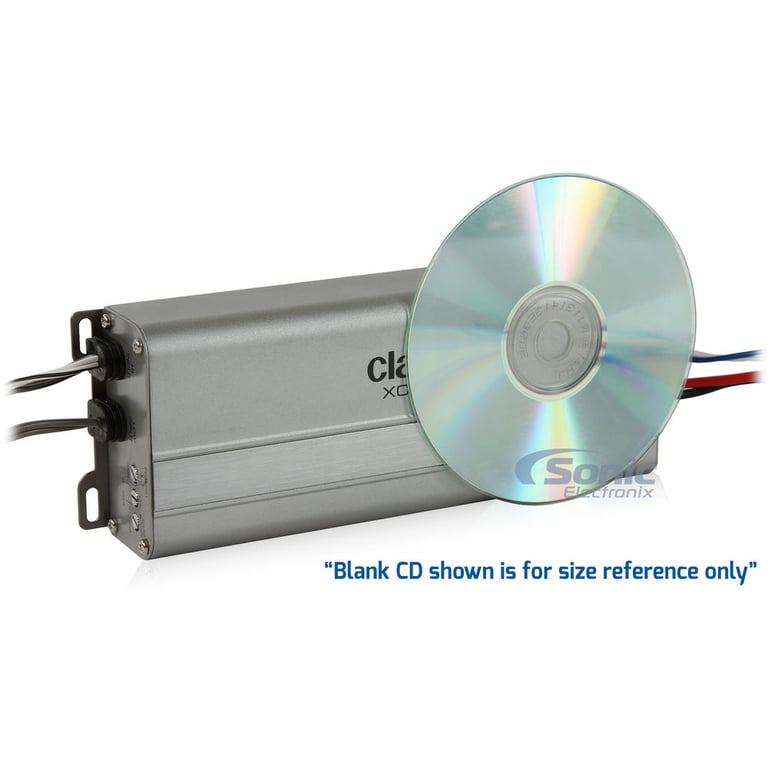

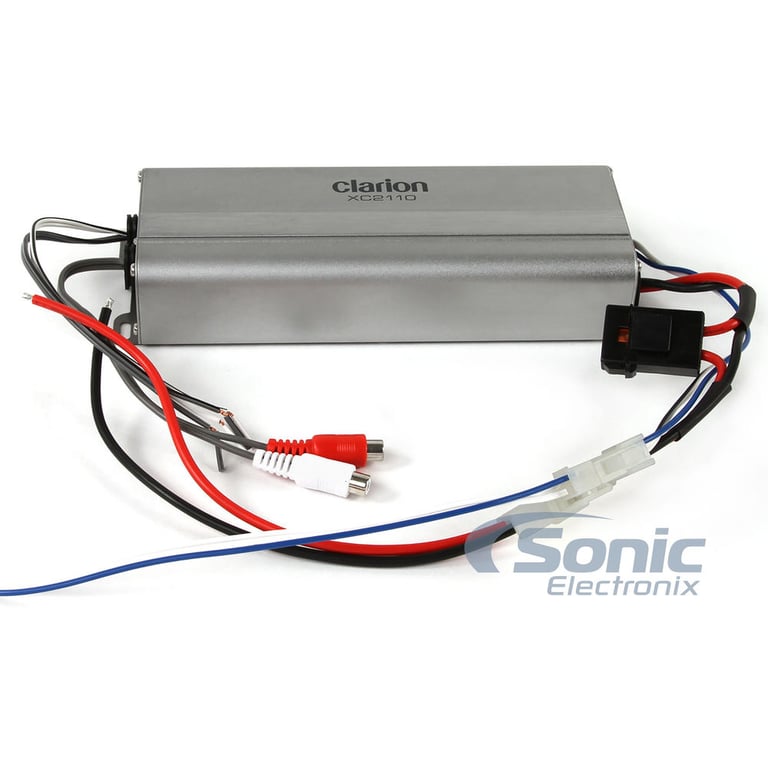

Clarion XC2110

400W Peak (300W RMS) Class D XC Series Monoblock Marine Amplifier
Quantity: 1

Product Details:

  • XC-Series Class D 2 ohm Stable Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohm: 200 watts x 1 channel
    • 2 ohm: 300 watts x 1 channel
  • Total RMS power output: 300 watts
  • Speaker-level (high-level) inputs
  • Double side conformal coated PCB assembly
  • MOSFET power supply for reliable connection
  • 12dB/Oct low pass electronic crossover

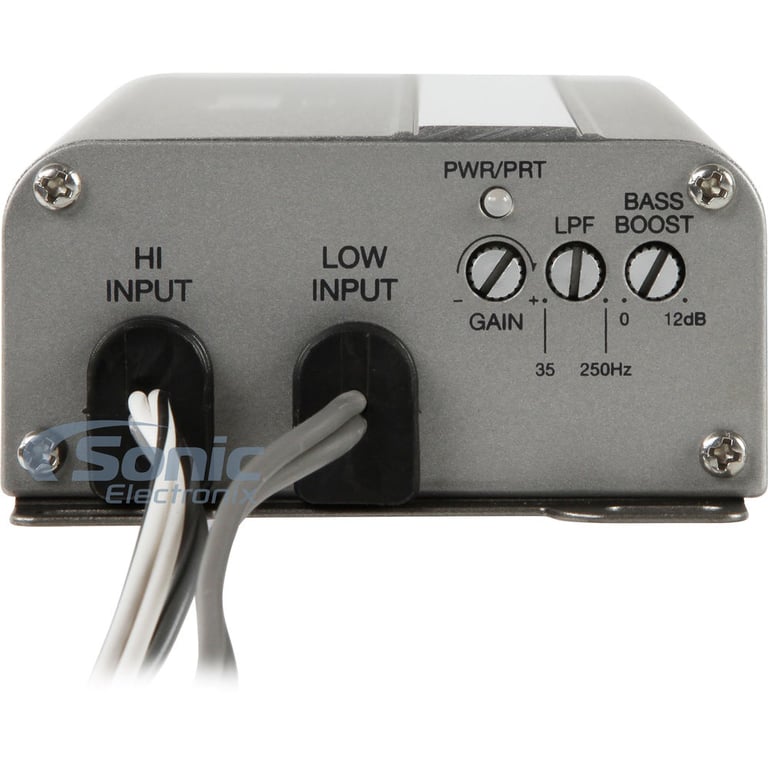

  • Features variable crossover and gain control
  • Turn on/off muting circuitry (soft mute)
  • Ground loop isolation input circuit
  • Nickel plated RCA, power, and speaker connections
  • Input sensitivity:
    • Low level: 0.2 - 8 volts
    • High level: 0.6 - 20 volts
  • Frequency Response: 20 - 30000 Hz
  • Total Harmonic Distortion (THD): 0.1%
  • Signal to Noise Ratio: 70 dB
  • Variable low-pass filter: 35 - 250 Hz
  • Variable Bass Boost: 0 - 12 dB
  • Fuse Rating: 40A
  • 8 AWG gauge amplifier wiring kit is recommended for installation
  • Dimensions: 3.25" L x 8" W x 1.5" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • MFR #: XC2110


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

GX608C main

JBL GX608C (GX608CAM)

420W Peak (140W RMS) 6.5” GX Series 2 Way 2.3-ohm Component Speaker System

7

Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

TNP212D2 small

MTX Audio TNP212D2

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
MTX TN250/1 amplifier included
• Selectable bass boost
• Speaker-level (high-level) inputs (adapter included)
• Wired remote bass level control

(196)

$369.95

List price $399.95

RTP8A small

MTX Audio RTP8A

• 8" Amplified Loaded Subwoofer System
• 120 watts RMS (360 watts Peak)
• Built-In amplifier
• Variable bass boost
• Speaker-Level Inputs
• EBC wired remote bass level control

(8)

$199.95

List price $219.95

W10S4_2, BXD3K, BAK42BK small

(2) Alpine W10S4 10" Bass Subwoofers + Belva 3000W Amplifier + 4 Gauge Amp Kit

• 750W Max
• 250W RMS
• Polypropylene-Mica cone
• High-excursion poly-foam surround
• High-strength custom steel frame
• Progressive Wavelit Ribs (P.W.R.) cone design

(82)

$364.88

List price $489.98

MBQBRO-302 small

MB Quart MBQBRO-302

• 12" Amplified Loaded Subwoofer System
• 400 watts peak
• Built-In class D amplifier
• Variable bass boost
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

$679.99

List price $899.99

QB12SPA small

NVX QB12SPA

• 12" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

$199.99

List price $299.98

51PTRTP10 small

Kicker PTRTP10 (51PTRTP10)

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

$499.99

List price $549.99

Specifications & Details


Amplifier Power Specifications
RMS Power @ 4 ohms
200 watts x 1 channel
RMS Power @ 2 ohms
300 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
400 watts
Total RMS Power Output
300 watts
Maximum Input Gauge Size
8 AWG
THD at Rated RMS Power
≤ 1%
Speaker Level Inputs
Yes
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
35 - 250 Hz
Signal-to-Noise Ratio
70 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
No
Fan Cooled
No
Subwoofer Specifications
Series
WG Series
Number of Subwoofers
1
Subwoofer Size
10"
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
RMS Power Handling
300 watts
Peak Power Handling
1000 watts
Woofer Surround
Nitrile Butadiene Rubber NBR
Woofer Composition
Aluminum-Coated Polypropylene
Minimum Sealed Box Volume
0.50 cubic feet
Maximum Sealed Box Volume
1.0 cubic feet
Minimum Ported Box Volume
1.00 cubic feet
Maximum Ported Box Volume
1.50 cubic feet
Sensitivity
87 dB
Frequency Response
30 - 1000 Hz
Xmax (millimeters)
6 mm
Top-Mount Depth (Mounting Depth)
5-3/8"
Cutout Diameter
9-7/32"
Recommended Enclosure Type
Ported / Vented
Sealed
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

WG2520D_XC2110

Weight:

13.80lbs

Internal SKU:

wg2520d_xc2110

Internal Product ID:

122075

Customer Ratings & Reviews


Clarion 300 Watt RMS 10

5 star
40%
4 star
60%
3 star
0%
2 star
0%
1 star
0%



Durability
4.2
Value
4.6
Features
4.2
Design
4.8
Usability
4.2

Customer Reviews

Sort by:

Loading...

Clarion XC2110

The following review is for XC2110, which is a part of the bundle you are viewing.

I liked this amplifier so much that this is the second one I bought. One for they boat and one for my truck. It's compact and powerful.

By Anonymous on May 13, 2018

24 found this helpful


OK

The following review is for WG2520D, which is a part of the bundle you are viewing.

sounds good for the money. good power, good sound, good value

By Rico on September 25, 2016

13 found this helpful


Looks great

The following review is for WG2520D, which is a part of the bundle you are viewing.

Sounds good. Bought these for the finish more than the sound.

By J on March 4, 2016

13 found this helpful


Home speakers

The following review is for WG2520D, which is a part of the bundle you are viewing.

The subs wider than usual frequency response up to 1kz made them usable in a pair of old speakers i am rebuilding they sound great

By Wayne on April 10, 2017

11 found this helpful


Great value and a pleasure to deal with

The following review is for WG2520D, which is a part of the bundle you are viewing.

Speakers sound great for the price. Would recommend to a fiend

By Jason on January 22, 2017

11 found this helpful




KS-AX5102, CXX8, BAK82 small

JVC KS-AX5102 + Boss 8" Subwoofer + 8 Gauge Amp Kit

2-Channel 600W DRVN Series Class A/B Car Amplifier

(108)

$173.88

List price $269.93

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1999 Honda Prelude

2017 BMW 2 Series

2007 Acura TSX

2005 Dodge Ram 1500

2007 Mercedes-Benz E-Class

1995 Geo Metro

2005 Scion xA

2000 Saturn LW2

2014 BMW 650i

1988 Audi 80

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
