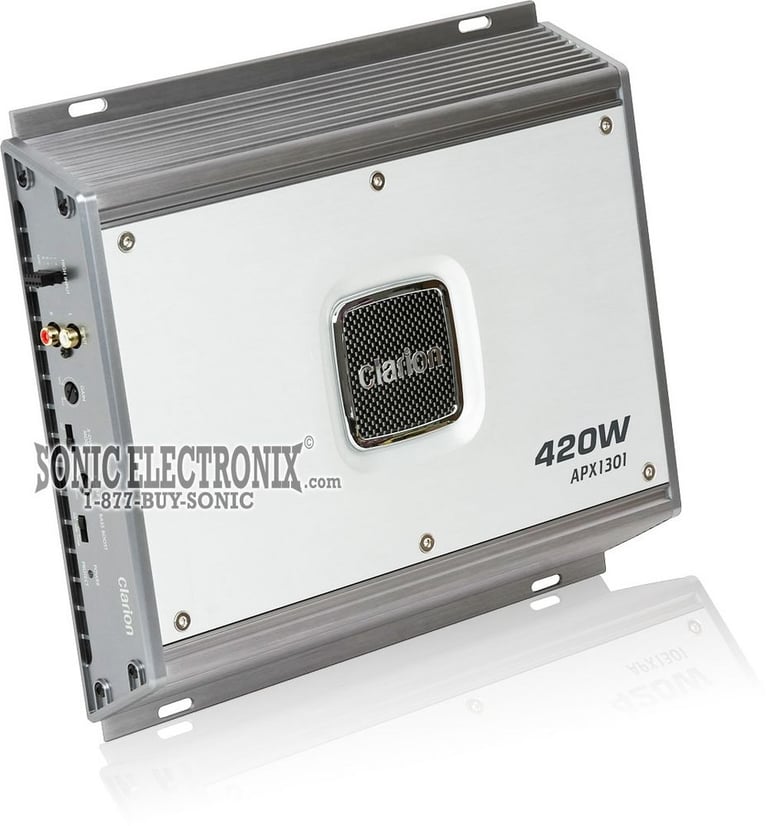

Clarion APX1301

420W Max, Monoblock Amplifier (APX-1301)

Clarion
Shop all Clarion
Product videos
highlight-star-icon

APX Series Class AB Monoblock Car Amplifier • 320W x 1 chan. @ 4 ohm • 400W x 1 chan. @ 2 ohm • 420W x 1 chan. Max • MOSFET power supply • Speaker-level inputs • Gold-plated connectors

Learn more about the apx1301

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

AVH-3500NEX main

Pioneer AVH-3500NEX

7" Single DIN Flip-Out Touchscreen CD/DVD Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

9
-10.75%

$829.99

List price $930.00

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

1
-42.29%

$74.99

List price $129.95

MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

39
-33.50%

$399.00

List price $600.00

Limited time!
iLX-W670-M main

Alpine iLX-W670-M

6.75" Double DIN Touchscreen Digital Multimedia Receiver with iDataLink Maestro Support, Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

126
-30.01%

$349.95

List price $500.00

Product Highlights


APX Series Class AB Monoblock Car Amplifier • 320W x 1 chan. @ 4 ohm • 400W x 1 chan. @ 2 ohm • 420W x 1 chan. Max • MOSFET power supply • Speaker-level inputs • Gold-plated connectors

Description


Clarion brand icon

Authorized dealer

  • APX Series Class AB Monoblock Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 320 watts x 1 chan.
    • 2 ohm: 400 watts x 1 chan.
  • Max power output: 420 watts x 1 chan.
  • MOSFET power supply
  • LED power and protect indicators
  • Selectable bass boost (0, 6, 12 dB at 50 Hz)
  • Speaker-level inputs
  • Gold-plated RCA level inputs
  • Gold-plated screw terminals
  • Variable low-pass filter (30-300 Hz, 24 dB/octave)
  • CEA-2006 compliant amplifier
  • Frequency response: 20-20000 Hz
  • Dimensions: 11-7/8"L x 11"W x 2-1/4"H
  • 8-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • 1-year SonicElectronix.com warranty

Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(19)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(41)

$399.99

List price $429.99

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(144)

$259.99

List price $335.99

CXA400.1 small

Kicker CXA400.1 (46CXA4001T)

• 150 watts x 1 channel @ 4 ohm
• 300 watts x 1 channel @ 2 ohm
• 400 watts x 1 channel @ 1 ohm
• Total RMS Power: 400 watts
• Class D 1 ohm Stable Monoblock Amplifier

(24)

$199.99

List price $219.99

JD500/1 small

JL Audio JD500/1

• 250 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable Monoblock Amplifier

(12)

$299.99

List price $299.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(25)

$429.99

List price $429.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(38)

$209.99

List price $227.99

GP-3500.1D small

Crunch GP-3500.1D

• 875 watts x 1 channel @ 4 ohm
• 1750 watts x 1 channel @ 2 ohm
• 3500 watts x 1 channel @ 1 ohm
• Total Peak Power: 3500 watts
• Class D 1 ohm Stable Monoblock Amplifier

(19)

$99.99

List price $219.99

CXA800.1 small

Kicker CXA800.1 (46CXA8001T)

• 300 watts x 1 channel @ 4 ohm
• 600 watts x 1 channel @ 2 ohm
• 800 watts x 1 channel @ 1 ohm
• Total RMS Power: 800 watts
• Class D 1 ohm Stable Monoblock Amplifier

(19)

$299.99

List price $329.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
320 watts x 1 channel
RMS Power @ 2 ohms
400 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
1 - Mono
Total Peak Power Output
420 watts
Total RMS Power Output
400 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohm
THD at Rated RMS Power
0.1%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
30 - 300 Hz
Signal-to-Noise Ratio
70 dB
Bass Boost
Selectable 0, 6, 12 dB
Remote bass/level controller
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

APX1301

Weight:

10.00lbs

Internal SKU:

apx1301

Internal Product ID:

12301

Product and How-to Videos


Customer Ratings & Reviews


Clarion APX1301 thumbnail image

5 star
0%
4 star
100%
3 star
0%
2 star
0%
1 star
0%



Durability
4
Value
4
Features
3
Design
3
Usability
5

Customer Reviews

Sort by:

Loading...

I like it :)

I recommend it cause its pretty true to its claimed power ratings, it's decently priced, and its power per dollars ratio is nice too. 400 watts RMS for around 100 or so dollars is hard to find when it comes to sticking to a name brand.
Now for what I don't like about the amp is the bass boost. It is only off, halfway up, or on max. I can't stand that... and it gets hot (but mine is under a seat with no fan which I'll add soon)
Mine is pushing two 12" svc MTX 4500's each in a .8 cubic foot sealed enclosure. This amp easily over powers them without clipping. I'm only using 8 gauge wires which will soon change too.
I hope this helped you all!

By madmessycan on February 6, 2010
