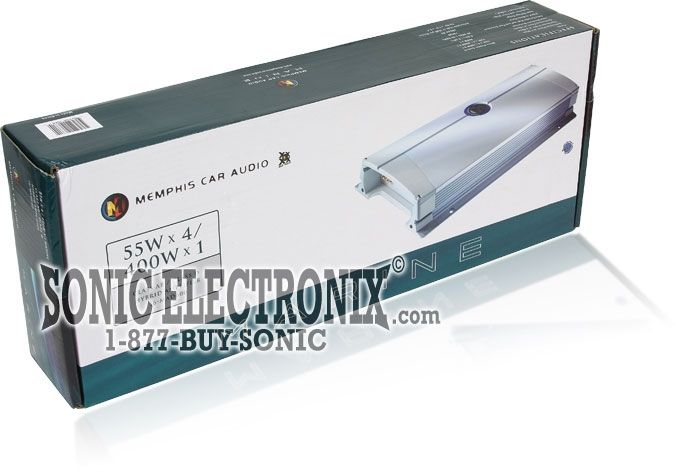

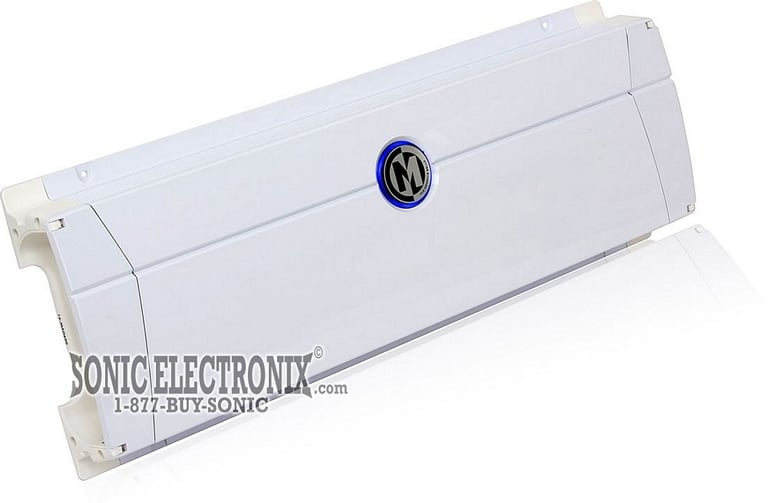

Memphis Marine Belle 16-MAD600

700W RMS, The Memphis Belle 5-Channel Marine MClass Amplifier

Memphis
Shop all Memphis
highlight-star-icon

Memphis Marine Series 5-Channel Class AB/D Marine Amplifier • 55W x 4 chan. + 100W x 1 chan. @ 4 ohm • 75W x 4 chan. + 200W x 1 chan. @ 2 ohm • 400W x 1 chan. (subwoofer) @ 1 ohm • MOSFET power supply • Conformal circuit board coating for anti-corrosion protection

Learn more about the 16mad600

We apologize

This item has been discontinued


Loading...
72-7302 main

Metra 72-7302

Install New Speakers in select 2010-2024 vehicles from Hyundai, Kia, Genesis

8
-13.34%

$12.99

List price $14.99

LPHHY06 main

PAC LPHHY06

Vehicle Specific Audio Integration T-Harness for select 2017-2023 vehicles from Kia, Hyundai

-45.88%

$58.99

List price $109.00

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

114
-37.15%

$21.99

List price $34.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

FRING65 main

NVX FRING65

Universal 6.5" or 6.75" Self-Adhesive Foam Speaker Baffle Ring Kit (Pack of 2)

43
-10.01%

$17.99

List price $19.99

ESP65 main

NVX ESP65

360W Peak (120W RMS) 6.5" E-Series 2 Way Coaxial Car Speakers

13
-18.19%

$44.99

List price $54.99

ADS-MRR2 main

iDataLink Maestro RR2 Interface Module

Universal Stereo Replacement Interface Module for iDataLink Maestro Compatible Stereos

5
-18.75%

$259.99

List price $319.99

ADS-MAR main

iDatalink Maestro ADS-MAR Wiring Interface

Factory Amplifier Replacement Interface for

1
-17.24%

$119.99

List price $144.99

Description


Memphis brand icon

Authorized dealer

  • Memphis Marine Series 5-Channel Class AB/D Marine Amplifier
  • RMS Power Rating:
    • 4 ohm: 55 watts x 4 chan. + 100 watts x 1 chan.
    • 2 ohm: 75 watts x 4 chan. + 200 watts x 1 chan.
    • 1 ohm: 400 watts x 1 chan. (Subwoofer Channel)
    • Bridged, 4 ohm: 150 watts x 2 chan.
  • MOSFET power supply
  • LED power and protection indicators
  • Remote bass level input (Memphis 16-MCRG remote level control sold separately)
  • White powder coat finish
  • Bridgeable operation
  • 1 Ohm stable (subwoofer channel)
  • Conformal circuit board coating for anti-corrosion protection
  • Tested for operation in harsh marine environment
  • Heavy duty aluminum alloy heatsink
  • Platinum-plated screw terminals

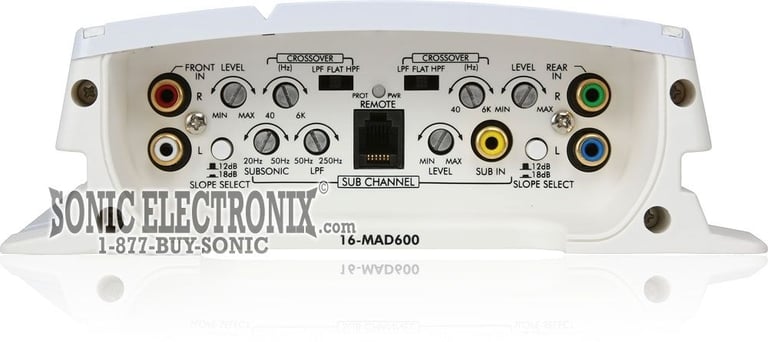

  • Variable high-pass filter:
    • Channels 1-4: 40-6000 Hz, 12/18 dB/octave
  • Variable low-pass filter:
    • Channels 1-4: 40-6000 Hz, 12/18 dB/octave
    • Channels 5: 50-250 Hz, 12/18 dB/octave
  • Subsonic Filter (20-50 Hz)
  • Frequency response: 10-50000 Hz
  • Dimensions: 21.125"L x 7.6"W x 2.4"H

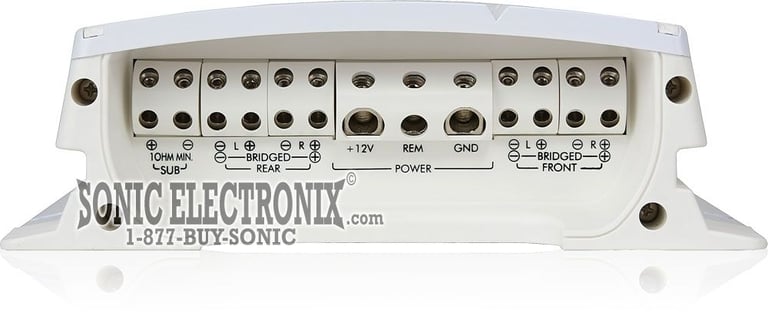

  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • 1-year SonicElectronix.com warranty

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Club 620F main

JBL Club 620F (SPKCB620FAM)

330W Peak (110W RMS) 6.5" Club Series 2-way 3-ohm Shallow Mount Coaxial Car Speakers

2
-38.48%

$79.95

List price $129.95

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99


Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

VAD11005v2 small

NVX VAD11005 v2 (VAD11005v2)

• 80 watts x 4 channel + 350 watts x 1 channel @ 4 ohm
• 125 watts x 4 channel + 600 watts x 1 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm + 600 watts x 1 channel @ 2 ohm
• Total RMS Power: 1100 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(46)

$349.99

List price $419.99

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(35)

$259.99

List price $335.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
55 watts x 4 channel
RMS Power @ 2 ohms
75 watts x 4 channel
Bridged RMS Power
150 watts x 2 channel
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
100 watts x 1 channel
RMS Power @ 2 ohms
200 watts x 1 channel
RMS Power @ 1 ohm
400 watts x 1 channel
Amplifier Specifications
Amplifier Class
Channels 1-4: A/B, Channel 5: D
Number of Channels
5-Channel
Total RMS Power Output
500 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohms (Channels 1-4), 1 ohm (Channel 5)
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.03%
Speaker Level Inputs
No
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
40 - 6000 Hz
Low-Pass Crossover Frequency
Channels 1-4: 40-6000Hz and Channel 5: 50-250Hz
Subsonic Filter
20 - 50 Hz
Signal-to-Noise Ratio
95 dB
Remote bass/level controller
Optional (Accessory required and sold separately)
Fuse Rating
30A x 3
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

16-MAD600

Weight:

14.00lbs

Internal SKU:

16mad600

Internal Product ID:

12380
