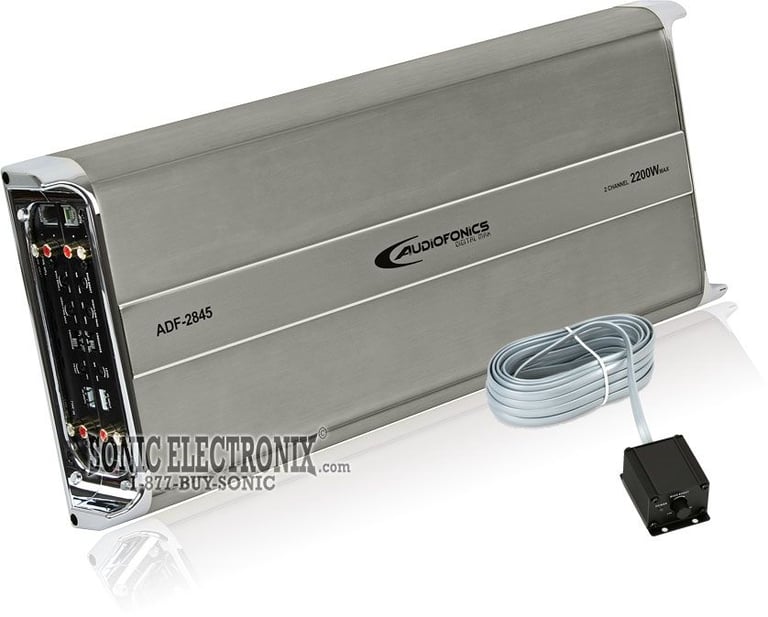

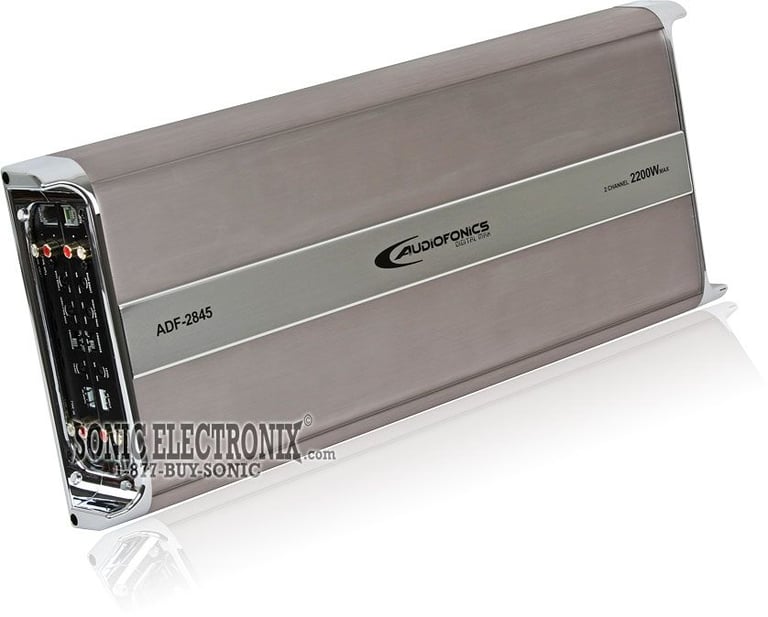

AudioFonics ADF-2845

2200W Max, 2-Channel Amplifier

Product videos
highlight-star-icon

ADF Series 2-Channel Class AB Car Amplifier • 200W x 2 chan. @ 4 ohm • 300W x 2 chan. @ 2 ohm • 600W x 1 chan. @ 4 ohm • 1100W x 2 chan. Max • MOSFET power supply • Oversized capacitor tanks • Preamp RCA outputs

Learn more about the adf2845

We apologize

This item has been discontinued


Loading...
Lowest price in 30 days
H7694 main

Cerwin Vega H7694

800W Peak (150W RMS) 6x9" HED Series 4-Way Coaxial 4-ohm Speakers

32
-25.93%

$79.99

List price $107.99

660BRGB main

Boss Elite 660BRGB

Double DIN CD Receiver with Bluetooth (Black)

4

Product Highlights


ADF Series 2-Channel Class AB Car Amplifier • 200W x 2 chan. @ 4 ohm • 300W x 2 chan. @ 2 ohm • 600W x 1 chan. @ 4 ohm • 1100W x 2 chan. Max • MOSFET power supply • Oversized capacitor tanks • Preamp RCA outputs

Description


AudioFonics brand icon

Authorized dealer

  • ADF Series 2-Channel Class AB Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 200 watts x 2 chan.
    • 2 ohm: 300 watts x 2 chan.
    • Bridged, 4 ohm: 600 watts x 1 chan.
  • Max power output: 1100 watts x 2 chan.
  • MOSFET power supply

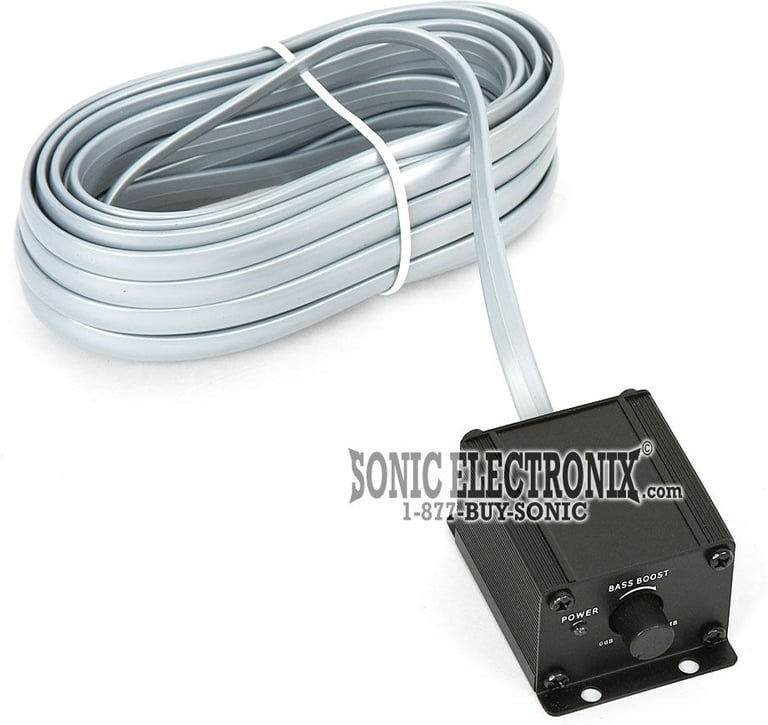

  • Wired remote bass level control included
  • LED power and protection indicators
  • Tuned Bass EQ (0-18 dB bass boost at 45 Hz)
  • Oversized capacitor tanks
  • Bridgeable operation
  • Input sensitivity controls
  • Speaker-level inputs with soft turn-on/off circuitry
  • Preamp RCA outputs
  • Thermal and short circuit protection circuitry
  • Heavy duty aluminum heatsink
  • Gold-plated RCA level inputs
  • Gold-plated screw terminals
  • Variable high-pass filter (40-400 Hz, 12 dB/octave)
  • Variable low-pass filter (40-400 Hz, 12 dB/octave)
  • Frequency response: 10-50000 Hz
  • Dimensions: 8.7"L x 21.7"W x 2.0"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 2-year Manufacturer's warranty

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3

Best selling similar products

ATOM-900.2 PRO small

Deaf Bonce Apocalypse ATOM-900.2 PRO

• 350 watts x 2 channel @ 4 ohm
• 510 watts x 2 channel @ 2 ohm
• 900 watts x 2 channel @ 1 ohm
• Bridged: 1020 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 900 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$229.90

List price $229.90

MFA 2.420 small

Deaf Bonce MFA 2.420

• 420 watts x 2 channel @ 4 ohm
• 630 watts x 2 channel @ 2 ohm
• Bridged: 1260 watts x 1 channel @ 4 ohm
• Total RMS Power: 1260 watts
• Class D 2 ohm Stable 2-Channel Amplifier

$229.90

List price $229.90

ATOM-700.2 PRO small

Deaf Bonce Apocalypse ATOM-700.2 PRO

• 230 watts x 2 channel @ 4 ohm
• 480 watts x 2 channel @ 2 ohm
• 700 watts x 2 channel @ 1 ohm
• Bridged: 960 watts x 1 channel @ 4 ohm
• 14000 watts @ 2 ohm
• Total RMS Power: 700 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

(1)

$199.90

List price $199.90

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
200 watts x 2 channel
RMS Power @ 2 ohms
300 watts x 2 channel
Bridged RMS Power
600 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
2-Channel
Total Peak Power Output
2200 watts
Total RMS Power Output
600 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
Remote bass/level controller
Yes
Warranty and Return Policy
Parts Warranty Duration
2 years
Labor Warranty Duration
2 years
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

ADF-2845

Weight:

13.00lbs

Internal SKU:

adf2845

Internal Product ID:

12387

Product and How-to Videos


Customer Ratings & Reviews


AudioFonics ADF-2845 thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
4.5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

tru power

this amp is amazing. it has the power it says it has, not like those other weird name brand amps. i have them hooked up to 2 12in ts-sw3001s2 (pioneer shallows). let me tell you this amp makes those subs do work. i have had this amp also hooked up to 2 12in L7 kicker and it bumped them just fine also (they hit hard). i would totally recommend this amp to any one looking to power up their system. i have it bridged for more power.

By ed on May 29, 2010

3 found this helpful


AWESOME!

I really recomend it, it's very good! the sound is perfect! I really love that amplifier... The only thing that i just hate a little is that even when i have the bass in 0dB, it has a little bit of bass! But it's the best!

By Xx'Alfre'xX on June 20, 2009
