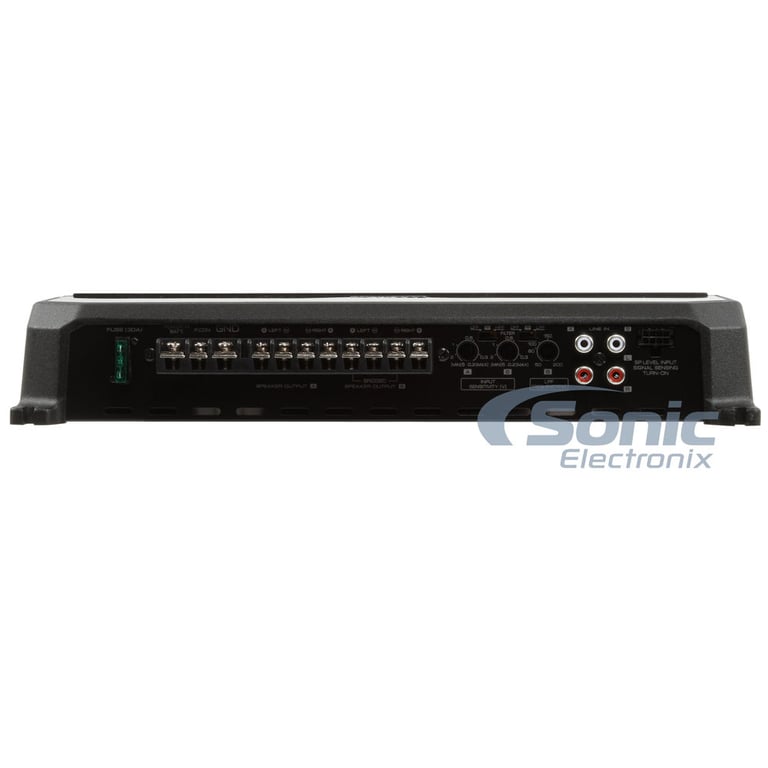

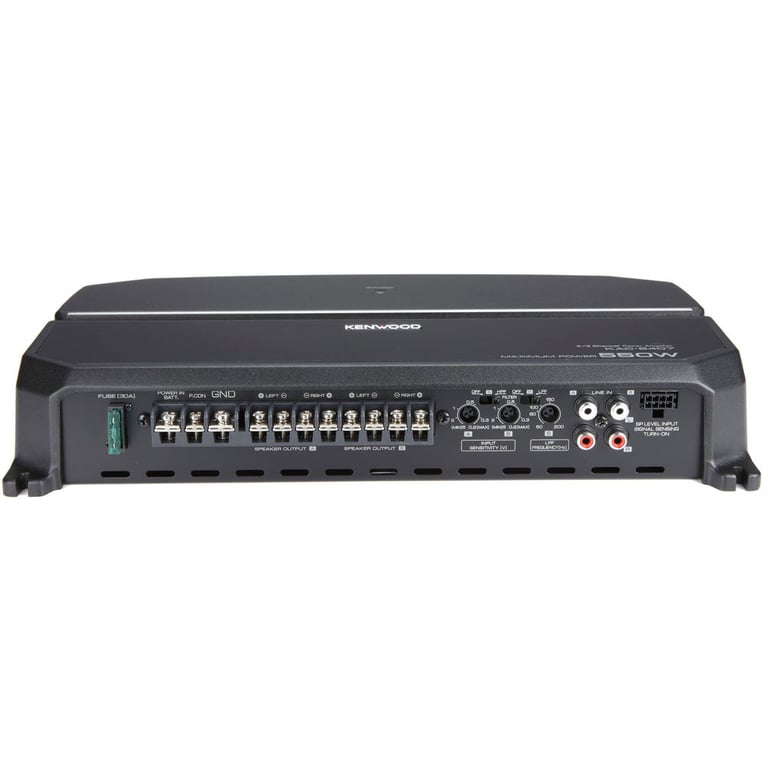

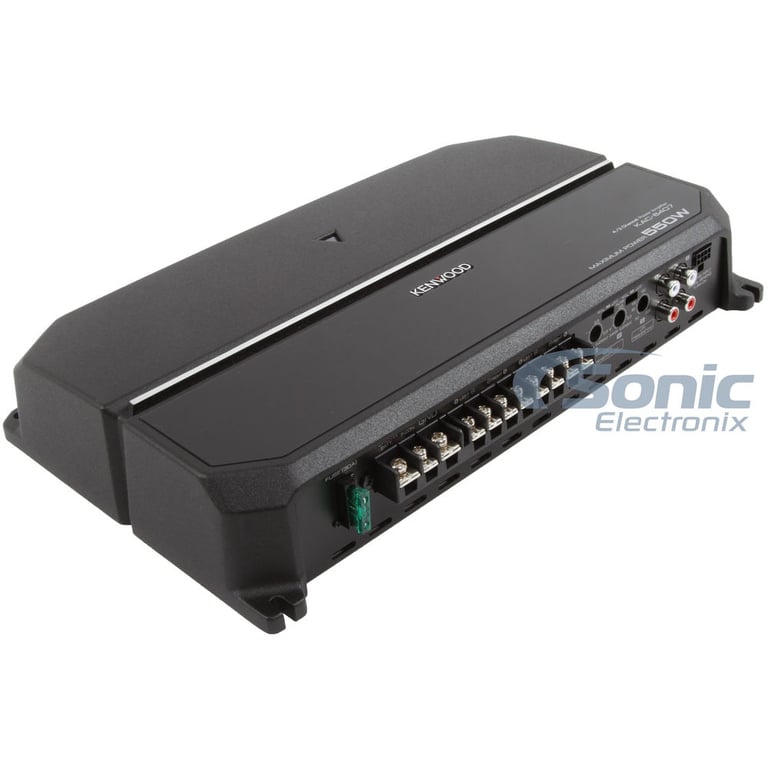

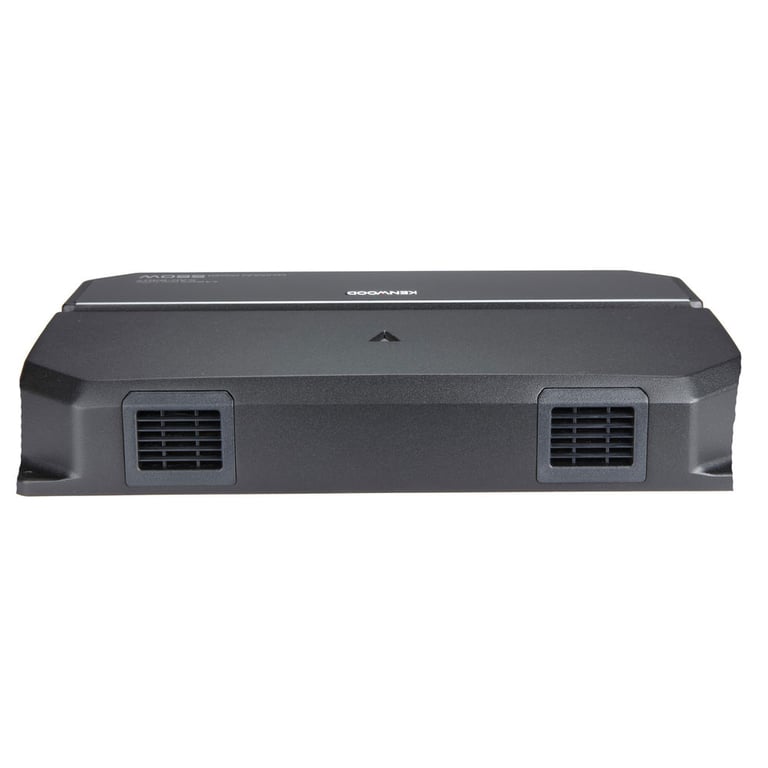

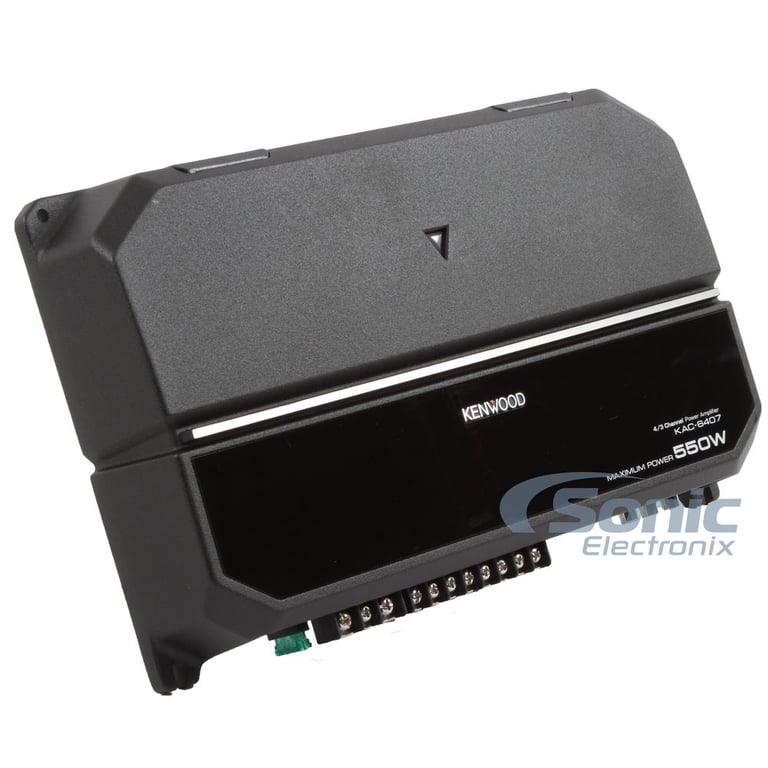

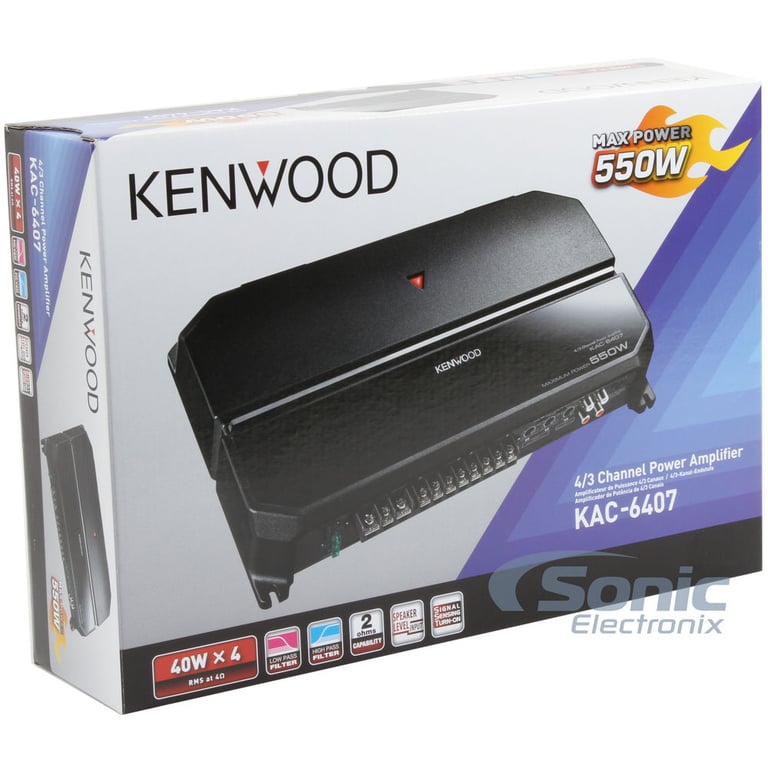

Kenwood KAC-6407

550W Max (130W RMS) Class-AB 4-Channel 2-Ohm Stable Amplifier

Kenwood
Shop all Kenwood
highlight-star-icon

• 40 Watts RMS x 4 @ 4 ohm
• 60 Watts RMS x 2 @ 2 ohm
• 130 Watts RMS x 2 @ 4 ohmS
• Total Max Power: 550 Watts
• CTA-2006 Compliant/
• Aluminum Heatsink
• 13-3/16"W x 8-1/16"L x 2-3/16"H

Learn more about the kac6407

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Description


Kenwood brand icon

Authorized dealer

General Features:

  • Kenwood KAC-6407
  • Class-AB FullRange 2-Ohm Stable 4-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 40 watts x 4 chan.
    • 2 ohm: 60 watts x 2 chan.
    • Bridged, 4 ohm: 130 watts x 2 chan.
  • Max power output: 550 watts
  • CTA-2006 Compliant Amplifier
  • Pulse Width Modulated MOSFET power supply
  • Soft start turn-on
  • 4/2 channel operation
  • Speaker-level (high-level) inputs
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Dual speaker terminals simplify the hookup of multiple speakers
  • Heavy duty aluminum alloy heat-sink
  • Input sensitivity:
    • Low level: .2V
    • High level: 5V
  • Frequency Response: 20-50,000 Hz
  • Signal to Noise Ration: 100 dB
  • Built-in high-pass filter: 80, Hz, -12 dB/octave
  • Variable low-pass filter: 50-200 Hz, 24 dB/octave
  • Fuse Rating: 30 A x 1
  • 10 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 13-3/16"W x 8-1/16"L x 2-3/16"H
  • Authorized Internet Dealer
  • 1-year Sonic Electronix Warranty
Check out the KAC-6407 Owner's Manual

Best selling similar products

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(22)

$159.99

List price $215.99

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(111)

$209.99

List price $239.99

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(44)

$304.99

List price $379.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
40 watts x 4 channel
RMS Power @ 2 ohms
60 watts x 4 channel
Bridged RMS Power
130 watts x 4 channel
Amplifier Specifications
Series
KAC Series
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
550 watts
Total RMS Power Output
130 watts
Maximum Input Gauge Size
10 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
Fixed at 80 Hz
Low-Pass Crossover Frequency
50 - 200 Hz
Signal-to-Noise Ratio
80 dB
Remote bass/level controller
No
Fuse Rating
30A x 1
Total Fuse Rating
30
Strappable
No
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
What is in the box?
Paperwork
User manual
WITB: Amplifiers
Amplifier
Mounting screws (4)
High-level input wiring harness w/ molex connector
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

KAC-6407

Weight:

4.00lbs

Internal SKU:

kac6407

Internal Product ID:

127363
