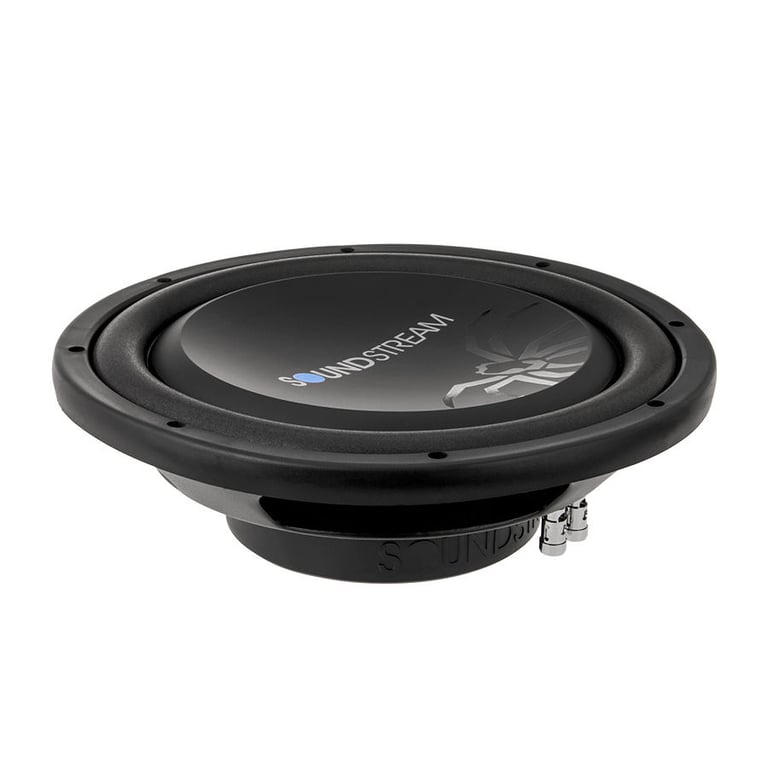

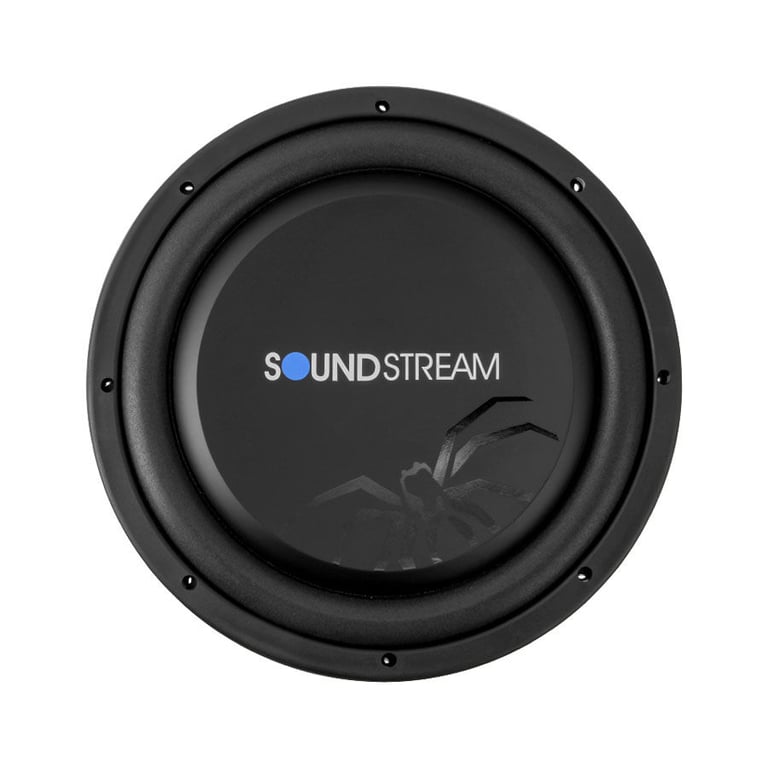

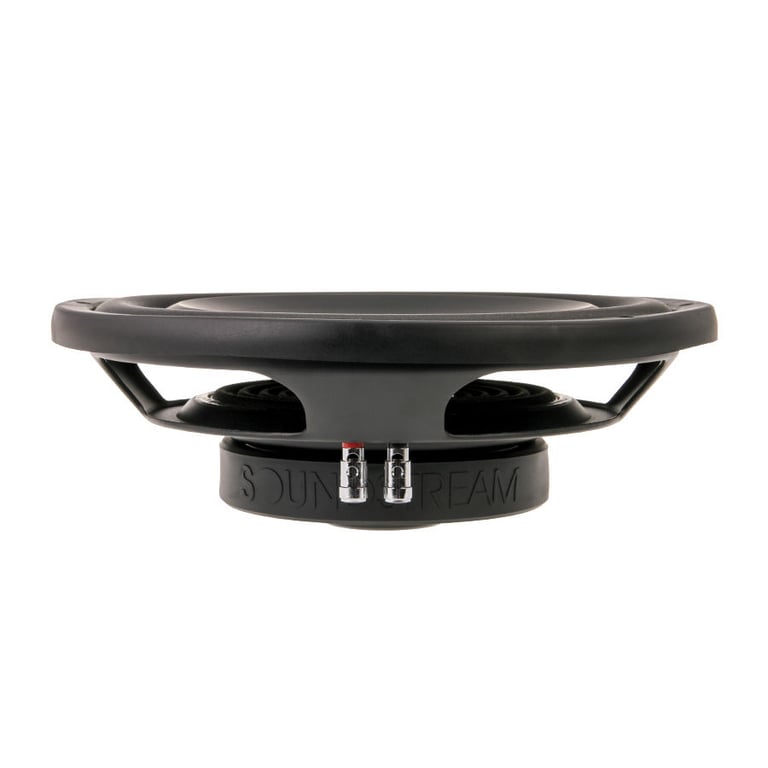

Soundstream PSW.104

500W Max (250W RMS) Shallow Mount 10" Picasso Series SVC 4 ohm Car Subwoofer

highlight-star-icon

• 500 Watts Max
• 250 Watts RMS
• Pressed Spruce Cone with Polypropylene Coating
• Polyether Foam Surround
• Stamped Steel Basket
• Shallow Mount Design
• Nickel Plated Spring Terminals

Learn more about the psw104

We apologize

This item has been discontinued


Loading...
AXSSO-GM2 main

Axxess AXSSO-GM2

Stop/Start Override Interface in select 2016-2025 vehicles from Chevrolet, GMC, Buick

-10.07%

$124.99

List price $138.99

AXUSBM-A main

Axxess AXUSBM-A

Factory USB Port Retention Adapter in select 2009-2025 vehicles from Chevrolet, GMC, Cadillac

1
-16.69%

$4.99

List price $5.99

LPHGM71 main

PAC LPHGM71

Vehicle Specific Audio Integration T-Harness for select 2019-2024 vehicles from GMC, Chevrolet

1
-42.28%

$86.00

List price $149.00

82-3005 main

Metra 82-3005

6" to 6.75" Speaker Mounting Adapters for select 2010-2025 vehicles from GMC, Chevrolet, Cadillac

10
-11.11%

$31.99

List price $35.99

40-EU55 main

Metra 40-EU55

Antenna Adapter for select 2000-2026 vehicles from Audi, Chevrolet, Volkswagen

49
-13.05%

$19.99

List price $22.99

72-4572 main

Metra 72-4572

Install New Speakers in select 2006-2024 vehicles from Chevrolet, GMC, Cadillac

36
-6.67%

$13.99

List price $14.99

EU08 main

PAC EU08

Connect Factory Antenna to a New Aftermarket Stereo for select 2000-2025 vehicles from Volkswagen, Chevrolet, Audi

-16.67%

$20.00

List price $24.00

AXTC-LN30 main

Axxess AXTC-LN30

Install a New Car Stereo and Retain Steering Wheel Controls and Other Factory Features in select 2019-2025 vehicles from Chevrolet, GMC, Cadillac

1
-10.00%

$197.99

List price $219.99

99-3022B main

Metra 99-3022B Dash Kit

Single DIN Stereo Dash Kit for select 2018-2022 Equinox

-38.19%

$33.99

List price $54.99

95-3022B main

Metra 95-3022B Dash Kit

Install a new Double-DIN car stereo in select 2018-2022 Equinox

-10.64%

$41.99

List price $46.99

Description


Soundstream brand icon

Authorized dealer

General Features:

  • 10" 4 ohm Picasso Series Shallow Mount Subwoofer
  • Power Handling:
    • Peak: 500 watts
    • RMS: 250 watts
  • Pressed spruce pulp cone with polypropylene coating
  • Polyether foam durround
  • Formed steel frame
  • 1-piece gasket trim ring
  • 6mm T-yoke
  • Nickel-plated 8 AWG spring terminals
  • 2" 4-layer voice coil
  • Overcompensating magnet structure
  • Top-mount depth: 3"
  • Sensitivity: 86.4dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • Priced Individually

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Soundstream PSW.104 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Soundstream PSW.104 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Soundstream PSW.104 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Soundstream PSW.104 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-16.67%

$349.99

List price $420.00

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(68)

$139.99

List price $139.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

VCW104v3 small

NVX VCW104 Version 3 (VCW104v3)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 6.30"
• Sensitivity: 82 dB (1W/1m)

(71)

$169.99

List price $203.99

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(1)

$189.95

List price $159.95

Specifications & Details


Subwoofer Specifications
Series
Picasso Series
Subwoofer Size
10"
Peak Power Handling
500 watts
RMS Power Handling
250 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2"
Sensitivity
86.4 dB
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Pressed Pulp Fiber
Woofer Surround
Polyether Foam
Magnet Structure
Single Stacked
Recommended Enclosure Specifications
Recommended Enclosure Type
Sealed
Optimum Sealed Box Volume
.75 cubic feet
Top-Mount Depth (Mounting Depth)
3"
Shallow Mount Installation
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

PSW.104

Weight:

8.00lbs

Internal SKU:

psw104

Internal Product ID:

127501

Customer Ratings & Reviews


Soundstream PSW.104 thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
5
Usability
5

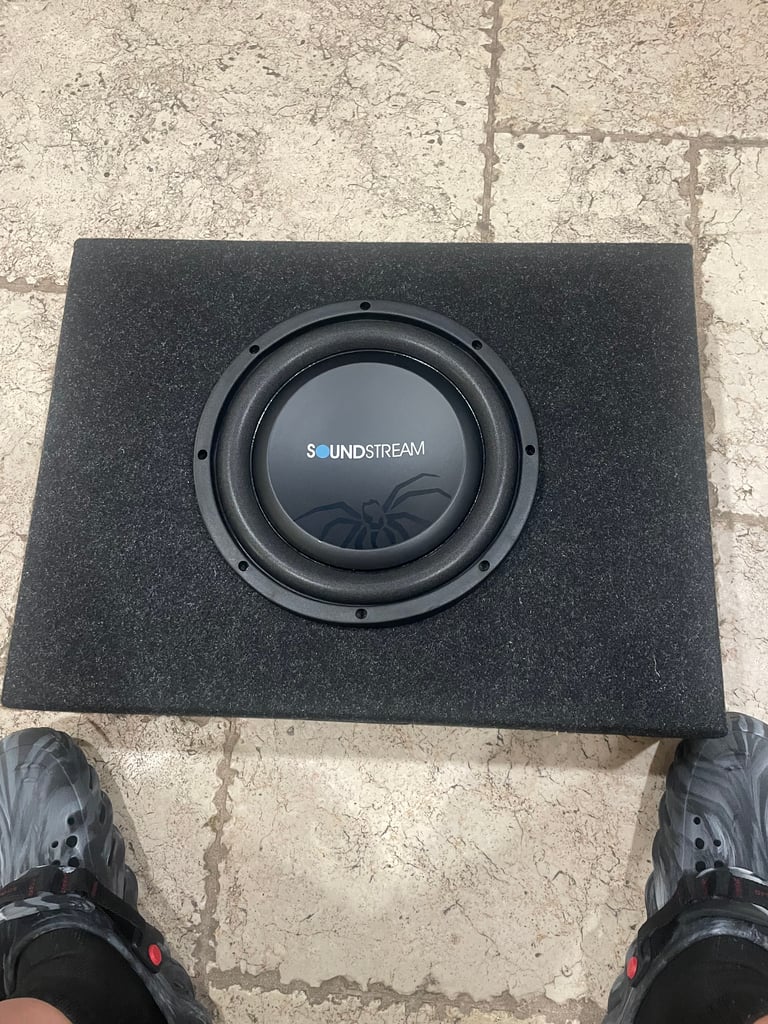

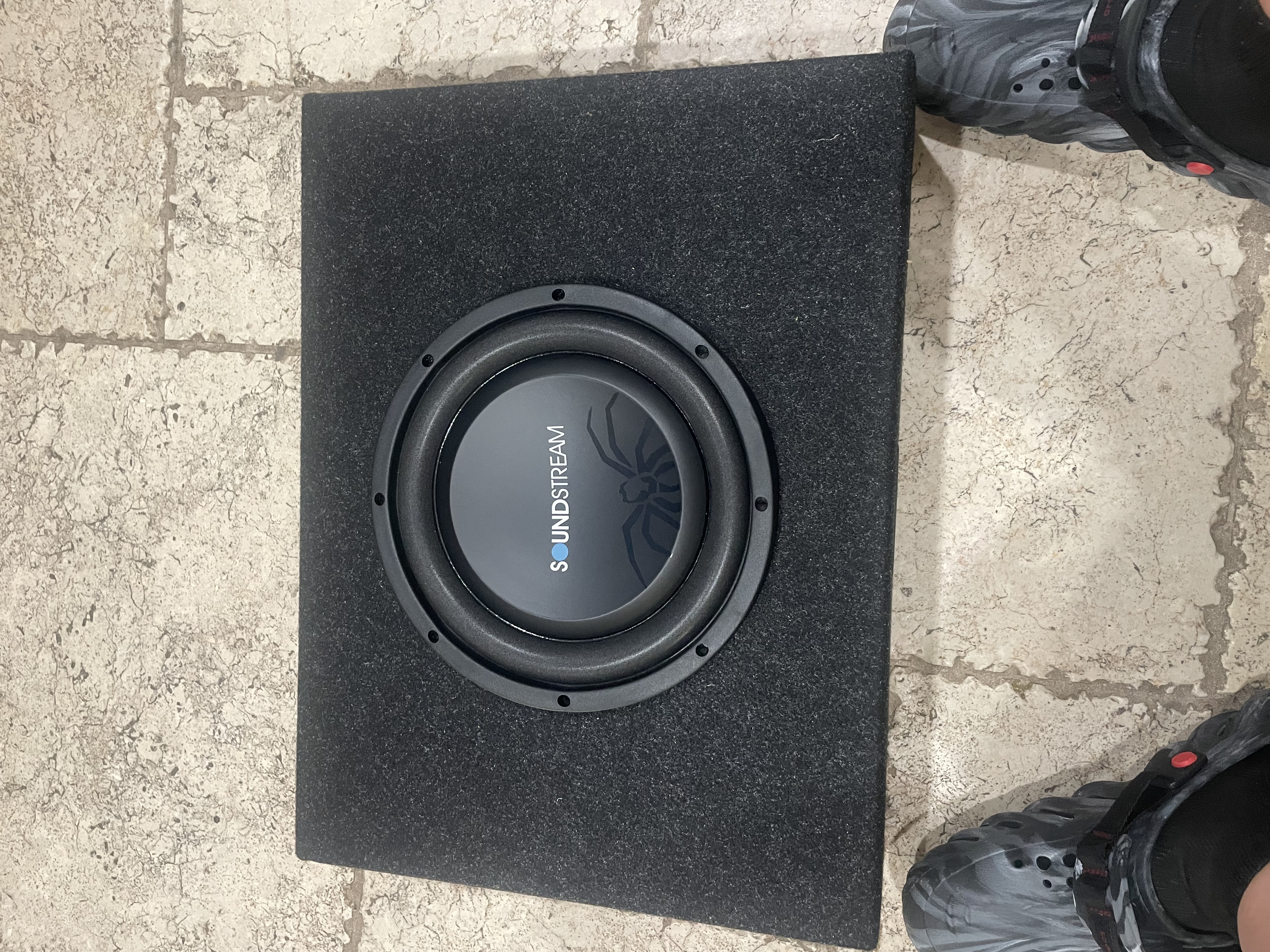

Customer Photos & Videos
