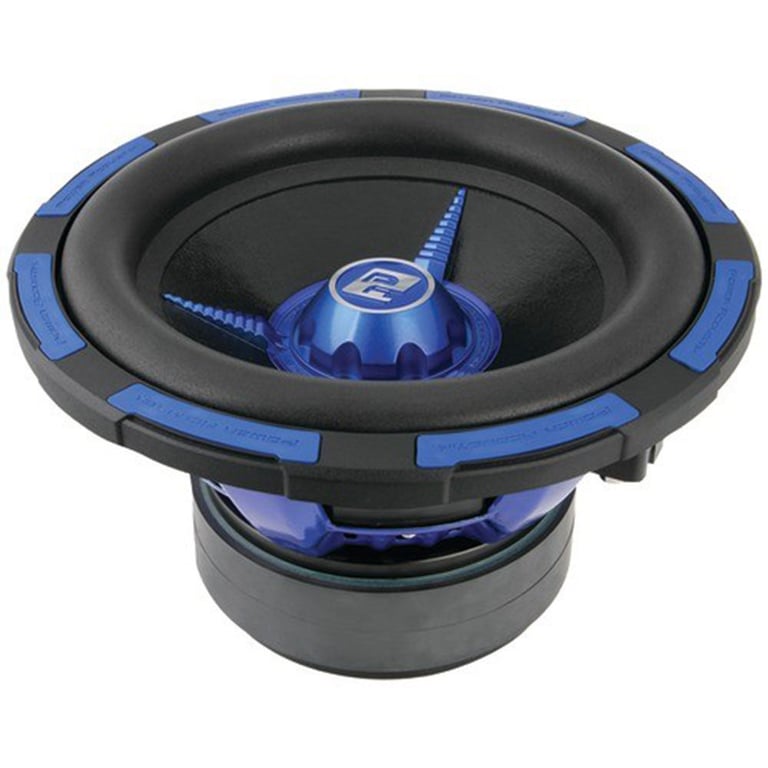

Power Acoustik MOFOS-10D4

2,200W Peak (1,100W RMS) 10" MOFO Type-S Dual 4-Ohm Car Subwoofer

Power Acoustik
Shop all Power Acoustik
highlight-star-icon

• 1,100 Watts RMS
• 2,200 Watts Max
• Non-transfer spruce pulp cone
• Polyether foam surround
• Die-cast aluminum basket
• Vented t-yoke for heat reduction
• Dual 2.5-inch voice coils

Learn more about the mofos10d4

We apologize

This item has been discontinued

Description


Power Acoustik brand icon

Authorized dealer

General Features:

  • 10" 4-ohm Subwoofer
  • Power Handling:
    • Peak: 2,200 watts
    • RMS: 1,100 watts
  • Non-transfer spruce pulp cone
  • Polyether foam surround
  • Vented T-yoke and frame to reduce heat buildup
  • Dual poly-cotton suspension to dampen violent accelerations
  • Die-cast aluminum basket
  • Nickel-plated 8 gauge spring-loaded terminals
  • Dual 2.5-inch voice coil w/ large gauge wire
  • Top-mount depth: 5.5"
  • Cutout diameter: 9.25"
  • Sensitivity: 82.6dB
  • Resonance Frequency (Fs): 30.31Hz
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • Priced Individually

Check out the MOFOS-10D4 Owner's Manual

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Power Acoustik MOFOS-10D4 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Power Acoustik MOFOS-10D4 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Power Acoustik MOFOS-10D4 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Power Acoustik MOFOS-10D4 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

VCW104v3 small

NVX VCW104 Version 3 (VCW104v3)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 6.30"
• Sensitivity: 82 dB (1W/1m)

(71)

$169.99

List price $203.99

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(68)

$139.99

List price $139.99

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(1)

$189.95

List price $159.95

Specifications & Details


Subwoofer Specifications
Series
MOFO Series
Subwoofer Size
10"
Peak Power Handling
2200 watts
RMS Power Handling
1100 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2.5"
Sensitivity
82.6 dB
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Non-transfer spruce pulp
Woofer Surround
Polyether Foam
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
.75 cubic feet
Optimum Sealed Box Volume
1 cubic feet
Minimum Ported Box Volume
1.5 cubic feet
Optimum Ported Box Volume
1.75 cubic feet
Top-Mount Depth (Mounting Depth)
5.5"
Cutout Diameter
9.25"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
30.31 Hz
Equivalent Compliance (Vas)
24.9188 liters
Total Speaker Q Value (Qts)
.53
Electrical Q Value (Qes)
4.78
Electrical Resistance of Voice Coil (Re)
7.24 ohm
Mechanical Q Value (Qms)
4.78
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

MOFOS-10D4

Weight:

5.30lbs

Internal SKU:

mofos10d4

Internal Product ID:

127615
