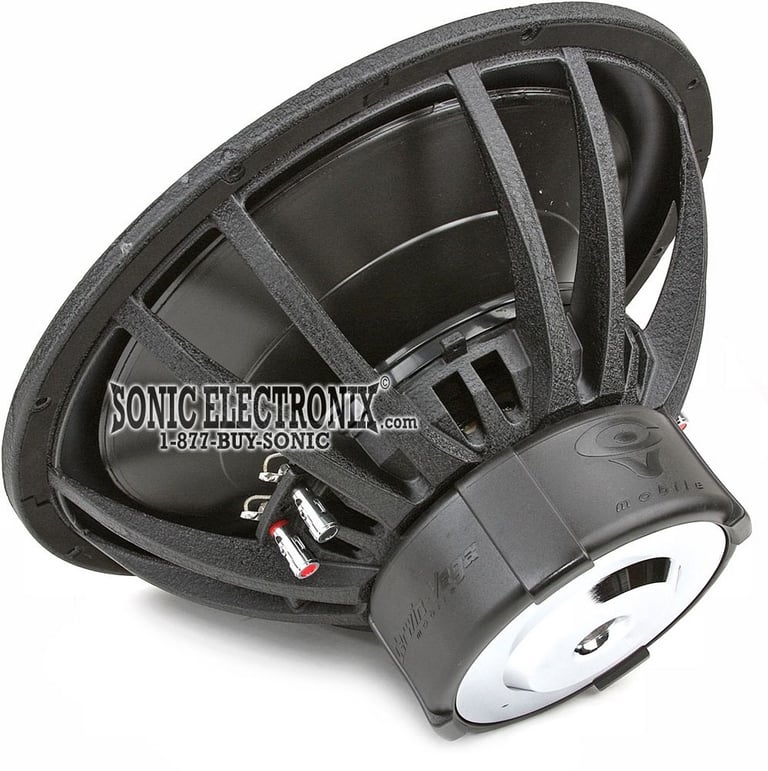

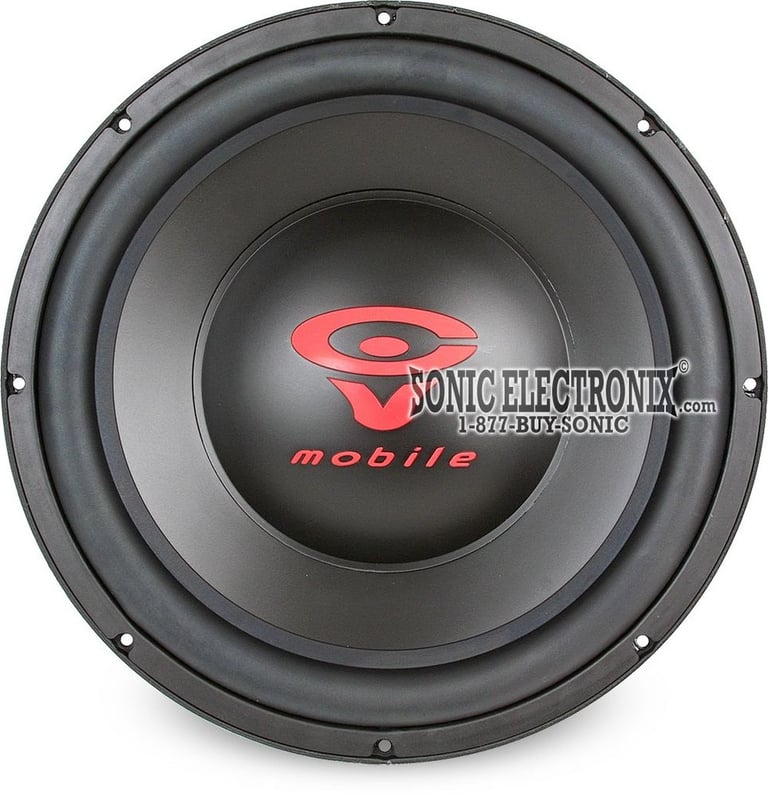

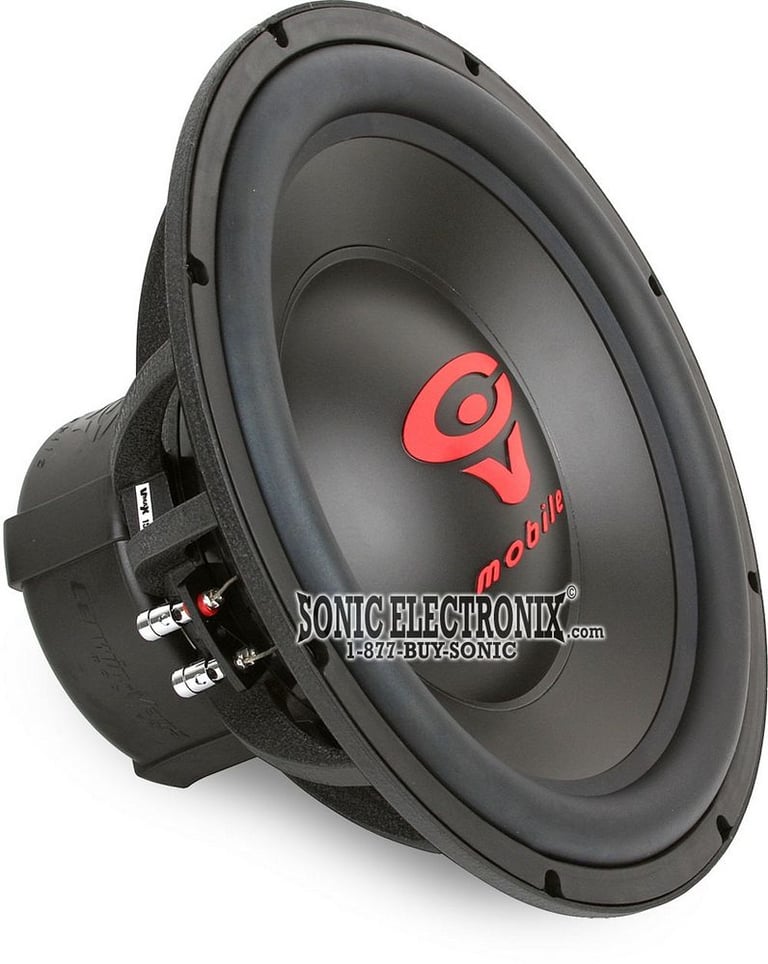

Cerwin-Vega VMAX152

15" Dual 2 ohm VMAX Series Car Subwoofer

Product videos
highlight-star-icon

15" Dual 2 Ohm VMAX Series Subwoofer • 1000W Max • 500W RMS • Composite Polypropylene Woofer Cone • Wide Rubber Surround • Window Framed Venting Cooling • Dual Linear Rolled Spiders • 2.5" Dual 2 ohm Voice Coils

Learn more about the vmax152

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

vpro152d thumbnail

Cerwin-Vega VPRO152D

OUR PRICE: $179.99

View item
NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
70-7903 main

Metra 70-7903 Wiring Harness

Install a new car stereo in select 2001-2021 vehicles from Mazda, Fiat

18
HO6 main

PAC HO6

Install a New Car Stereo and Retain the Factory Antenna in select 2003-2016 vehicles from Honda, Mazda, Acura

-70.83%

$7.00

List price $24.00

95-7521B main

Metra 95-7521B Dash Kit

Install a new Double-DIN car stereo in select 2012-2015 5

-38.47%

$23.99

List price $38.99

Product Highlights


15" Dual 2 Ohm VMAX Series Subwoofer • 1000W Max • 500W RMS • Composite Polypropylene Woofer Cone • Wide Rubber Surround • Window Framed Venting Cooling • Dual Linear Rolled Spiders • 2.5" Dual 2 ohm Voice Coils

Description


Cerwin-Vega brand icon

Authorized dealer

Award Winning Cerwin-Vega VMAX Subwoofers

VMAX series subwoofers, like the VMAX152, has been the most popular, award-winning, series of Cerwin-Vega subwoofers for the last 10 years for many reasons. The series of subwoofers are offered in a 10", 12", and 15" size with each respective size having the option of a Dual 2 ohm or Dual 4 ohm voice coil. They offer a power rating of 1000 watts peak and 500 watts of continuous RMS power making them your daily "ground-pounders". With these many different sizes and impedance options, these woofers offer versatility and a significant amount of bass that is sure to fit anyone's bass needs. The woofers feature a composite polypropylene cone and a wider larger than normal rubber surround for increased excursion level, performance, quality, and strength. The use of O2 Cast technology increases basket strength and lowers basket resonance, which also increases the quality and performance of the subwoofers. The woofers also feature cross-flow window venting that reduces voice coil temperatures and radial contact convex domes that reduce cone flex and minimize distortion. If you want to achieve exceptional low-frequency reproduction that is accompanied by quality manufacturing and amazing value, look no further than the Cerwin-Vega VMAX series subwoofers.

Product Features

  • 15" Dual 2 Ohm VMAX Series Subwoofer
  • Power Handling:
    • Peak: 1000 watts
    • RMS: 500 watts
  • Impedance: Dual 2 ohm
  • Polypropylene composite cone woofer for the perfect weight to strength ratio
  • Wide rubber surround
  • Radial contact convex domes design minimizes cone flex and reduces distortion
  • Window framed venting draws cool air directly to the voice coil for increased power handling
  • Dual linear rolled spiders for unmatched assembly cone control at all volumes
  • 2.5" Dual 2 ohm high-grade voice coils
  • O2 Cast technology increases basket strength while lowering basket resonance for increased performance and quality
  • Sensitivity: 87.2 dB
  • Cutout Dimensions: 13-7/8"
  • Mounting Depth: 7-9/16"
  • 1-year Manufacture's warranty

Product history:

Cerwin-Vega VPRO152D thumbnail
(newest, current model)
Cerwin-Vega VMAX3152 thumbnail
(previous model, replaced by Cerwin-Vega VPRO152D)
Cerwin-Vega VMAX152.2 thumbnail
(previous model, replaced by Cerwin-Vega VMAX3152)
Cerwin-Vega VMAX152 thumbnail
(previous model, replaced by Cerwin-Vega VMAX152.2)
Cerwin-Vega VMX-15.2 thumbnail
(previous model, replaced by Cerwin-Vega VMAX152)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Cerwin-Vega VMAX152 Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Cerwin-Vega VMAX152 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Cerwin-Vega VMAX152 Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 Cerwin-Vega VMAX152 Subwoofers

2 Channel Amp

4 Channel Amp


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00


Best selling similar products

DB-SA305 D1 small

Deaf Bonce Apocalypse DB-SA305 D1

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Pressed Paper Cone
• Foam Surround
• Impedance: Dual 1 ohm
• Mount depth: 7.85"
• Sensitivity: 88.30 dB

(1)

$399.90

List price $399.90

VCW152v3 small

NVX VCW152 Version 3 (VCW152v3)

• Peak Power: 3000 watts
• RMS Power: 1500 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 8.19"
• Sensitivity: 88 dB (1W/1m)

(39)

$259.99

List price $311.99

XCW151 small

NVX XCW151

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 1 ohm
• Enhanced Woven Fiber Paper Composite Cone
• Custom High Roll Foam Surround
• 30 mm Xmax (One Way)
• Sensitivity: 87.3 dB

(1)

$599.99

List price $659.99

EXL-XX15.4DHE small

DS18 EXL-XX15.4DHE

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 4 ohm
• Paper Cone
• Foam Surround
• Mount depth: 8.86"
• Sensitivity: 88 dB

$599.95

List price $599.95

EXL-XX15.2DHE small

DS18 EXL-XX15.2DHE

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Paper Cone
• Foam Surround
• Impedance: Dual 2 ohm
• Mount depth: 8.86"
• Sensitivity: 88 dB

$599.95

List price $599.95

52L7XS151 small

Kicker L7XS151 (52L7XS151)

• RMS Power: 1500 - 3000 watts
• Impedance: Dual 1 ohm
• Double-pressed pulp Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 11-9/16"

$1499.99

List price $1599.99

L7S152 small

Kicker L7S152 (44L7S152)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 2 ohm
• Injection Molded Polypropylene Cone
• Ribbed Santoprene Surround
• Mount depth: 8 11/16"
• Sensitivity: 88.56 dB

(11)

$383.96

List price $509.99

P3D2-15 small

Rockford Fosgate Punch P3 P3D2-15

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 2 ohm
• Anodized Aluminum Cone
• Santoprene Rubber Surround
• Mount depth: 7.58"
• Sensitivity: 86 dB

(17)

$309.99

List price $339.99

YSW152 small

NVX YSW152

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 2 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 7.47"
• Sensitivity: 85 dB

(3)

$129.99

List price $167.99

SW-M15D1 small

Sundown Audio M-15 D1 15" (M15D1)

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 1 ohm
• Polypropylene Cone
• High Roll Foam Surround
• Mount depth: 12.06"
• Sensitivity: 83.024 dB

(1)

$659.99

List price $791.99

Specifications & Details


Subwoofer Specifications
Series
VMAX Series
Subwoofer Size
15"
Peak Power Handling
1000 watts
RMS Power Handling
500 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Sensitivity
87.2 dB
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Composite Polypropylene Cone - CPPC
Woofer Surround
Rubber
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
2.0 cubic feet
Maximum Sealed Box Volume
2.0 cubic feet
Minimum Ported Box Volume
2.0 cubic feet
Maximum Ported Box Volume
2.0 cubic feet
Top-Mount Depth (Mounting Depth)
7-9/16"
Cutout Diameter
13-7/8"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

VMAX152

Weight:

24.00lbs

Internal SKU:

vmax152

Internal Product ID:

12866

Product and How-to Videos


Customer Ratings & Reviews


Cerwin-Vega VMAX152 thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
4.8
Value
4.8
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

wow great subwoofer

these subs are awesome. the deep bass you are looking for without using different devices this is the sub. highly recommended!!!!!!

By dee on September 18, 2009

6 found this helpful


awesom product

I have always loved Cerwin Vega speakers since purchased my first set in 1971, whether it's for the house or car they deliver tremendous bass and take a beating. I would not dream of purchasing any other
subwoofer.

By Charles on October 7, 2012

4 found this helpful


Great sub!

We put this sub in a 3.25 cu.ft ported enclosure tuned to 35HZ with 42 sqin of port. It slams on everything. It's wired to 1 ohm on an Autotek amp, so it's seeing 300-500 watts rms. Very loud, clean and durable. This is a very good sub, especially for the price. A grand prix trunk by the way.

By Matt on February 5, 2010

5 found this helpful


Great value!

The following review is for VMAX152.2, which is a part of the bundle you are viewing.

This is the sub that you want in your ride. I'm telling you I always liked Cerwin Vegas. Some of the younger generation never heard of Cerwin Vega but they're awesome. Give them a try I promise you that you want be disappointed. I have one 15" in my suv re audio 1500.1 I'm running the sub at 4ohms which is 410 rms and it wants alot more. When you buy a sub and amp be sure you check the rms power not peak. Try to put them in a ported box if you can. They will play a lot louder. Use 3/4inch mdf wood too.

By Chris on January 9, 2013

3 found this helpful


cv makes some good subs

I had 2 of these in a 5 cube 29hz box. First day I had them, I was running 125 rms to each sub to break them in. I set off car alarms running 1/5 what they can actually handle. nuff said.

By Monika on December 7, 2010

4 found this helpful




BCHSY-100 small

Scosche BCHSY-100

12-10 Yellow Heat Shrink Butt Connectors (100 Pack)

$24.99

List price $52.99

99-5820B small

Metra 99-5820B Dash Kit

Install a new Single-DIN car stereo in select 2009-2014 F-150 (Matte Black)

(4)

$34.99

List price $62.99

TOY03-POD/S small

P.I.E. TOY03-POD/S

iPod Controlling Interface Module for 2003-2009 Select Toyota/Lexus/Scion Vehicles

$116.99

List price $175.99

LXT118VP small

Midland LXT118VP

22-Channels with Silent Operation and 18 Mile Range

$24.99

List price $34.99

TS-AR12 small

Audiopipe TS-AR12

12" Single 4 ohm EXT Series Subwoofer

$43.88

List price $129.99

GX-M10 Black small

Sharp GX-M10 (Black)

100 Watt Portable iPod/iPhone Speaker Dock with Powerful Dual Subwoofers

(2)

$179.99

List price $349.99

2T10-1.2-GRAY small

Sonic Sub Box: 2T10-1.2 (Gray)

Dual 10" Angled Universal Truck MDF Enclosure

(5)

$42.99

List price $69.99

AF32-GW small

MEElectronics Air-Fi Runaway AF32 (White/Grey)

Wireless Bluetooth Headset Stereo Headphones with Hidden Microphone

$54.95

List price $99.99

2T8-1.2-GRAY small

Sonic Sub Box: 2T8-1.2 (Gray)

Dual 8" Angled Universal Truck MDF Enclosure ( 2TRUCK8 )

(3)

$42.99

List price $69.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2015 Mazda 5

2013 Lexus ES350

2006 Chrysler Pacifica

1994 Cadillac DeVille

2012 Chrysler 300

2016 Audi RS7

2001 Volvo S60

2011 Nissan Quest

1996 Ford Explorer

2000 Chevrolet S10

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
