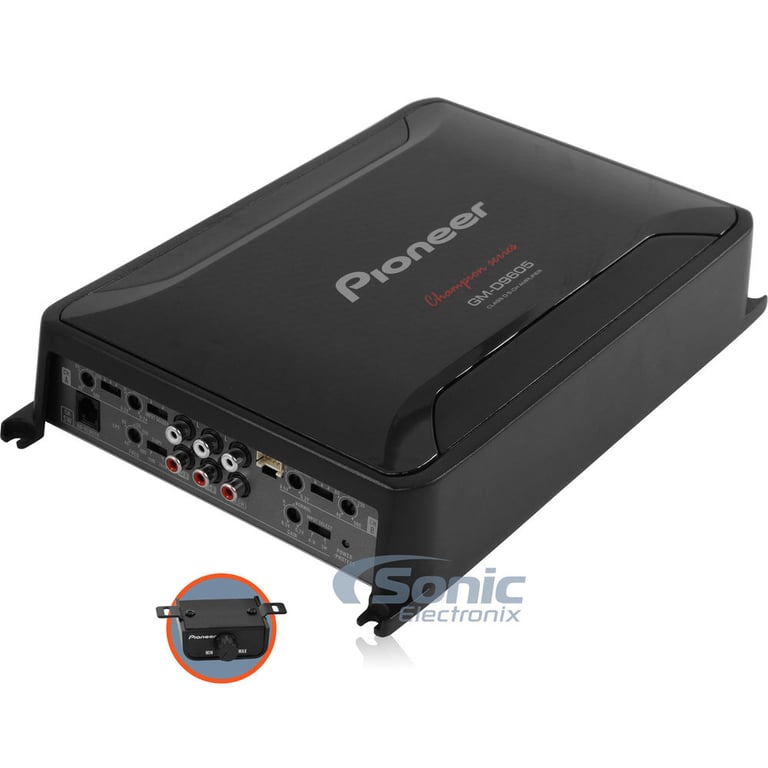

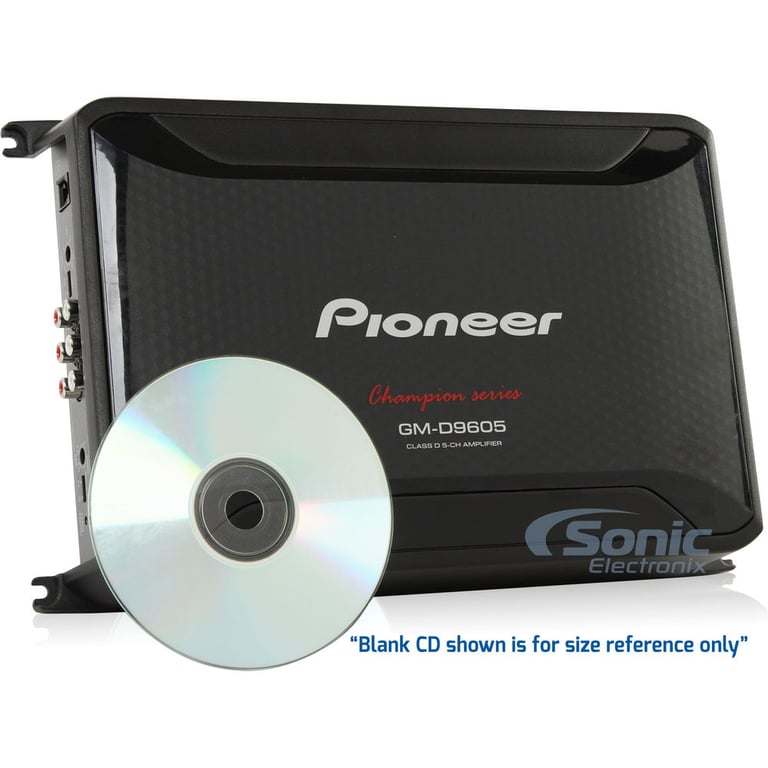

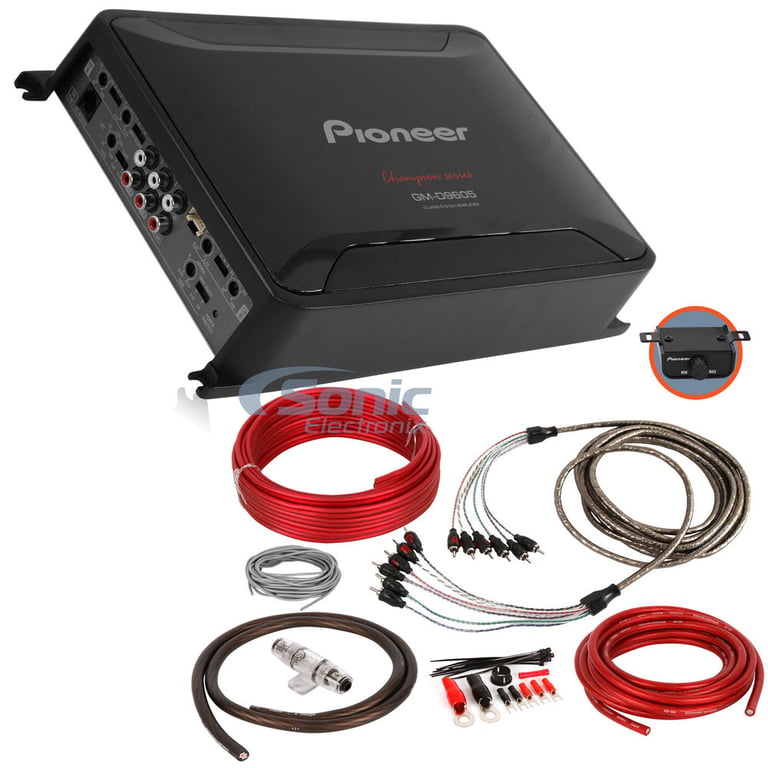

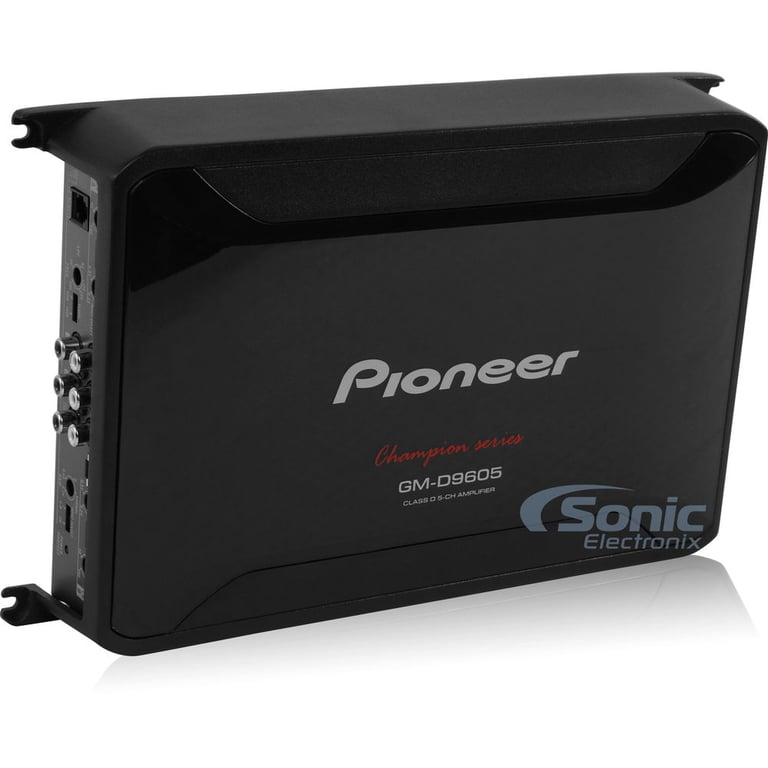

Pioneer GM-D9605 with Amplifier Wiring Kit

General Features:

• 5 Channel Champion Series Class D Amplifier w/ Wired Bass Boost Remote
• Max Power Rating:
• 4 ohm: 150 watts x 4 chan. + 700 watts x 1 chan.
• 2 ohm: 200 watts x 4 chan. + 1200 watts x 1 chan.
• Bridged, 4 ohm: 400 watts x 2 chan.
• RMS Power Rating:
• 4 ohm: 75 watts x 4 chan. + 350 watts x 1 chan.
• 2 ohm: 100 watts x 4 chan. + 600 watts x 1 chan.
• Bridged, 4 ohm: 200 watts x 2 chan.
• Total power output: 2000 watts Max
• CEA-2006 Compliant Amplifier
• Pulse Width Modulated MOSFET power supply

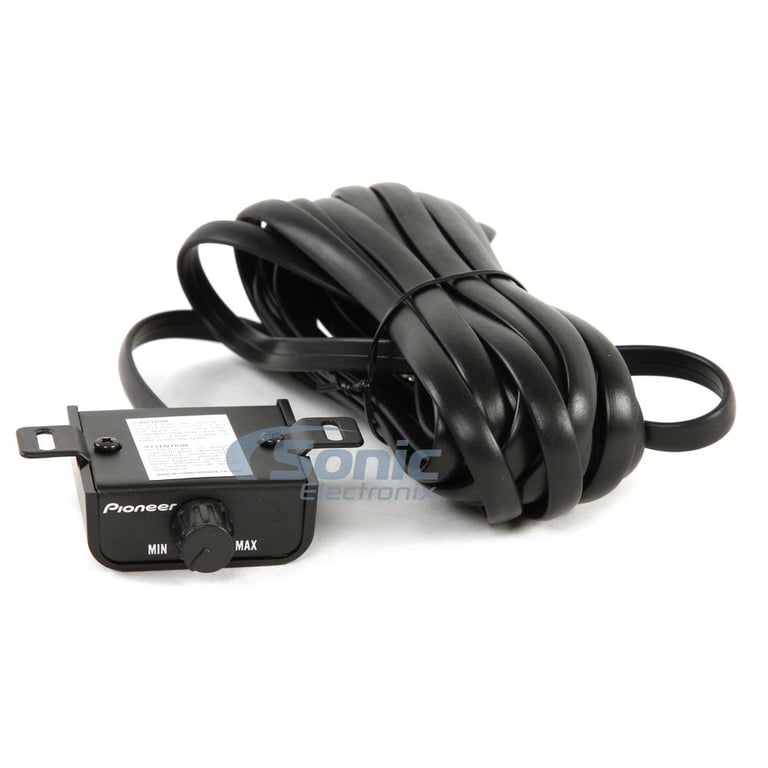

• Wired remote bass boost level control included
• LED power (green) and protect (red) indicators
• Soft start turn-on

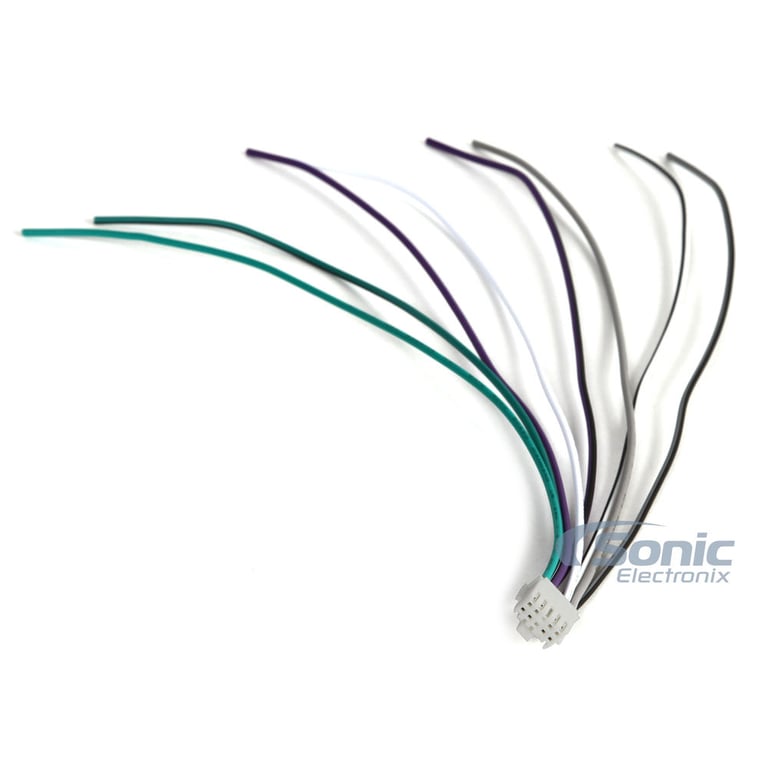

• Speaker-level (high-level) inputs
• 5, 4 or 3 channel operation
• Dedicated, large-block subwoofer terminal output
• Nickle-plated RCA, Speaker and Power/Ground Terminals
• Selectable input modes:
• Front two channels (RCA Only) can provide signal to remaining channels
• Four channel High-Level connection can provide signal to Subwoofer channel
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Heavy duty aluminum alloy heat-sink for extreme heat dissipation
• Input sensitivity:
• Low level: 200mV - 6.5V
• High level: 800mV - 16V
• A/B Channel Frequency Response: 10 - 50,000 Hz (+0dB, -3dB)
• Sub-Channel Frequency Response: 10 - 500 Hz (+0dB, -3dB)
• Total Harmonic Distortion (THD): 0.05%
• Signal to Noise Ration: 94 dB

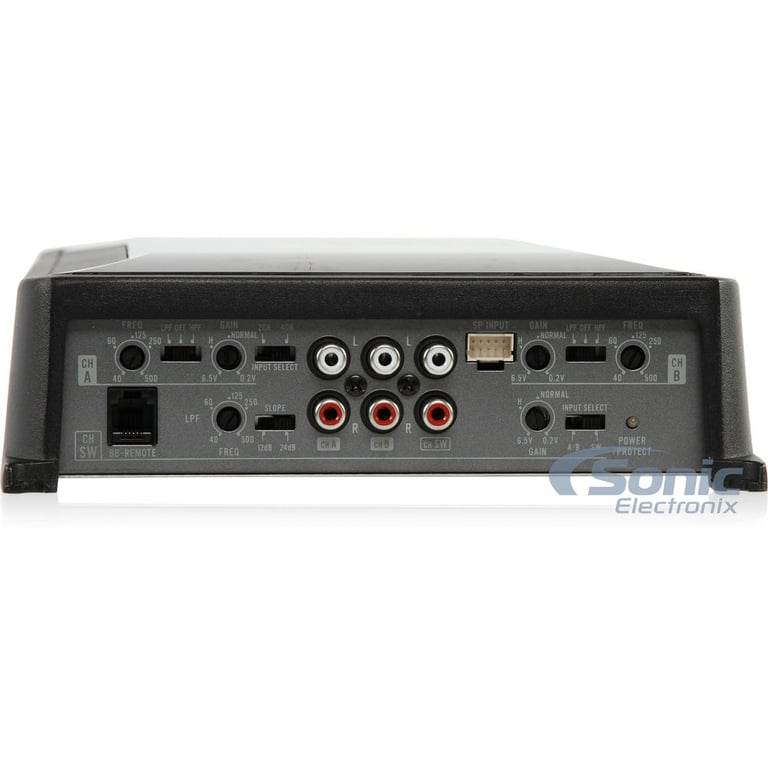

• Selectable crossover filter (Ch 1 - 4): LPF / OFF / HPF
• Variable crossover filter (Ch 1 - 4): 40 - 500 Hz, 12 dB/octave
• Variable low-pass filter (Sub): 40 - 500 Hz, 24 or 12 dB/octave
• Variable Bass Boost (Via Remote): 0 to +18 dB bass boost at 50 Hz

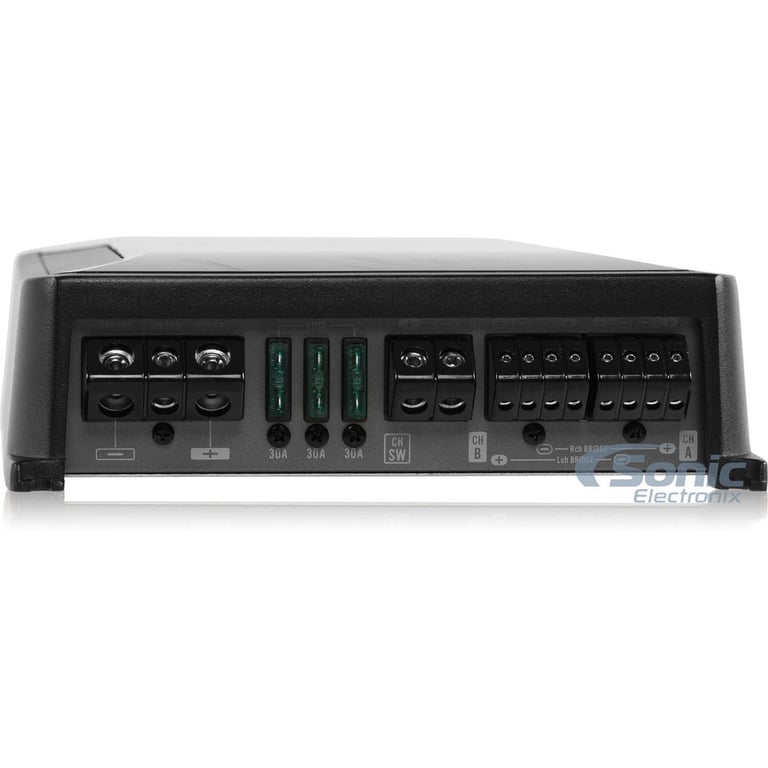

• Fuse Rating: 30A x 3
• 8 - 16 Gauge speaker terminal outputs
• 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
• Dimensions: 7-7/8"W x 12"L x 2-3/8"H
• 1-year Sonic Electronix Warranty

Product Details:

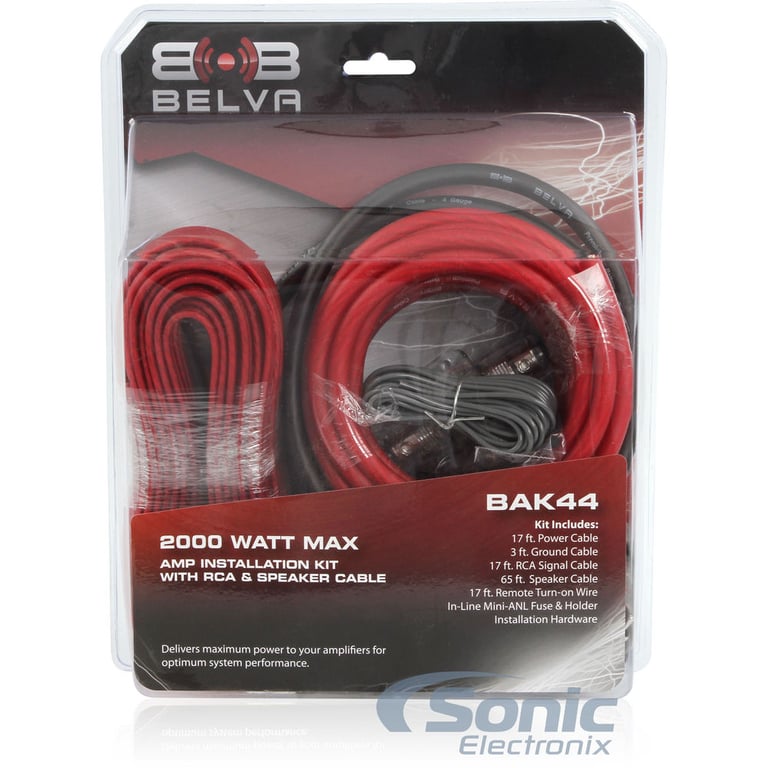

• Complete 4 Gauge 5/6-Channel Amplifier Installation Kit
• Designed for car audio systems up to 1200 watts RMS
• Premium Powerflex power and ground wire provides optimal power transfer
• Belva CCA wire is made from 30% copper while the competition uses only 10%
• Helical Twist Construction Audio Interconnect RCA cables minimize noise and interference

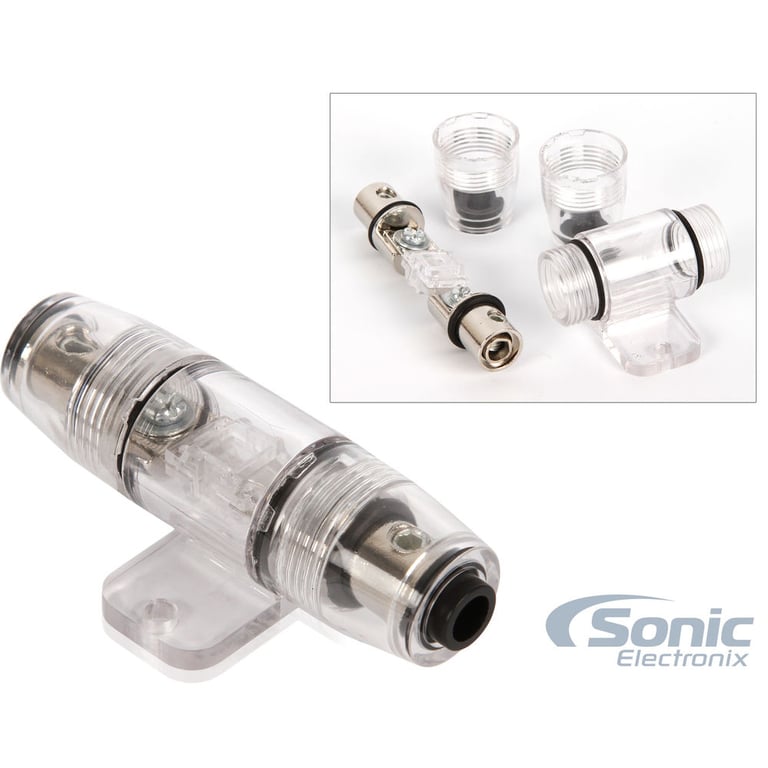

• MINI-ANL Fuse holder with a 80 amp fuse offers ideal protection for high powered systems
• Complies to American Wire Gauge standards
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

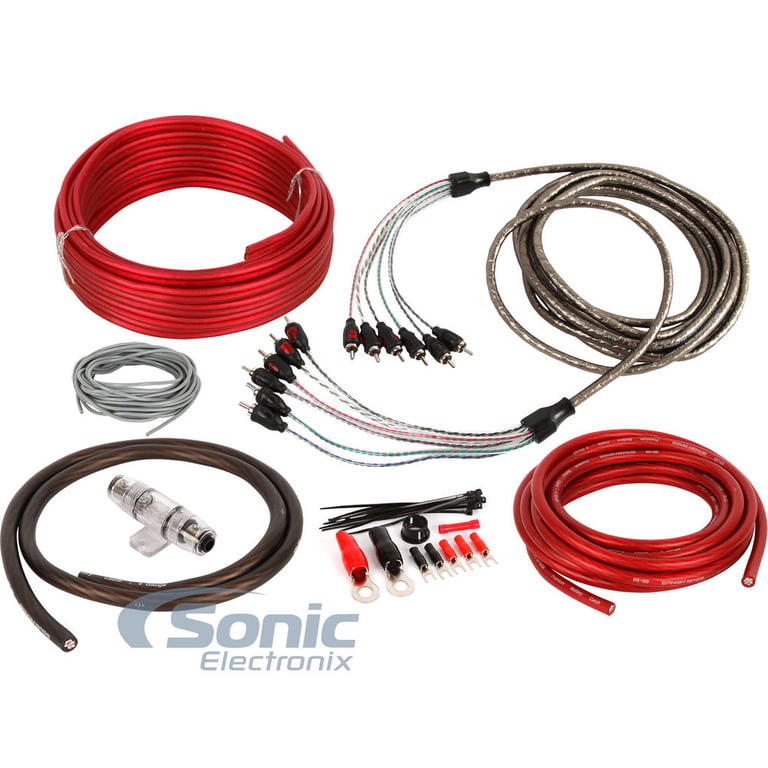

Kit includes:

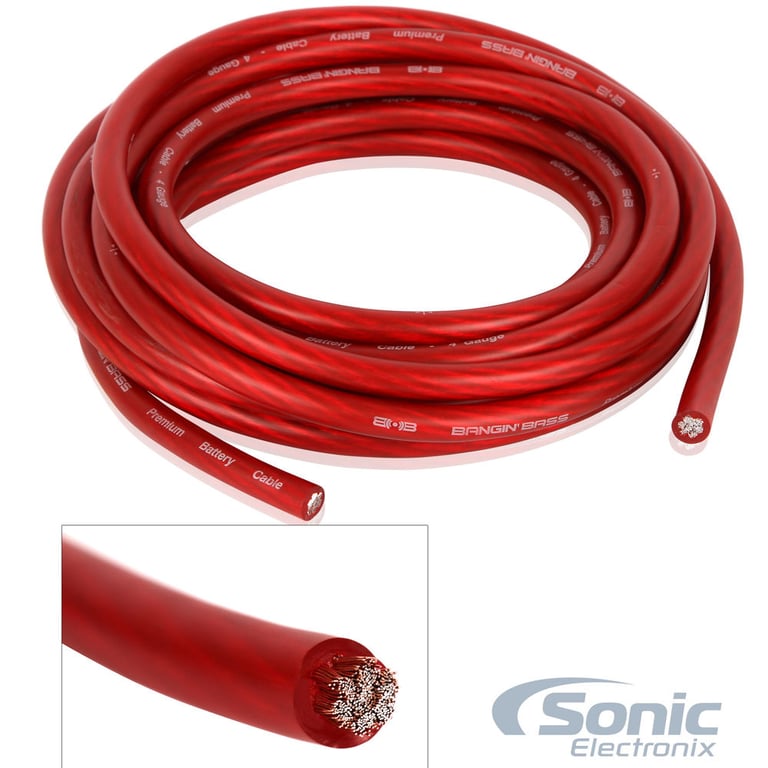

1. 17 ft. (5.2 meters) Red 4 gauge power wire

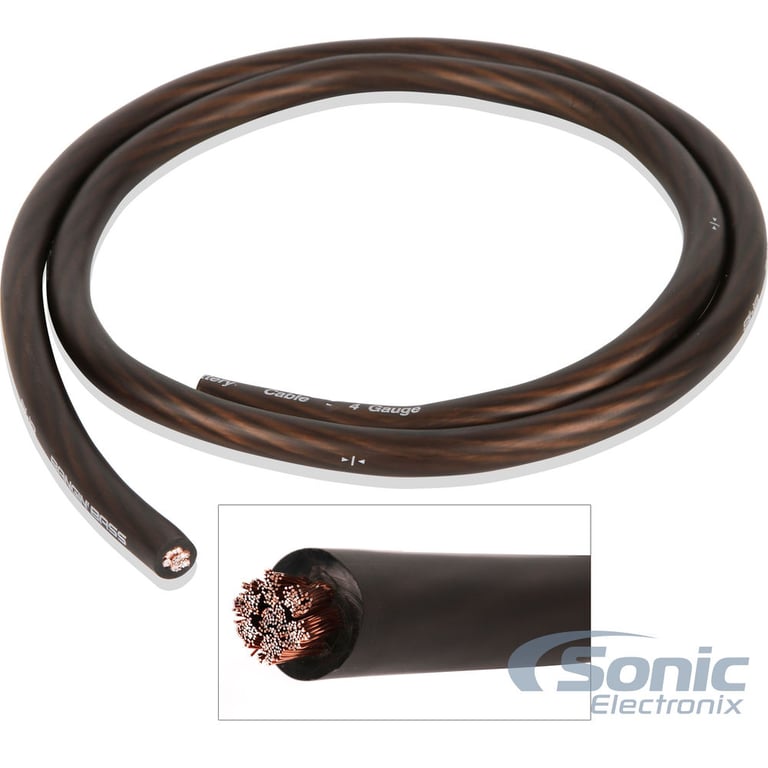

2. 3 ft. (.91 meters) Black 4 gauge ground wire

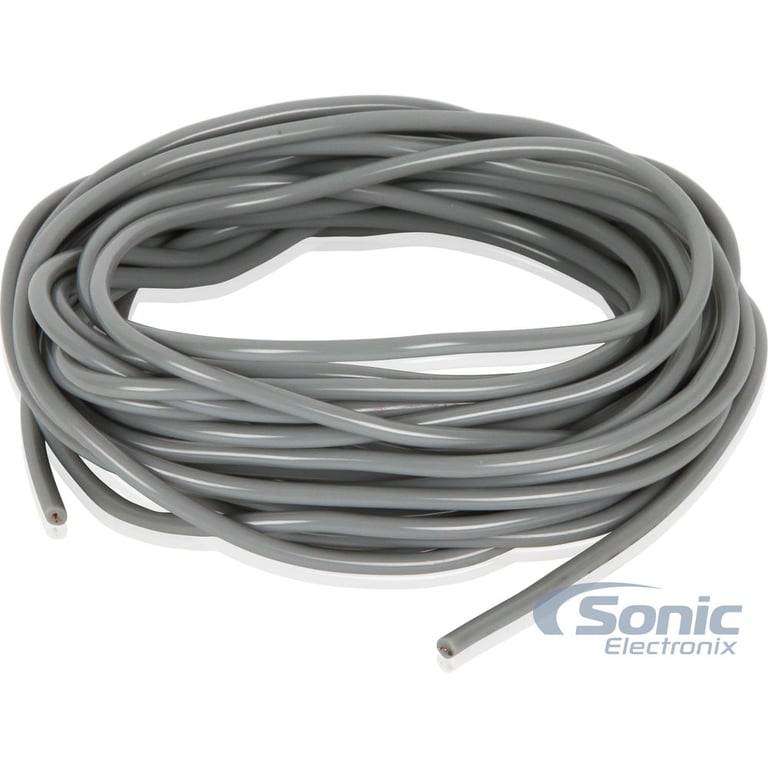

3. 17 ft. (5.2 meters) Gray 18 gauge remote lead wire

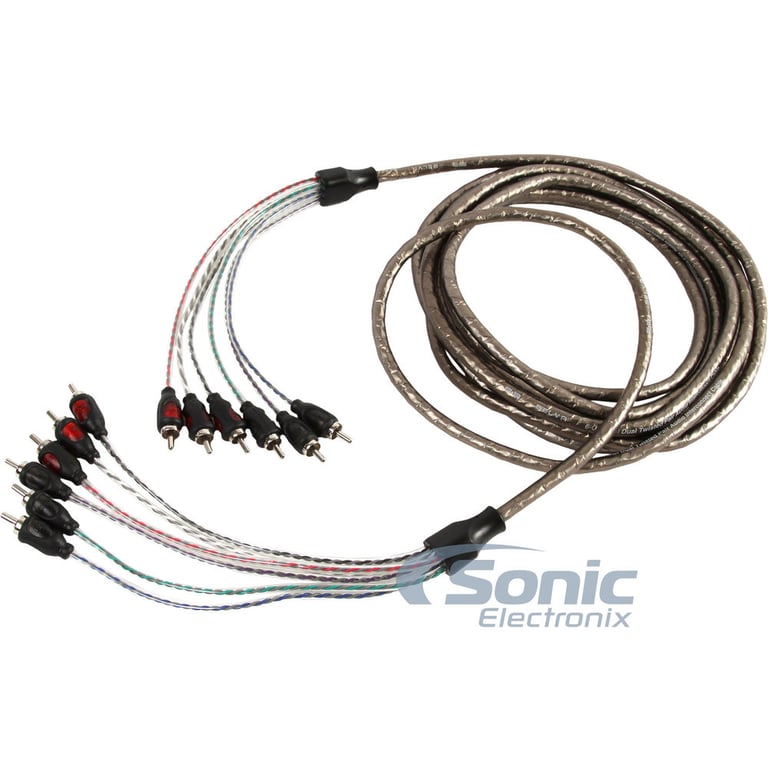

4. 17 ft. (5.2 meters) Helical Twist 5/6-channel RCA interconnect cable

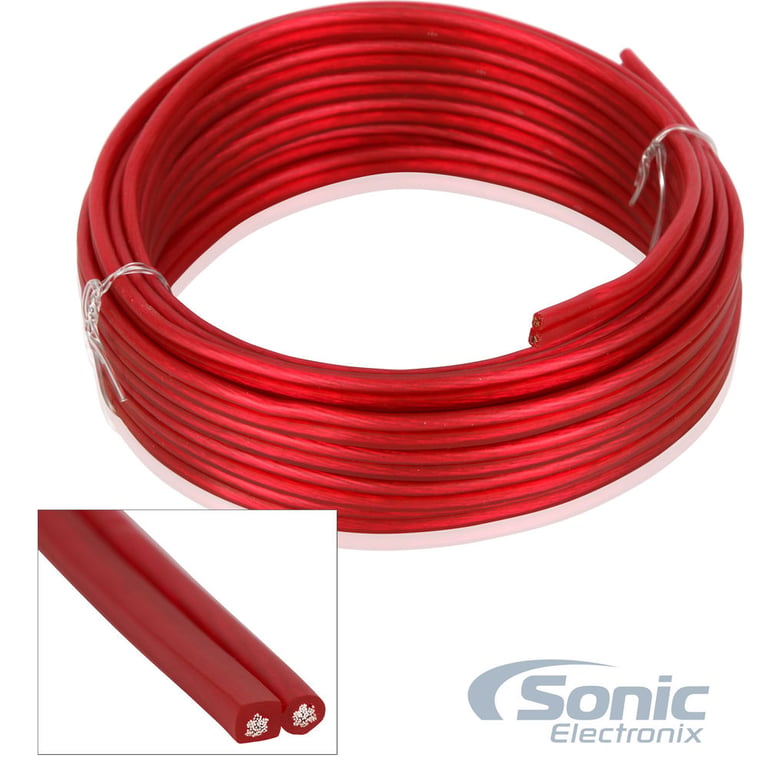

5. 65 ft. (12.2 meters) 16 Gauge Speaker cable
6. One MINI-ANL Fuse Holder with a 80 amp fuse

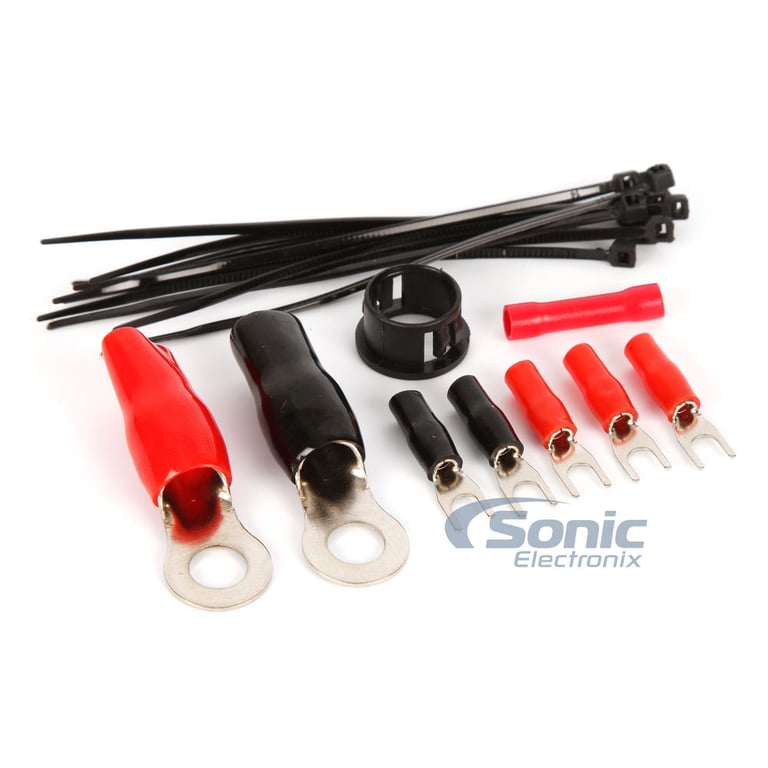

7. One Black rubber firewall grommet
8. One 4 Gauge Red chrome plated ring terminals
9. One 4 Gauge Black chrome plated ring terminal
10. Three 18 Gauge Red Spade terminal
11. Two 18 Gauge Black Spade terminal
12. One 18 Gauge Red butt connector
13. Ten 4" Black zip ties
