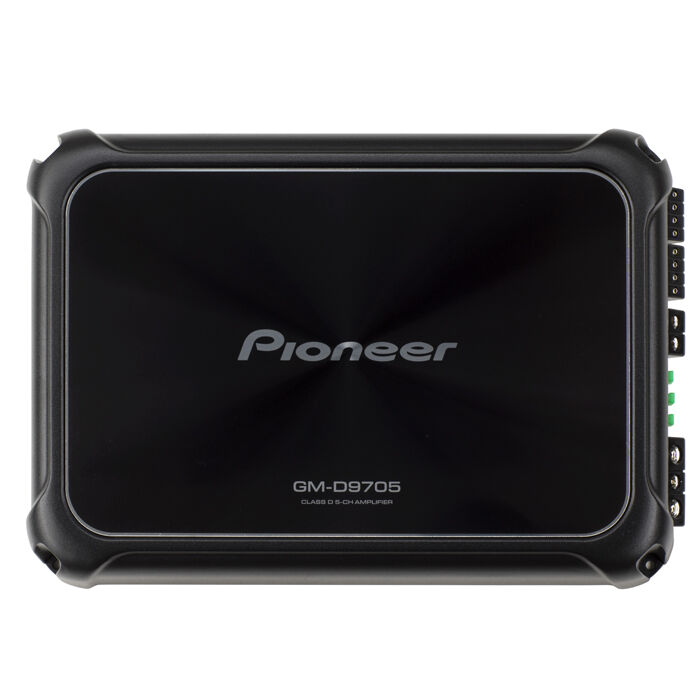

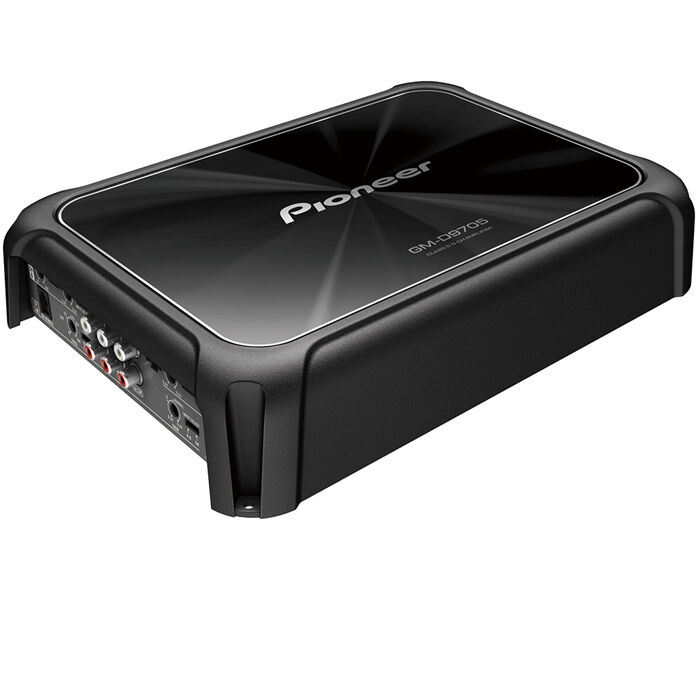

Pioneer GM-D9705 | 2000W Champion Series 5-Channel Amplifier

Pioneer GM-D9705

2000W Max 5 Channel GM Digital Champion Series Class D Amplifier w/ Wired Bass Boost Remote

2000W Max 5 Channel GM Digital Champion Series Class D Amplifier w/ Wired Bass Boost Remote

• RMS: 75 Watts x 4 + 350 Watts x 1 @ 4 ohms
•RMS: 100 Watts x 4 + 600 Watts x 1 @ 2 ohms
• 200 Watts RMS x 2 @ 4 ohms, Bridged
• Total Peak Power: 2000 Watts
• CEA-2006 Compliant
• CEA-2006 Compliant Amplifier
• Wired remote bass boost level control included
• Speaker-level (high-level) inputs

SAVE when you bundle with select amp wiring kits:
Click Here to View Bundles!

4.5

(2)
List price $400.00
Save: $20.05

$379.95

Out of Stock - Backorder with warranty
Thanks , You Pay:

Item Condition: Brand new

The item is brand new and not used.


protection

Add a protection plan

squarespace
3 years for

Shipping
Fast, Free Shipping

Within the US 48

60Days
60-Day Money-Back

Hassle Free Returns

365days
365-Day Coverage

Warranty assistance for a year

DESCRIPTION
Pioneer

Authorized dealer



General Features:

  • 5 Channel Champion Series Class D Amplifier w/ Wired Bass Boost Remote
  • Max Power Rating:
    • 4 ohms: 150 watts x 4 chan. + 700 watts x 1 chan.
    • 2 ohms: 200 watts x 4 chan. + 1200 watts x 1 chan.
    • Bridged, 4 ohms: 400 watts x 2 chan.
  • RMS Power Rating:
    • 4 ohms: 75 watts x 4 chan. + 350 watts x 1 chan.
    • 2 ohms: 100 watts x 4 chan. + 600 watts x 1 chan.
    • Bridged, 4 ohms: 200 watts x 2 chan.
  • Total power output: 2000 watts Max
  • CEA-2006 Compliant Amplifier
  • Pulse Width Modulated MOSFET power supply

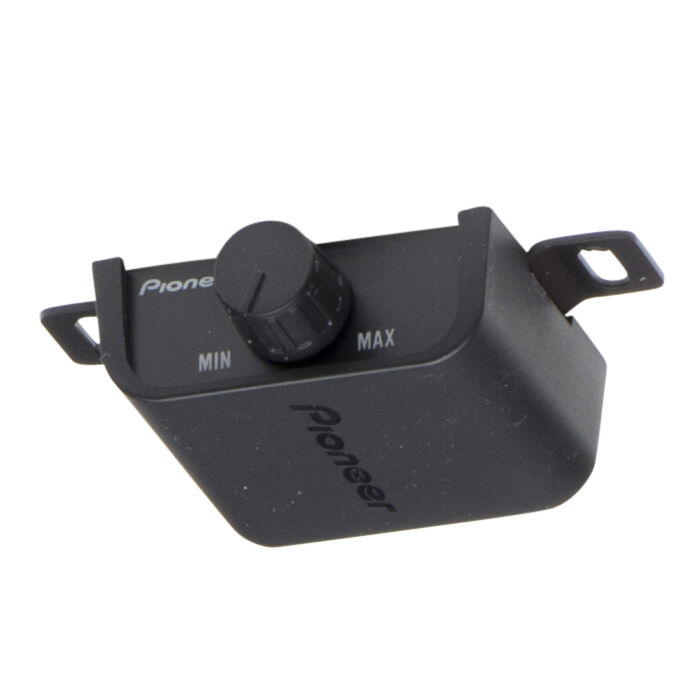

  • Wired remote bass boost level control included
  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • Speaker-level (high-level) inputs
  • 5, 4 or 3 channel operation
  • Dedicated, large-block subwoofer terminal output

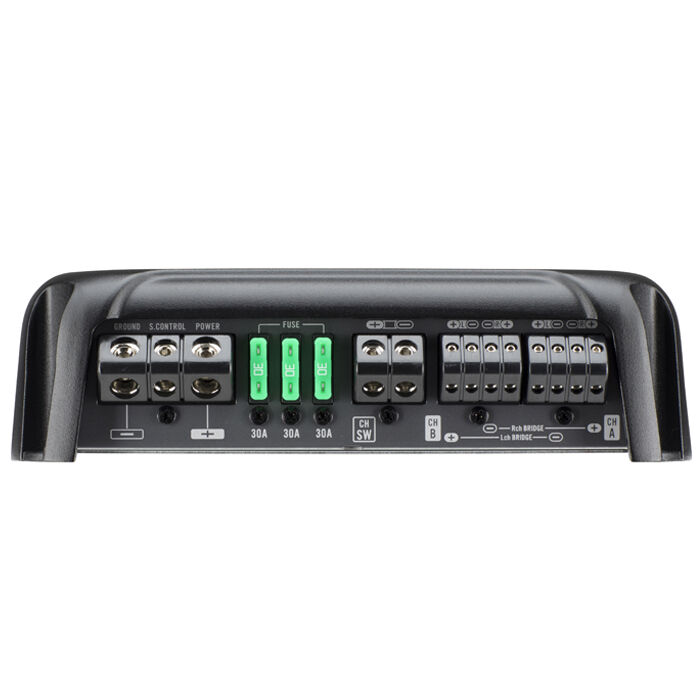

  • Nickle-plated RCA, Speaker and Power/Ground Terminals

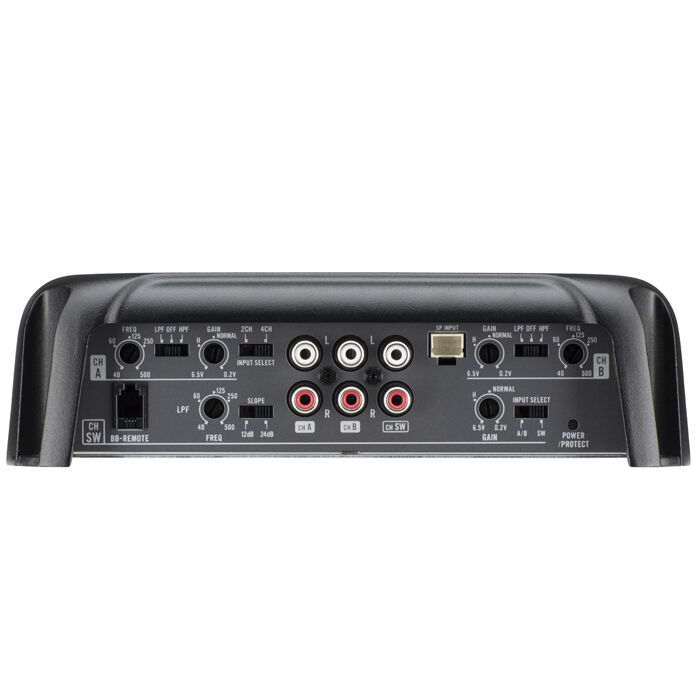

  • Selectable input modes:
    • Front two channels (RCA Only) can provide signal to remaining channels
    • Four channel High-Level connection can provide signal to Subwoofer channel
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heat-sink for extreme heat dissipation
  • Input sensitivity:
    • Low level: 200mV - 6.5V
    • High level: 800mV - 16V
  • A/B Channel Frequency Response: 10 - 50,000 Hz (+0dB, -3dB)
  • Sub-Channel Frequency Response: 10 - 500 Hz (+0dB, -3dB)
  • Total Harmonic Distortion (THD): 0.05%
  • Signal to Noise Ration: 94 dB
  • Selectable crossover filter (Ch 1 - 4): LPF / OFF / HPF
  • Variable crossover filter (Ch 1 - 4): 40 - 500 Hz, 12 dB/octave
  • Variable low-pass filter (Sub): 40 - 500 Hz, 24 or 12 dB/octave
  • Variable Bass Boost (Via Remote): 0 to +18 dB bass boost at 50 Hz
  • Fuse Rating: 30A x 3
  • 8 - 16 Gauge speaker terminal outputs
  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 7-7/8"W x 12"L x 2-3/8"H
  • 1-year Sonic Electronix Warranty


Check out the Pioneer GM-D9605 Owner's Manual

Product history:

Pioneer GM-D9705 thumbnail
(newest, current model)
Pioneer GM-D9605 thumbnail
(previous model, replaced by Pioneer GM-D9705)
FEATURES & SPECS
Power Specifications - Full Range Channels
RMS Power @ 4 ohms
75 watts x 4 channels
RMS Power @ 2 ohms
100 watts x 4 channels
Bridged RMS Power
200 watts x 2 channels
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
350 watts x 1 channels
RMS Power @ 2 ohms
600 watts x 1 channels
RMS Power @ 1 ohm
Not Stable
Power Specifications - Full Range Channels
Peak Power @ 4 ohms
150 watts x 4 channels
Peak Power @ 2 ohms
200 watts x 4 channels
Bridged Peak/Max Power
400 watts x 2 channels
Power Specifications - Subwoofer Channel
Peak Power @ 4 ohm
700 watts x 1 channels
Peak Power @ 2 ohms
1200 watts x 1 channels
Peak Power @ 1 ohm
Not Stable
Amplifier Specifications
Amplifier Series
Champion (Pioneer)
Marine Certified
Amplifier Class
D
Number of Channels
5
Total Peak Power Output
2000 watts
Total RMS Power Output
1000 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.05%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
40 - 500 Hz
Low-Pass Crossover Frequency
40 - 500 Hz
Signal-to-Noise Ratio
94 dB
Bass Boost
0 - 18 dB
Bass/Gain Remote
Yes
Fan Cooled
No
Fuse Rating
30A x 3
Total Fuse Rating
90
Strappable
No
CEA-2006 Compliant
Yes
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Authorized Dealer
Authorized Dealer
Authorized Dealer
What is in the box?
WITB: Amplifiers
Amplifier
Wired gain knob (wire attached)
Paperwork
User manual
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
