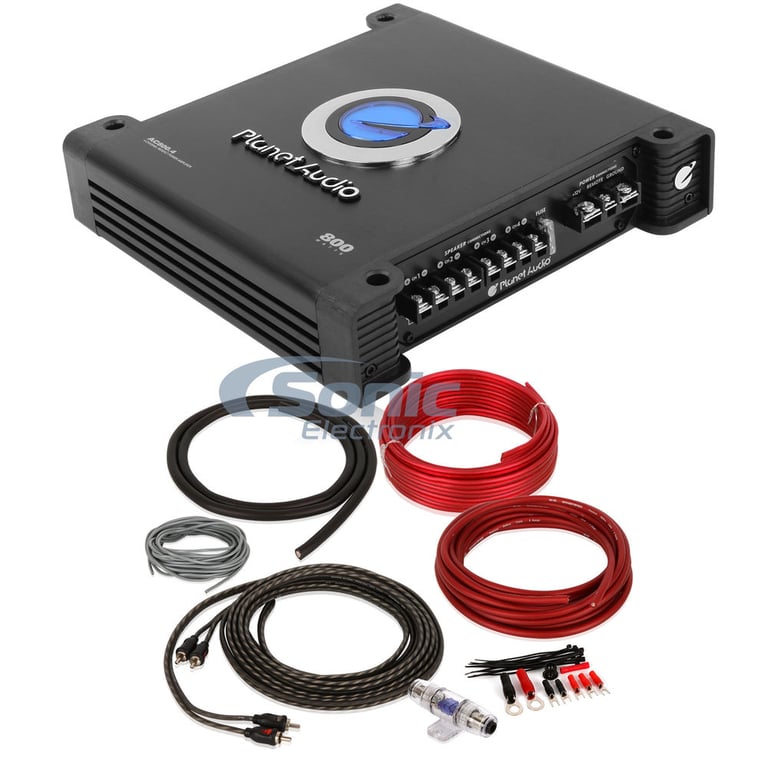

Planet Audio AC800.4 4 Channel Amplifier w/ Complete 4 AWG Amp Kit

800W Anarchy Series 4-Channel Class A/B Power Amplifier + Amp Kit

highlight-star-icon

• RMS: 100W x 4 @ 4 ohm, 300W x 4 @ 2 ohm
• Total Peak Power: 1200W
• Pulse Width Modulated MOSFET Power Supply
• Variable Bass Boost
• Heavy Duty Black Anodized Heatsink For Heat Dissipation
• Complete 4 Gauge 4-Channel Amplifier Installation Kit

Learn more about the ac8004_bak44

We apologize

This item has been discontinued


Loading...
VOAB main

Scosche VOAB Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 1997-2009 vehicles from Volvo

5
-14.34%

$11.95

List price $13.95

99-9229G main

Metra 99-9229G Dash Kit

Single DIN or Double DIN Stereo Dash Kit for select 2001-2004 S60 and XC70 and V70

3
-10.87%

$40.99

List price $45.99

70-9221 main

Metra 70-9221 Wiring Harness

Install a new car stereo in select 1999-2009 vehicles from Volvo

8
-11.77%

$14.99

List price $16.99

Limited time!
TS-G1620F main

Pioneer TS-G1620F

600W Peak (80W RMS) 6.5" G-Series 2-Way Coaxial 4-ohm Car Speakers

13
-26.15%

$48.00

List price $65.00

S2-S65C main

Alpine S2-S65C

480W Peak (160W RMS) 6.5" S-Series Hi-Res 2-Way Component Car Speakers

1
-18.20%

$179.95

List price $220.00

Lowest price in 30 days
DSX-B700 main

Sony DSX-B700

Double DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

6
-11.77%

$149.99

List price $169.99

Limited time!
CST20 main

Kicker CST204 (46CST204)

200W Peak (100W RMS) 3/4” CS Series 4-ohm Titanium Dome Tweeters

3
-30.04%

$55.96

List price $79.99

Rockford Fosgate Prime R165X3

180W Peak (90W RMS) 6.5" Prime Series 3 Way Coaxial 4-ohm Speakers

154

Description


Planet Audio brand icon

Authorized dealer

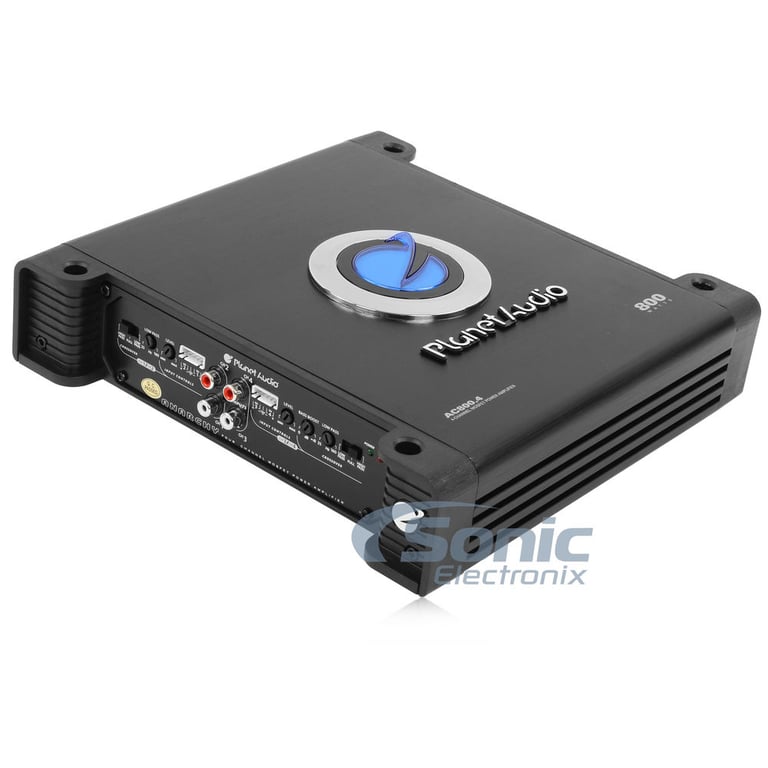

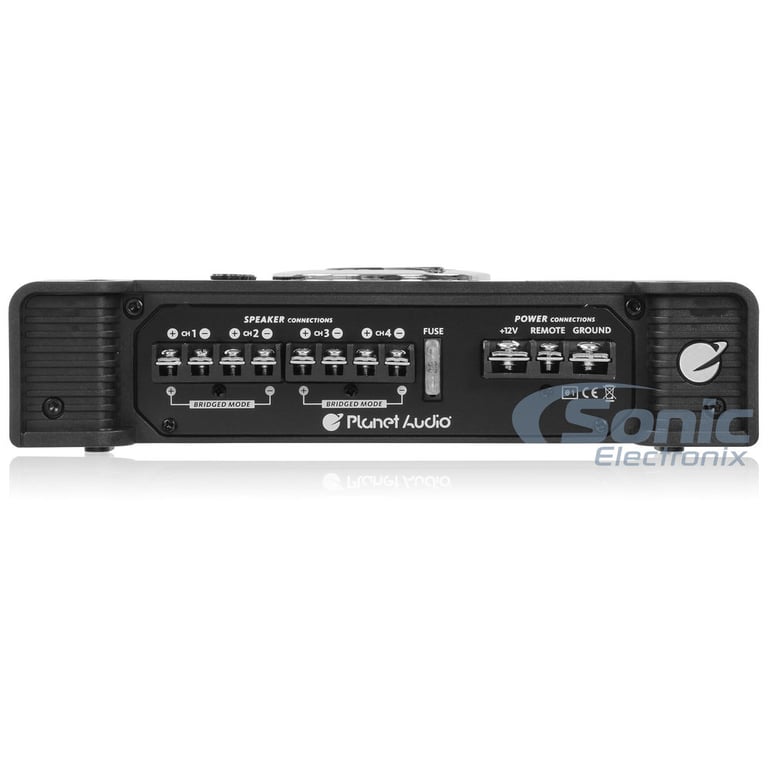

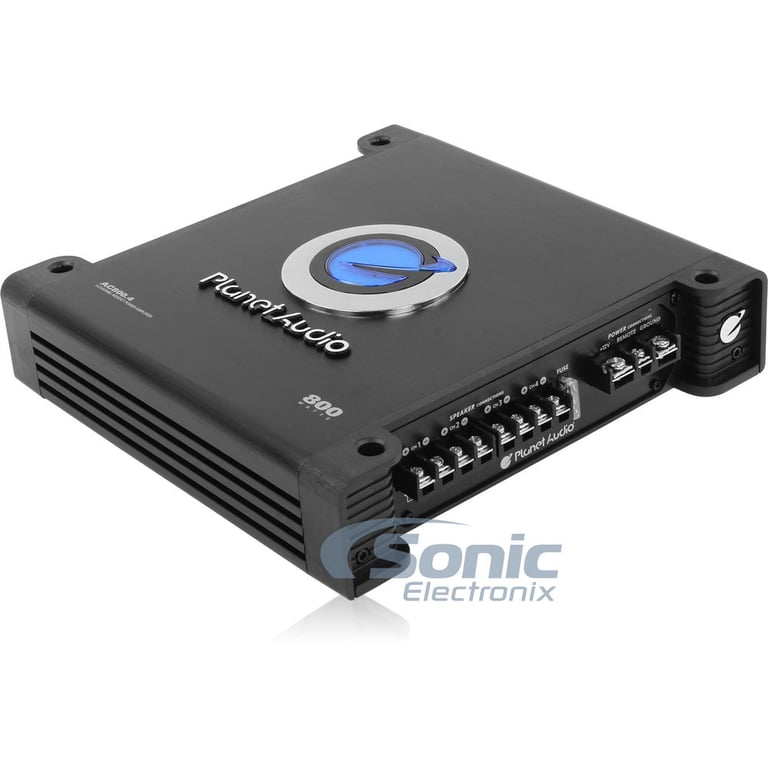

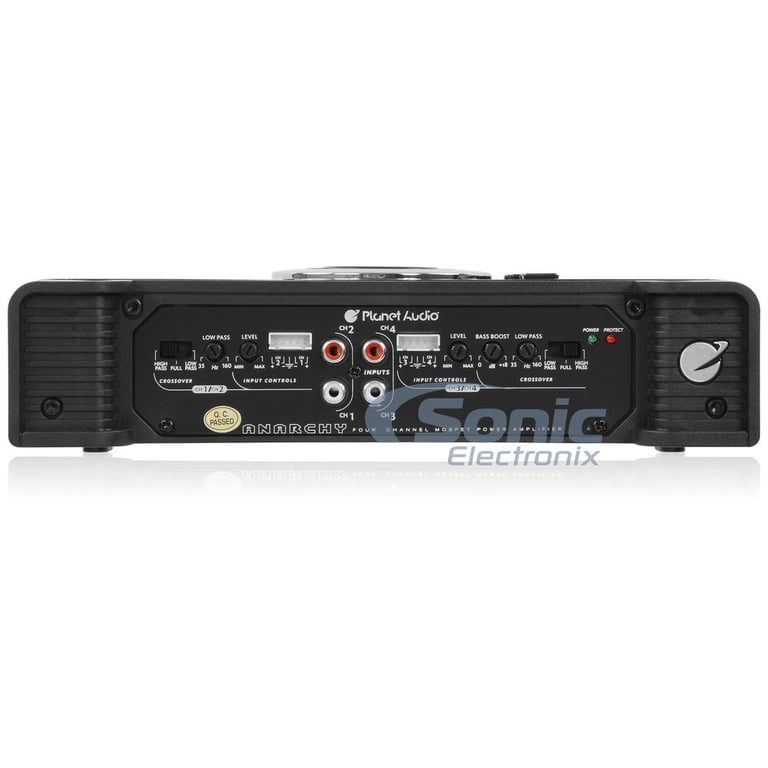

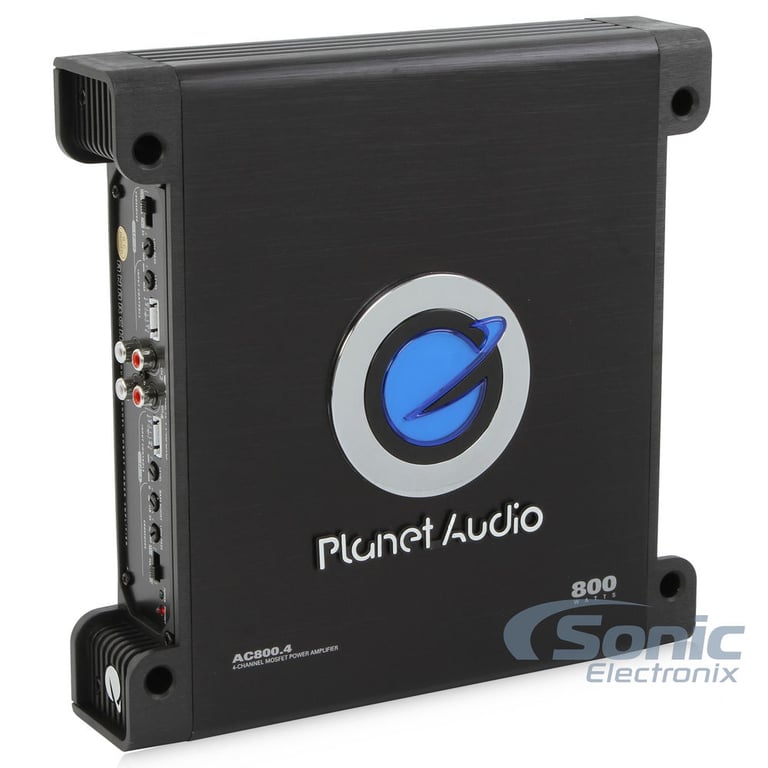

Planet Audio AC800.4

800W Peak (600W RMS) Anarchy Series Class-AB 4-Channel Amplifier
Quantity: 1

Product Details:

  • Anarchy Series Class A/B 2 ohm Stable 4-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 75 watts x 4 channel
    • 2 ohm: 150 watts x 4 channel
    • Bridged: 300 watts x 2 channel @ 4 ohm
  • Peak Power Rating:
    • 4 ohm: 100 watts x 4 channel
    • 2 ohm: 200 watts x 4 channel
    • Bridged: 400 watts x 2 channel @ 4 ohm
  • Total power output: 600 watts
  • LED Power/Protect Light

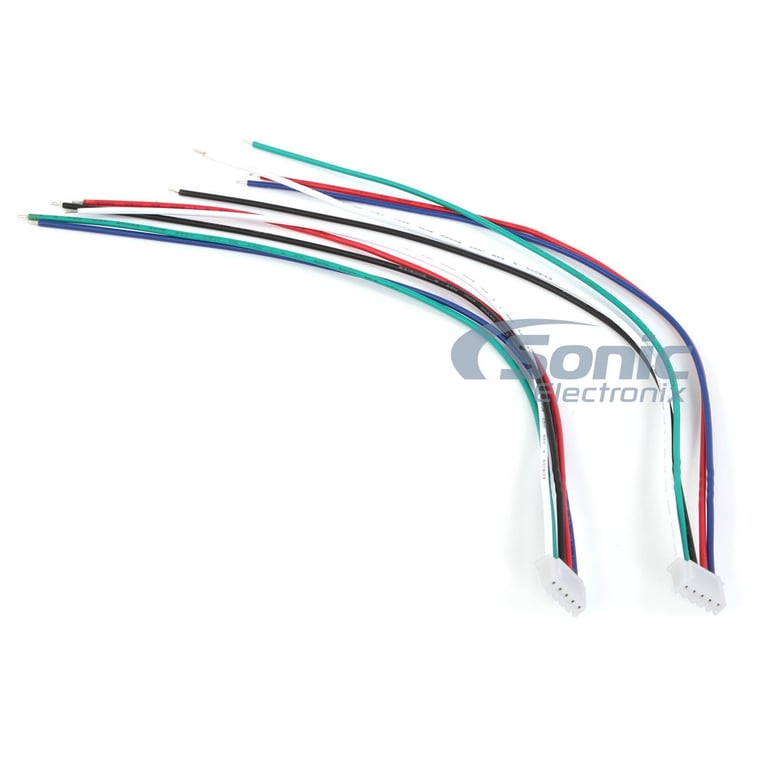

  • Speaker-level (high-level) inputs
  • Soft turn-on circuit
  • Protection circuitry
  • Tri-mode capable
  • Chrome plated RCA low level and high level inputs
  • Black anodized heatsink
  • MOSFET PWM (Pulse Width Modulated) power supply
  • Frequency Response: 20 - 20000 Hz
  • Total Harmonic Distortion (THD): 0.01%
  • Signal to Noise Ratio: 102 dB
  • High-pass filter: Fixed @ 80Hz
  • Variable low-pass filter: 45 - 90 Hz
  • Variable Bass Boost: 0 - 18 dB
  • Fuse Rating: 25A
  • 4 AWG gauge amplifier wiring kit is recommended for installation
  • Dimensions: 10" L x 10" W x 2.4" H
  • Authorized Internet Dealer
  • 6 Year Manufacturer's Warranty
  • MFR #: AC800.4

Planet Audio AC800.4 owner’s manual

Belva BAK44BL

4 Gauge Premium (CCA) Copper Clad Aluminum Complete 4-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 1200 Watts - BLUE
Quantity: 1

Product Details:

  • 4 Gauge 4-Channel Complete Amplifier Installation Kit
  • Designed for car audio systems up to 1200 watts RMS
  • Made from 100% Copper-Clad Aluminum (CCA)
  • Satin chromed Mini-ANL fuse holder offers ideal protection for high-powered systems
  • Full spec power and speaker wire meet or exceed American Wire Gauge standards
  • RCA Interconnect Cable
  • Twisted-pair construction provides protection against interference
  • Split-tip silver-plated ends offer high-quality performance
  • Molded ends equipped with colored channel identifiers for easy recognition
  • Includes an assortment of wire termination hardware and cable ties
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

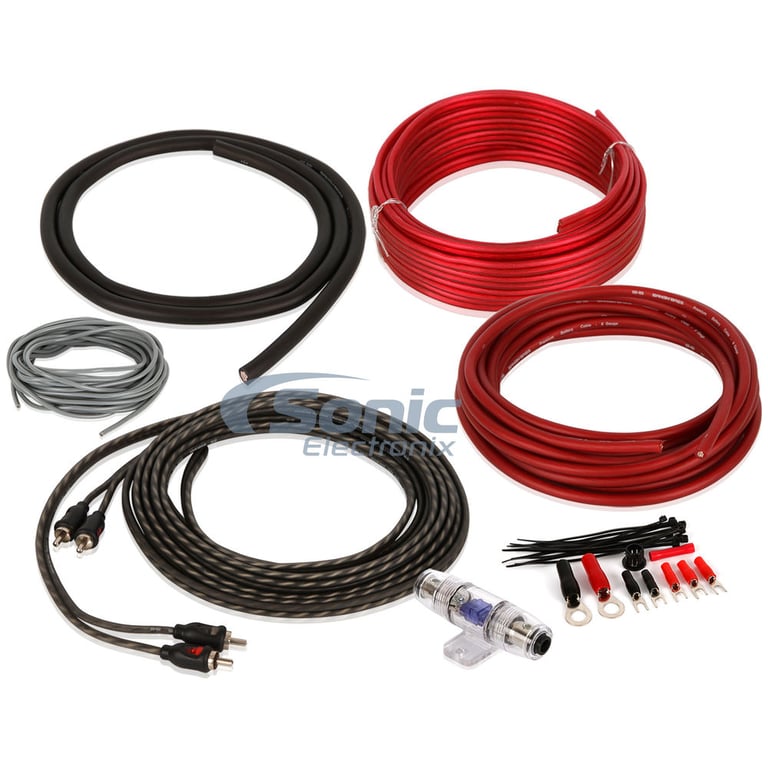

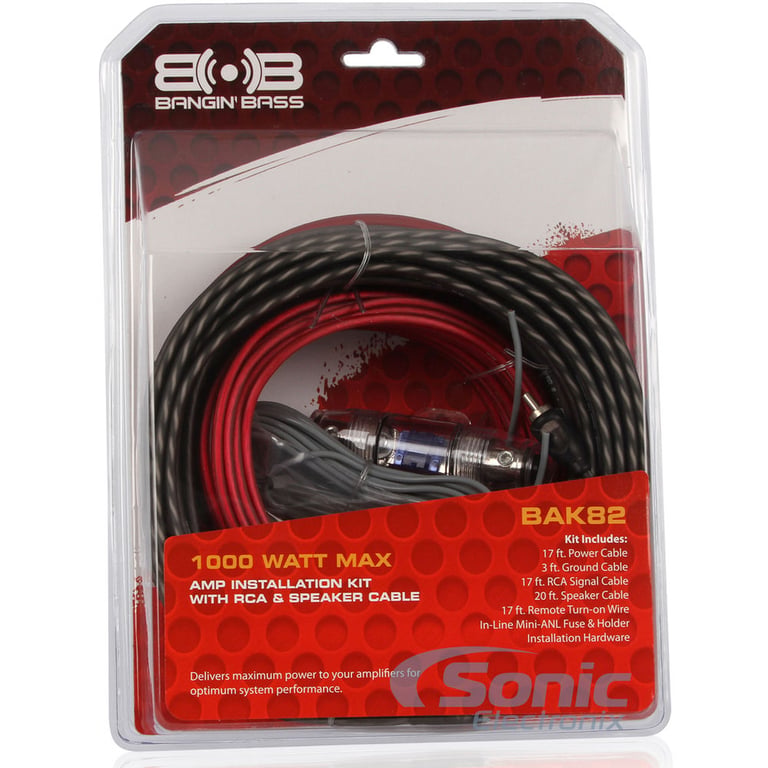

Kit includes:

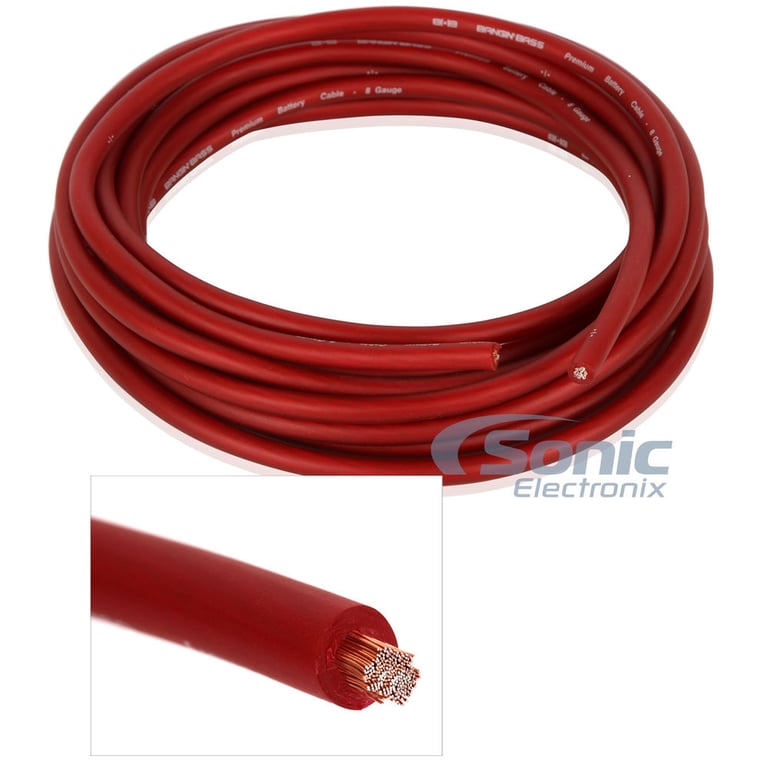

  1. 17 ft. Blue 4 gauge power wire

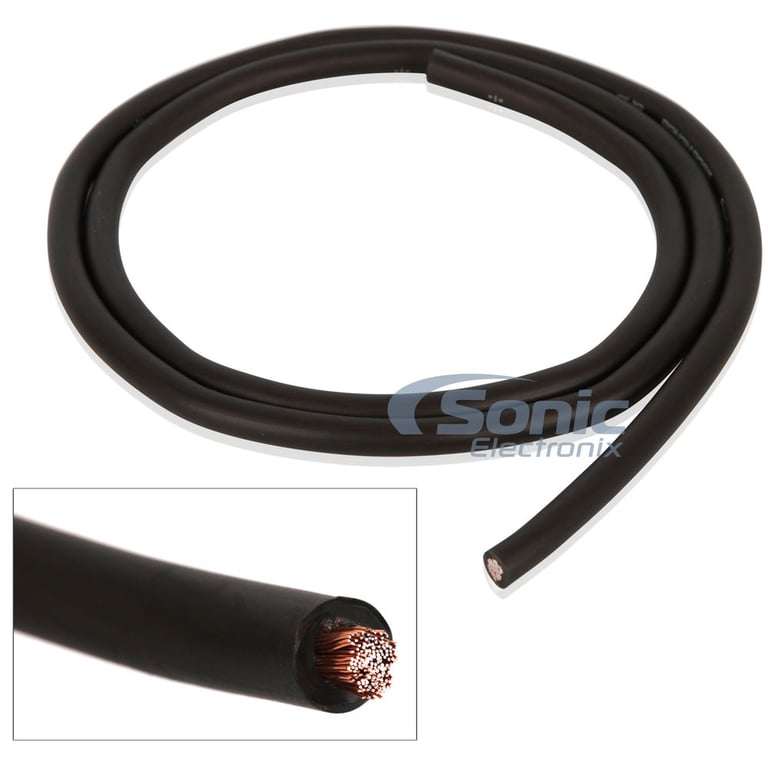

  2. 3 ft. Black 4 gauge ground wire

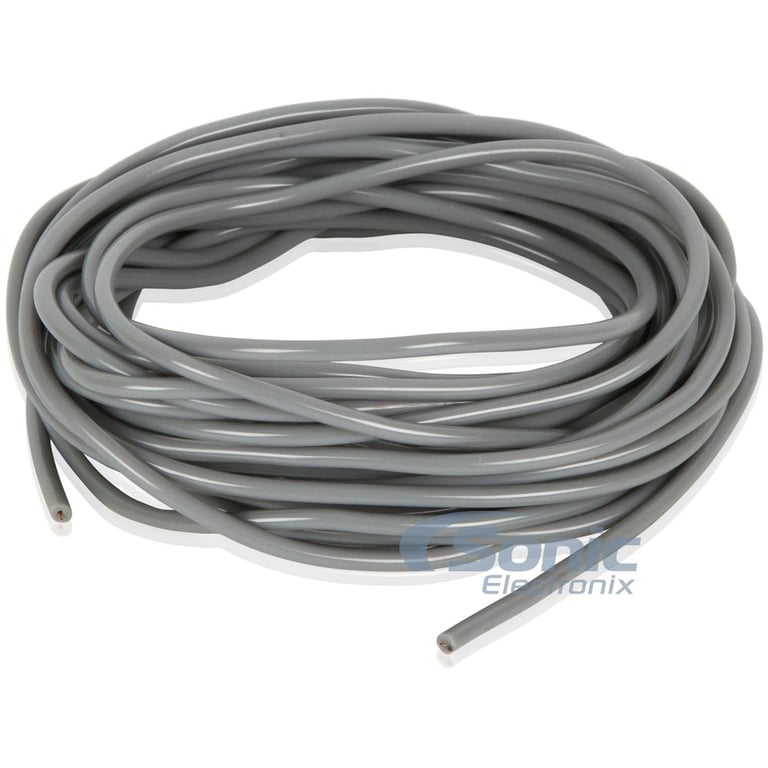

  3. 17 ft. Gray 18 gauge remote lead wire

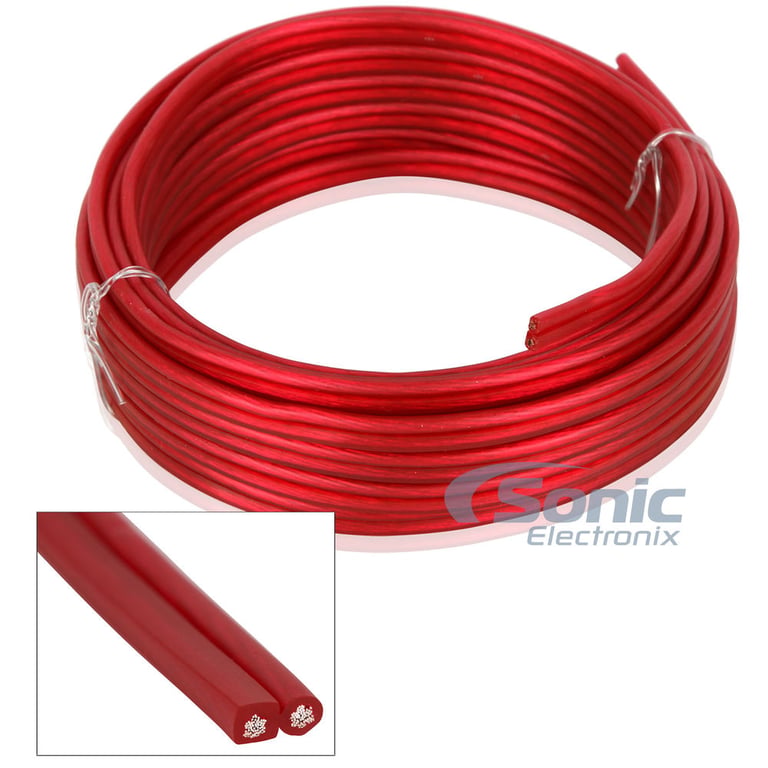

  4. 40 ft. 16 gauge speaker wire

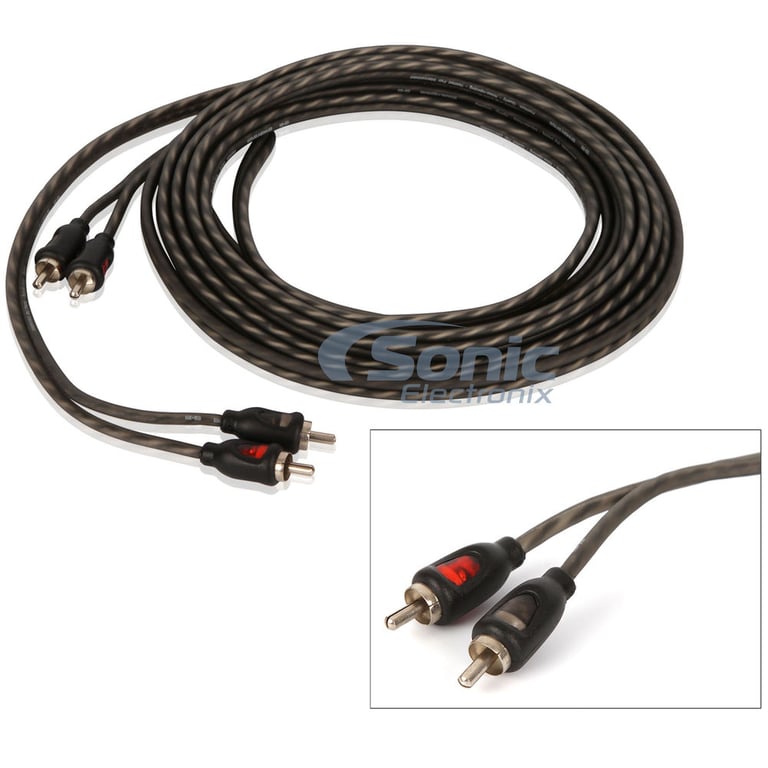

  5. One 17 ft. 4-channel twisted-par construction RCA interconnect Cable

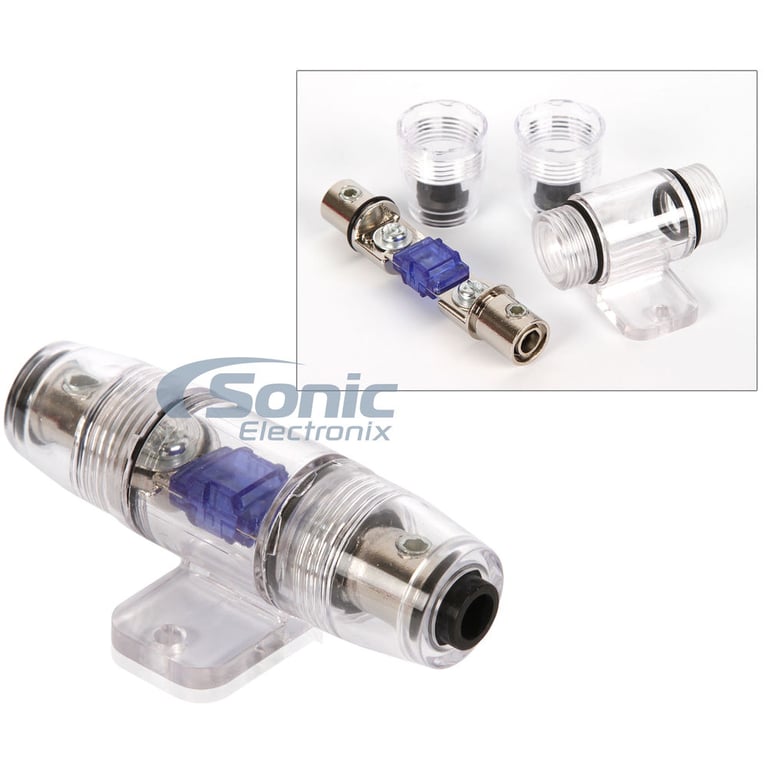

  6. One Mini-ANL Fuse Holder with 80 amp Mini-ANL fuse
  7. One Black rubber firewall grommet

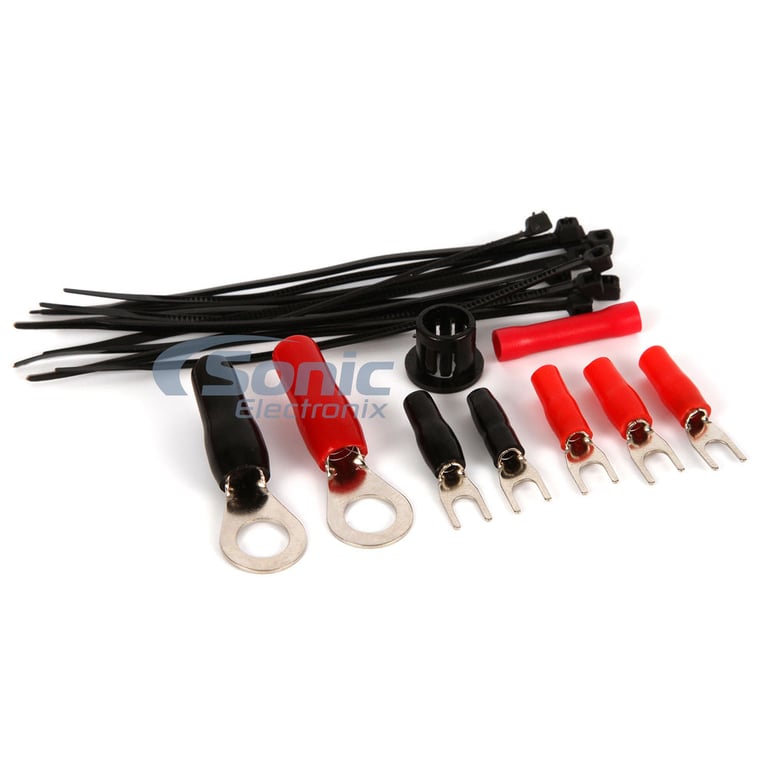

  8. Two 4 Gauge Chrome Plated ring terminals
  9. Five 16 Gauge Spade terminal
  10. One 18 Gauge Red butt connectors
  11. Ten 4" Black zip ties

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

44
-16.69%

$149.95

List price $180.00

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00


Best selling similar products

MBQBRO-STG6-OEM-1 small

MB Quart MBQBRO-STG6-OEM-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM Base model audio systems or aftermarket source units
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1444.99

List price $1899.99

R2-1200X1, XKIT42 small

Rockford Fosgate R2-1200X1 with Amplifier Wiring Kit

• 400 Watts RMS x 1 @ 4 ohm
• 800 Watts RMS x 1 @ 2 ohm
• 1200 Watts RMS x 1 @ 1 ohm
• CEA-2006 Compliant
• R.L.C. Remote Level Control
• Includes Amplifier Wiring Kit

(148)

$506.68

List price $593.98

NPKG212_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – NPKG212 Bass Package with 2 Pair 6.5" Speakers

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 Co-axial Speaker and Damping Kits

(255)

$486.93

List price $677.43

51HS10_BAK82_2NK small

Kicker HS10 (51HS10) w/ Free Amp Install Kit

  • Kicker HS10 180W RMS Single Loaded 10-Inch Hideaway Series Powered Subwoofer Enclosure
  • Convenient wired remote for independent bass level control
  • 8 Gauge Premium CCA complete 2-channel amplifier wiring kit with RCA
  • Premium polyurethane foam can insulator sleeve koozie with black logo
  • Complete bass solution includes compact powered subwoofer and installation hardware

(99)

$319.99

List price $489.96

QBSTA_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – QBSTA & Two Pair 6.5" Speakers

• 11" Spare Tire Subwoofer System
• Built-In Class D Amplifier
• Top-mount amplifier controls
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 Co-axial Speaker and Damping Kits

(260)

$396.93

List price $581.43

43DC122_46CX_BK82_2SK small

Kicker Subwoofer (43DC122) and Amplifier (46CXA4001T) w/ Free Amp Install Kit

  • Kicker Comp DC12 600W Peak Dual 12" Loaded Vented Subwoofer Enclosure
  • 400W RMS Class D CX-Series Monoblock Car Amplifier
  • Belva 8 Gauge Premium CCA Complete 2-Channel Amplifier Wiring Kit with RCA
  • NVX Premium Polyurethane Foam Can Insulator Sleeve Koozie
  • Complete bundle designed for powerful bass and seamless installation

(128)

$570.00

List price $679.94

BAK42,46CXA4001T small

Kicker 46CXA4001 with Amplifier Wiring Kit


• 150 Watts RMS x 1 @ 4 ohm
• 300 Watts RMS x 1 @ 2 ohm
• Total Peak Power: 600 Watts
• Preamp RCA outputs to daisy chain multiple amps
• Variable Low-Pass Crossover: 50 - 200Hz 12dB/octave
• Variable Bass Boost: 0 to +12 dB bass boost at 40 Hz
• Includes Amplifier Wiring Kit

(45)

$199.99

List price $269.98

46CS65_46CS69_VA4_XK84_SK small

Pair Kicker 6.5" and 6x9" Speakers + NVX Amp w/ Free Amp Install Kit

  • Kicker CSC65 600W Peak 6.5-inch 2-Way Coaxial 4-Ohm Speakers
  • CSC693 900W Peak 6x9-inch 3-Way Coaxial 4-Ohm Speakers with Integrated Midrange
  • NVX VADM4 v2 500W RMS Micro Full-Range Class D 4-Channel Amplifier
  • XKIT84 Full Spec 8 Gauge 100% OFC Complete 4-Channel Wiring Kit with RCA
  • Sonic Electronix Premium Polyurethane Foam Can Insulator Sleeve Koozie

(243)

$401.94

List price $637.94

MBQBRO-STG6A-1 small

MB Quart MBQBRO-STG6A-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Includes PAC module for OEM B&O audio systems
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM B&O audio systems
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1869.99

List price $2399.99

QB10SPA_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – QB10SPA with 2 Pair 6.5" Speakers

• 10" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5(2) Co-axial Speaker and Damping Kits

(244)

$311.43

List price $533.42

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
100 watts x 4 channel
RMS Power @ 2 ohms
200 watts x 4 channel
Bridged RMS Power
400 watts x 2 channel
Peak Power Output
400 watts x 2 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
800 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
Speaker Level Inputs
Yes - with included adapter
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
80 Hz
Low-Pass Crossover Frequency
35 - 160 Hz
Signal-to-Noise Ratio
102 dB
Channel Separation
90 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Fuse Rating
25A x 1
CEA-2031 Compliant
No
Amplifier Kit Specifications
Number of Amplifiers Supported
1
Power/Ground Wire Size
4 gauge
Power Wire Length
17 feet
Ground Wire Length
3 feet
Speaker Wire Included
Yes
Speaker Wire Length
65 feet
Remote Wire Length
17 feet
Interconnect (RCA) Signal Cables Included
4 Channel
Fuse Holder
Mini ANL
Fuse Size
80A
Distribution Block Included
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

BAK44BL,AC800.4

Weight:

12.08lbs

Internal SKU:

ac8004_bak44

Internal Product ID:

128893

Customer Ratings & Reviews


Planet Audio AC800.4 4 Channel Amplifier w/ Complete 4 AWG Amp Kit thumbnail image

5 star
77%
4 star
14%
3 star
9%
2 star
0%
1 star
0%



Durability
4.6
Value
4.9
Features
4.8
Design
4.8
Usability
4.9

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

Seems legit

The following review is for BAK44BL, which is a part of the bundle you are viewing.

My first time using CCA wire. I was pleased to see the amount of copper in the power and ground wi hires. Quality fuse block. The RCA patch cords are awesome being bundled together. Made installation that much easier.

By Anonymous on November 14, 2018 Checkmark Icon Verified purchase

74 found this helpful


Great value

The following review is for BAK44BL, which is a part of the bundle you are viewing.

No complaints nice price, work's extremely well. Glad I purchased it from Sonic Electronic..

By Frederick on August 28, 2018 Checkmark Icon Verified purchase

73 found this helpful


Great value

The following review is for BAK44BL, which is a part of the bundle you are viewing.

Used this kit in my 88 Corvette C4. Wired into my 1600watt 4 channel Cervin Vdga amp. High quality and looks great. Excellent value and good quality

By Robert on October 1, 2020

68 found this helpful


Not the best, but Good.

The following review is for BAK44BL, which is a part of the bundle you are viewing.

This is an ok kit. Came with everything that Is described. The RCA plugs ARE NOT gold plated.
The remote wire is very thin. Speaker wire is decent but not the best. You get what you pay for.
Overall a good kit ... not the best quality ... alright for the price paid.

By PapaFinnDaddy on August 29, 2020 Checkmark Icon Verified purchase

67 found this helpful


Great kit!

The following review is for BAK44BL, which is a part of the bundle you are viewing.

This has everything you need to install a 4 channel amp. Good quality materials.

By Bsm781 on April 28, 2018

61 found this helpful


Belva BAK44BL

The following review is for BAK44BL, which is a part of the bundle you are viewing.

Heavy duty, rugged, works very well. Would recommend to anyone looking for budget friendly wiring. However be advised if you run a stock head unit you'll need a line out converter.

By Anonymous on May 15, 2018 Checkmark Icon Verified purchase

58 found this helpful


The following review is for BAK44BL, which is a part of the bundle you are viewing.
By Isaiah on July 2, 2023 Checkmark Icon Verified purchase

49 found this helpful


The following review is for BAK44BL, which is a part of the bundle you are viewing.
By Hubert on December 17, 2023 Checkmark Icon Verified purchase

38 found this helpful


Great amp.

The following review is for AC800.4, which is a part of the bundle you are viewing.

Awesome amp and can't beat the price. Planet Audio always has consistent quality products.

By Doc on March 15, 2015

39 found this helpful


Good Buy

The following review is for AC800.4, which is a part of the bundle you are viewing.

Brought this to push my 4 6*9 and 2 4*6 love it sounds good and loud...

By KnOxViLlE on May 13, 2014

35 found this helpful



KMR-D558BT small

Kenwood KMR-D558BT

Single-Din Bluetooth Marine Stereo w/ iPod Control, Internet Radio, and Sirius XM Ready

(6)

$139.99

List price $199.99

SX PRO 12D2_BBX112RD small

1000W RE Audio Subwoofer and Enclosure Package

Single 12" SX PRO 12D2 Subwoofer + Ported Enclosure Custom Red Baffle

(6)

$349.95

List price $729.98

TX10 small

Phoenix Gold TX10 10" TantrumX Series

$59.99

List price $169.99

ZR-10D2 small

Phoenix Gold ZR-10D2 10" Octane-ZR DVC 2 Ohms ( ZR10D2 )

$59.99

List price $199.99

RSdC102 small

Phoenix Gold RSdC102 (RSdC 102)

10" Dual 2 ohm RSdC (Radial SD Competition) Series Subwoofer

(3)

$99.99

List price $319.99

GR100 small

Kicker GR100 10" Speaker Grille-OPEN BOX

10" Speaker Grille for Kicker Comp, CompVR, CompVT , CompVX, and Solo Classic

$10.95

List price $25.95

VM9423-2 small

Jensen VM9423 + Jensen NAV102 Package

Combo with GPS Navigation + Double DIN 6.5" Touchscreen CD, DVD, MP3, WMA Multimedia Receiver w/ HD Radio Tuner and Media Link Interface

$579.99

List price $949.98

No picture

Pioneer AVIC-N3 (DEFECTIVE - NO GUARANTEES - ALL SALES FINAL)

Core Unit without Face Plate

$75.00

List price $0.00

AVIC-D3+CD-i200+CD-BTB200 small

Combo: Pioneer AVIC-D3 + CD-i200 + CD-BTB200

Double DIN 6.1" TFT-LCD Touchscreen DVD/CD/MP3 Receiver with GPS Navigation System PLUS iPod Adapter Cable Included AND Bluetooth Kit Included

(1)

$809.99

List price $1519.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2011 Land Rover LR4

2025 GMC Terrain

2004 Volvo XC70

1990 Volvo 760

2017 Dodge Ram ProMaster 2500

2021 Mazda CX-30

2004 BMW 645Ci

1992 Lexus ES300

1988 BMW 528e

1997 GMC Suburban

Vehicle
Store
Delete

2012 Harley Davidson FLS Softail Slim

2000 Harley Davidson FXSTS/I Springer Softail

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
