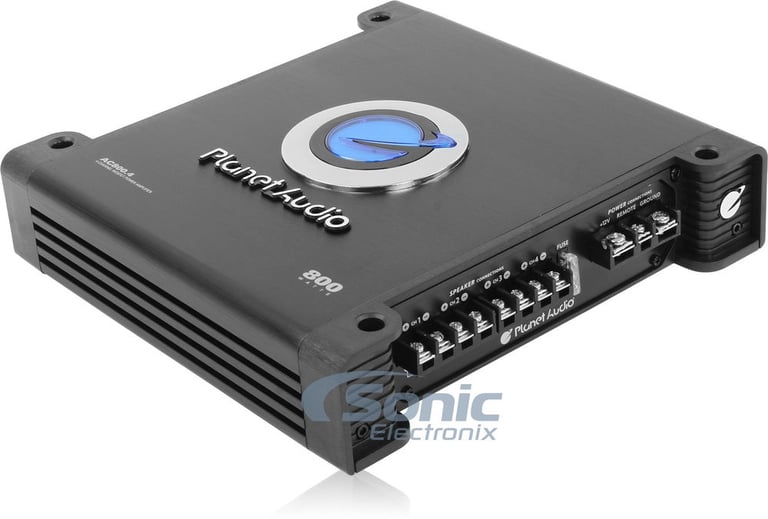

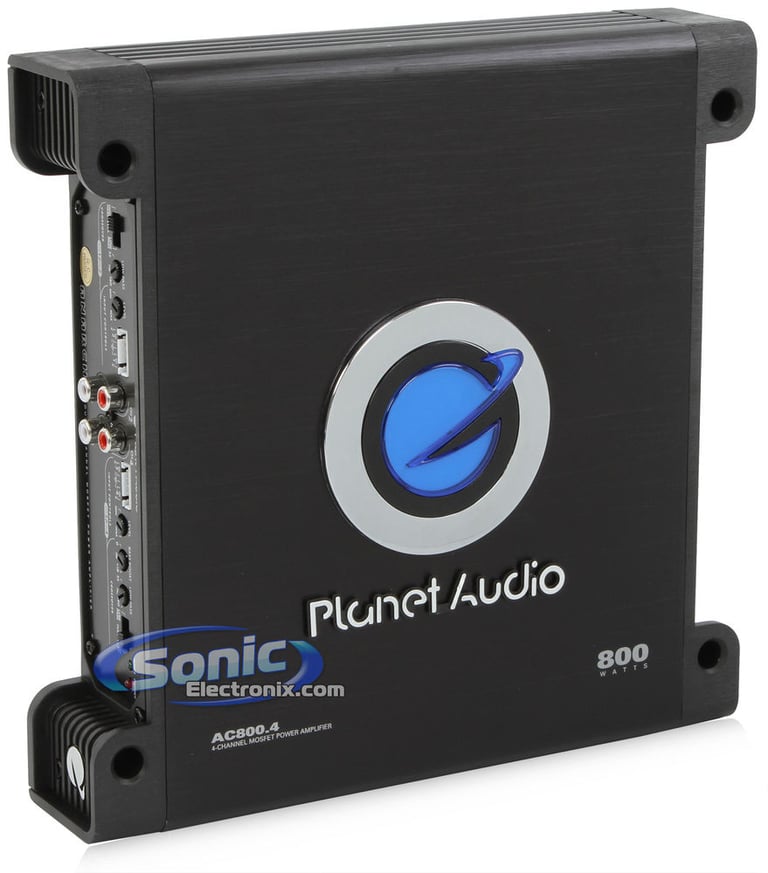

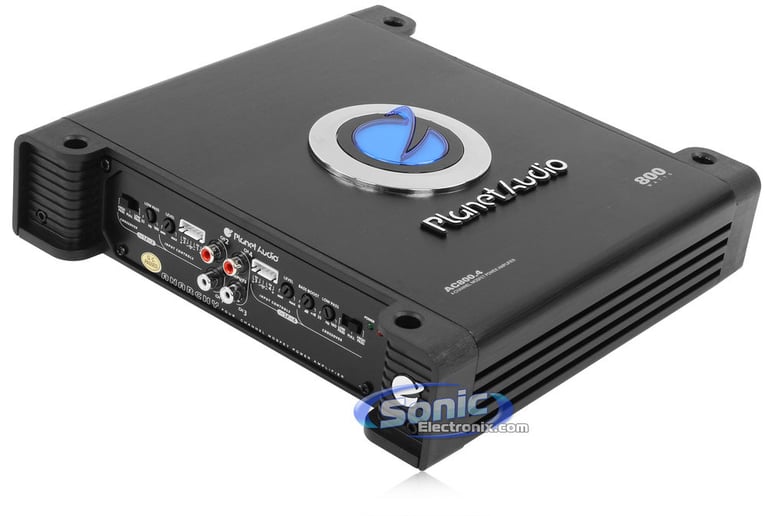

Planet Audio AC800.4

1200W Max (800W) Anarchy Series 4-Channel Class A/B Power Amplifier

14
Planet Audio
Shop all Planet Audio
Product videos
highlight-star-icon

• RMS: 100W x 4 @ 4 ohms, 300W x 4 @ 2 ohms
• Total Peak Power: 1200W
• Pulse Width Modulated MOSFET Power Supply
• Variable Bass Boost
• Heavy Duty Black Anodized Heatsink For Heat Dissipation
• Dimensions: 10.66"W x 10"L x 2.41"H

Learn more about the ac8004

We apologize

This item has been discontinued

Show me more products from this category
Go to Category

Product Highlights

• RMS: 100W x 4 @ 4 ohms, 300W x 4 @ 2 ohms
• Total Peak Power: 1200W
• Pulse Width Modulated MOSFET Power Supply
• Variable Bass Boost
• Heavy Duty Black Anodized Heatsink For Heat Dissipation
• Dimensions: 10.66"W x 10"L x 2.41"H

Description

Planet Audio

Authorized dealer

Planet Audio Authorized Dealer

General Features:

  • Anarchy Series 4-Channel Class A/B Power Amplifier
  • RMS Power Rating:
    • 4 ohms: 100 watts x 4 chan.
    • 2 ohms: 200 watts x 4 chan.
    • Bridged, 4 ohms: 400 watts x 2 chan.
  • Max power output: 800 watts
  • Pulse Width Modulated MOSFET power supply
  • Speaker-level (high-level) inputs
  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • 4 or 2 channel operation
  • Remote turn on/off circuit

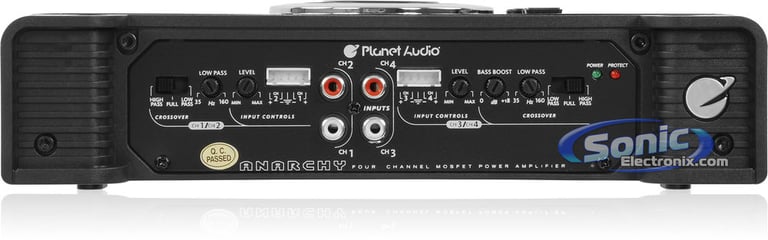

  • Variable input gain control
  • Thermal and speaker short protection circuitry
  • Variable low pass crossover
  • Heavy duty black anodized heatsink for extreme heat dissipation
  • Variable Bass Boost (0 to +18 dB bass boost at 50 Hz)
  • Variable high-pass filter (80 Hz, 24 dB/octave)
  • Variable low-pass filter (35-60 Hz, 24 dB/octave)

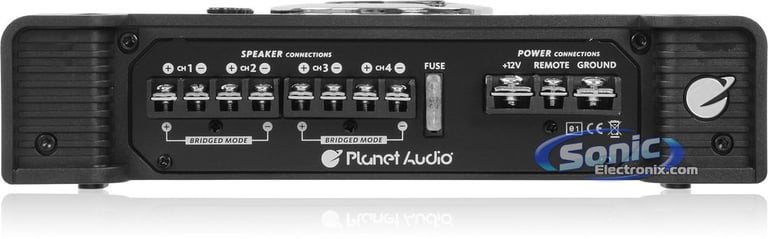

  • 4 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 10.66"W x 10"L x 2.41"H
  • Authorized Platinum Internet Dealer
  • 1 year Sonic Electronix, and 5 years Manufacturer's warranty


Planet Audio AC800.4 owner’s manual



Specifications & Details

Power Specifications - Full Range Channels
RMS Power @ 4 ohms
75 watts x 4 channel
RMS Power @ 2 ohms
150 watts x 4 channel
Bridged RMS Power
300 watts x 2 channel
Power Specifications - Subwoofer Channel
RMS Power @ .5 ohm
Power Specifications - Full Range Channels
Peak Power @ 4 ohms
150 watts x 4 channel
Peak Power @ 2 ohms
400 watts x 4 channel
Bridged Peak/Max Power
800 watts x 2 channel
Power Specifications - Subwoofer Channel
Peak Power @ .5 ohm
Amplifier Specifications
Series
Anarchy Series
Marine Certified
No
Amplifier Class
A/B
Number of Channels
4
Total Peak Power Output
1600 watts
Total RMS Power Output
600 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
4 ohms
Frequency Response
Speaker Level Inputs
Yes - with included adapter
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
80 Hz
Low-Pass Crossover Frequency
35 - 160 Hz
Signal-to-Noise Ratio
102 dB
Channel Separation
90 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Fan Cooled
No
Fuse Rating
25A x 1
Total Fuse Rating
25
Strappable
No
CEA-2031 Compliant
No
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Low-Level Input Sensitivity
High-Level Input Sensitivity
What is in the box?
Paperwork
User manual
WITB: Amplifiers
Amplifier

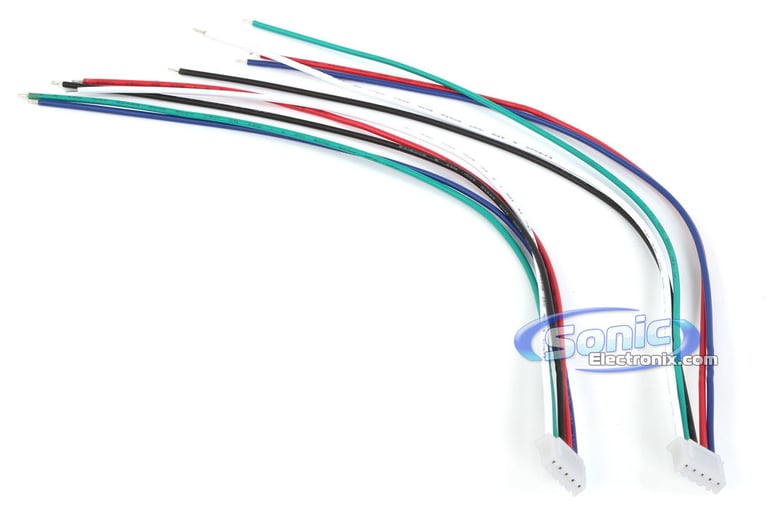

High-level input wiring harness w/ molex connectors (2)
Other Accessory #6
Warranty and Return Policy
Parts Warranty Duration
6 years
Labor Warranty Duration
6 years
Warranty Provider
Manufacturer

Item Details

Manufacturer:

Planet Audio

Model Number:

AC800.4

Weight:

8.00lbs

Internal SKU:

ac8004

Internal Product ID:

75675
