Name: Alphasonik PMA600HCA R/B
Brand: Alphasonik
SKU: LS-pma600hca-RB
Price: 209.99 USD
Availability: Discontinued

by Alphasonik

About
Specs & Details
Product Videos
Reviews
Add-ons
Recently Viewed
Related Searches

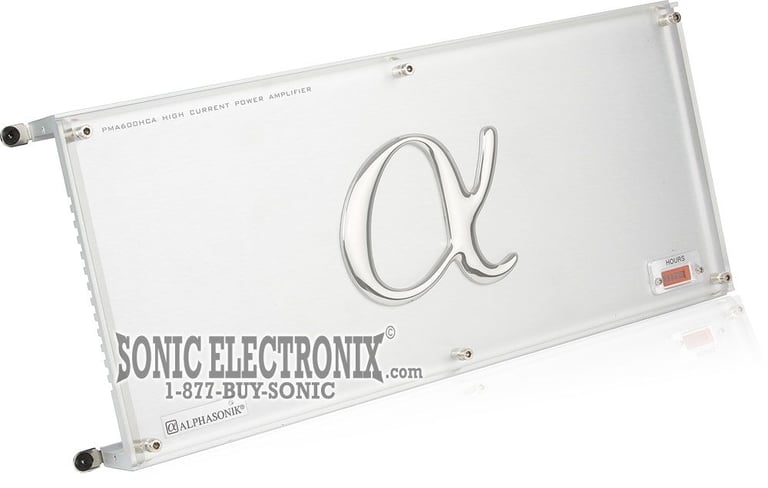

Alphasonik PMA600HCA R/B Image 1 — Alphasonik PMA600HCA R/B

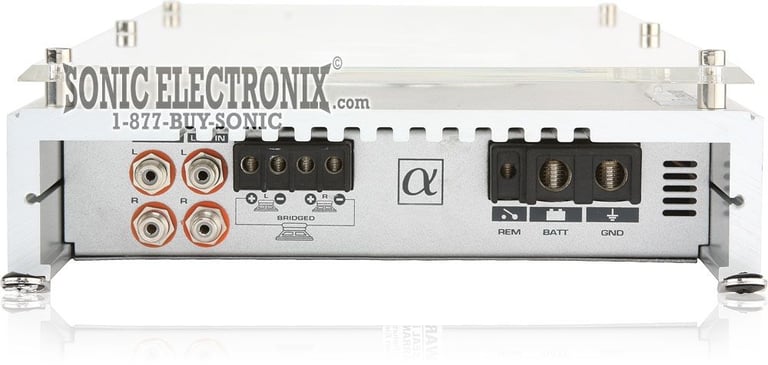

Alphasonik PMA600HCA R/B Image 2 — Alphasonik PMA600HCA R/B

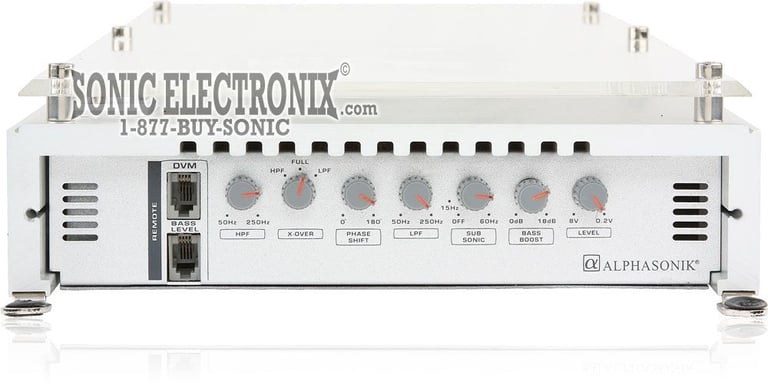

Alphasonik PMA600HCA R/B Image 3 — Alphasonik PMA600HCA R/B

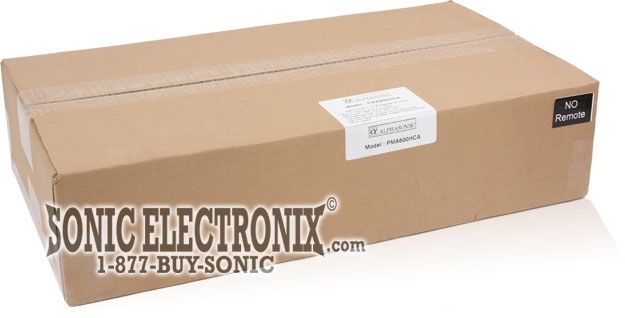

Alphasonik PMA600HCA R/B Image 4 — Alphasonik PMA600HCA R/B

Product videos

Product highlights

PMA Series 2-Channel Class AB High Current Car Amplifier • 300W x 2 chan. @ 4 ohm • 550W x 2 chan. @ 2 ohm • 900W x 2 chan. @ 1 ohm • 1800W x 1 chan. @ 1 ohm • MOSFET power supply • Preamp RCA outputs • Subsonic Filter

Learn more about the LS-pma600hca-RB

NVX - Worth the Envy - Direct to Consumer Car Audio

Product Highlights

Description

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

PMA Series 2-Channel Class AB High Current Car Amplifier
RMS Power Rating:

4 ohm: 300 watts x 2 chan.
2 ohm: 550 watts x 2 chan.
1 ohm: 900 watts x 2 chan.
Bridged, 4 ohm: 950 watts x 1 chan.
Bridged, 2 ohm: 1550 watts x 1 chan.
Bridged, 1 ohm: 1800 watts x 1 chan.

MOSFET power supply
Remote bass level input (remote level control sold separately)
LED hour meter display
Tuned Bass EQ (0-18 dB bass boost at 45 Hz)
Beveled clear acrylic protective cover
Bridgeable operation
Stable at 1 ohm
Tiffany style RCA connectors
Preamp RCA outputs
Removable aluminum side covers conceal control and terminal panels
Milspec double-sided glass epoxy circuit board with through-hole plating
Heavy 4oz. pure copper PC traces at all preamp and amplification stages
Variable Phase Shift: 0-180 degrees
Input Impedance: 10kΩ
Input Sensitivity: 200mV-8V
Thermal, short circuit, overload, and DC offset protection circuitry
Cooling fans
Solid brass, nickel-plated RCA level inputs
Solid brass, nickel-plated screw terminals
Variable high-pass filter (50-250 Hz, 24 dB/octave)
Variable low-pass filter (50-250 Hz, 24 dB/octave)
Subsonic Filter (24 dB at 20-60 Hz)
Frequency response: 5-50000 Hz
Dimensions: 19-3/4"L x 9-1/16"W x 2-5/8"H
4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
1-year SonicElectronix.com warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

300 watts x 2 channel

RMS Power @ 2 ohms

550 watts x 2 channel

RMS Power @ 1 ohm

900 watts x 2 channel

Bridged RMS Power

1800 watts x 1 channel

Amplifier Specifications

Amplifier Class

A/B

Number of Channels

2-Channel

Total RMS Power Output

1800 watts

Minimum Impedance Unbridged

1 ohm

Minimum Impedance Bridged

1 ohm

THD at Rated RMS Power

0.05%

Speaker Level Inputs

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)
Full (AP)

High-Pass Crossover Frequency

50 - 250 Hz

Low-Pass Crossover Frequency

50 - 250 Hz

Subsonic Filter

20 - 60 Hz

Signal-to-Noise Ratio

100 dB

Bass Boost

0 - 18 dB

Remote bass/level controller

Optional (Accessory required and sold separately)
