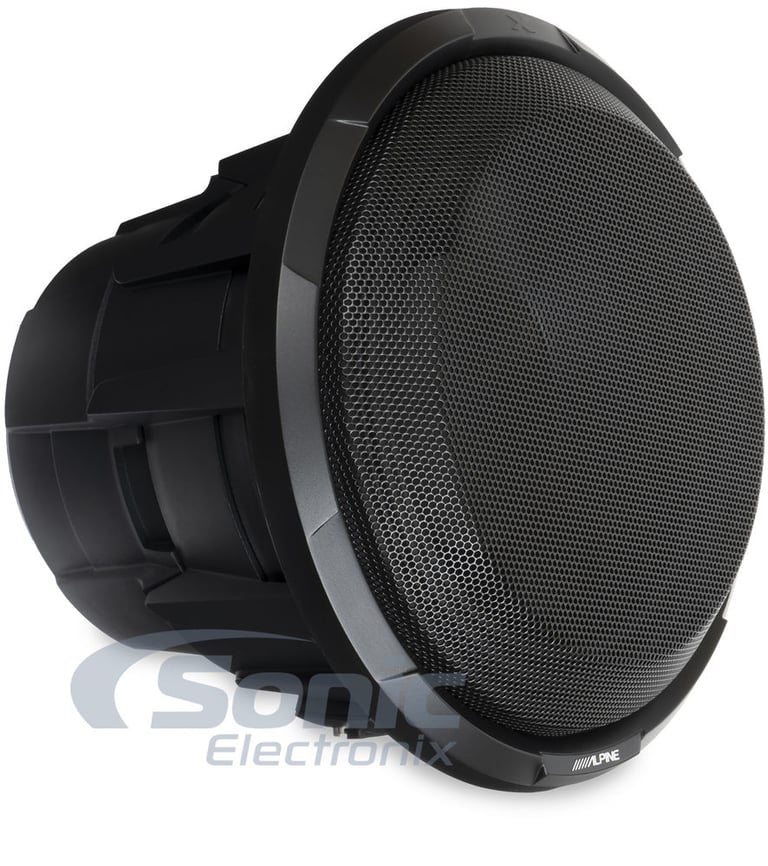

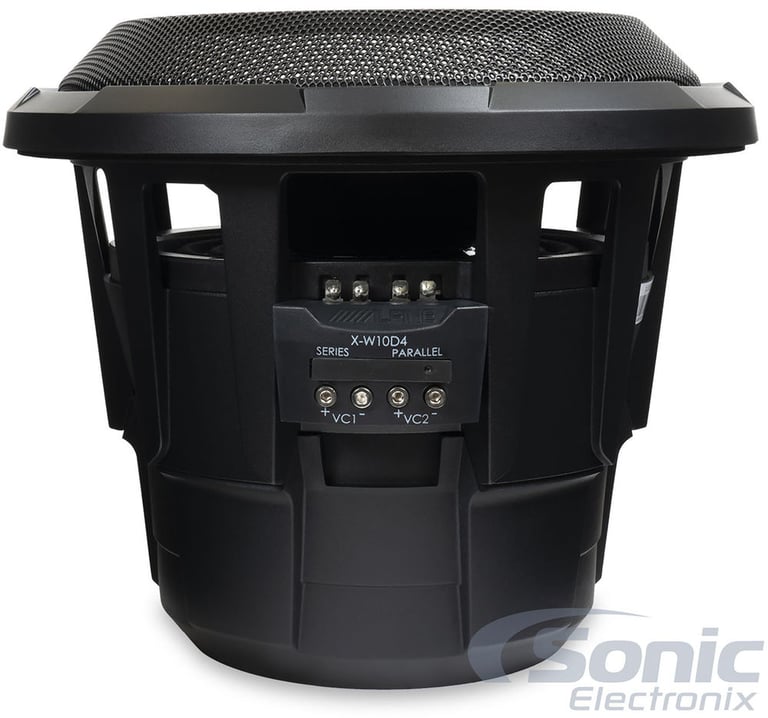

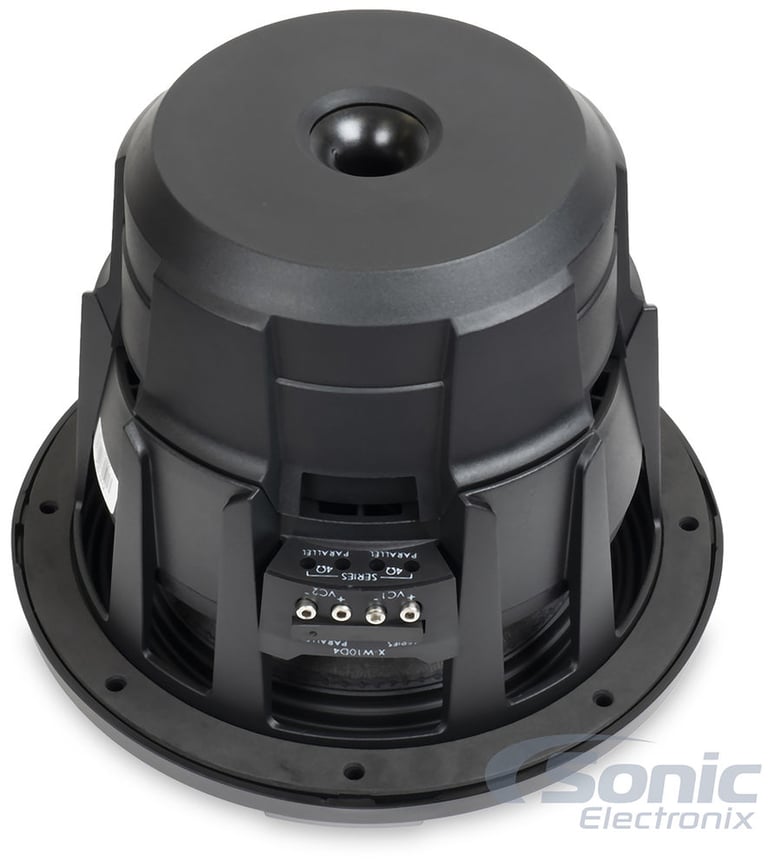

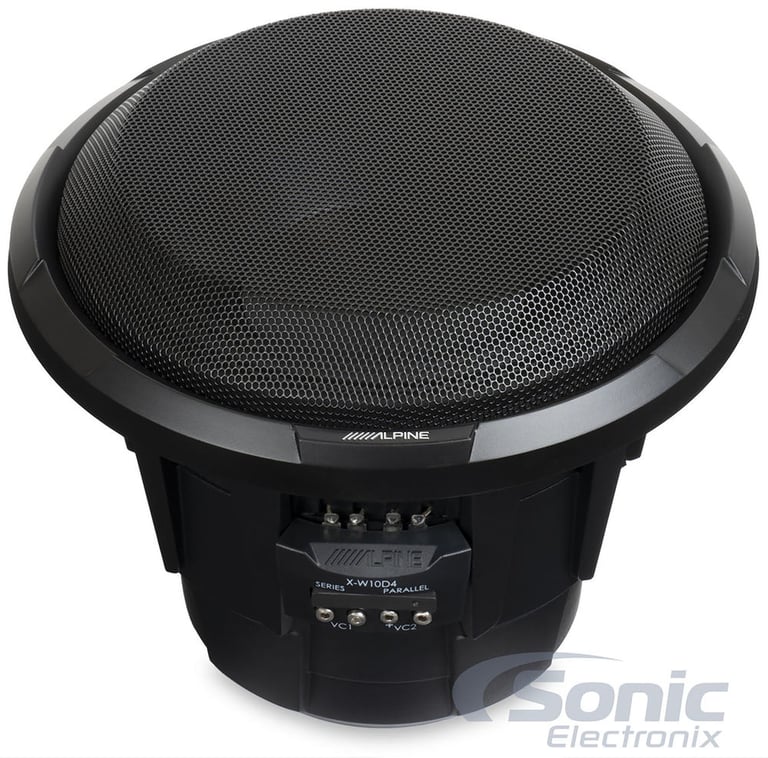

Alpine X-W10D4

2700W Max (900W RMS) 10" X-Series Dual 4 Ohm Car Subwoofer

Alpine
Shop all Alpine
highlight-star-icon

• 10" Dual 4-ohm X-Series subwoofer
• Max Power - 2,700 Watts
• RMS - 900
• Dual 4-Ohm Voice Coils
• Mica-filled pulp cone
• H.A.M.R. Surround

Learn more about the alp-xw10d4

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
72-8104 main

Metra 72-8104

Install New Speakers in select 1990-2024 vehicles from Toyota, Subaru, Mitsubishi

87
-20.01%

$11.99

List price $14.99

70-1761 main

Metra 70-1761 Wiring Harness

Install a new car stereo in select 1984-2022 vehicles from Toyota, Subaru, Scion

97
-14.31%

$5.99

List price $6.99

40-SB10 main

Metra 40-SB10

Antenna Adapter for select 2005-2025 vehicles from Subaru

7
-26.68%

$10.99

List price $14.99

95-8910S main

Metra 95-8910S Dash Kit

Install a new Double-DIN car stereo in select 2010-2012 Legacy and Outback

-10.67%

$66.99

List price $74.99

70-8902 main

Metra 70-8902 Wiring Harness

Install a new car stereo and retain factory amplifier in select 2012-2014 Legacy and Outback

-37.51%

$19.99

List price $31.99

SBK924P main

American International SBK924P

Single DIN or Double DIN Stereo Dash Kit for select 2010-2014 Outback and Legacy

2
-65.93%

$14.99

List price $44.00

SU6 main

PAC SU6

Install a New Car Stereo and Retain the Factory Antenna in select 2005-2014 vehicles from Subaru

-58.33%

$10.00

List price $24.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Limited time!
CAR723W main

Jensen CAR723W

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, Android Auto

18
-11.11%

$239.99

List price $269.99

Description


Alpine brand icon

Authorized dealer

BUILT TO MOVE TONS OF AIR

The 24mm Xmax is best in class and allows close to 2 inches of full cone motion. In order to create a powerful yet accurate subwoofer, we had to implement several technologies that keep the cone under control. Dual spiders ensure a rigid moving assembly while the HAMR surround provides long linear travel. A shorting ring keeps the THD down while a custom heat sink integrated CRC pole and shorting cap keeps high magnetic force. These design aspects come together to produce incredibly precise, powerful bass.

EASY GRILLE AND TRIM RING INCLUDED

Taking design cues from tweeter development, we’re incorporating a twist-lock trim ring which allows easy attachment of the included metal mesh grill. With a simple twist, the trim ring locks into place, concealing the mounting screws and locking the optional grille into place. The trim can be installed with or without the grille.

THE PERFECT PAIR PERFECT POWER MATCHING

The X-Series amplifier, X-A90M, is the perfect amplifier for the job. Along with the 900w power matched specifications of both components, each were built under the same sound philosophy, Alpine ID. With a focus on musicality and sound imaging, the X-W10D4 is complimented by the amplifiers clean, low distortion output and >1500 damping factor. Add the X-Series speaker to the system and prepare to experience a new level of in-car imaging.

General Features:

  • Handles up to 900 watts RMS (450 watts per coil)
  • Peak power handling: 2700 watts
  • 24mm linear Xmax (1 way), 48 mm peak to peak
  • Frequency response: 24-200 Hz
  • Xmax: 28mm
  • Top-mount depth: 6-3/4"
  • large HAMR rubber surround
  • Authorized Internet Dealer
  • 1-year Sonic Electronix Warranty

What's in the Box?

  • One 10" Dual 4-ohm voice coil subwoofer

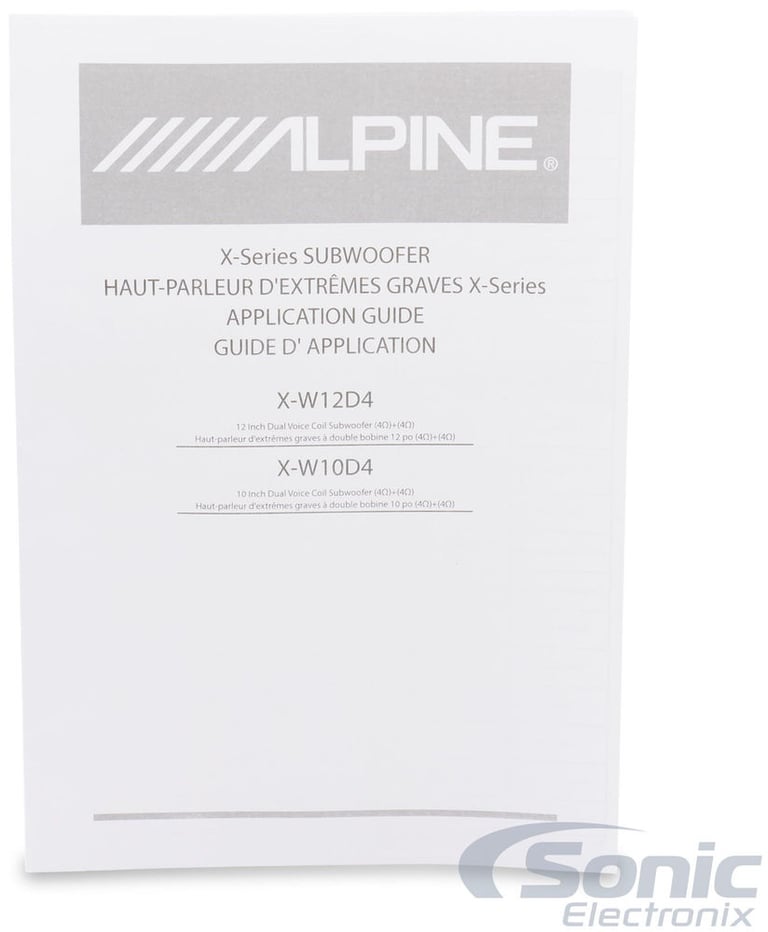

  • X-Series Subwoofer Application Guide (English/ French)
  • On-line product registration information (English/ French/ Spanish)
  • Grille (installed)
  • Warranty information (English/ French)
  • Important Notice! (English/ French)

Product history:

Alpine X-W10D4 thumbnail
(newest, current model)
Alpine SWX-1043D thumbnail
(previous model, replaced by Alpine X-W10D4)
Alpine SWX-1042D thumbnail
(previous model, replaced by Alpine SWX-1043D)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Alpine X-W10D4 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Alpine X-W10D4 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Alpine X-W10D4 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Alpine X-W10D4 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(89)

$139.99

List price $139.99

Specifications & Details


Subwoofer Specifications
Series
X Series
Subwoofer Size
10"
Peak Power Handling
2700 watts
RMS Power Handling
900 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Frequency Response
24 - 200 Hz
Xmax (millimeters)
28 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Polypropylene
Subwoofer Grille
Yes - Included
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.67 cubic feet
Maximum Sealed Box Volume
0.55 cubic feet
Minimum Ported Box Volume
1.68 cubic feet
Maximum Ported Box Volume
1.15 cubic feet
Top-Mount Depth (Mounting Depth)
7-3/8"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
31 Hz
Equivalent Compliance (Vas)
23 liters
Total Speaker Q Value (Qts)
0.45
Electrical Q Value (Qes)
0.49
Electrical Resistance of Voice Coil (Re)
3.0 ohm
Mechanical Q Value (Qms)
4.28
What is in the box?
Paperwork
User manual
WITB: Subwoofers
Subwoofer
Grille (attached)
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

X-W10D4

Weight:

10.00lbs

Internal SKU:

alp-xw10d4

Internal Product ID:

133719
