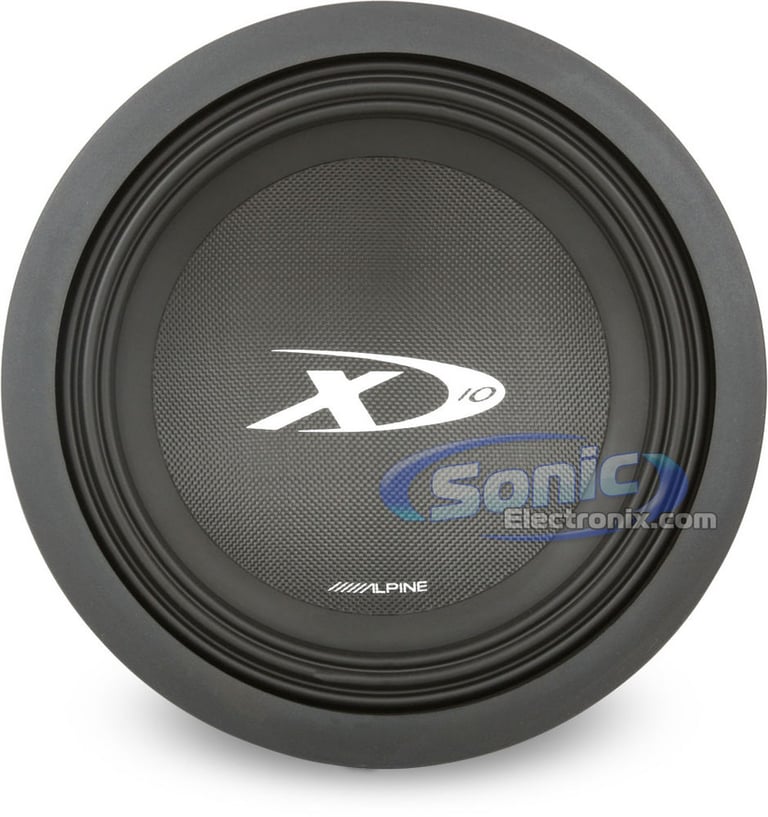

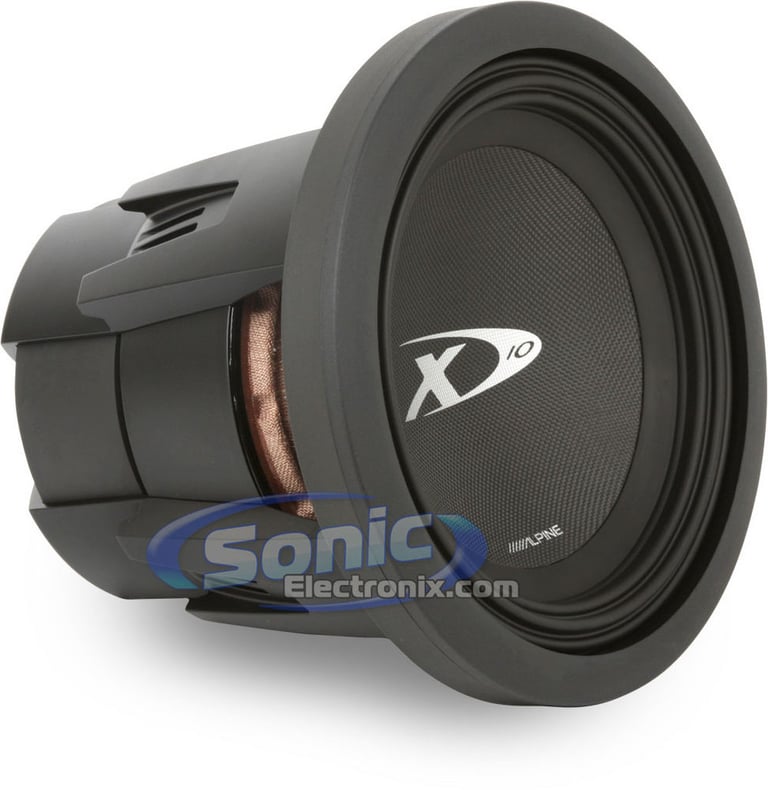

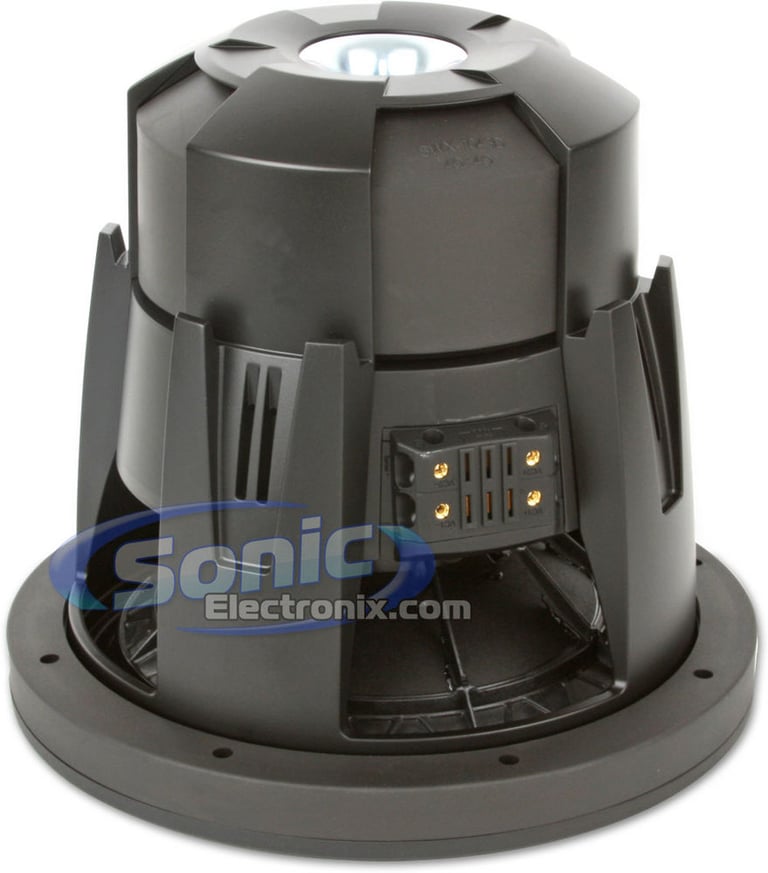

Alpine SWX-1043D 10" Type-X 3000W Dual 4 ohm Car Subwoofer

Alpine SWX-1043D

10" Dual 4 ohm Type-X Series Car Subwoofer

10" Dual 4 ohm Type-X Series Car Subwoofer

• 3000W Peak
• 1000W RMS
• Kevlar-Rohacell® parabolic cone
• Injection Molded Santoprene®
• Reinforced Layer Spider Integration
• 220°C High Temp Wire on Glass Fiber (TIL) Former

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

alp-xw10d4 thumbnail

Alpine X-W10D4

OUR PRICE: $549.95

View item

Authorized dealer

Product Features:

  • 10" Dual 4 ohm Type-X Series Subwoofer
  • Power Handling:
    • Peak: 3000 watts
    • RMS: 1000 watts
  • Impedance: Dual 4 ohms
  • Kevlar-Rohacell® parabolic cone
  • Injection Molded Santoprene®
  • Concealed Mount Gasket System
  • Reinforced Layer Spider Integration
  • Heavy Duty 8 gauge Push, Banana Plug Jumper
  • Perimeter Vented
  • Custom High Strength Steel
  • Airflow Optimized Extended/Vented Pole
  • 220°C High Temp Wire on Glass Fiber (TIL) Former
  • 6-Layer Dual 4 ohm Voice Coil
  • Frequency response: 26-200 Hz
  • 1-year warranty

Alpine products are warranted solely by Sonic Electronix, Inc. under the same period and terms as the original Alpine warranty. Sonic Electronix is not an Authorized Alpine Dealer and Alpine requires all merchandise purchased by Sonic Electronix customers to be returned solely to Sonic Electronix. Alpine products are also covered by our Standard Return Policy for returns on exchanges or refunds within 30 days from the date of purchase.

Product history:

Alpine X-W10D4 thumbnail
(newest, current model)
Alpine SWX-1043D thumbnail
(previous model, replaced by Alpine X-W10D4)
Alpine SWX-1042D thumbnail
(previous model, replaced by Alpine SWX-1043D)
Subwoofer Specifications
Subwoofer Series
Type-X (Alpine)
Subwoofer Size
Peak Power Handling
3000 watts
RMS Power Handling
1000 watts
Voice Coil(s)
Impedance (Per Voice Coil)
4 ohms
Frequency Response
26 - 200 Hz
82 dB
Subwoofer Design
Round / Circle
Main Cone Color
Woofer Composition
Glass Fiber and Pulp/Kevlar
Woofer Surround
Santoprene Rubber
Subwoofer Grille
Re-Cone Kit Available
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Minimum Sealed Box Volume
0.50 cubic feet
Maximum Sealed Box Volume
1.0 cubic feet
Minimum Ported Box Volume
0.8 cubic feet
Maximum Ported Box Volume
1.5 cubic feet
Top-Mount Depth
Shallow Mount Installation

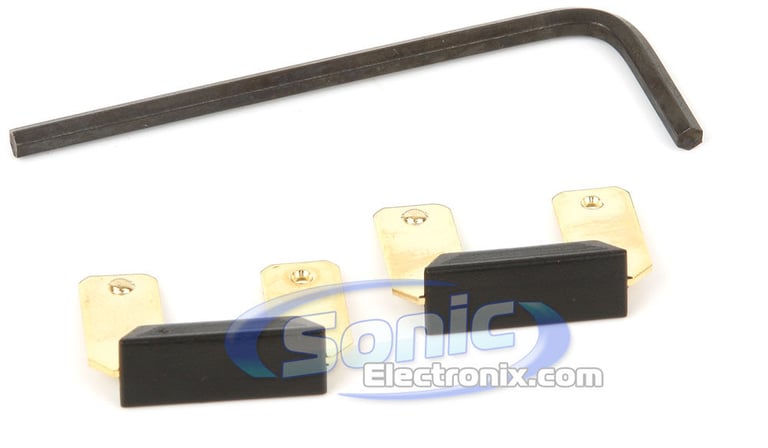

What is in the box?
WITB: Subwoofers
Other Accessory #1
Other Accessory #2
Other Accessory #3
Other Accessory #4
Other Accessory #5
Authorized Dealer
Authorized Dealer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix
Alpine SWX-1043D

Alpine SWX-1043D



Write a review

Overall rating distribution

5 star
4 star
3 star
2 star
1 star

By feature average rating



October 22, 2011

Great 10" sub hits hard

I have this sub with a kenwood KAC-9105D amp 900w rms at 2 ohms. I've had it for a month now, and just now the sub is starting to break in and is sounding better every day. I was worried about the distortion at first but it seems to be clearing up...I wonder if anyone else has had issues with this. It seems as though it shouldn't waffle or distort being 1000w rms and 3000 peak. But it truly sounds a lot better now than at first maybe it was just break in period. Sonix got all the deals and I won't shop anywhere else.


found this helpful.


February 21, 2013

Best speaker i have owned

I would recommend loud as hell and i only have one 10" in a probox. Only bad thing is that it smells funny for the first couple of months when u push it, but after that either you don't notice or u get use to the smell better than kicker punch and JL audio i have owned them all.


found this helpful.


September 27, 2011


This sub is very top of the line. Glad to have it. Sounds great.


found this helpful.


April 30, 2010

amazing sound quality for the money

wow for a 10 in sub you cant go wrong. i have just 1 in a ported box tuned to 32 htz, custom made with 1.5 in mdf all around running on a hifonic bxi2010 with about less than 3/4 gain. perfect combination the sub is getting about 900 watts rms it could handle alot more but i cant handle the madness of the bass that why it is set there. nice clean bass with no distortion and the low notes i just can't describe just amazing beating the crap out of my 07 nissan quest. sonicelectroix is the store to beat great prices on everything.


found this helpful.


February 5, 2014

Sound good but be careful

I have had these 2 of these subs for a week now. They do have excellent sound quality if put in the correct box. I have them in a dual 10" separately sealed box. With 1.25 cubic feet per. They sound very nice. Problem is i have them running on a Rockford Fosgate T-2500bdcp. I do have the gain turned way down. I had everything professionally installed or so i thought. After two weeks of playing them easy to break in 1 blew at a fairly low level. I didnt have in bumping. Just heard a crack then pop. Boom sub is gone. I am going to replace it with another but turn gain down even farther. All in all i do recommend them but make sure you properly power them. Use SMD products to watch clipping. Be easy on them for awhile and you should be good. I listen to mainly metal music death, black, and industrial metal. They kept up with the double bass drum beautifly. Try them.


found this helpful.


August 25, 2011

alpine swx-1043d

This sub it precision audio at its best. I know theres better out there but when you on a budget this sub surpasses them all and is deff my prefered choice.


found this helpful.


August 8, 2011


This is a great sub. This subs makes the most noise for how big it is you should get it but i did buy the 12" after i bought the 10"


found this helpful.


June 23, 2012

Upgrade from Walmart Brand

Upgraded From 2 12' Dual Subwoofers in a bandpass box with Dual 300W RMS Amp, to 1 Of these in a 1.3^ft Ported Box bought here on sonic Powered by a Alpine MRX-M100, 1000W RMS Amp. This Subwoofer is Considerably louder then my Old Setup, Takes up 1/2 of the trunk space of my old setup, and the sound quality of the Old setup isn't even comparable. Amazing Product for sure.


found this helpful.


May 29, 2012


this thing is crazy awesome for people looking for SPL


found this helpful.


November 22, 2010

high quality sub for good price

AMP: RF T1500-1db (1800 rms)

These are loud! Got a pair ported downfiring in ext ranger..very clean bass and can certainly take a beating..very well made..really dont think you can go wrong ported or sealed..just a great quality joke..must buy!


found this helpful.


October 11, 2010

1 TYPE-X vs 2 CVX

I have just pulled out 2 kicker CVX 10's out of my car to get ONE of these.... and as skeptical I was about losing even a single measure of wattage, I didn't.... I have 1 of these 10s in a sealed PROBOX pushed by a kicker zx1000.1 at half way gain on amp, and my scion TC rattles from front to back like some 15 is inside. AMAZING SUB and best of all VERY affordable


found this helpful.


December 20, 2007

Great sub and small space

I had one of these in a 1989 Subaru GL wagon with a band pass box with 1500 watts to it and it beat my car up. Had to buy a new car cause a lot of stuff broke from the bass. Great little sub.


found this helpful.


November 22, 2011

Type X 10

I have this sub, and it is amazing!!!! I am currently under powering this sub with a US Amps Merlin MD1 1200. It only gives me 600 rms @ 2 ohms, but i have to say that it still bangs!!!! Currently changing my stereo and am leaning toward the Hifonics hfi 1500d. This should push the sub nicely. I ordered a new larger box from Sonic and waiting on it to arrive. Ordered my Hifonics hfi 55.4 today and the big boy will be will be ordered soon. Still trying to decide on the highs and mids.


found this helpful.


February 28, 2009

insane sub

i got one in a 1 foot box and it slams. i just ordered another one, and i'm going with a bigger box so they are going to kill my car.


found this helpful.


September 8, 2010

Alpine SWX-1043D

I have this sub in a custom ported enclosure hooked up with a JBL GTO 14001. For a 10" subwoofer it hits hard! I didn't expect that much. Plus it's a good deal, for this price you get 1000RMS of pure clear bass. The only cons I have is the depth of the sub if you have limited space, the magnet is big, otherwise I highly recommend this subwoofer, you can't go wrong!


found this helpful.
Wiring Guide to Wire 1 Alpine SWX-1043D Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Alpine SWX-1043D Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Alpine SWX-1043D Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Alpine SWX-1043D Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp
