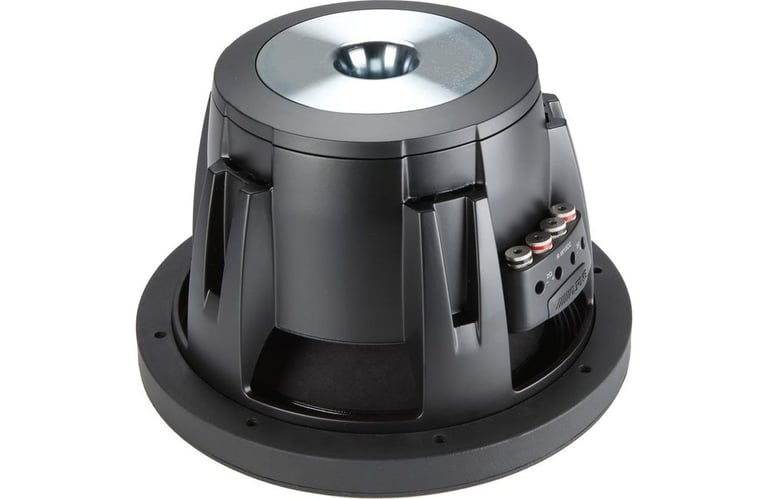

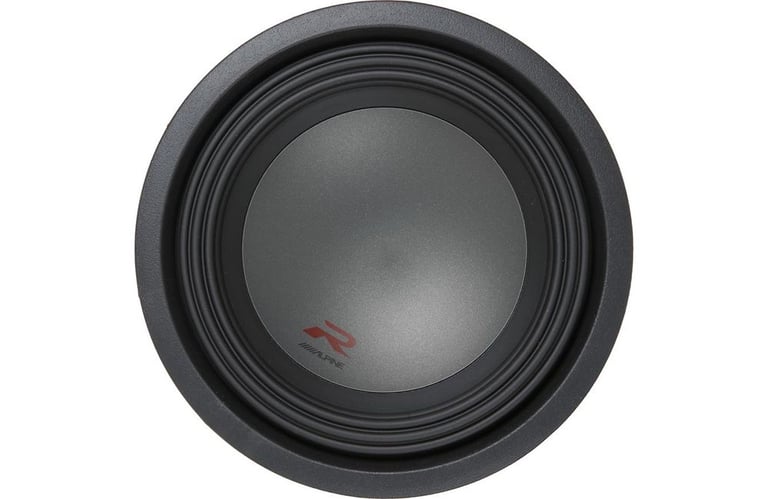

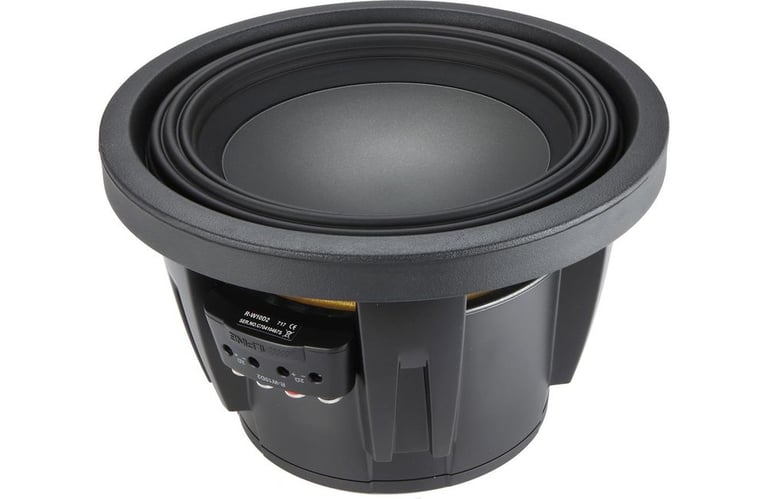

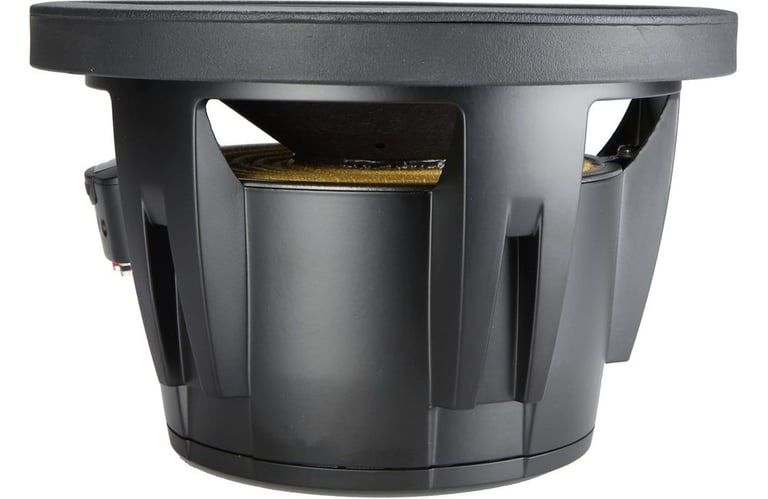

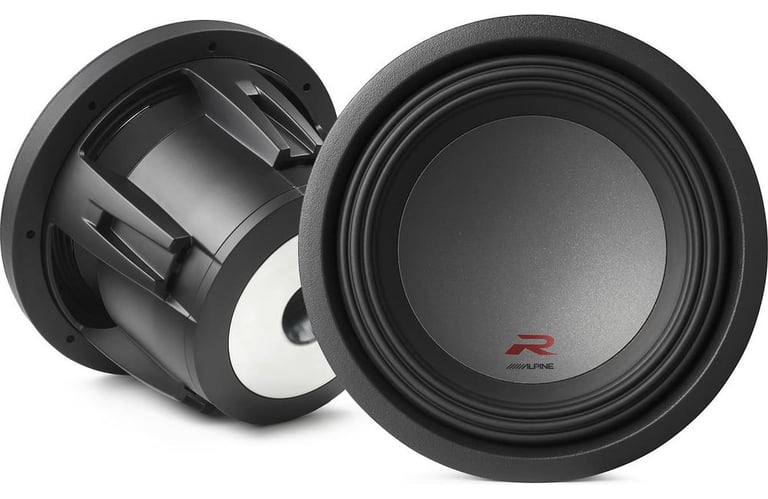

Alpine R-W10D2

2250W Max (750W RMS) 10" R-Series Dual 2-Ohm Car Subwoofer

Alpine
Shop all Alpine
highlight-star-icon

• 2250W Max
• 750W RMS
• Parabolic pulp/kevlar cone
• H.A.M.R. surround
• Cast aluminum frame with integral shorting sleeve
• Polypropylene, mica and talc dust cap
• 111 oz. Strontium ferrite segmented magnet

Learn more about the rw10d2

We apologize

This item has been discontinued

Description


Alpine brand icon

Authorized dealer

General Features:

  • 10" Dual 2 ohm Type-R Subwoofer
  • Power Handling:
    • Peak: 2250watts
    • RMS: 750 watts
  • Recommended power range: 300 - 750W RMS
  • CTA-2031 compliant power ratings
  • Parabolic pulp/kevlar cone
  • H.A.M.R. surround
  • Sealed Enclosure Volume: 0.4 - 0.85 ft.3
  • Vented Enclosure Volume: 0.75 - 1.3 ft.3
  • Polypropylene, mica and talc dust cap
  • Reinforced cone neck and spider joint
  • Cast aluminum frame with integral shorting sleeve
  • 8AWG push terminals with VC configuration jumpers
  • 2.6" High excursion overhung voice coil
  • 111 oz. Strontium ferrite segmented magnet
  • Top-mount depth: 5-7/8"
  • Cutout diameter: 9-1/16"
  • Frequency Response: 26 - 200Hz
  • Sensitivity: 82.4dB
  • Resonance Frequency (Fs): 30Hz
  • Authorized Internet Dealer
  • 1-year Sonic Electronix Warranty
  • Priced Individually



PROP 65 WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer or birth defects or other reproductive harm. Wash hands after handling. For more information, visit www.P65Warnings.ca.gov

Product history:

Alpine R-W10D2 thumbnail
(newest, current model)
Alpine SWR-10D2 thumbnail
(previous model, replaced by Alpine R-W10D2)
Alpine SWR-1023D thumbnail
(previous model, replaced by Alpine Type-R SWR-10D2)
Alpine SWR-1022D thumbnail
(previous model, replaced by Alpine SWR-1023D)
Alpine SWR-1021D thumbnail
(previous model, replaced by Alpine SWR-1022D)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Alpine R-W10D2 Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Alpine R-W10D2 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Alpine R-W10D2 Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 Alpine R-W10D2 Subwoofers

2 Channel Amp

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Series
Type-R Series
Subwoofer Size
10"
Peak Power Handling
2250 watts
RMS Power Handling
750 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohms
Voice Coil Diameter
2.6"
Frequency Response
26 - 200 Hz
Sensitivity
82.4 dB
Xmax (millimeters)
20 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Kevlar Reinforced Pulp Paper
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
.58 cubic feet
Optimum Ported Box Volume
1.3 cubic feet
Top-Mount Depth (Mounting Depth)
5-7/8"
Cutout Diameter
9-1/16"
Shallow Mount Installation
No
Electromechanical Parameters
Free-Air Resonance (Fs)
30 Hz
Equivalent Compliance (Vas)
21 liters
Total Speaker Q Value (Qts)
.47
Electrical Q Value (Qes)
.5
Electrical Resistance of Voice Coil (Re)
1.9 ohms
Mechanical Q Value (Qms)
8.03
