DLS Ultimate UP6i

6-1/2" 2-way Component System (Ultimate UP 6i -- 10-25306i)

DLS
Shop all DLS
highlight-star-icon

6.5" 2-way Component System • 180W Max • 150W RMS • Aluminum cone woofer • Rubber surround • 1.1" Silk dome tweeter • Crossover filter with selectable tweeter level • Includes grilles • 2" Voice coil • 4 ohm impedance

Learn more about the dlsup6i

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
82-5605 main

Metra 82-5605

6" to 6.75" Kick Panel Speaker Adapter Bracket for select 2009-2024 vehicles from Ford, Lincoln, Alfa Romeo

29
-28.13%

$22.99

List price $31.99

HRN-HRR-FO2 main

iDataLink Maestro HRN-HRR-FO2 Wiring Harness

Install a New Car Stereo and Retain Steering Wheel Controls and Other Factory Features in select 2011-2023 vehicles from Ford

-18.27%

$84.99

List price $103.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

R1675X2 main

Rockford Fosgate Prime R1675X2

180W Peak (90W RMS) 6.75" Prime Series 2 Way Coaxial 4-ohm Speakers

59
H7694 main

Cerwin Vega H7694

800W Peak (150W RMS) 6x9" HED Series 4-Way Coaxial 4-ohm Speakers

32
-25.93%

$79.99

List price $107.99

MM652 main

Polk Audio MM652 (MM 652)

600W Peak (200W RMS) 6.5" Mobile Monitor Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

62
-28.11%

$179.00

List price $249.00

H765C main

Cerwin Vega H765C

800W Peak (120W RMS) 6.5" HED Series 2-Way 4-ohm Component Speaker System

17
-16.67%

$129.99

List price $155.99

ADS-MRR2 main

iDataLink Maestro RR2 Interface Module

Universal Stereo Replacement Interface Module for iDataLink Maestro Compatible Stereos

5
-18.75%

$259.99

List price $319.99

NVX XSP65KIT

600W Peak (200W RMS) 6.5" X-Series 2 Way Component Car Speakers

12
-11.46%

$169.99

List price $191.99

Description


DLS brand icon

Authorized dealer

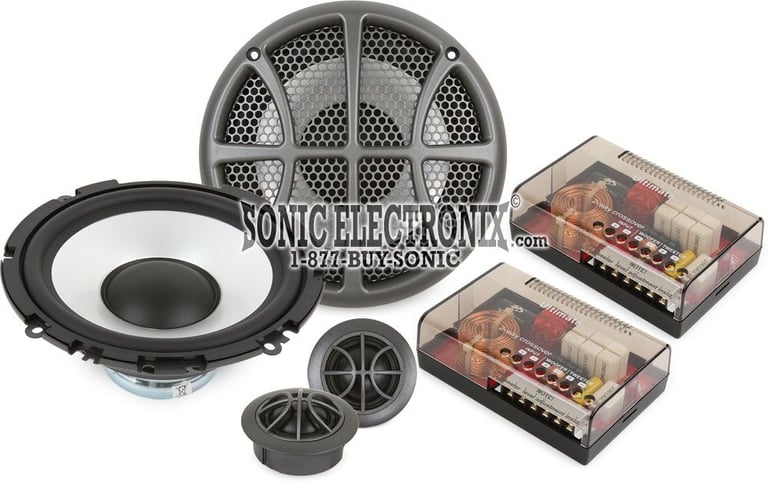

  • 6-1/2" 2-way Component System
  • Power Handling:
    • Peak: 360 watts per set / 180 watts each side
    • RMS: 300 watts per set / 150 watts each side

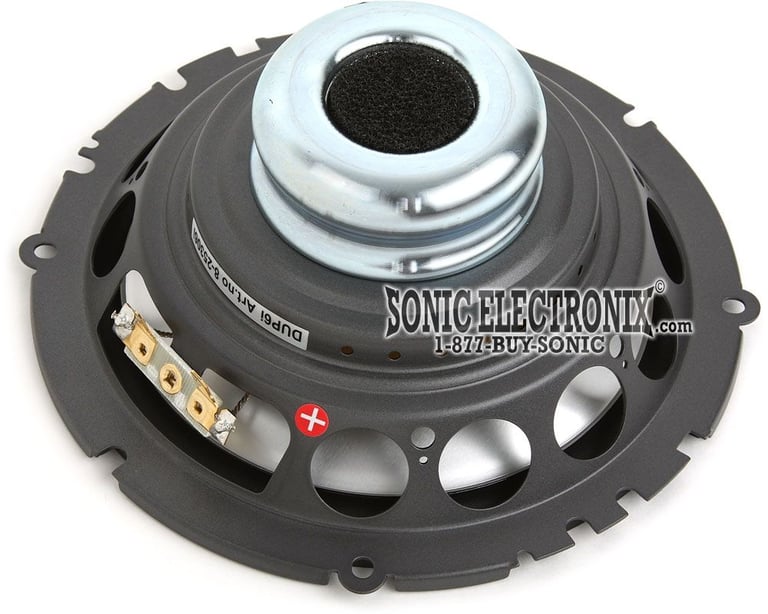

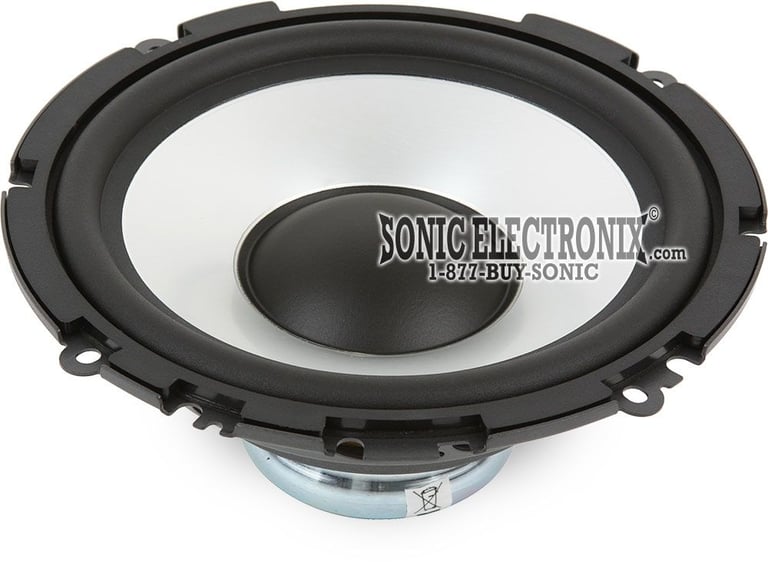

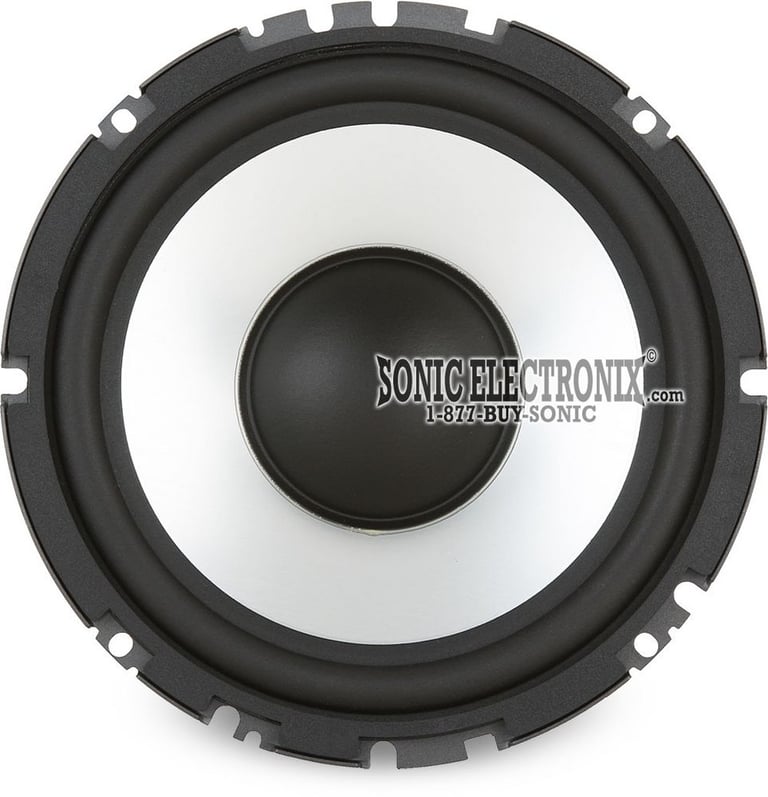

  • Aluminum cone woofer
  • Rubber surround

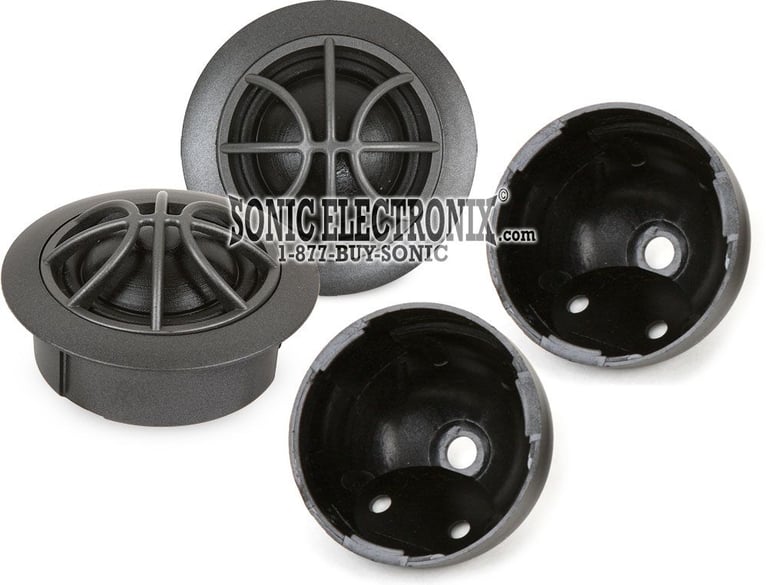

  • 1.1" Silk dome tweeter

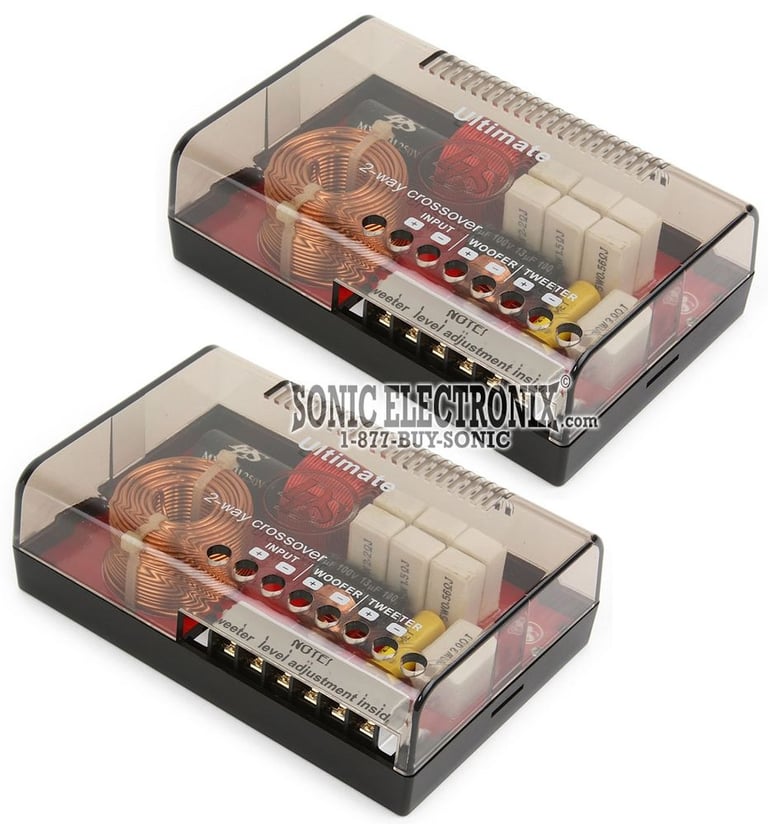

  • Crossover filter with selectable tweeter level
  • Low pass filter (6 dB/octave) and high pass filter (12 dB/octave) fixed at 5000 Hz

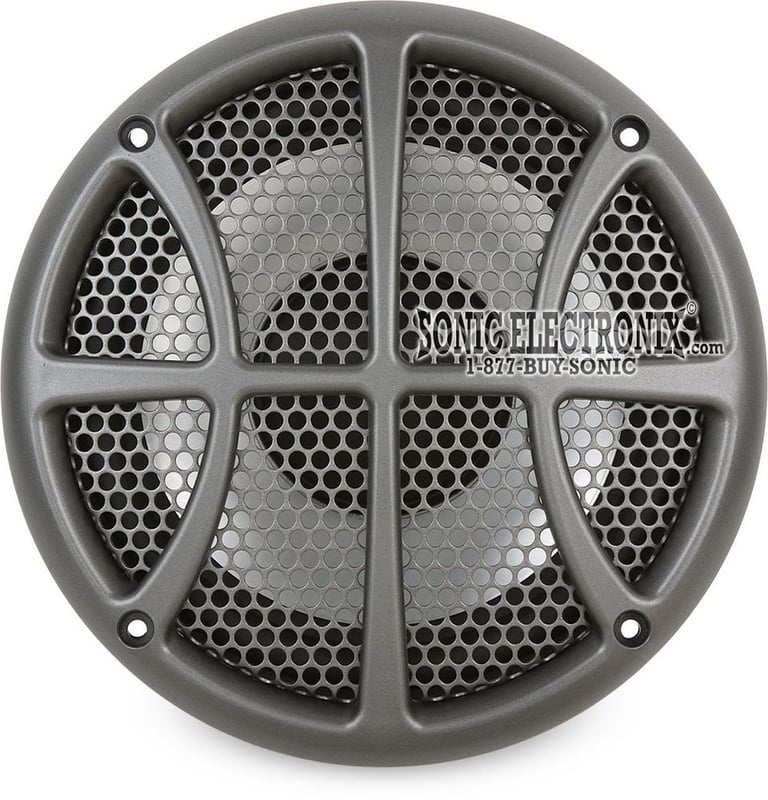

  • Includes grilles
  • 4 ohm impedance
  • 2" Voice coil
  • 2.44" Wide hybrid ferrite-neodymium magnet structure
  • Top-mount depth: 2.48"
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Priced Per Complete Component System: 2 midwoofers, 2 tweeters and 2 crossover networks.

Product history:

DLS UP6i thumbnail
(newest, current model)
DLS UP6 thumbnail
(previous model, replaced by DLS Ultimate UP6i)

Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

39
-33.50%

$399.00

List price $600.00

Limited time!
iLX-W670-M main

Alpine iLX-W670-M

6.75" Double DIN Touchscreen Digital Multimedia Receiver with iDataLink Maestro Support, Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

126
-30.01%

$349.95

List price $500.00

KMM-X705 main

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

Limited time!
DMH-241EX main

Pioneer DMH-241EX

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth and Built-in Alexa

22
-35.00%

$194.99

List price $300.00


Best selling similar products

GX608C small

JBL GX608C (GX608CAM)

• 210 watts Peak Each, 70 watts RMS Each
• 1-13/16" Edge Driven Dome tweeters
• Polypropylene cone material
• Impedance: 2.3 ohm
• Sensitivity: 92 dB

(7)

$119.95

List price $119.95

PNW-65CS2 small

AudioControl PNW-65CS2

• 125 watts Peak Each, 100 watts RMS Each
• 3/4" rear-dampened Hybrid Silk Dome tweeters
• Rigid Poly Mica cone material
• Impedance: 3 ohm
• Sensitivity: 88.8 dB

(4)

$319.00

List price $339.00

MPK 163.3 small

Hertz MPK163.3

• 300 watts Peak Each, 150 watts RMS Each
• Tetolon Soft Dome tweeters
• Pressed Pulp Fiber cone material
• Impedance: 4 ohm
• Sensitivity: 92 dB

(2)

$999.99

List price $1175.00

Reference 6530CX small

Infinity Reference REF-6530cx (REF6530CXAM)

• 270 watts Peak Each, 90 watts RMS Each
• 3/4" Textile Edge Driven Dome tweeters
• Polypropylene cone material
• Impedance: 3 ohm
• Sensitivity: 93 dB

(14)

$108.99

List price $249.95

T2652-S small

Rockford Fosgate Power T2 T2652-S

• 200 watts Peak Each, 100 watts RMS Each
• 1" Aluminum Dome tweeters with integral suspension
• Carbon Fiber Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 89 dB

(42)

$449.99

List price $449.99

Stadium 62CF small

JBL Stadium 62CF (JBLSPKSD62CFAM)

• 330 watts Peak Each, 110 watts RMS Each
• 3/4" Aluminum Edge Driven Dome Tweeters
• Glass Fiber cone material
• Impedance: 3 ohm
• Sensitivity: 93 dB

(2)

$449.95

List price $479.95

MS1-216C small

MB Quart MS1-216C

• Front Speaker Upgrade for select 2019-2026 Sprinter 3500XD / 2500 / 3500 / 1500
• 100 watts Peak Each, 50 watts RMS Each
• Includes 6.5" component speakers and a 3" center dash speaker
• Impedance: 4 ohm (component)
• Sensitivity: 92 dB (component)

$379.99

List price $399.99

VSP65KIT small

NVX VSP65KIT

• 375 watts Peak Each, 125 watts RMS Each
• 1" Silk Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 88 dB
• Mounting Depth: 2.51"

(84)

$119.99

List price $143.99

C2-650 small

JL Audio C2-650

• 60 watts RMS Each
• 3/4" Silk Dome tweeters
• Mica Injected Polypropylene - MIPP cone material
• Impedance: 4 ohm
• Sensitivity: 91 dB

(21)

$254.99

List price $329.99

XQS65KITv2 small

NVX XQS65KIT Version 2 (XQS65KITv2)

• 300 watts Peak Each, 150 watts RMS Each
• 1-1/8" Silk Dome tweeters
• Carbon Fiber cone material
• Impedance: 4 ohm
• Sensitivity: 93 dB

(9)

$399.99

List price $499.99

Specifications & Details


Speaker Specifications
Speaker Size
6-1/2"
Design
2-way Component System
Tweeter Design
Dome
Tweeter Composition
Silk
Woofer Composition
Aluminum
Woofer Surround
Rubber
Peak Power Handling
180 watts
RMS Power Handling
150 watts
Sensitivity
88 dB
Frequency Response
50 - 20000 Hz
Impedance (Per Voice Coil)
4 ohm
Top-Mount Depth (Mounting Depth)
2.48"
Cutout Dimensions
5.5" x 5.5"
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

DLS

Model Number:

UP6i

Weight:

8.00lbs

Internal SKU:

dlsup6i

Internal Product ID:

13416
