Cerwin Vega HS104D

800W Peak (200W RMS) 10" HED Series Dual 4-ohm Shallow Subwoofer

highlight-star-icon

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 82.7 dB

Learn more about the hs104d

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

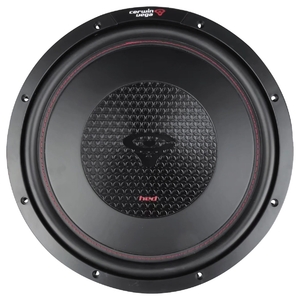

hs10dv4 thumbnail

Cerwin-Vega HS10DV4

OUR PRICE: $139.99

View item

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-16.67%

$349.99

List price $420.00

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Description


Cerwin-Vega brand icon

Authorized dealer


Cerwin Vega HS104D

HED Series Subwoofers are capable of handling substantial amounts of power, making them suitable for high-output applications. They are designed to manage high wattage without distortion, ensuring clean and powerful bass. These subwoofers are available in different impedance configurations (2 ohm or 4 ohm), providing flexibility for various wiring setups and compatibility with different amplifiers. This allows you to optimize your system for maximum performance. HED Series Subwoofers are capable of handling substantial amounts of power, making them suitable for high-output applications. They are designed to manage high wattage without distortion, ensuring clean and powerful bass.


Product Details:

  • 10" Dual 4 ohm HED Series Subwoofer
  • Power Handling:
    • Peak: 800 watts
    • RMS: 200 watts
  • Carbon Fiber Polypropylene Cone
  • Treated Foam Surround
  • Poly-cotton spider with spaced woven in tinsel wires
  • Optimal thermal heat dissipation
  • Stamped steel slim-mount frame with encapsulated motor
  • Oversized parabolic dustcap
  • Unimount gasket surround
  • 2" High Temperature Voice coil
  • 7.4 mm Xmax
  • Single Stacked magnet motor structure
  • Resonance Frequency (Fs): 35.2 Hz
  • Sensitivity: 82.7 dB
  • Recommended sealed box volume: 0.65 cubic feet
  • Top-mount depth: 3.54"
  • Cutout diameter: 9.23"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Individually

PDF IconCerwin-Vega HS104D owner’s manual

Product history:

Cerwin-Vega HS10DV4 thumbnail
(newest, current model)
Cerwin-Vega HS104D thumbnail
(previous model, replaced by Cerwin-Vega HS10DV4)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Cerwin Vega HS104D Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Cerwin Vega HS104D Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Cerwin Vega HS104D Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Cerwin Vega HS104D Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(68)

$139.99

List price $139.99

Specifications & Details


Subwoofer Specifications
Series
HED Series
Subwoofer Size
10"
Peak Power Handling
800 watts
RMS Power Handling
200 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2"
Sensitivity
82.7 dB
Xmax (millimeters)
7.4 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Carbon Fiber Polypropylene
Woofer Surround
Treated Foam
Magnet Structure
Single Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
CTA-2031 Compliant
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Sealed
Optimum Sealed Box Volume
0.65 cubic feet
Top-Mount Depth (Mounting Depth)
3.54"
Cutout Diameter
9.23"
Shallow Mount Installation
Yes
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
35.2 Hz
Equivalent Compliance (Vas)
23 liters
Total Speaker Q Value (Qts)
.92
Electrical Q Value (Qes)
1.10
Electrical Resistance of Voice Coil (Re)
3 ohm
Mechanical Q Value (Qms)
5.5
What is in the box?
Paperwork
User manual
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

HS104D

Weight:

9.70lbs

Internal SKU:

hs104d

Internal Product ID:

135713
