Open Box, Great - Polk Audio PA D1000.1-3 (ls-pad10001-obm4) 1200W RMS PA D Series

by Polk Audio

About
Specs & Details
Reviews
Add-ons
Recently Viewed
Related Searches

Polk Audio PA D1000.1 Open Box Missing (Acceptable, Used) Image 1 — Polk Audio PA D1000.1 Open Box Missing (Acceptable, Used)

Polk Audio PA D1000.1 Open Box Missing (Acceptable, Used) Image 2 — Polk Audio PA D1000.1 Open Box Missing (Acceptable, Used)

Polk Audio PA D1000.1 Open Box Missing (Acceptable, Used) Image 3 — Polk Audio PA D1000.1 Open Box Missing (Acceptable, Used)

Polk Audio PA D1000.1 Open Box Missing (Acceptable, Used) Image 4 — Polk Audio PA D1000.1 Open Box Missing (Acceptable, Used)

Polk Audio PA D1000.1 Open Box Missing (Acceptable, Used) Image 5 — Polk Audio PA D1000.1 Open Box Missing (Acceptable, Used)

Polk Audio PA D1000.1 Open Box Missing (Acceptable, Used) Image 6 — Polk Audio PA D1000.1 Open Box Missing (Acceptable, Used)

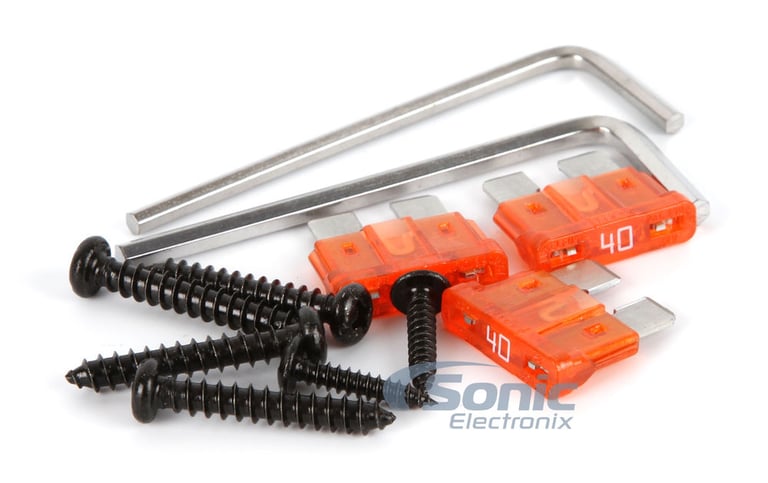

Polk Audio PA D1000.1 Open Box Missing (Acceptable, Used) Image 7 — Polk Audio PA D1000.1 Open Box Missing (Acceptable, Used)

Polk Audio PA D1000.1 Open Box Missing (Acceptable, Used) Image 8 — Polk Audio PA D1000.1 Open Box Missing (Acceptable, Used)

Polk Audio PA D1000.1 Open Box Missing (Acceptable, Used) Image 9 — Polk Audio PA D1000.1 Open Box Missing (Acceptable, Used)

Product highlights

• 500 Watts RMS x 1 @ 4 ohm
• 800 Watts RMS x 1 @ 2 ohm
• 1200 Watts RMS x 1 @ 1 ohm
• Wired remote bass level control included
• CEA-2006 Compliant
• Signal to Noise Ration: 105 dBA
• Variable Bass Boost: 0 to +12 dB bass boost at 44 Hz
• Dimensions: 6-3/4" W x 12-15/16" L x 1-13/16" H

Learn more about the ls-pad10001-obm4

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

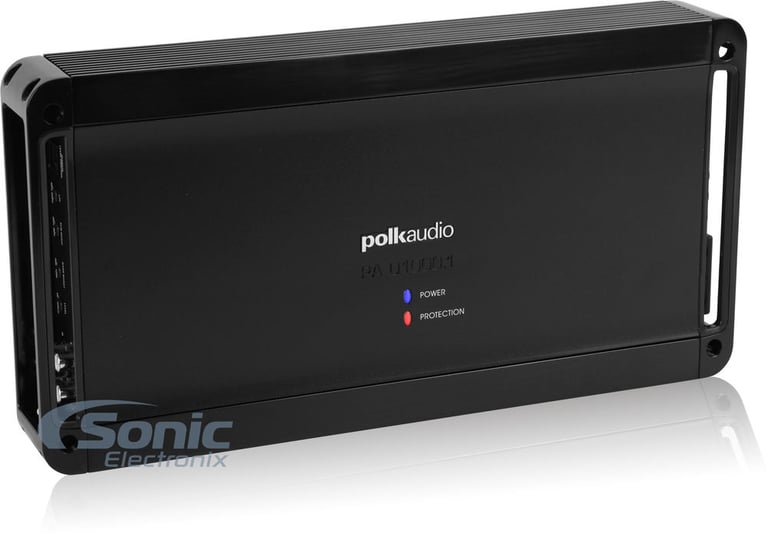

Polk Audio PA D1000.1

Taking the Polk Audio PA D Series Into the Digital Era

The PA D1000.1 is Polk Audio's high-efficient digital monoblock amplifier. This amplifier is able to output power at 4 ohms, 2 ohms, and even 1 ohm. With this many different power ratings this monoblock amplifier is sure to fit various applications or installations that you are seeking to perform. Anything from "SQ" subwoofers at the 4 ohm rating to "SPL" heavy bass hitting subwoofers at the 1 ohm rating.

How does Polk Audio improve on their already popular and very well known PA D series amplifiers? With technology advances, Polk Audio has taken their PA D series into the digital amplification arena. This means a smaller foot print, a super-efficient design which allows for lower power consumption and does away with a larger power supply. This allows the new digital PA D series amplifiers to run far more efficiently with lower distortion and cutting or clipping. The new PA D Digital series amplifiers are available in a monoblock, 2-channel, 4-channel, and 5-channel configuration making them accessible for any application. With a height of under 2 inches for all four configurations, these amplifiers also offer a mounting convenience making them practically perfect for any vehicle. All four configurations feature a 4-way protection circuitry and stainless steel hardware that will not corrode, giving the amplifier longevity and a sleek and stylish look. Polk Audio is a known and trusted company and with these new PA D Digital series amplifiers not only are you getting the high Polk Audio quality, you are now getting the quality in a very high and efficient digital range.

Item Condition - Open Box, Acceptable Condition (Used):

An Acceptable Open Box used product is fairly worn and used, but functions and works. Signs of wear can include aesthetic issues such as scratches, dents, and worn corners or installation marks. The product may have identifying markings on it or show other signs of previous use. Original packaging or protective wrapping may be missing or not included. Warranty details, if any, are included in the item description or comments.

Product Features:

PA D Series Monoblock Class D Car Amplifier
RMS Power Rating:

4 ohm: 500 watts x 1 chan.
2 ohm: 800 watts x 1 chan.
1 ohm: 1200 watts x 1 chan.

CEA-2006 Compliant Amplifier
Pulse Width Modulated MOSFET power supply

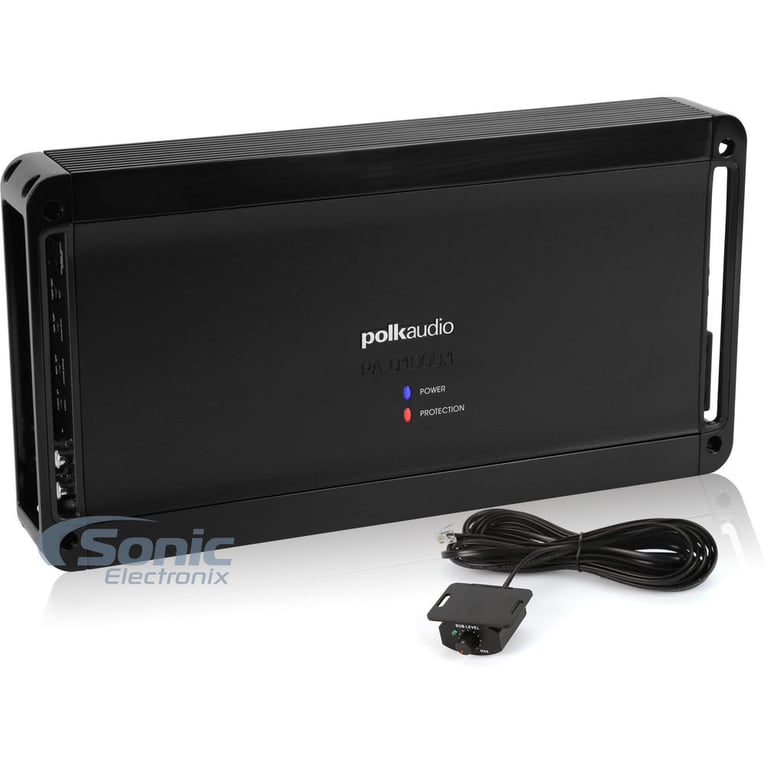

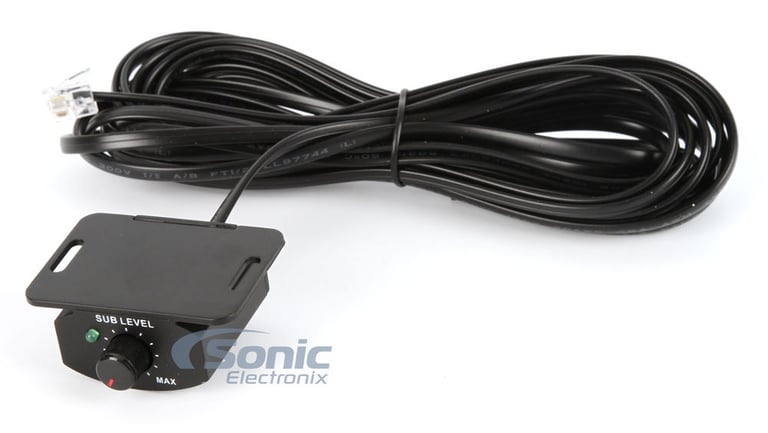

Wired remote bass level control included
LED power (blue) and protect (red) indicators
Soft start turn-on
Preamp RCA outputs to daisy chain multiple amps
4-way protection circuitry (thermal, overload, reverse polarity & speaker short protection)
Dual speaker terminals simplify the hookup of multiple speakers
Heavy duty aluminum alloy heat-sink
Nickel-plated RCA level inputs
Nickel-plated screw terminals
Input sensitivity: 200mV - 6V
Frequency Response: 20 - 220 Hz
Damping Factor: >150
Total Harmonic Distortion (THD): <0.1%
Signal to Noise Ration: 105 dBA

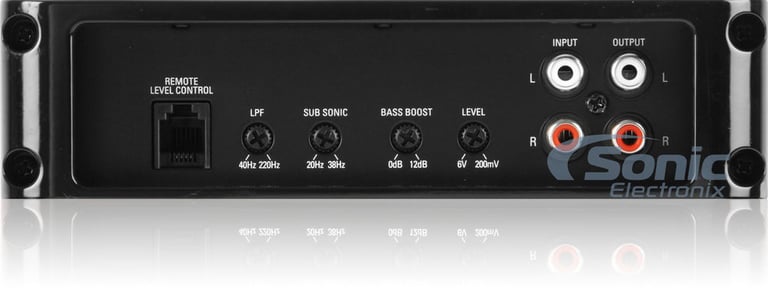

Variable low-pass filter: 40 - 220 Hz, 12 dB/octave
Variable subsonic filter: 20 - 38 Hz , 12 dB/octave
Variable Bass Boost: 0 to +12 dB bass boost at 44 Hz

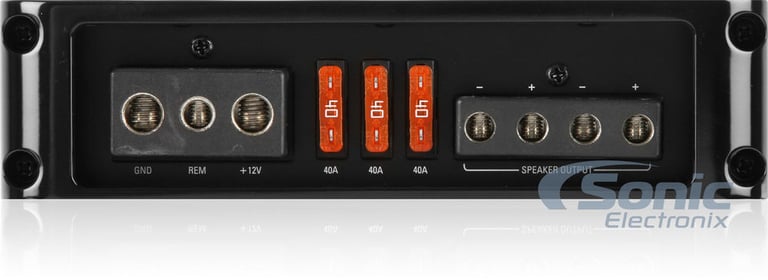

Fuse Rating: 40A x 3
Supply Voltage: 10V - 16V
12 AWG Speaker Connections
4 gauge OFC power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
Dimensions: 6-3/4"W x 12-15/16"L x 1-13/16"H
Authorized Internet Dealer
30-Day Return Policy

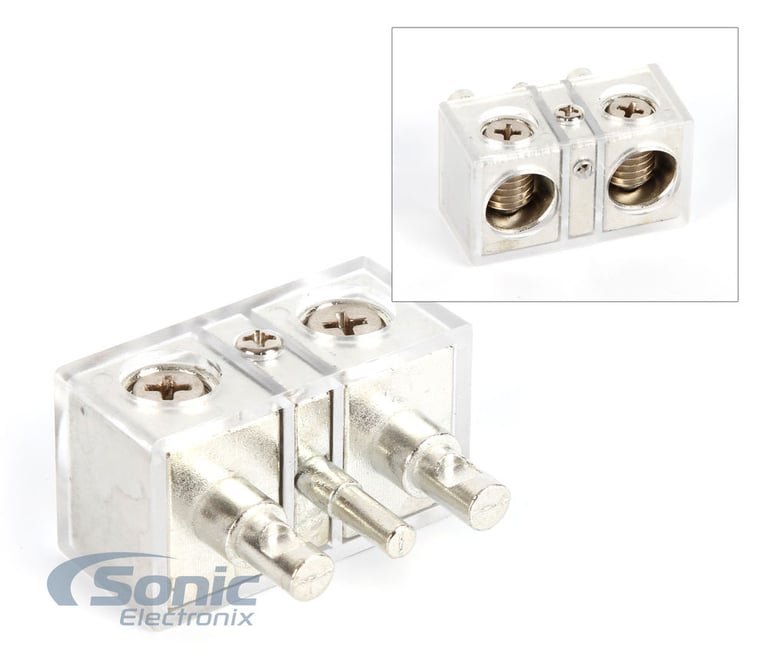

Check out the Polk Audio PA D1000.1 Owner's Manual Important Note: Early versions of this amplifier included a "Terminal Adapter". As of 2015, Polk Audio has confirmed that they are no longer sending this adapter with their amplifier, albeit referenced in the user manual. We apologize for any inconvenience, and suggest browsing our selection of "Gauge Adapters" if you wish to use larger than recommended wiring. Thank you!

Specifications & Details

Power Specifications - Subwoofer Channel

RMS Power @ 4 ohms

500 watts x 1 channel

RMS Power @ 2 ohms

800 watts x 1 channel

RMS Power @ 1 ohm

1200 watts x 1 channel

Amplifier Specifications

Amplifier Class

Number of Channels

1 - Mono

Total RMS Power Output

1200 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

1 ohm

Minimum Impedance Bridged

Not Bridgeable

THD at Rated RMS Power

<0.1%

Speaker Level Inputs

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)
Subsonic

Low-Pass Crossover Frequency

40 - 220 Hz

Subsonic Filter

20 - 38 Hz

Signal-to-Noise Ratio

105 dB

Bass Boost

0 - 12 dB

Remote bass/level controller

Yes

Fuse Rating

40A x 3

Strappable

Sonic Certified Amplifier

Not Tested

Warranty and Return Policy

Parts Warranty Duration

Not warranted

Labor Warranty Duration

Not warranted

Warranty Provider

Manufacturer
