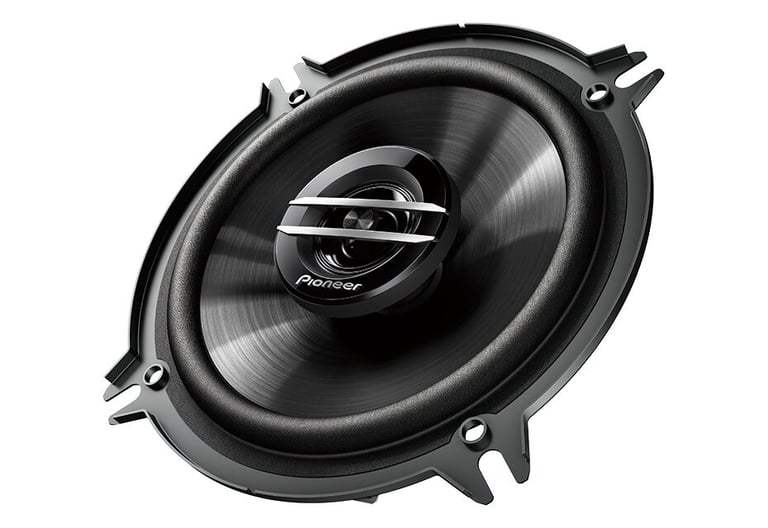

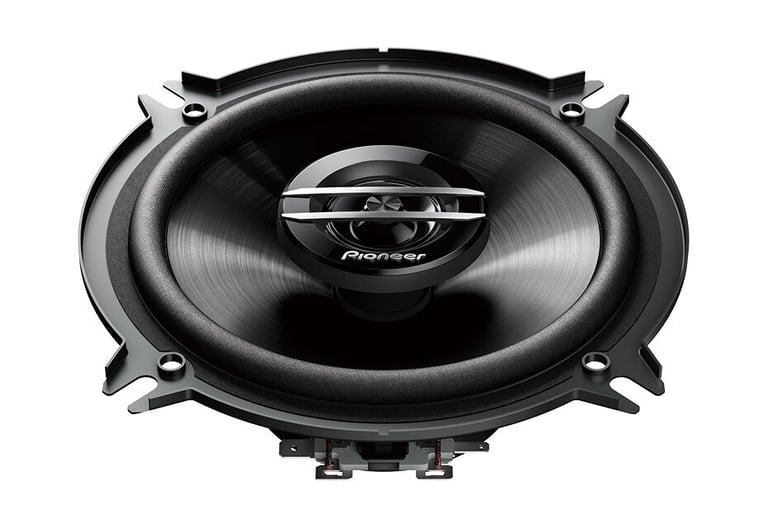

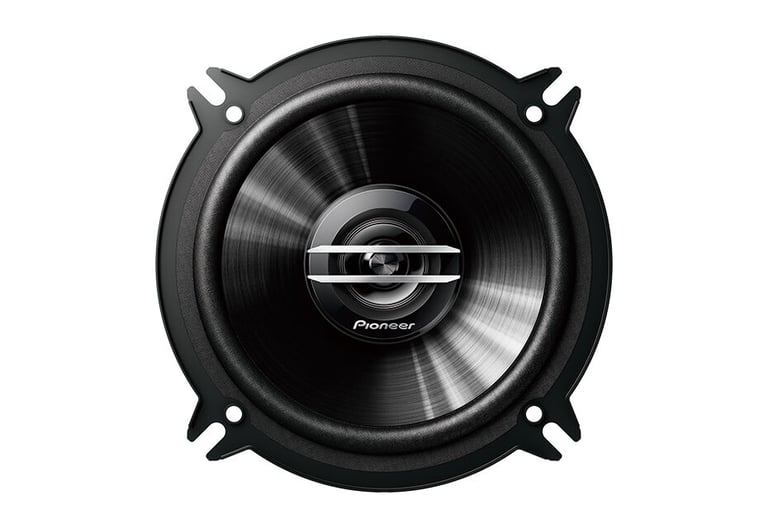

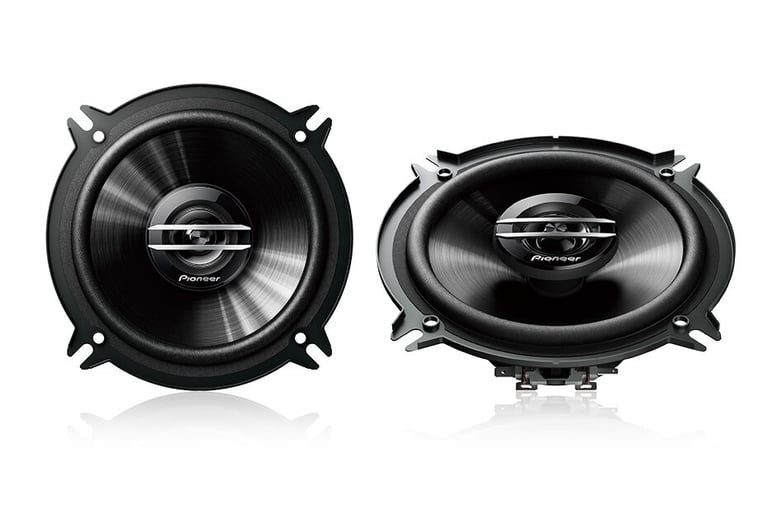

Pioneer TS-G1320S (Open Box, Complete)

500W Max (70W RMS) 5.25" G-Series 2-Way Coaxial Car Speakers

Pioneer
Shop all Pioneer
highlight-star-icon

• 250W Max Each, 70W RMS Each
• 1-3/16 Balanced Dome Tweeter
• Injection Molded Polypropylene with Mica Cone
• 4 ohm Impedance
• Sensitivity: 88dB
• Mounting Depth: 1-3/4"

Learn more about the ls-tsg1320s-obc8

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Description


Pioneer brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Item Condition - Damaged Packaging Only:
A Brand New with Damaged Packaging product is an untouched, unused product, but has damaged original packaging. While the product should be untouched and perfect condition, select packaging materials, such as original protective wrapping, if any, may be missing or damaged. The original manufacturer warranty, if any, still applies, with warranty details included in the listing description or comments. Instructions are included. Product is suitable for presenting as a gift so long as recipient appreciates a great item, not packaging.

General Features:

  • 5.25" G-Series 2-Way Car Speakers
  • Power Handling:
    • Peak: 500 watts per pair / 250 watts each
    • RMS: 70 watts per pair / 35 watts each
  • Injection molded polypropylene with mica cone
  • Rubber coated cloth surround
  • 1-3/16 Balanced dome tweeter
  • Progressive Flex Suspension System spider gives extra support to the voice coil
  • Ferrite magnet motor structure
  • Top-mount Depth: 1-3/4"
  • Cutout Dimensions: 4-3/4"
  • 4 ohm impedance
  • Frequency Response: 33 - 24000 Hz
  • Sensitivity: 88dB
  • Authorized Internet Dealer
  • 30 Day Sonic Electronix Warranty
  • Priced Per Pair

Product history:

Pioneer TS-G1320S-4 thumbnail
(newest, current model)
Pioneer TS-G1345R thumbnail
(previous model, replaced by Pioneer TS-G1320S (Open Box, Complete))
Pioneer TS-G1344R thumbnail
(previous model, replaced by Pioneer TS-G1345R)
Pioneer TS-G1343R thumbnail
(previous model, replaced by Pioneer TS-G1344R)
Pioneer TS-G1342R thumbnail
(previous model, replaced by Pioneer TS-G1343R)
Pioneer TS-G1341R thumbnail
(previous model, replaced by Pioneer TS-G1342R)

Specifications & Details


Speaker Specifications
Series
G-Series (TSG)
Priced Per
Pair
Number of Speakers
2
Speaker Size
5-1/4"
Design
2-way Coaxial
Tweeter Design
Balanced Dome
Tweeter Size
1-3/16"
Woofer Composition
Mica Injected Polypropylene - MIPP
Woofer Surround
Rubber-Coated Cloth
Peak Power Handling
250 watts
RMS Power Handling
35 watts
Sensitivity
87 dB
Frequency Response
33 - 24000 Hz
Impedance (Per Voice Coil)
4 ohm
Shallow Mount Installation
No

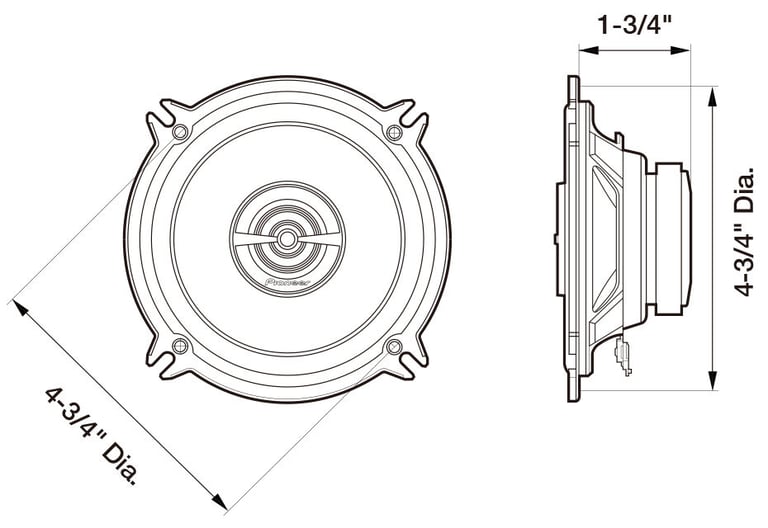

Top-Mount Depth (Mounting Depth)
1-3/4"
Cutout Dimensions
4-3/4"
General specifications
Marine Certified
No
Hi-Res Certified
No
Color
Black
Speaker Grilles
No
What is in the box?
Paperwork
Warranty/Registration card
WITB: Speakers
Speakers (2)
Mounting screws (8)
Speaker connection cables (2)
Warranty and Return Policy
Parts Warranty Duration
30 days
Labor Warranty Duration
30 days
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

TS-G1320S-4

Weight:

2.00lbs

Internal SKU:

ls-tsg1320s-obc8

Internal Product ID:

182591

Customer Ratings & Reviews


Pioneer TS-G1320S (Open Box, Complete) thumbnail image

5 star
65%
4 star
26%
3 star
4%
2 star
0%
1 star
4%



Durability
4.3
Value
4.6
Features
4.1
Design
4.4
Usability
4.7

Customer Reviews

Sort by:

Loading...

Pioneer Quality & Affordability but So So Midrange

The following review is for a previous version (TS-G1344R).

I wanted a cheap replacement for tired original front door speakers in my 2004 Accord. These slid in with a bracket with ease and I was up and running. What a change and I am hearing highs that I never heard before with clean crisp bass as well. I can listen to the music louder with more clarity; however, the midrange seems to be a bit lacking. I got the urge to tinker again after all these years and also got a JVC head unit with built EQ functions. I'm curious to see if I can dial the midrange in with the new head unit since the stock one is on its way out. I'll have to report back in.

By Keith on April 11, 2013

46 found this helpful


Great speakers and price.

The following review is for a previous version (TS-G1344R).

These speakers sound better with my Alpine head unit than the original Infinity system. Love Sonic's guaranteed price to my door.

By Ken on February 11, 2014

43 found this helpful


Perfect for my use

The following review is for a previous version (TS-G1344R).

These speacker sound good and have plenty of mid and high for my truck i recomend these for the price and durability of them...

By Anthony on December 24, 2013

42 found this helpful


optimistic for value!

The following review is for a previous version (TS-G1344R).

I would gladly recommend this product because it delivers smooth rich sound even at high volume.

By Pretty_Flakko713 on April 21, 2013

40 found this helpful


Good product

The following review is for a previous version (TS-G1344R).

Some time ago the original speaker in the passenger door of my car started to show signs of being worn out (you know, those "farting" sounds on bass output), it was time to replace it. The OEM speakers were just too expensive, so I went with what was listed as "would fit your car" (not sure it was here or on some forum, though). From the electrical POV those fit nicely. I had to come up with an adapter to mount them, though. Once the door was reassembled, no one can tell, right? So, I am pretty happy with this product. So far (it's been a few months since I installed it) it sounds fine. I don't blast the snot out of it, though. Mostly listen to talk radio and/or occasional music.

By nonfrequent_driver on August 10, 2012

40 found this helpful


Good Value

The following review is for a previous version (TS-G1344R).

Decent speakers for their price range.
Have great clarity in the Mids and Highs, but they splatter and distort terribly when hit with any level of bass. Would definitely recommend spending the extra money to buy higher end speakers that can be responsive to all music types.

By Josh on September 12, 2013

39 found this helpful


good speakers

The following review is for a previous version (TS-G1344R).

These were just being used to fill in sound from the rear of my jeep because i was running components in the front doors. They turned out to be suprisingly clear, can't go wrong with these.

By Riley on October 26, 2011

39 found this helpful


Review title missing - Example: Great Value!

The following review is for a previous version (TS-G1344R).

Great speakers I used to enhance the sound of the stock radio/cd player in my daughter's car. Definitely recommend them at the price point.

FYI Sonic, if you're going to force me to rate all aspects of a product I will. Look and Design - really?! They fit where they are supposed to fit - but you won't see them at all. So, I suppose they look great to the little elf that lives within the door panel of my daughter's car... How the hell do I know what the durability is - I just bought the speakers. As for features?! What features - they're basic car speakers...? I like 'em and would recommend them, but, come on, they're replacement speakers...

By Speaker Buyer on August 19, 2014

35 found this helpful


Exceptional for a small package.

The following review is for a previous version (TS-G1344R).

Amazing clarity and resounding bass for five inch drivers. Not "booming" or a mingling of sounds but detailed phonics is the key here.
I would very much recommend these speakers as replacement for OEM units and they are naturally capable of more power than the originals also. Mounting is straightforward; positive poles are clearly marked. Five stars for this pair with no negative criticism from here!

By Larry on September 7, 2012

35 found this helpful


great for the peice

The following review is for a previous version (TS-G1344R).

I just wanted something to upgrade my factory speakers & these work and sound awesome. Also the price sonic has them for cant be beat thanks SONIC ELECTRONIX

By Dre on June 23, 2014

35 found this helpful
