MA Audio MA102D4

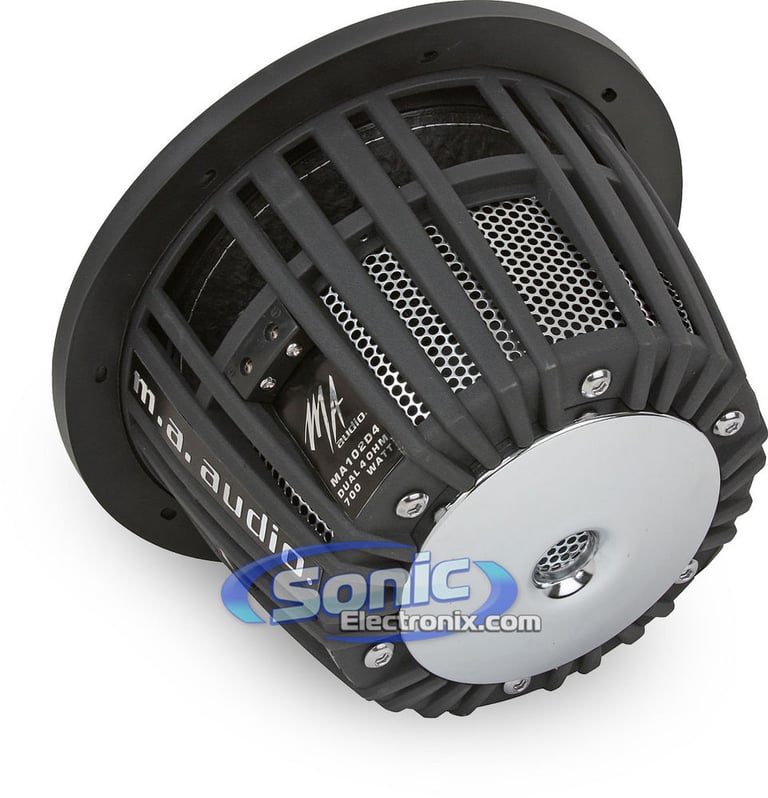

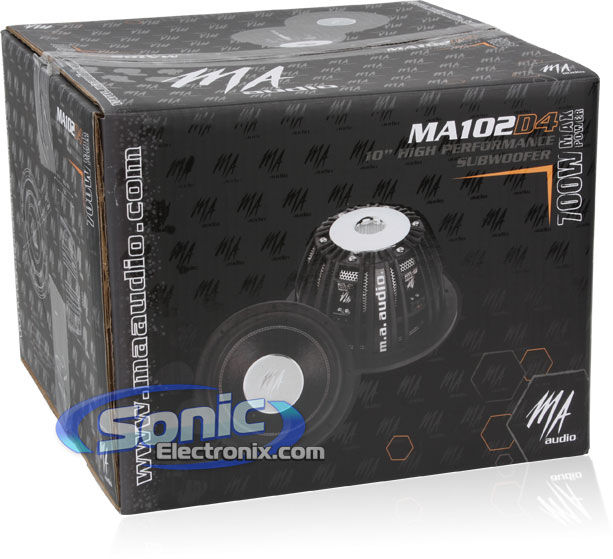

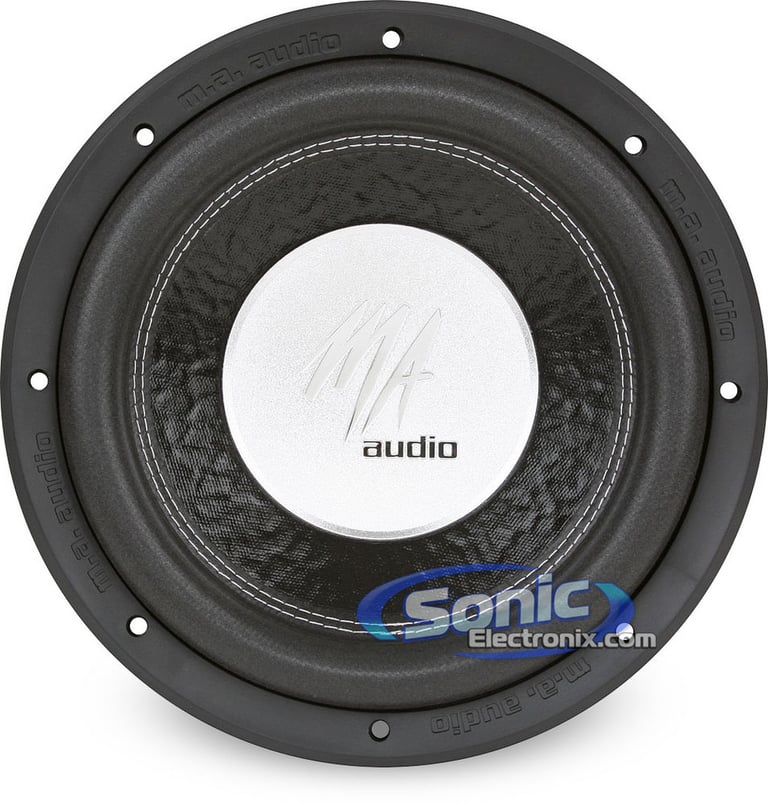

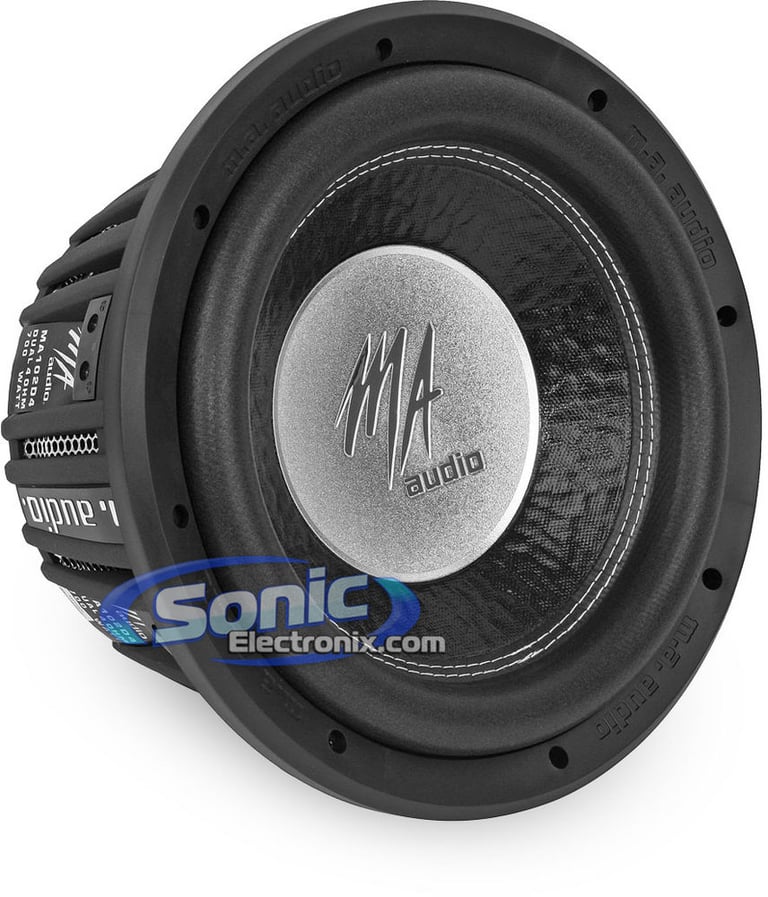

10" Dual 4 ohm D4 Series Subwoofer

MA Audio
Shop all MA Audio
Product videos
highlight-star-icon

10" Dual 4 ohm D4 Series Subwoofer • 700W Max • 350W RMS • Heavy-duty non pressed paper cone woofer with PVA (Poly Vinyl Acetate) emulsion treatment • Double stitched rubber surround with "Glafibe" glass fiber

Learn more about the ma102d4

We apologize

This item has been discontinued


Loading...
TR1 main

PAC TR1 (TR-1)

Video Lockout Bypass Trigger for Alpine, Pioneer, Kenwood and Other Popular Aftermarket Radios

31
-44.86%

$15.99

List price $29.00

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

Product Highlights


10" Dual 4 ohm D4 Series Subwoofer • 700W Max • 350W RMS • Heavy-duty non pressed paper cone woofer with PVA (Poly Vinyl Acetate) emulsion treatment • Double stitched rubber surround with "Glafibe" glass fiber

Description


MA Audio brand icon

Authorized dealer

  • 10" Dual 4 ohm D4 Series Subwoofer
  • Power Handling:
    • Peak: 700 watts
    • RMS: 350 watts
  • Impedance: Dual 4 ohm
  • Heavy-duty non pressed paper cone woofer with PVA (Poly Vinyl Acetate) emulsion treatment
  • Double stitched rubber surround with "Glafibe" glass fiber reinforcement
  • Coilvent T-yoke keeps voice coil cool while operating at high power
  • Patented thermo-cooling motor structure
  • Rigid polypropylene dust cap
  • Die-cast aluminum basket frame
  • Dual laminated progressive Dupont spider
  • Platinum plated block terminals
  • Rubber sealant gasket
  • Dual 4 ohm high temperature copper-coated aluminum voice coils
  • 180oz. Double stacked magnet
  • Sensitivity: 88 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

2008 MA Audio New Release

Product history:

MA Audio MA102D4 thumbnail
(newest, current model)
MA Audio MA10D4 thumbnail
(previous model, replaced by MA Audio MA102D4)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 MA Audio MA102D4 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 MA Audio MA102D4 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 MA Audio MA102D4 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 MA Audio MA102D4 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

44
-16.69%

$149.95

List price $180.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(68)

$139.99

List price $139.99

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

VCW104v3 small

NVX VCW104 Version 3 (VCW104v3)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 6.30"
• Sensitivity: 82 dB (1W/1m)

(71)

$169.99

List price $203.99

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(1)

$189.95

List price $159.95

Specifications & Details


Subwoofer Specifications
Subwoofer Size
10"
Peak Power Handling
700 watts
RMS Power Handling
350 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Sensitivity
88 dB
Xmax (millimeters)
20 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Silver
Woofer Composition
Non-Pressed Paper w/ PVA Treatment
Woofer Surround
Rubber w/ Glass Fiber Reinforcement
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.50 cubic feet
Maximum Sealed Box Volume
0.75 cubic feet
Minimum Ported Box Volume
1.50 cubic feet
Maximum Ported Box Volume
1.50 cubic feet
Top-Mount Depth (Mounting Depth)
5.6"
Cutout Diameter
9.3"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

MA102D4

Weight:

18.00lbs

Internal SKU:

ma102d4

Internal Product ID:

14063

Product and How-to Videos


Customer Ratings & Reviews


MA Audio MA102D4 thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
4.4
Value
5
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

These Subs Rock

They hit so hard that i don't even drive my car it hovers across the ground like in back to the future. Two of them should do the trick.

By BassBug on January 31, 2012

6 found this helpful


great

Great quality well made for the price. Best deal they sound awesome.

By omar on December 16, 2011

4 found this helpful


GREAT COMPETITION SUB

I own a 2011 Charger, so I really didnt have enough airspace, so I decided to go with these since they dont require much airspace to get the full output out of them. I was shocked with deep bass these 10" Subs have. These are incredibly the best built subwoofers Ive seen, and heard.

I googled MA Audio, and learned that they have been building car audio competition products that have broke many international records. I'm wanting to get the MA Audio HK4000D Digital Amplifier, but unfortunatly have to wait at least another month before I'm able to do so.

Thank you Sonic, Adam

By Adam, Murrey on November 11, 2011

4 found this helpful
