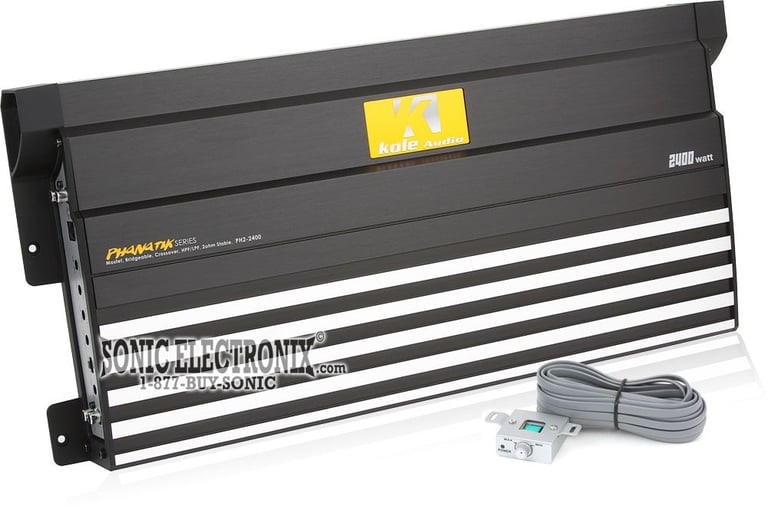

Kole Audio PH2-2400

2400W Max, 2-Channel Phanatik Series Amplifier

Kole Audio
Shop all Kole Audio
Product videos
highlight-star-icon

Phanatik Series 2-Channel Class AB Car Amplifier • 450W x 2 chan. @ 4 ohm • 540W x 2 chan. @ 2 ohm • 1080W x 1 chan. @ 4 ohm • 2400W x 1 chan. Max • PWM (Pulse Width Modulated) MOSFET power supply and transistor outputs • Preamp RCA outputs

Learn more about the ph22400

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99

Product Highlights


Phanatik Series 2-Channel Class AB Car Amplifier • 450W x 2 chan. @ 4 ohm • 540W x 2 chan. @ 2 ohm • 1080W x 1 chan. @ 4 ohm • 2400W x 1 chan. Max • PWM (Pulse Width Modulated) MOSFET power supply and transistor outputs • Preamp RCA outputs

Description


Kole Audio brand icon

Authorized dealer

  • Phanatik Series 2-Channel Class AB Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 450 watts x 2 chan.
    • 2 ohm: 540 watts x 2 chan.
    • Bridged, 4 ohm: 1080 watts x 1 chan.
  • Max power output: 2400 watts x 1 chan.
  • PWM (Pulse Width Modulated) MOSFET power supply and transistor outputs

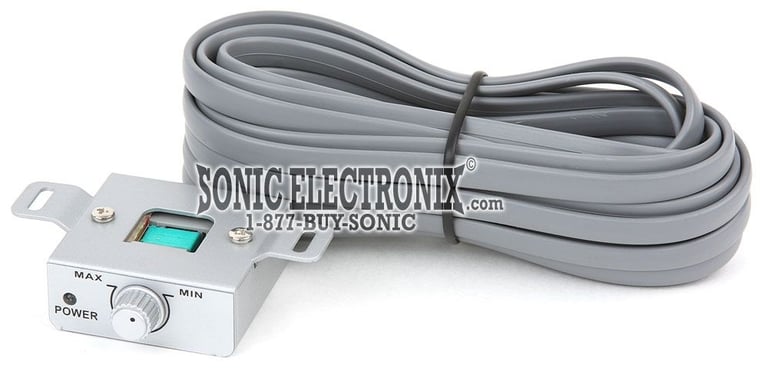

  • Wired remote bass level control included
  • LED power and protection indicators
  • Tuned Bass EQ (0-24 dB bass boost)
  • Tri-mode capable

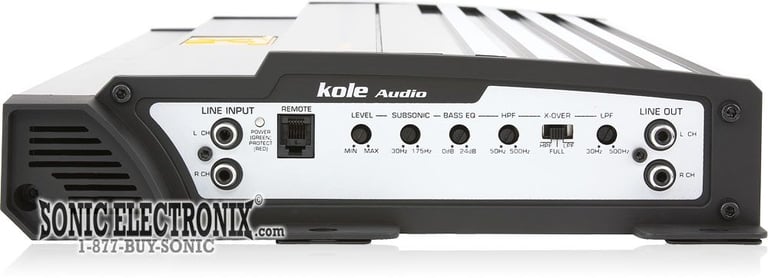

  • Preamp RCA outputs
  • 3-Way protection circuitry
  • System distress indicator
  • Shiny jet black heatsink with diamond cut rubs
  • Platinum-plated RCA level inputs
  • Platinum-plated screw terminals
  • Variable high-pass filter (50-500 Hz, 24 dB/octave)
  • Variable low-pass filter (30-500 Hz, 24 dB/octave)
  • Subsonic Filter (30-175 Hz)
  • Frequency response: 10-30000 Hz
  • Dimensions: 22"L x 10.4"W x 2.4"H
  • 1/0-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 2-year Manufacturer's warranty

Best selling similar products

ATOM-900.2 PRO small

Deaf Bonce Apocalypse ATOM-900.2 PRO

• 350 watts x 2 channel @ 4 ohm
• 510 watts x 2 channel @ 2 ohm
• 900 watts x 2 channel @ 1 ohm
• Bridged: 1020 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 900 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$229.90

List price $229.90

MFA 2.420 small

Deaf Bonce MFA 2.420

• 420 watts x 2 channel @ 4 ohm
• 630 watts x 2 channel @ 2 ohm
• Bridged: 1260 watts x 1 channel @ 4 ohm
• Total RMS Power: 1260 watts
• Class D 2 ohm Stable 2-Channel Amplifier

$229.90

List price $229.90

ATOM-700.2 PRO small

Deaf Bonce Apocalypse ATOM-700.2 PRO

• 230 watts x 2 channel @ 4 ohm
• 480 watts x 2 channel @ 2 ohm
• 700 watts x 2 channel @ 1 ohm
• Bridged: 960 watts x 1 channel @ 4 ohm
• 14000 watts @ 2 ohm
• Total RMS Power: 700 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

(1)

$199.90

List price $199.90

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
450 watts x 2 channel
RMS Power @ 2 ohms
540 watts x 2 channel
Bridged RMS Power
1080 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
2-Channel
Total Peak Power Output
2400 watts
Total RMS Power Output
1080 watts
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.02%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 500 Hz
Low-Pass Crossover Frequency
30 - 500 Hz
Subsonic Filter
30 - 175 Hz
Signal-to-Noise Ratio
97 dB
Bass Boost
0 - 24 dB
Remote bass/level controller
Yes

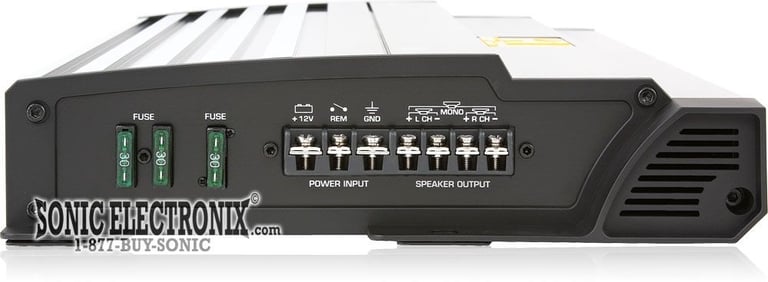

Fuse Rating
30A x 3
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

PH2-2400

Weight:

14.00lbs

Internal SKU:

ph22400

Internal Product ID:

14085
