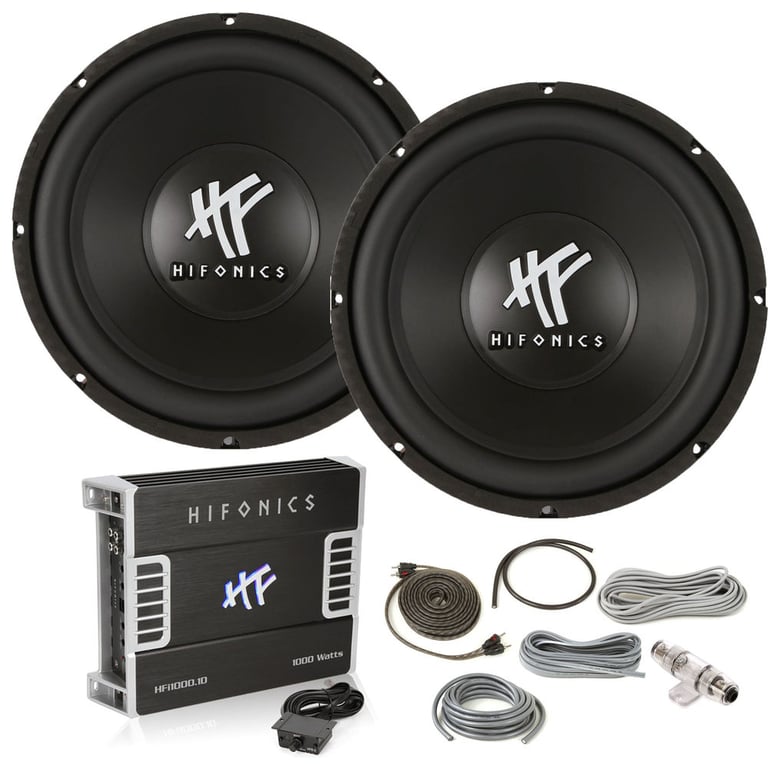

(2) HFX12D4 Subwoofers + HFi1000.1D Monoblock Amplifier and Amp Kit

1000W RMS Bass Package with 2 Subwoofer and Amp Wiring Kit

Hifonics
Shop all Hifonics
highlight-star-icon

• Hifonics HFi1000.1D 1000 Watt RMS Class D Monoblock Amplifier
• Pair of Hifonics HFX12D4 12" Dual 4 ohm HF Series 800W Car Subwoofers
• Belva BAK42BK Black Wire Monoblock 4 Gauge Amp Wire Kit with 2-Ch RCA Cable

Learn more about the hfi10001d_2-hfx12d4_bak42bk

We apologize

This item has been discontinued


Loading...
iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

124
-5.72%

$329.95

List price $349.95

Limited time!
KFC-1666S main

Kenwood KFC-1666S

600W Peak (60W RMS) 6.5" Sport Series 2 Way Coaxial 4-ohm Car Speakers

51
-38.75%

$49.00

List price $80.00

H7653 main

Cerwin-Vega H7653

680W Peak (120W RMS) 6.5" HED Series 3-Way Coaxial 4-ohm Speakers

43
-16.67%

$79.99

List price $95.99

H765C main

Cerwin Vega H765C

800W Peak (120W RMS) 6.5" HED Series 2-Way 4-ohm Component Speaker System

17
-16.67%

$129.99

List price $155.99

Stage3 637F main

JBL Stage3 637F (STAGE3637FAM)

270W Peak (90W RMS) 6.5" Stage3 Series 3-Way Coaxial 3-Ohm Speakers

2
-18.19%

$89.95

List price $109.95

JBL Stage2 634 (STAGE2634)

500W Peak (80W RMS) 6.5" Stage2 Series 3 Way Coaxial 4-ohm Speakers

15
-26.00%

$73.99

List price $99.99

Description


Hifonics brand icon

Authorized dealer

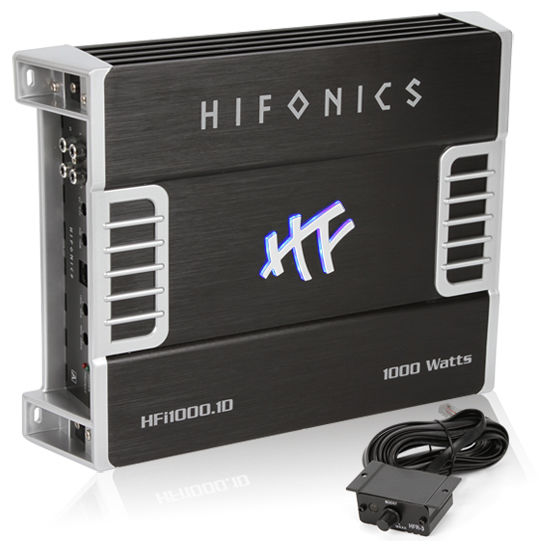

Hifonics HFi1000.1D

1000 Watt RMS Class D Monoblock HFi Series 1-Ohm Stable Subwoofer Amplifier
Quantity: 1

General Features:

  • HFi Series Single Channel Monoblock Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 475 watts x 1 chan.
    • 2 ohm: 750 watts x 1 chan.
    • 1 ohm: 1000 watts x 1 chan.
  • Pulse Width Modulated (PWM) MOSFET power supply
  • LED power (green) and protect (red) indicators
  • Wired HFR-3 remote bass level control included
  • Blue illuminated Hifonics badge
  • Soft start sound function
  • Preamp RCA outputs to daisy chain multiple amps
  • 4-Way System Protection circuitry (thermal, overload, DC, and speaker short protection)
  • Dual 12 gauge speaker output terminals simplify hookup
  • Heavy duty aluminum alloy vented heatsink for maximum heat dissipation
  • Silver nickle-plated RCA level inputs
  • Silver nickle-plated screw terminals
  • Four corner mounting ear tabs
  • Input sensitivity: 200mV - 6V
  • Frequency Response: 15 - 250 Hz
  • THD and Noise: <0.1
  • Signal to Noise Ration: >95 dB
  • Damping factor: >200
  • Variable low-pass filter: 30 - 250 Hz, 24 dB/octave
  • Subsonic filter: 15 - 35 Hz
  • Variable Bass Boost: 0 to +10 dB bass boost at 45 Hz
  • Fuse Rating: 80A x 1
  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 13-1/2"L x 8-13/16"W x 2-7/16"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

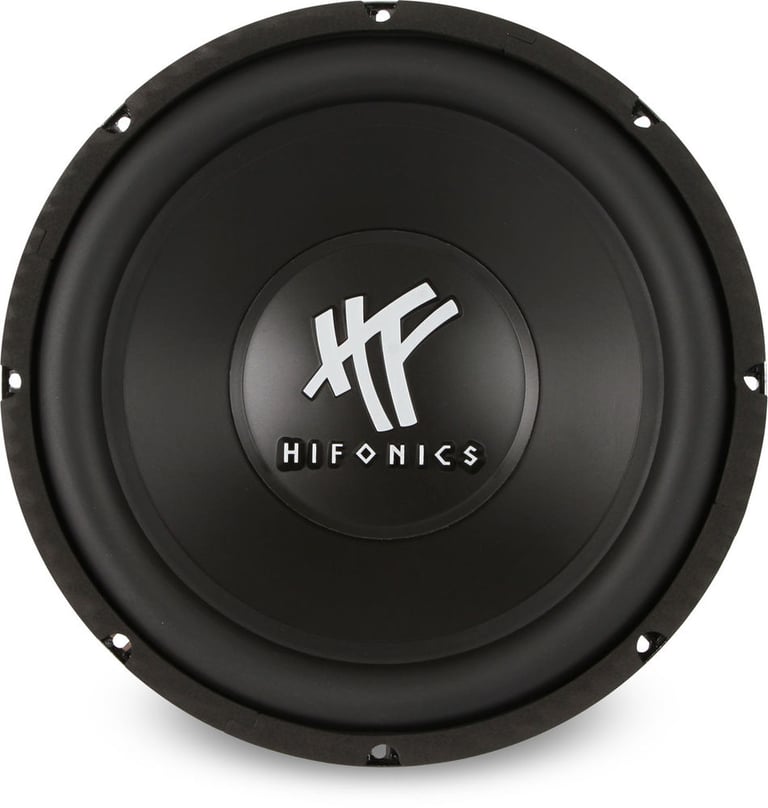

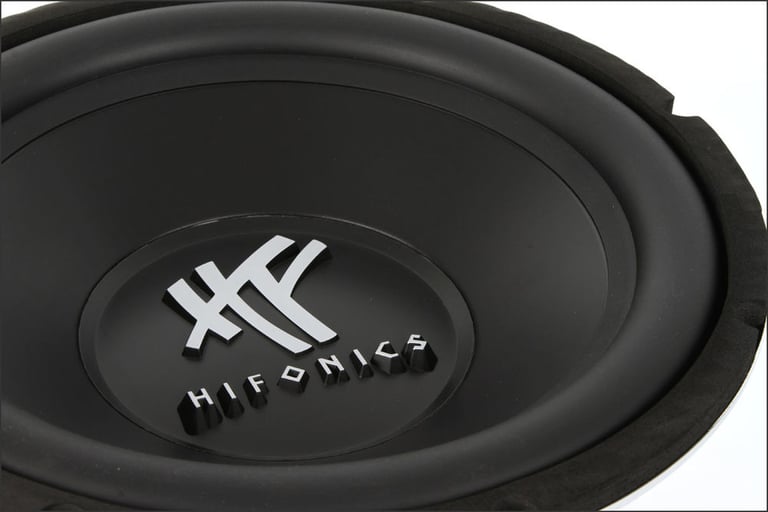

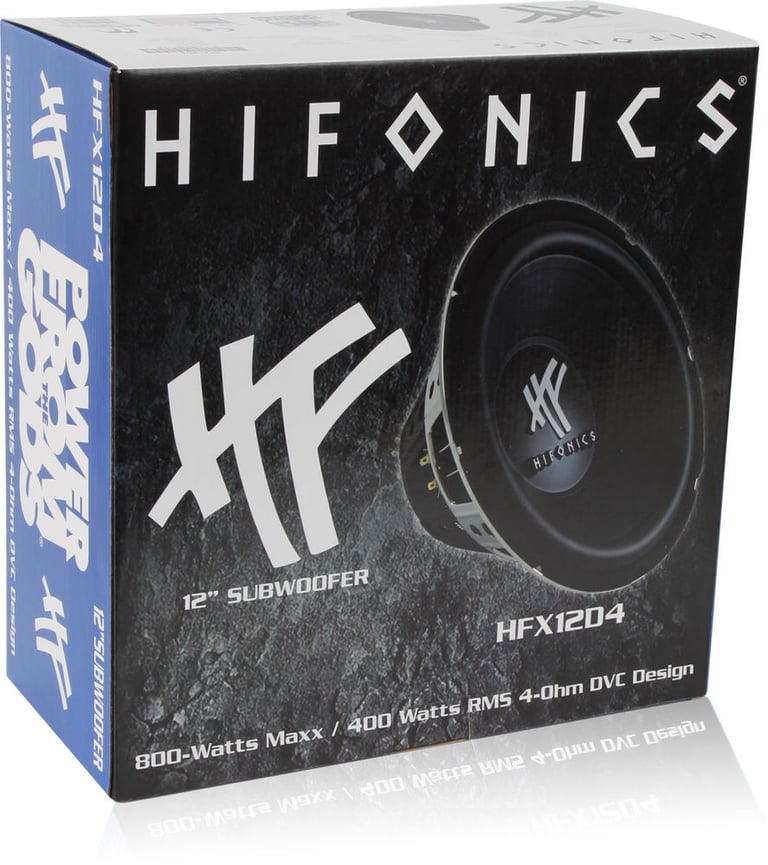

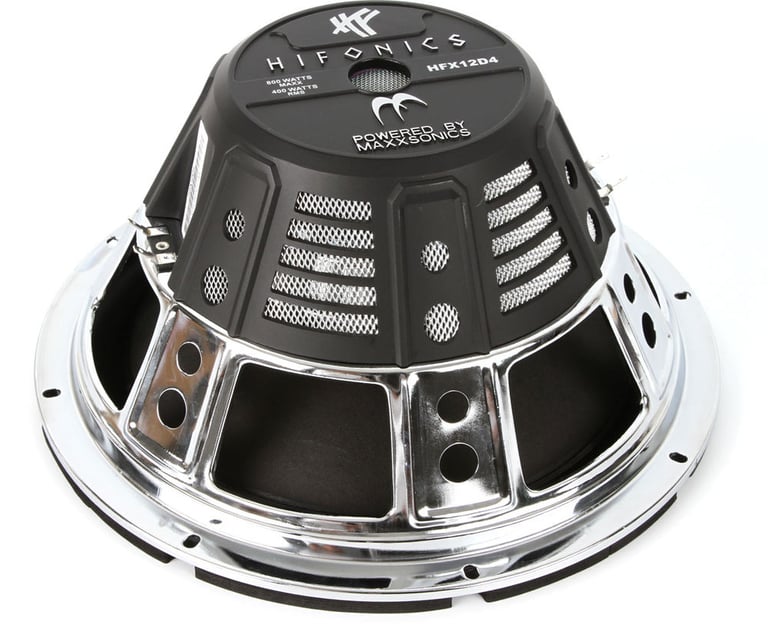

Hifonics HFX12D4

800W Peak (400W RMS) 12" HF Series Dual 4-ohm Car Subwoofer
Quantity: 2

Product Details:

  • 12" Dual 4 ohm HF Series Subwoofer
  • Power Handling:
    • Peak: 800 watts
    • RMS: 400 watts
  • Treated Foam surround
  • Poly cotton spider
  • Heavy duty powder coated steel frame
  • 2" voice coil on vented aluminum former
  • High energy motor assemply with heavy duty magnets
  • Sensitivity: 86 dB
  • Recommended sealed box volume: 1.5 cubic feet
  • Recommended ported box volume: 1.5 cubic feet
  • Top-mount depth: 5.61"
  • Cutout diameter: 10.94"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Individually

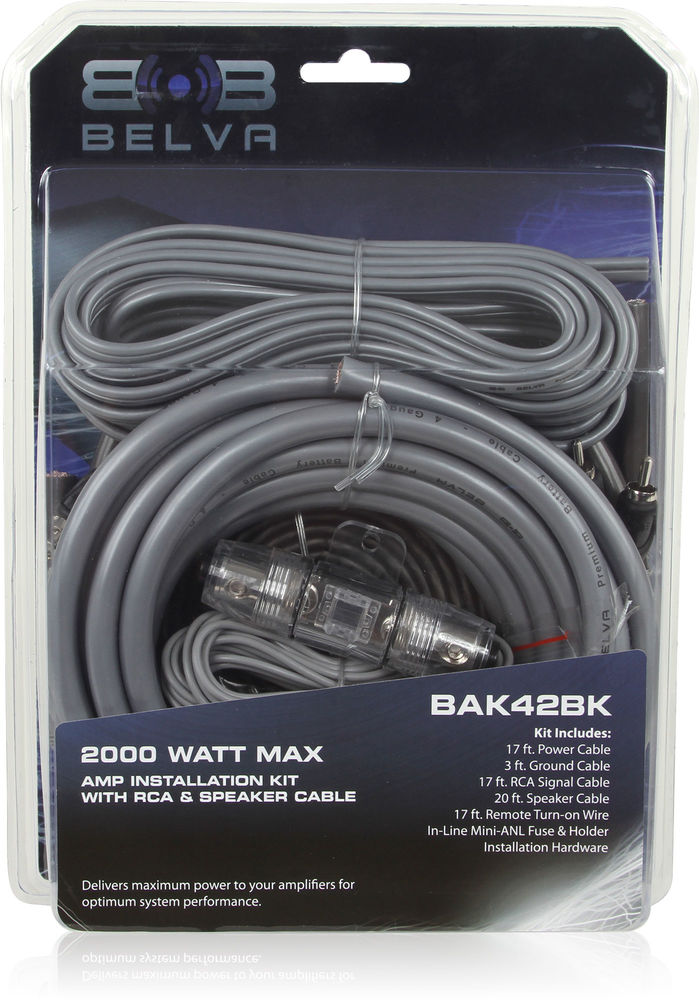

Belva BAK42BK

4 Gauge Premium (CCA) Copper Clad Aluminum Complete 2-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 1200 Watts - GRAY
Quantity: 1

Product Details:

  • 4 Gauge 2-Channel Complete Amplifier Installation Kit
  • Designed for car audio systems up to 1200 watts RMS
  • Made from 100% Copper-Clad Aluminum (CCA)
  • Satin chromed Mini-ANL fuse holder offers ideal protection for high-powered systems
  • Full spec power and speaker wire meet or exceed American Wire Gauge standards

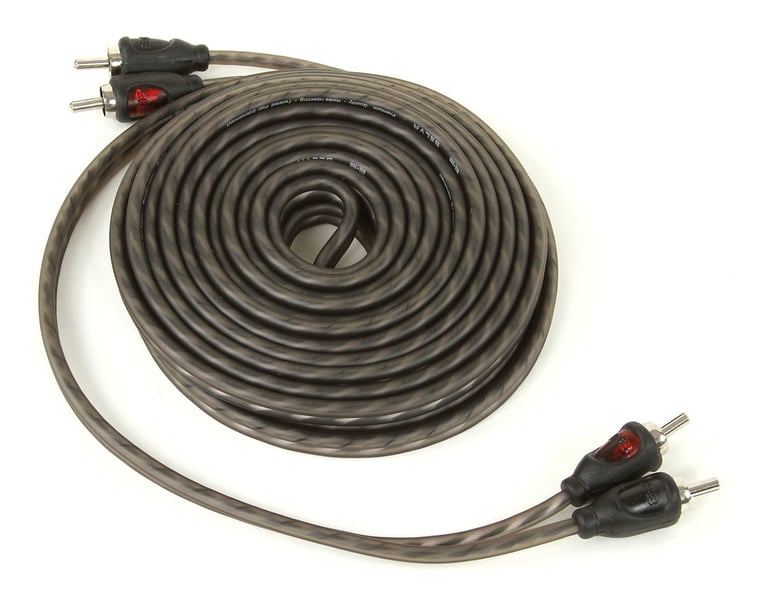

  • RCA Interconnect Cable
  • Twisted-pair construction provides protection against interference
  • Split-tip silver-plated ends offer high-quality performance
  • Molded ends equipped with colored channel identifiers for easy recognition
  • Includes an assortment of wire termination hardware and cable ties
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Kit includes:

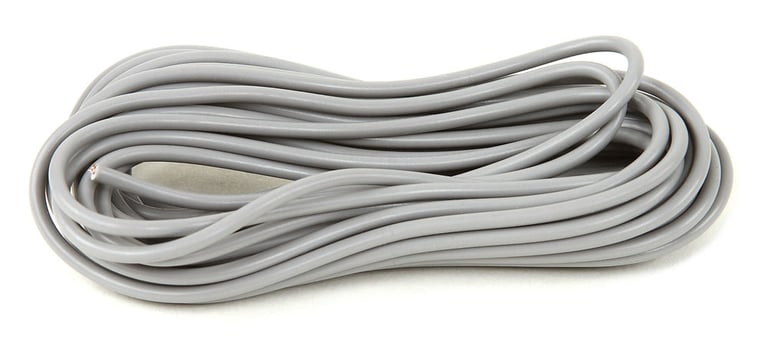

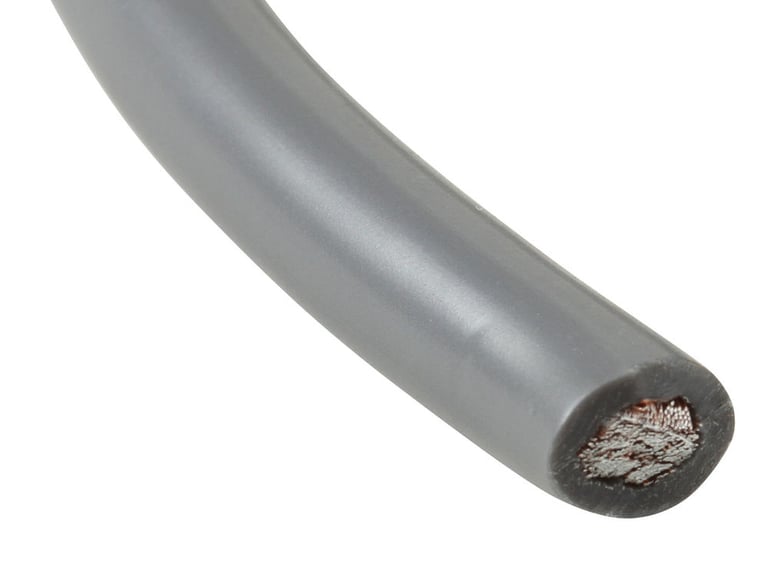

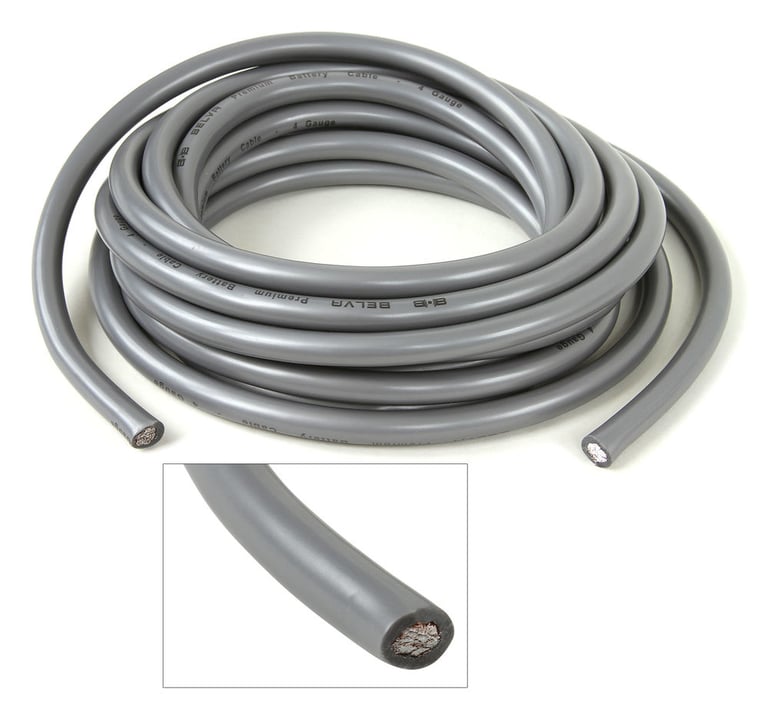

  1. 17 ft. Gray 4 gauge power wire

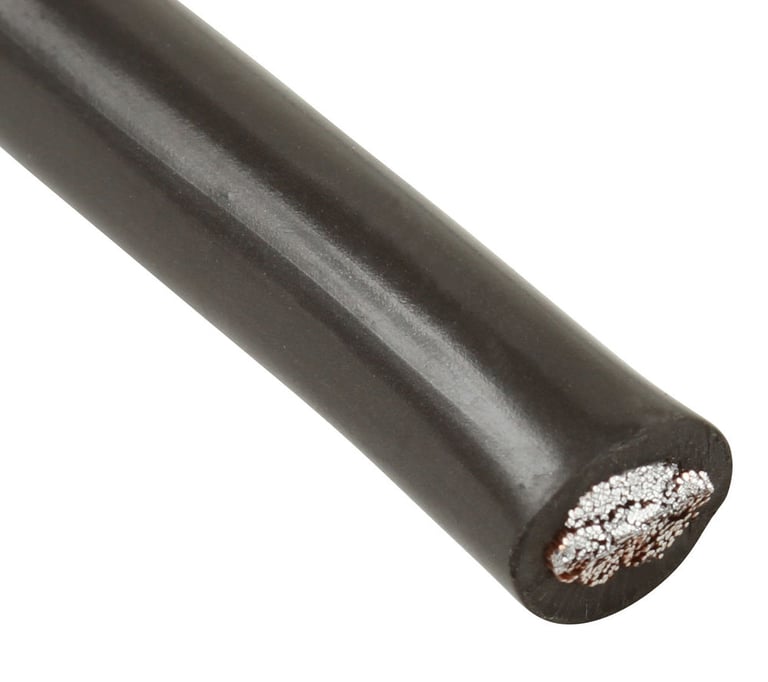

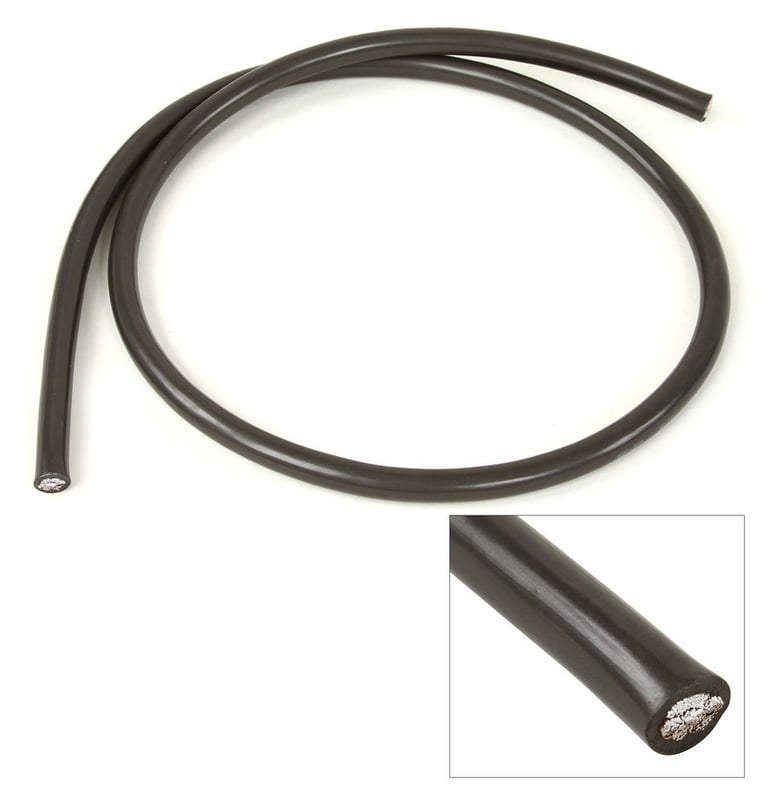

  2. 3 ft. Black 4 gauge ground wire
  3. 17 ft. Gray 18 gauge remote lead wire

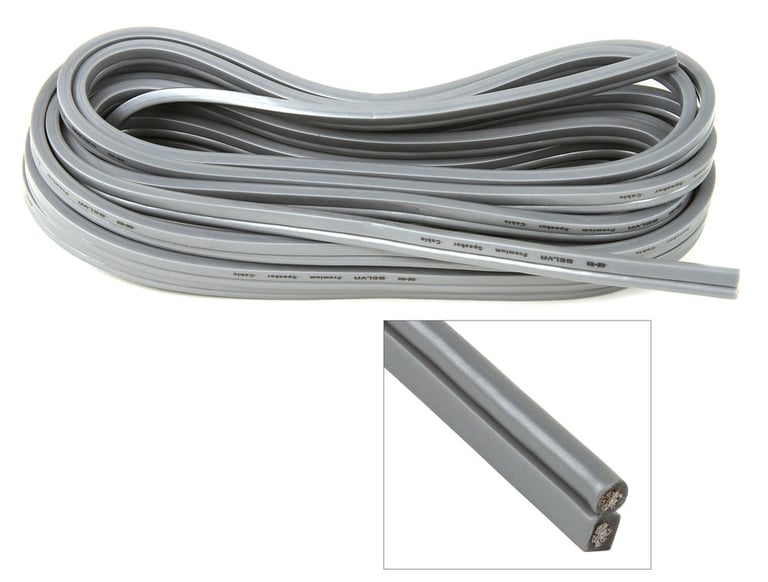

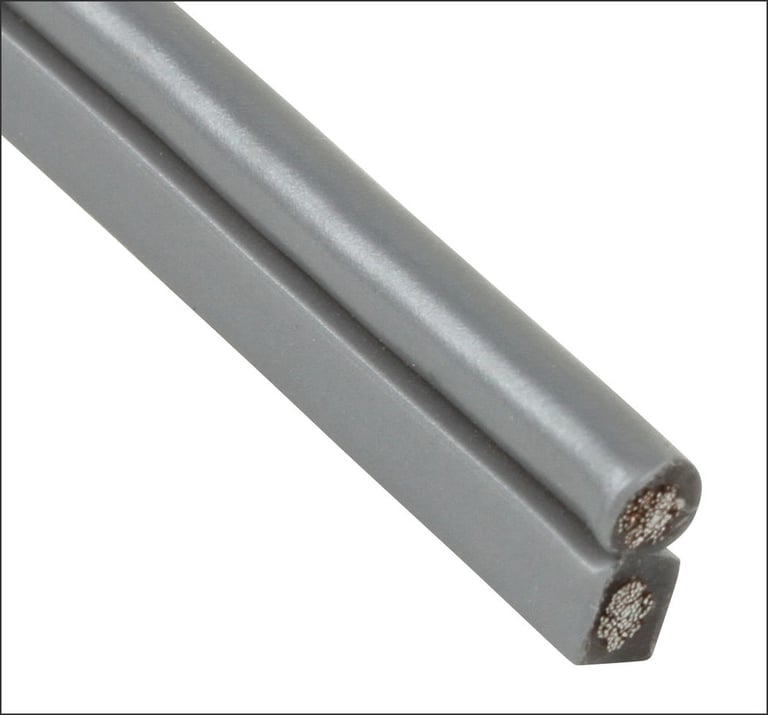

  4. 20 ft. 16 gauge speaker wire
  5. One 17 ft. 2-channel twisted-par construction RCA interconnect Cable

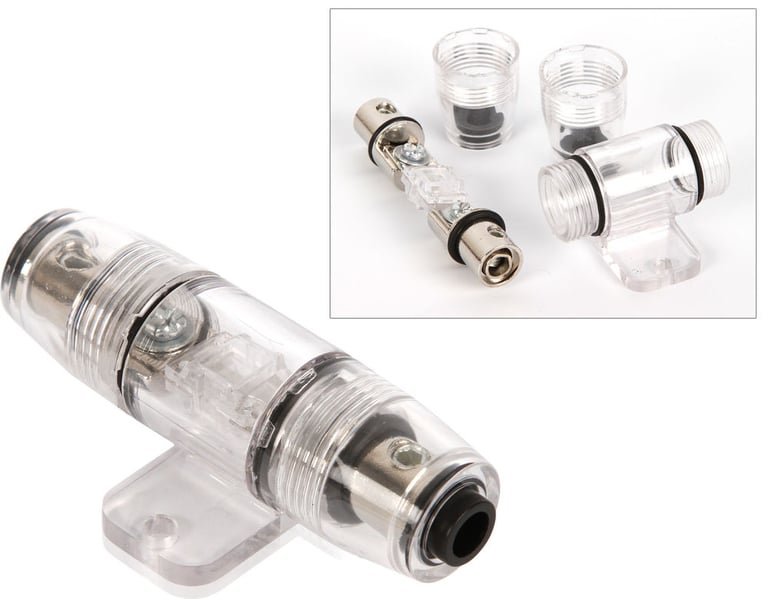

  6. One Mini-ANL Fuse Holder with 80 amp Mini-ANL fuse

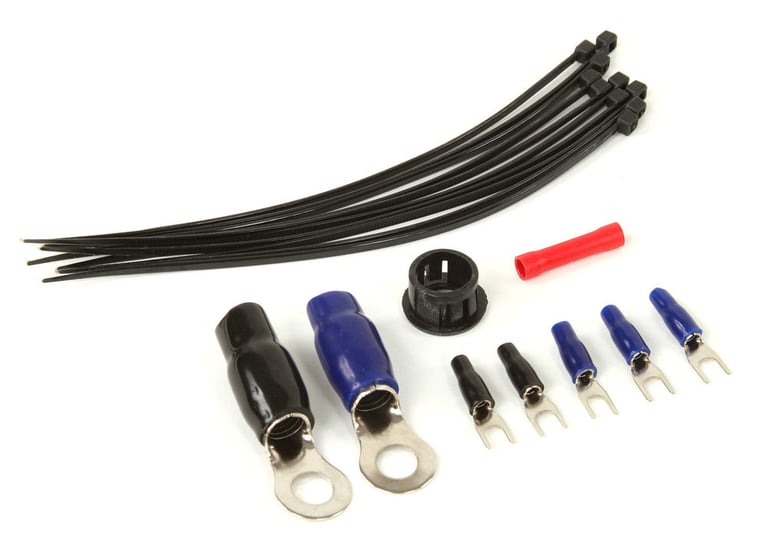

  7. One Black rubber firewall grommet
  8. Two 4 Gauge Chrome Plated ring terminals
  9. Five 16 Gauge Spade terminal
  10. One 18 Gauge Red butt connectors
  11. Ten 4" Black zip ties

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

124
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95


Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

W10S4_2, BXD3K, BAK42BK small

(2) Alpine W10S4 10" Bass Subwoofers + Belva 3000W Amplifier + 4 Gauge Amp Kit

• 750W Max
• 250W RMS
• Polypropylene-Mica cone
• High-excursion poly-foam surround
• High-strength custom steel frame
• Progressive Wavelit Ribs (P.W.R.) cone design

(82)

$364.88

List price $489.98

MBQBRO-302 small

MB Quart MBQBRO-302

• 12" Amplified Loaded Subwoofer System
• 400 watts peak
• Built-In class D amplifier
• Variable bass boost
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

$679.99

List price $899.99

RTP8A small

MTX Audio RTP8A

• 8" Amplified Loaded Subwoofer System
• 120 watts RMS (360 watts Peak)
• Built-In amplifier
• Variable bass boost
• Speaker-Level Inputs
• EBC wired remote bass level control

(8)

$199.95

List price $219.95

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

TNP212D2 small

MTX Audio TNP212D2

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
MTX TN250/1 amplifier included
• Selectable bass boost
• Speaker-level (high-level) inputs (adapter included)
• Wired remote bass level control

(156)

$369.95

List price $399.95

51PTRTP10 small

Kicker PTRTP10 (51PTRTP10)

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

$499.99

List price $549.99

Specifications & Details


Amplifier Power Specifications
RMS Power @ 4 ohms
475 watts x 1 channel
RMS Power @ 2 ohms
750 watts x 1 channel
RMS Power @ 1 ohm
1000 watts x 1 channel
Peak Power Output
Not Specified
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total RMS Power Output
1000 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Subsonic
Low-Pass Crossover Frequency
30 - 250 Hz
Subsonic Filter
15 - 35 Hz
Signal-to-Noise Ratio
<0.1 dB
Bass Boost
0 - 10 dB
Remote bass/level controller
Yes
Fan Cooled
No
Fuse Rating
80A x 1
CEA-2031 Compliant
No
Subwoofer Specifications
Series
HF Series
Subwoofer Size
12"
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
RMS Power Handling
400 watts
Peak Power Handling
800 watts
Woofer Surround
Rubber
Woofer Composition
Injected poly light rigid
Minimum Sealed Box Volume
1.25 cubic feet
Maximum Sealed Box Volume
1.25 cubic feet
Minimum Ported Box Volume
1.6 cubic feet
Maximum Ported Box Volume
2.0 cubic feet
Sensitivity
87.25 dB
Frequency Response
Not specified by manufacturer
Xmax (millimeters)
6.5 mm
Top-Mount Depth (Mounting Depth)
5-5/8"
Cutout Diameter
10-15/16"
Recommended Enclosure Type
Ported / Vented
Sealed
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

HFi1000.1D, 2-HFX12D4, BAK42BK

Weight:

30.60lbs

Internal SKU:

hfi10001d_2-hfx12d4_bak42bk

Internal Product ID:

142841

Customer Ratings & Reviews


(2) HFX12D4 Subwoofers + HFi1000.1D Monoblock Amplifier and Amp Kit thumbnail image

5 star
73%
4 star
18%
3 star
4%
2 star
2%
1 star
2%



Durability
4.5
Value
4.8
Features
4.4
Design
4.6
Usability
4.7

Customer Reviews

Sort by:

Loading...

Quality Product

The following review is for BAK42BK, which is a part of the bundle you are viewing.

Works very well with my Rockford Fosgate sub system in my car.

By Ronald on December 11, 2014

135 found this helpful


good deal!

The following review is for BAK42BK, which is a part of the bundle you are viewing.

Pretty decent value for the price. Worked out great, thanks.

By Brett on January 29, 2015

130 found this helpful


Keeps blowing me away more and more!

The following review is for HFX12D4, which is a part of the bundle you are viewing.

This sub just keeps hitting harder and lower! I'm amazed and blown away! I was underwhelmed for a while there because I realized that I actually killed my previous sub by sending a very strong and very clipped signal to it by having the gain set too high for my head unit's preamp voltage. To reach the ~250W RMS the amp is rated for with my head unit, I need the gain knob LESS than half way up. Any more than that and it starts distorting, and this is not because of the sub but because I'M SENDING A CLIPPED SIGNAL FROM MY AMP. I feel like I've officially made that step from n00b to experienced installer. I had read all the instructions and guides before and never understood what they meant by matching the head unit's preamp voltage. Now I do and I know how not to kill a sub (and/or amp, for that matter).

Anyway, I had never broken in a sub and this sub is STILL blowing me away! It's hitting harder and it does better throughout the entire range. The lower notes (centered in the mid to high 30Hz range) I could barely feel at the start are now making the car have a slow, deep vibration when they hit (remember it's a sealed box). Being a 400W sub I feel like playing it full-blast at 250W RMS is good enough as 'breaking it in' and it is just finally beginning to impress me. It's hitting almost as hard as the Memphis sub that was getting a clipped signal with a few extra watts to compensate for my bass-trap trunk (thick leather seats, kills any bass trying to come from right behind you). Right now I'm keeping my rear seat's backrest down so I can feel the full effect of the sub.

I just can't wait to give it 400W. OMG. What a great sub. If 'you get what you pay for' is true 99% of the time, the HFX12D4 is the 1%, by far!

By Ricky Shade on November 6, 2011

134 found this helpful


Usable

The following review is for BAK42BK, which is a part of the bundle you are viewing.

The wiring has done me right so far but the only thing I don't like is the speaker wires. You have to carefully split it so the wire doesn't show. Other than that minor thing everything was great and a great value!

By tyler on November 18, 2014

126 found this helpful


Just purchased

The following review is for HFX12D4, which is a part of the bundle you are viewing.

I just bought this, and installed it in my 2000 accord. Don't be fooled by the price, this thing kicks. I hooked it up to my Pioneer GM-5500T amp putting out around 400 watts RMS. This sub sounds great so far.

By Connor on July 22, 2014

126 found this helpful


Very powerful, ,,

The following review is for HFX12D4, which is a part of the bundle you are viewing.

Was hesitate to buy this,, glad I did hook up to a mofo 12, and re 10, I have 1/0 gauge from battery to cap then 4 gauge to amp,, I love it,, lights still go dim,, need extra battery it love power,, removed my crossfire xp1400d,, this is way better,,,,

By fisher on September 24, 2014

126 found this helpful


price is right

The following review is for BAK42BK, which is a part of the bundle you are viewing.

the price is right for this setup. the ground wire and the power wire are to big for my amp but i made them fit. better to have to much than not enough so if i upgrade to a larger amp it will be fine.

By Mark on November 13, 2014

123 found this helpful


Hifonics HFX1204

The following review is for HFX12D4, which is a part of the bundle you are viewing.

These subwoofers really hit hard for the price. Probably one of the best I have ever bought. We'll see how long they last.

By Ryan on December 23, 2014

122 found this helpful


Nice sub

The following review is for HFX12D4, which is a part of the bundle you are viewing.

Sounds looks and is a great sub. Best for the money.

By Logan on December 30, 2011

124 found this helpful


Great product

The following review is for HFX12D4, which is a part of the bundle you are viewing.

I've had these subs two of them hooked up to a crunch 1500 powerzone amp in a sealed box and they bump!! I've had them for two weeks and still working great! I had a previous set of subwoofers that hit great lows and I'd say that these subs don't hit great lows but they hit really crisp mids and highs :) I love them either way at great price I don't mind I'll probably get a third 12 that mainly hits great lows to even out :)

By Roberto on November 5, 2014

121 found this helpful




SRF-59SILVER small

Sony SRF-59SILVER (SRF59) Portable AM/FM Walkman Radio - Silver

Portable Walkman AM/FM Radio with Included Lightweight Stereo On-Ear Headphones

(4)

$16.99

List price $24.99

46CSC654_46CSC6934 small

Kicker CSC65 (46CSC654) with 6x9" Coaxial Speakers

600W Peak (200W RMS) 6.5” CS Series 2-way 4-ohm Coaxial Car Speakers (CSC654) + 900W Peak (300W RMS) 6x9” CS Series 3-way 4-ohm Coaxial Car Speakers with Integrated Midrange

(162)

$191.92

List price $279.98

Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2015 Honda Pilot

2012 Lexus IS-F

2008 Ford Taurus X

2015 Buick Encore

2009 Nissan Versa

2004 Chevrolet Corvette

2012 Subaru Forester

2001 Toyota Highlander

2015 Dodge Charger

1977 Cadillac DeVille

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
