See all parts that fit your 2017 Cooper

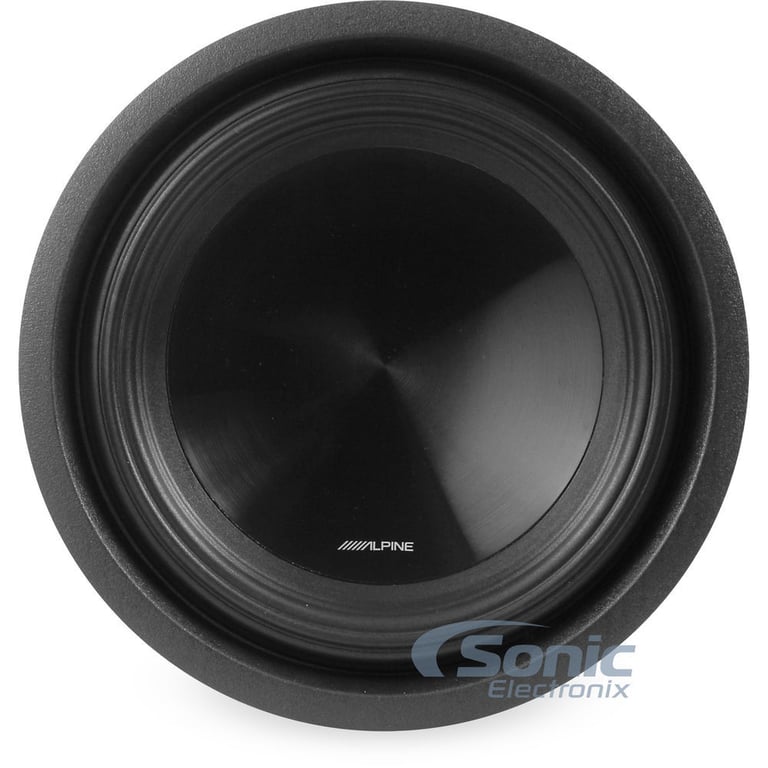

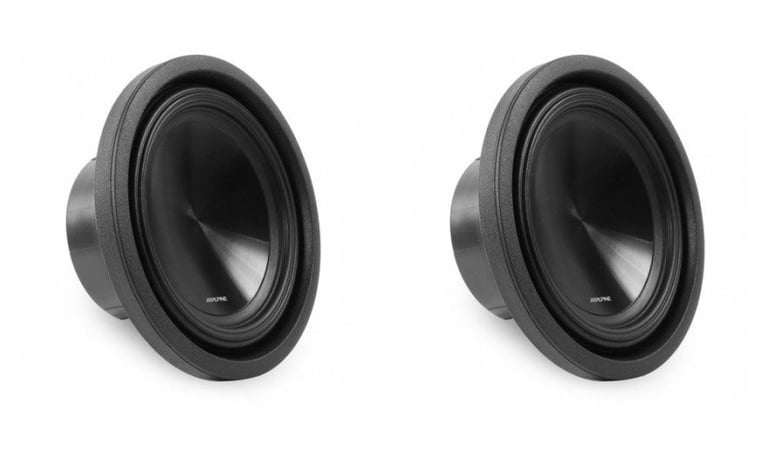

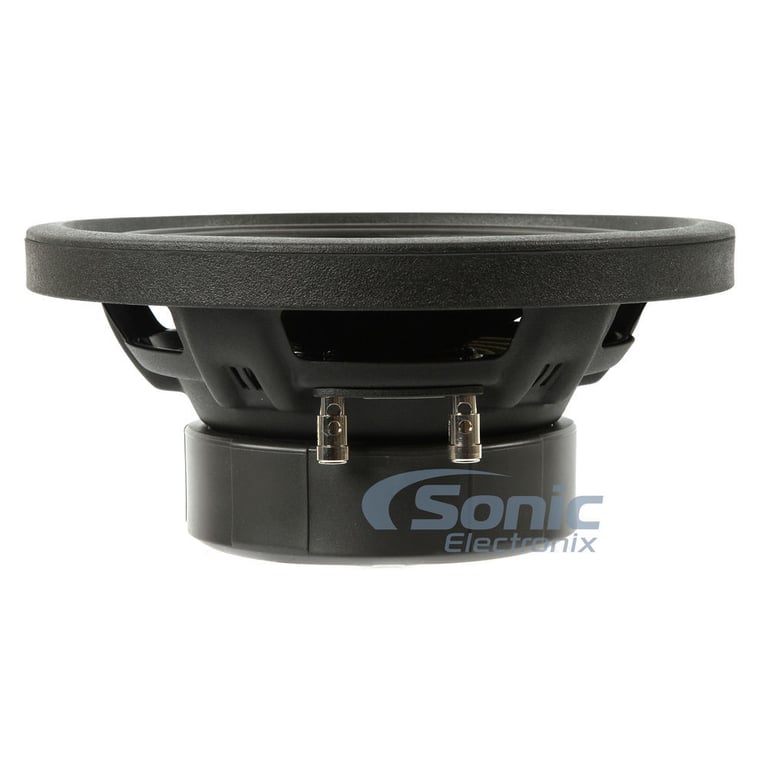

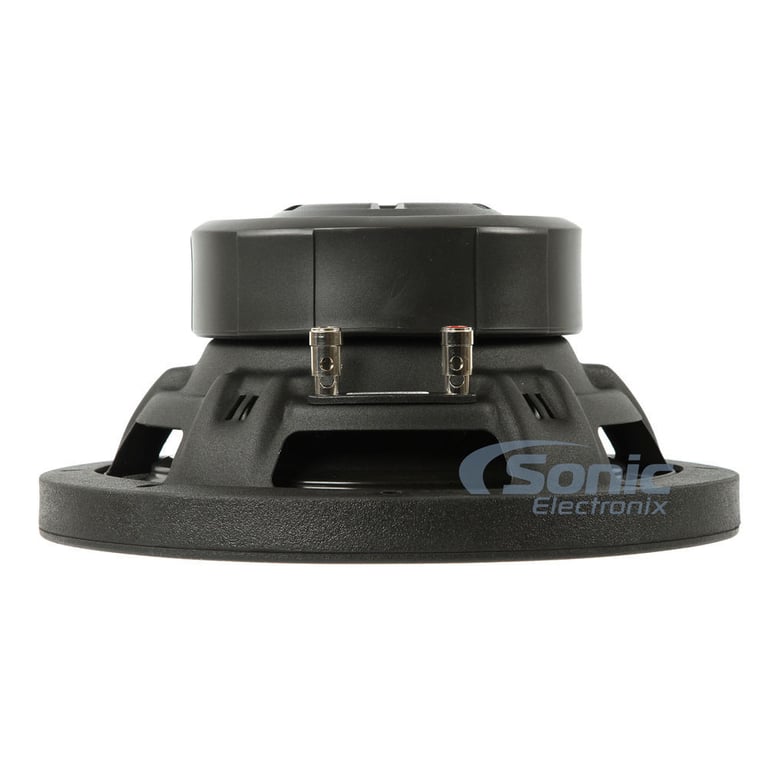

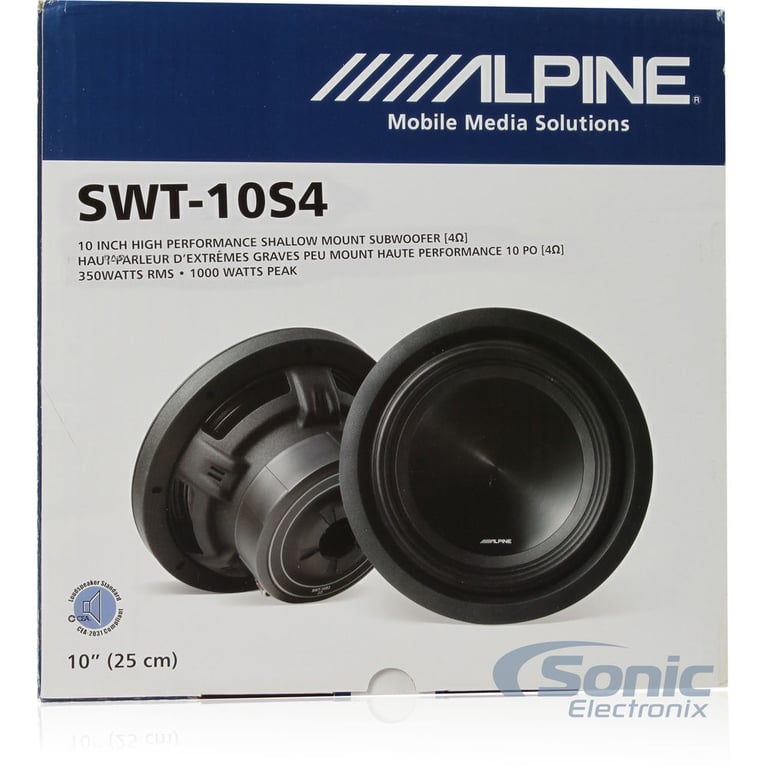

(2) Alpine SWT-10S4 Subwoofers

(2) 1000W Peak 10" SWT Series Single 4-ohm Shallow Mount Truck Subwoofer

Alpine
Shop all Alpine
highlight-star-icon

• Peak Power: 1000W
• RMS Power: 350W
• Poly-Mica Dust Cap & Pulp-Kevlar
• Polyurethane Foam Surround w/ H.A.M.R. Surround Technology

Learn more about the swt10s4_x2

We apologize

This item has been discontinued


Loading...
PRO-X8.4BM main

DS18 PRO-X8.4BM (Sold Individually)

550W Peak (275W RMS) 8” PRO-X Series 4-ohm Mid-Range Loudspeaker

1

Description


Alpine brand icon

Authorized dealer

General Features:

  • 10" SWT Series Single 4-ohm Shallow Mount Truck Subwoofer
  • Power Handling:
    • Peak: 1,000 watts
    • RMS: 350 watts
  • Recommended Power Range: 100W - 350W
  • Poly-Mica Dust Cap & Pulp-Kevlar
  • Polyurethane Foam Surround
    • H.A.M.R. Surround Technology
  • Spiral Cut Aluminum Former
  • 65mm Voice Coil with High-Temp 4-Layer SVC Winding
  • 8AWG Push Terminals
  • Top-mount depth: 4-3/16"
  • Mounting Diameter: 8-15/16''
  • Frequency Response: 30 - 200 Hz
  • Sensitivity: 84.8 dB
  • Authorized Internet Dealer
  • 1-year Sonic Electronix Warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 (2) Alpine SWT-10S4 Subwoofers Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 (2) Alpine SWT-10S4 Subwoofers Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 (2) Alpine SWT-10S4 Subwoofers Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 (2) Alpine SWT-10S4 Subwoofers Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-16.67%

$349.99

List price $420.00

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

KW-M560BT main

JVC KW-M560BT

6.8" Double-DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

10
CVP8 main

Cerwin-Vega CVP8 (Sold Individually)

350W Peak (170W RMS) 8" CVPRO Series Pro Full Range 4-ohm Speaker

-16.67%

$49.99

List price $59.99

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(68)

$139.99

List price $139.99

Specifications & Details


Subwoofer Specifications
Series
SWT Series
Subwoofer Size
10"
Peak Power Handling
1000 watts
RMS Power Handling
350 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2.55"
Frequency Response
30 - 200 Hz
Sensitivity
85.1 dB
Xmax (millimeters)
11 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Polypropylene-Mica
Woofer Surround
Poly-Foam
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Minimum Sealed Box Volume
0.4 cubic feet
Optimum Sealed Box Volume
0.45 cubic feet
Maximum Sealed Box Volume
0.6 cubic feet
Minimum Ported Box Volume
1.15 cubic feet
Optimum Ported Box Volume
1.25 cubic feet
Maximum Ported Box Volume
1.5 cubic feet
Top-Mount Depth (Mounting Depth)
4-3/16"
Cutout Diameter
8-15/16"
Shallow Mount Installation
Yes
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
30 Hz
Equivalent Compliance (Vas)
38.3 liters
Total Speaker Q Value (Qts)
0.46
Electrical Q Value (Qes)
0.54
Electrical Resistance of Voice Coil (Re)
3.7 ohm
Mechanical Q Value (Qms)
3.22
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

SWT-10S4,SWT-10S4

Weight:

25.20lbs

Internal SKU:

swt10s4_x2

Internal Product ID:

145067

Customer Ratings & Reviews


(2) Alpine SWT-10S4 Subwoofers thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
4
Value
4.5
Features
4.5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

Impressed

I installed these subs in custom boxes with around .45 cu ft of air space and wow. For a shallow mount sub they hit hard. I have the M500 Alpine amp pushing them and they don’t miss a beat.

By Kyle on April 10, 2018

2 found this helpful


Awesome subs!

These subs hit hard and sound super crisp. They aren't quite the type of subs to shake the car next to you, but they'll certainly shake yours. They sound so good in a sealed box in my Toyota Tundra under the back seat. Definitely recommend these subs. Excellent value.

By Caleb on February 28, 2018
