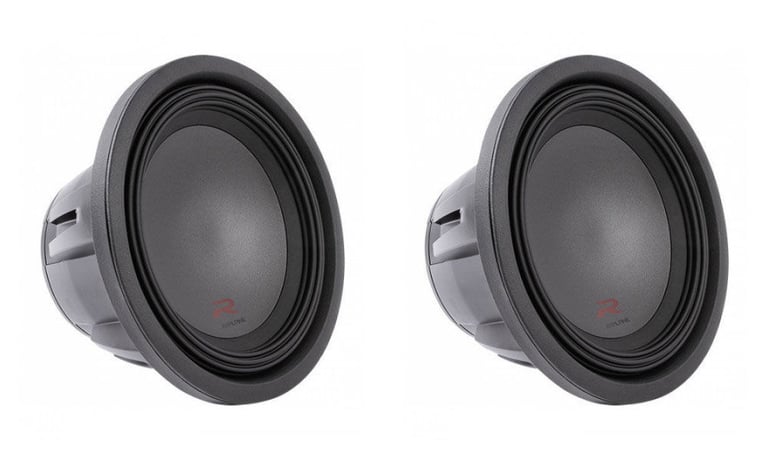

(2) Alpine R-W12D4 Subwoofers

(2) 2250W Max (750W RMS) 12" R-Series Dual 4-Ohm Car Subwoofer

Alpine
Shop all Alpine
highlight-star-icon

• 2250W Max
• 750W RMS
• Parabolic pulp/kevlar cone
• H.A.M.R. surround
• Cast aluminum frame with integral shorting sleeve
• Polypropylene, mica and talc dust cap
• 127 oz. Strontium ferrite segmented magnet

Learn more about the rw12d4_x2

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Description


Alpine brand icon

Authorized dealer

Alpine R-W12D4

2250W Max (750W RMS) 12" R-Series Dual 4-Ohm Car Subwoofer
Quantity: 1

General Features:

  • 12" Dual 4 ohm Type-R Subwoofer
  • Power Handling:
    • Peak: 2250 watts
    • RMS: 750 watts
  • Recommended power range: 300 - 750W RMS
  • CTA-2031 compliant power ratings

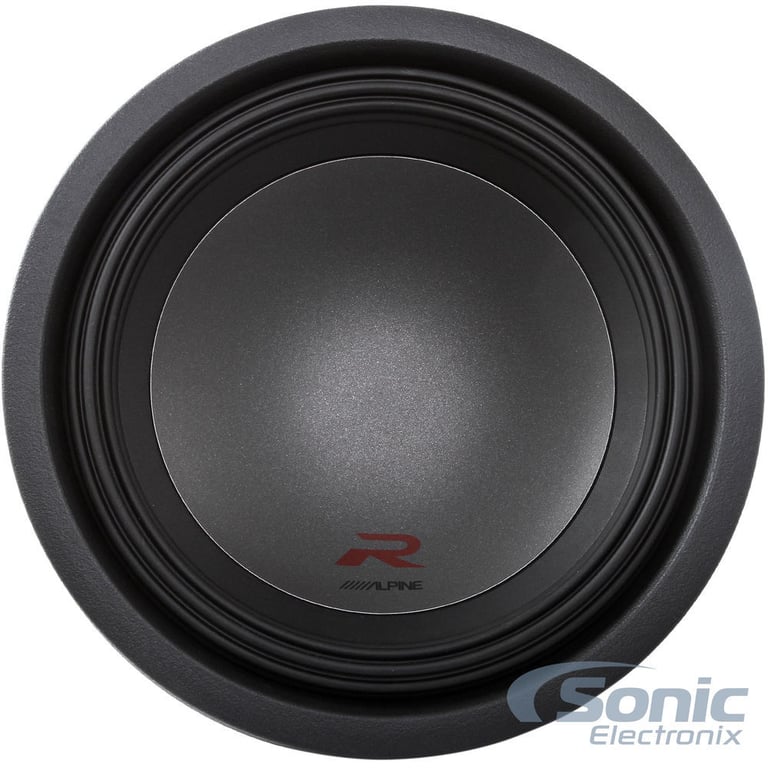

  • Parabolic pulp/kevlar cone
  • H.A.M.R. surround
  • Polypropylene, mica and talc dust cap
  • Reinforced cone neck and spider joint

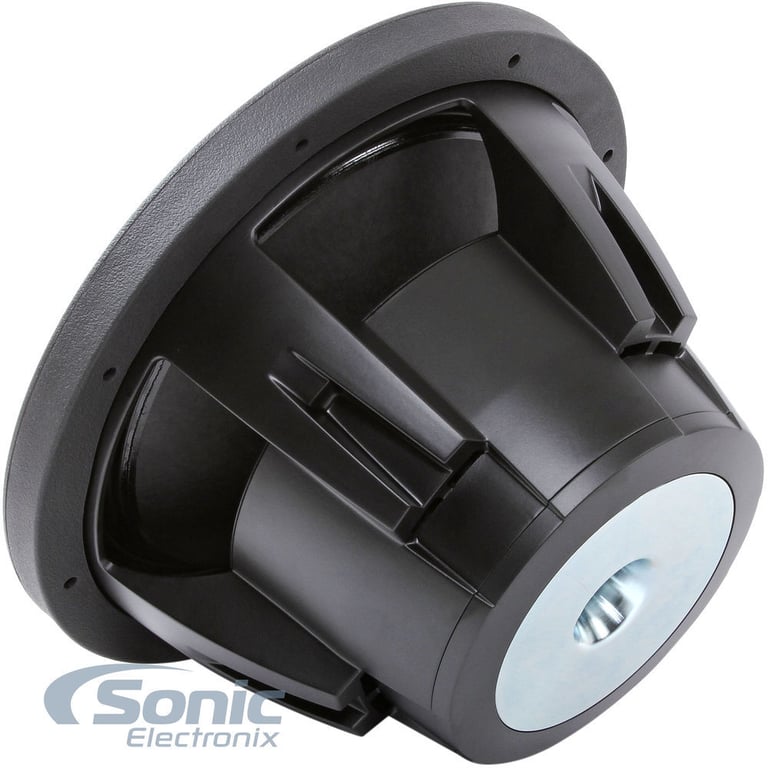

  • Cast aluminum frame with integral shorting sleeve

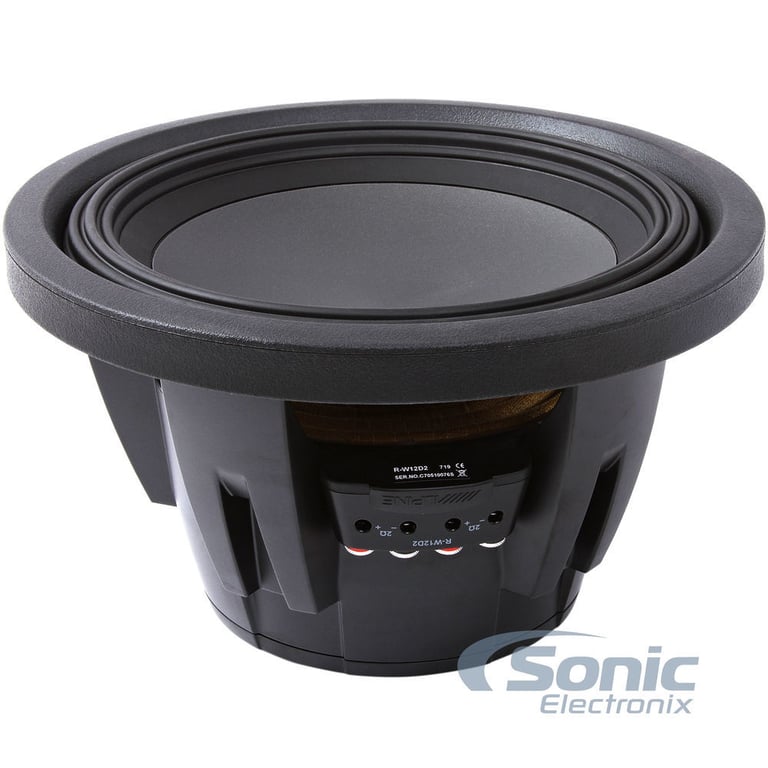

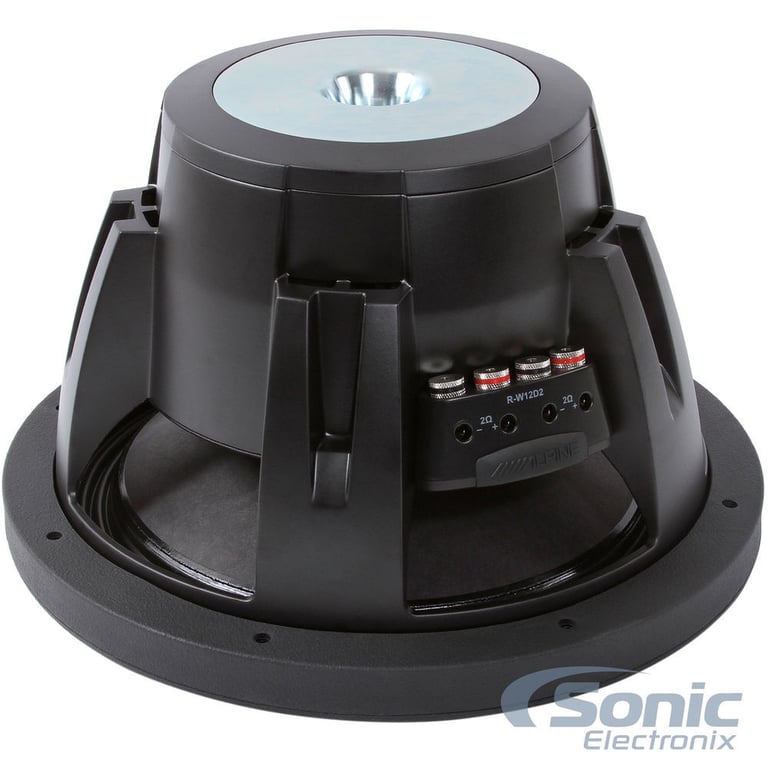

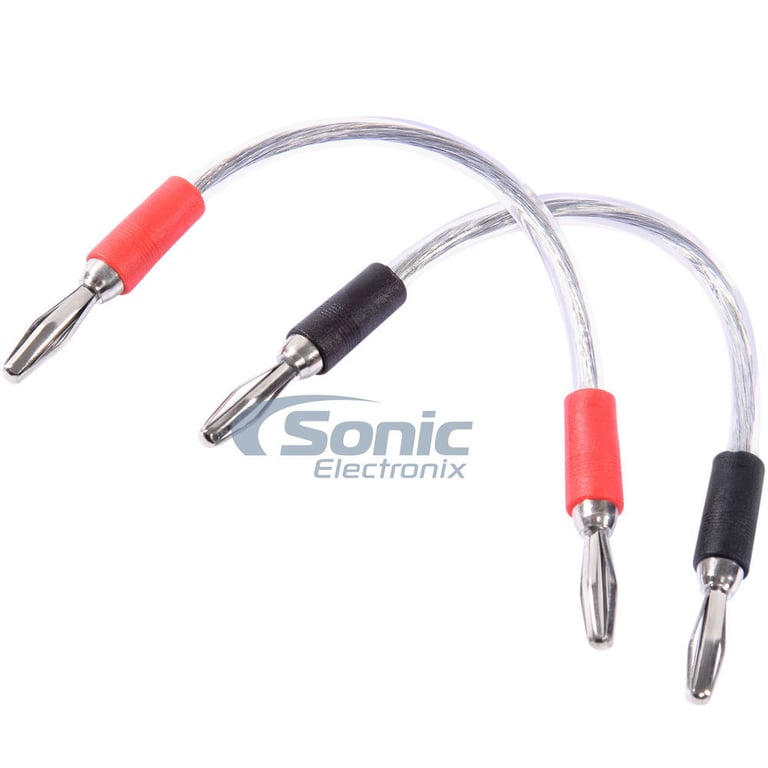

  • 8AWG push terminals with VC configuration jumpers
  • 2.6" High excursion overhung voice coil
  • 127 oz. Strontium ferrite segmented magnet
  • Top-mount depth: 6-3/8"
  • Cutout diameter: 10-7/8"
  • Frequency Response: 24 - 200Hz
  • Sensitivity: 84.3dB
  • Resonance Frequency (Fs): 27Hz
  • Authorized Internet Dealer
  • 1-year Sonic Electronix Warranty
  • Priced Individually

Alpine R-W12D4

2250W Max (750W RMS) 12" R-Series Dual 4-Ohm Car Subwoofer
Quantity: 1

General Features:

  • 12" Dual 4 ohm Type-R Subwoofer
  • Power Handling:
    • Peak: 2250 watts
    • RMS: 750 watts
  • Recommended power range: 300 - 750W RMS
  • CTA-2031 compliant power ratings
  • Parabolic pulp/kevlar cone
  • H.A.M.R. surround
  • Polypropylene, mica and talc dust cap
  • Reinforced cone neck and spider joint
  • Cast aluminum frame with integral shorting sleeve
  • 8AWG push terminals with VC configuration jumpers
  • 2.6" High excursion overhung voice coil
  • 127 oz. Strontium ferrite segmented magnet
  • Top-mount depth: 6-3/8"
  • Cutout diameter: 10-7/8"
  • Frequency Response: 24 - 200Hz
  • Sensitivity: 84.3dB
  • Resonance Frequency (Fs): 27Hz
  • Authorized Internet Dealer
  • 1-year Sonic Electronix Warranty
  • Priced Individually

Product history:

Alpine R-W12D4,R-W12D4 thumbnail
(newest, current model)
Alpine SWR-12D4 thumbnail
(previous model, replaced by (2) Alpine R-W12D4 Subwoofers)
Alpine SWR-1243D thumbnail
(previous model, replaced by Alpine Type-R SWR-12D4)
Alpine SWR-1242D thumbnail
(previous model, replaced by Alpine SWR-1243D)
Alpine SWR-1241D thumbnail
(previous model, replaced by Alpine SWR-1242D)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 (2) Alpine R-W12D4 Subwoofers Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 (2) Alpine R-W12D4 Subwoofers Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 (2) Alpine R-W12D4 Subwoofers Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 (2) Alpine R-W12D4 Subwoofers Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

MBQBRO-302 small

MB Quart MBQBRO-302

• 12" Amplified Loaded Subwoofer System
• 400 watts peak
• Built-In class D amplifier
• Variable bass boost
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

$679.99

List price $899.99

RTP8A small

MTX Audio RTP8A

• 8" Amplified Loaded Subwoofer System
• 120 watts RMS (360 watts Peak)
• Built-In amplifier
• Variable bass boost
• Speaker-Level Inputs
• EBC wired remote bass level control

(8)

$199.95

List price $219.95

W10S4_2, BXD3K, BAK42BK small

(2) Alpine W10S4 10" Bass Subwoofers + Belva 3000W Amplifier + 4 Gauge Amp Kit

• 750W Max
• 250W RMS
• Polypropylene-Mica cone
• High-excursion poly-foam surround
• High-strength custom steel frame
• Progressive Wavelit Ribs (P.W.R.) cone design

(82)

$364.88

List price $489.98

TNP212D2 small

MTX Audio TNP212D2

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
MTX TN250/1 amplifier included
• Selectable bass boost
• Speaker-level (high-level) inputs (adapter included)
• Wired remote bass level control

(156)

$369.95

List price $399.95

BPKG212v2 small

Belva BPKG212v2 Dual 12" Bass Package

• Works with both Factory and Aftermarket Audio Systems
• Dual 12" Belva Subwoofers
• Monoblock Amp with Bass Knob
• Ported Enclosure
• Complete Amp Wiring Kit

(82)

$279.99

List price $323.99

Specifications & Details


Subwoofer Specifications
Series
Type-R Series
Subwoofer Size
12"
Peak Power Handling
2250 watts
RMS Power Handling
750 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2.6"
Frequency Response
24 - 200 Hz
Sensitivity
84.7 dB
Xmax (millimeters)
20 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Kevlar Reinforced Pulp Paper
Woofer Surround
Santoprene Rubber
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
.85 cubic feet
Optimum Ported Box Volume
1.71 cubic feet
Top-Mount Depth (Mounting Depth)
6-3/8"
Cutout Diameter
10-7/8"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
28 Hz
Equivalent Compliance (Vas)
48 liters
Total Speaker Q Value (Qts)
.56
Electrical Q Value (Qes)
.61
Electrical Resistance of Voice Coil (Re)
3.6 ohm
Mechanical Q Value (Qms)
7.15
What is in the box?
Paperwork
User manual
Warranty/Registration card
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

R-W12D4,R-W12D4

Weight:

42.00lbs

Internal SKU:

rw12d4_x2

Internal Product ID:

145079

Customer Ratings & Reviews


(2) Alpine R-W12D4 Subwoofers thumbnail image

5 star
86%
4 star
10%
3 star
0%
2 star
0%
1 star
5%



Durability
4.9
Value
4.9
Features
4.9
Design
4.9
Usability
4.9

Customer Reviews

Sort by:

Loading...

Just WOW!

The following review is for R-W12D4, which is a part of the bundle you are viewing.

First off, I thought I was getting the previous model type r which was like over 50$ diff but they upgraded me to the newest model without telling me (which is awesome).

Secondly, this thing performs!!!! It will vibrate your nose hairs and sometimes causing a sneeze (NO JOKE). on the mrv m500 amp and a 1.5ft box its louder than what my head unit can produce volume for the music. And this is just for 1 alpine type R. couldnt be happier

By Anonymous on June 7, 2019 Checkmark Icon Verified purchase

24 found this helpful


Awesome Sub!

The following review is for R-W12D4, which is a part of the bundle you are viewing.

I am running this sub on a 500 watt JBL amp at 2 ohm and it is bumping. I've only had it for a month but so far it works. I previously owned at JL Audio W3v3 and this thing is way louder and has very similar sound quality for a cheaper price. With just one sub is enough for me and I'm not even pushing the sub to it's max. My car windows aren't rattling but the bass is enough to still turn heads when really pushing it. Really enjoy this subwoofer and I would definitely buy another one.

By Gerardo on October 19, 2017 Checkmark Icon Verified purchase

22 found this helpful


Great Speakers

The following review is for R-W12D4, which is a part of the bundle you are viewing.

I purchased 2 of these 12" Alpine Type R subs and installed them in a Fox Box underneath in my 2006 Dodge Ram quad cab.
Fitment is great and bass is good.
I have them running at 1ohm from a 1700.1 Hifonics Brutus amp.

By Anonymous on May 18, 2019 Checkmark Icon Verified purchase

20 found this helpful


Top notch product

The following review is for R-W12D4, which is a part of the bundle you are viewing.

Combined with a second type-r/great amplifier/ and 0/1 gauge wiring,this sub worked wonders for me in terms of handling power cleanly without distortion. A must have sub without blowing the bank

By Jody on March 24, 2018

21 found this helpful


BASS! How Low Can It Go?

The following review is for R-W12D4, which is a part of the bundle you are viewing.

These sub is hands down the best one out the collections of subs I have. The overall design and build of the sub is amazing. I really appreciate how Alpine had the terminals on one side and can easily be bridged with a less than 6” inches of wire. I currently have them in a sealed enclosure that is a little too big but sounds so nice. The bass sounds tight and hits hard. I may switch to a vented box to hear and feel the difference.
This sub will not disappoint and is money well spent. I also highly recommend getting the grille to protect the sub.

By SqEarl on January 29, 2020 Checkmark Icon Verified purchase

17 found this helpful


Great price

The following review is for R-W12D4, which is a part of the bundle you are viewing.

Had been wanting these subs for a while, with help from Travis I was able to get a great price on these. Great subs but even better customer service.

By Lorenzo on March 2, 2020

16 found this helpful


Bad Quality.

The following review is for R-W12D4, which is a part of the bundle you are viewing.

I bought 2 of these subs and had them for almost two months and they blew. Had them professionally installed. Should've never wasted my money. Very dissappointed.

By Gage on January 9, 2020 Checkmark Icon Verified purchase

15 found this helpful


Amazing! I will never buy any other brand of sub than this one!

The following review is for R-W12D4, which is a part of the bundle you are viewing.

I have had many different subs in the past and these alpine type r’s are by far the best I’ve ever had. Highly recommend spending a little more on these than on some other brand, it’ll be worth it

By Anonymous on September 8, 2019 Checkmark Icon Verified purchase

16 found this helpful


I love it!

The following review is for R-W12D4, which is a part of the bundle you are viewing.

Sounds great! Bass response is awesome! I would buy again.

By John on January 20, 2018

15 found this helpful


Excellent buy!

The following review is for R-W12D4, which is a part of the bundle you are viewing.

wow, first let me say that sonic electronix upgraded me from the previous gen to these subs for free. that alone will keep me coming to this site for future orders. the subs are great, they pound on my old kenwood amp, so i can't wait to get a beefier amp to push these things. always had good luck with type r subs before, so didn't see any reason to keep me away from these. you won't regret these babies!

By JOSHUA on November 29, 2017

17 found this helpful




MATRIX PLUS-GRAY small

AudioControl MATRIX PLUS (Gray)

6-Channel Line Driver with 5 Year Warranty*!

(2)

$215.00

List price $215.00

No picture

Focal RIP 100C

Auditor Series 4" Coaxial Speakers

$0.00

List price $0.00

MA-DJSTAND small

Marathon MA-DJSTAND

Full Size Universal Fold Out DJ Stand for All DJ Coffins

$119.99

List price $189.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1997 Mitsubishi Eclipse

1978 Cadillac DeVille

2022 Nissan Maxima

2014 Tesla Model S

1957 Ford Thunderbird

2015 Volkswagen Beetle

2011 Chrysler 200

1980 Saab 99

2002 MINI Cooper

2020 Jeep Gladiator

Vehicle
Store
Delete

2019 Honda Monkey

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
