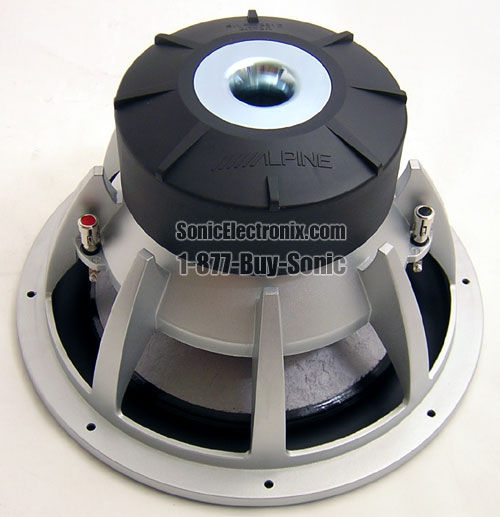

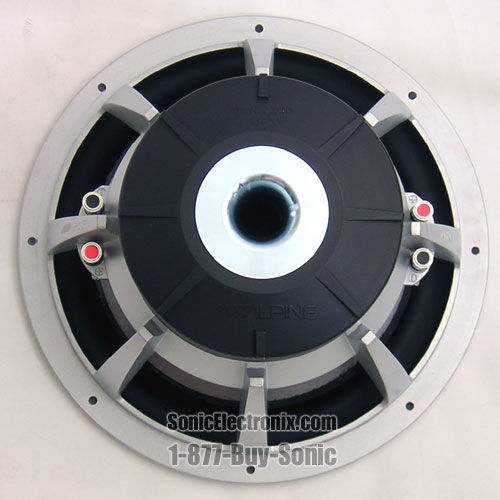

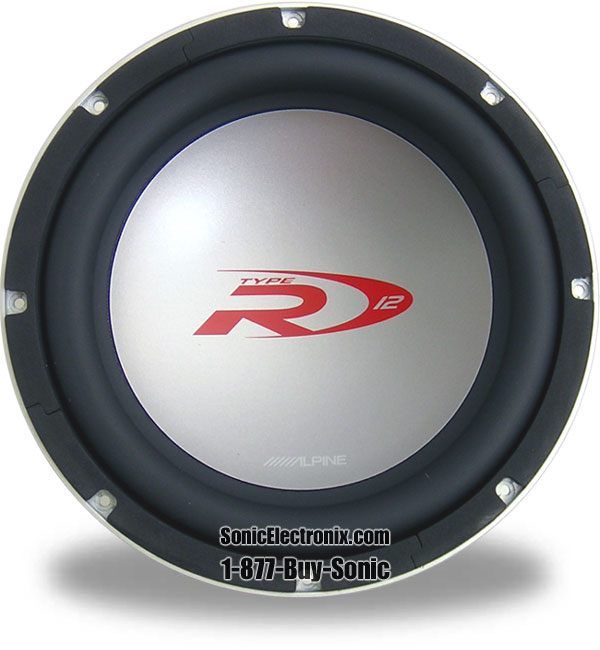

Alpine SWR-1241D Type R DVC 4-Ohm 12"

Alpine
Shop all Alpine
Product videos
highlight-star-icon

12" Dual 4-ohm Component Subwoofer • Dual 4-ohm voice coils • Kevlar™ reinforced pulp cone • Santoprene rubber surround • 1000W Peak, 300W RMS power range • 24-1,000 Hz frequency response

Learn more about the swr1241d

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

rw12d4 thumbnail

Alpine R-W12D4

OUR PRICE: $239.00

View item
NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
72-5602 main

Metra 72-5602

Install New Front Kick Panel Speakers in select 2009-2024 vehicles from Ford, Mazda, Lincoln

44
-20.01%

$11.99

List price $14.99

GMSB356 main

American International GMSB356

6.5" to 6.75" Speaker Mounting Adapters for select 1997-2020 vehicles from Chevrolet, GMC, Pontiac

33
-58.38%

$9.99

List price $24.00

95-7526B main

Metra 95-7526B Dash Kit

Install a new Double-DIN car stereo in select 2014-2018 3

-10.00%

$89.99

List price $99.99

40-HD10 main

Metra 40-HD10 Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 2005-2024 vehicles from Honda, Mazda, Acura

29
-15.40%

$10.99

List price $12.99

82-7501 main

Metra 82-7501

Speaker Brackets for select 2013-2023 vehicles from Mazda - Pair

3
-48.85%

$21.99

List price $42.99

82-3016 main

Metra 82-3016

Speaker Adapters to Mount Tweeter without Adapter or Modification for select 1990-2024 vehicles from Dodge, Subaru, Ram

1
-52.02%

$11.99

List price $24.99

SWRMZ-64C main

Crux SWRMZ-64C Wiring Interface

Install new car stereo and retains steering wheel audio controls and other factory features in select 2003-2015 vehicles from Mazda

2
-35.71%

$85.05

List price $132.30

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

117
-37.15%

$21.99

List price $34.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Product Highlights


12" Dual 4-ohm Component Subwoofer • Dual 4-ohm voice coils • Kevlar™ reinforced pulp cone • Santoprene rubber surround • 1000W Peak, 300W RMS power range • 24-1,000 Hz frequency response

Description


Alpine brand icon

Authorized dealer

  • Kevlar®-infused pulp cone
  • 1" Santoprene rubber surround
  • dual 4-ohm 2" voice coils (make sure your amplifier is compatible)
  • frequency response 24-1,000 Hz
  • RMS power handling: 300 watts
  • Peak power handling 1,000 watts
  • sensitivity 87 dB
  • top-mount depth 6-15/16"
  • sealed box volume: 0.7-1.0 cubic feet
  • ported box volume: 0.75-1.75 cubic feet

Product history:

Alpine R-W12D4 thumbnail
(newest, current model)
Alpine SWR-12D4 thumbnail
(previous model, replaced by Alpine R-W12D4)
Alpine SWR-1243D thumbnail
(previous model, replaced by Alpine Type-R SWR-12D4)
Alpine SWR-1242D thumbnail
(previous model, replaced by Alpine SWR-1243D)
Alpine SWR-1241D thumbnail
(previous model, replaced by Alpine SWR-1242D)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Alpine SWR-1241D Type R DVC 4-Ohm 12" Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Alpine SWR-1241D Type R DVC 4-Ohm 12" Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Alpine SWR-1241D Type R DVC 4-Ohm 12" Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Alpine SWR-1241D Type R DVC 4-Ohm 12" Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(82)

$949.99

List price $949.99

CWRT124 small

Kicker CWRT124 (48CWRT124)

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Impedance: Dual 4 ohm
• UV-Treated Polypropylene Cone
• UV-resistant Santoprene Surround
• Mount depth: 3-3/4"
• Sensitivity: 85.5 dB

(18)

$199.96

List price $279.99

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(95)

$239.99

List price $287.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$79.99

List price $139.95

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

YSW122 small

NVX YSW122

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 2 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 6.5"
• Sensitivity: 85 dB

(3)

$149.99

List price $227.99

12TW3-D4 small

JL Audio 12TW3-D4

• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Rubber Surround
• Mount depth: 3.5"
• Sensitivity: 84.11 dB

(20)

$569.99

List price $569.99

Specifications & Details


Subwoofer Specifications
Subwoofer Size
12"
Peak Power Handling
1000 watts
RMS Power Handling
300 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Frequency Response
24 - 1000 Hz
Sensitivity
87 dB
Woofer Surround
1" Santoprene Rubber
Recommended Enclosure Specifications
Top-Mount Depth (Mounting Depth)
6-15/16"
Cutout Diameter
10-15/16"

Item Details


Manufacturer:

Model Number:

SWR-1241D

Weight:

22.00lbs

Internal SKU:

swr1241d

Internal Product ID:

48
