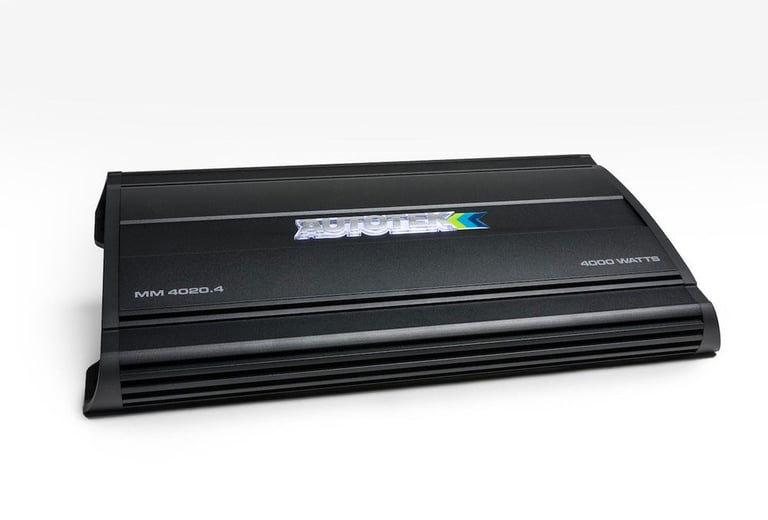

Autotek MM4020.4 | 4000W Mean Machine Series 4-Channel Amplifier

Autotek MM4020.4 (MM40204)

4000W Max Mean Machine Series 2 ohm Stable 4 Channel Class-A/B Amplifier

4000W Max Mean Machine Series 2 ohm Stable 4 Channel Class-A/B Amplifier

• 500 Watts Max x 4 @ 4 ohms
• 1000 Watts Max x 4 @ 2 ohms
• 2000 Watts Max x 2 @ 4 ohms
• Total Peak Power: 4000 Watts
• High and Low Pass Filters
• 0-9dB Bass Boost
• Aluminum Heatsink

$139.99

Out of Stock - Backorder with warranty
Thanks , You Pay:

Item Condition: Brand new

The item is brand new and not used.


protection

Add a protection plan

squarespace
3 years for

Shipping
Fast, Free Shipping

Within the US 48

60Days
60-Day Money-Back

Hassle Free Returns

365days
365-Day Coverage

Warranty assistance for a year

DESCRIPTION
Autotek

Authorized dealer

General Features:

  • Autotek Mean Machine Series MM4020.4
  • Class-A/B 2 ohm Stable 4-Channel Amplifier
  • Peak Power Rating:
    • 4 ohms: 500 watts x 4 chan.
    • 2 ohms: 1000 watts x 4 chan.
    • 1 ohm: ------------N/A------------
    • Bridged, 4 ohms: 2000 watts x 2 chan.
  • Total power output: 4000 watts
  • Pulse Width Modulated MOSFET power supply
  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • 4/3/2 channel operation

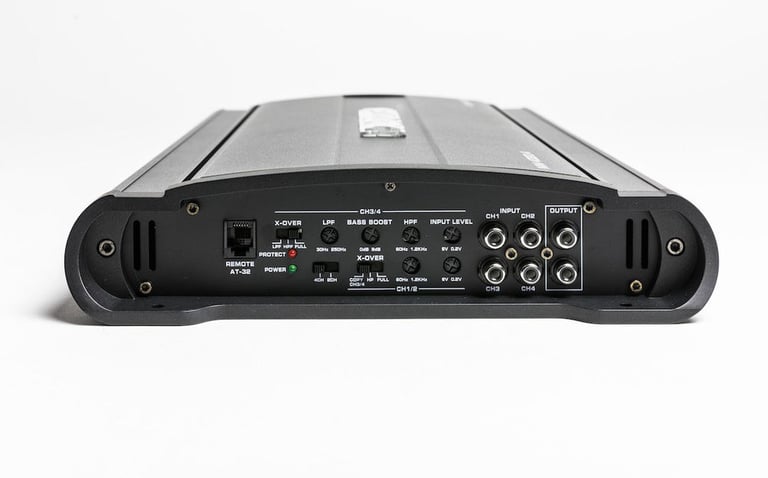

  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)

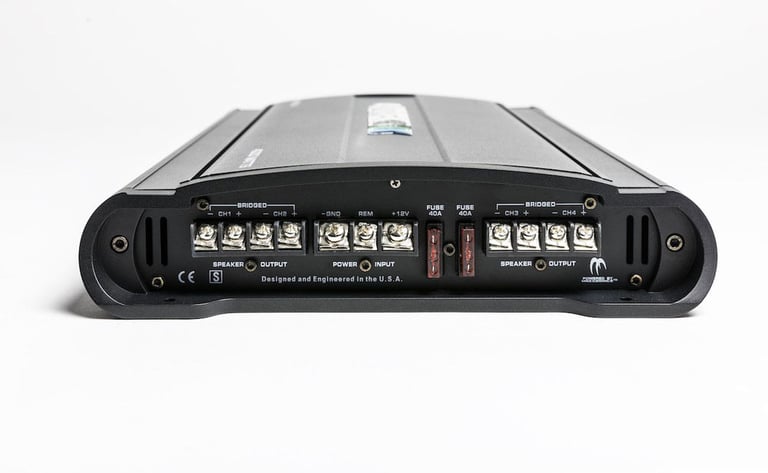

  • Dual speaker terminals simplify the hookup of multiple speakers
  • Heavy duty aluminum alloy heat-sink
  • Input sensitivity:
    • High level: .2V-6V
  • Frequency Response: 15 - 150Hz
  • Total Harmonic Distortion (THD): <.05%
  • Signal to Noise Ratio: >90 dB
  • Variable high-pass filter: 60 - 1200Hz
  • Variable low-pass filter: 30 - 250Hz
  • Variable Bass Boost: 0 to 9 dB bass boost
  • Fuse Rating: 40A x 2
  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty


Check out the MM4020.4 Owner's Manual

FEATURES & SPECS
Power Specifications - Full Range Channels
RMS Power @ 4 ohms
500 watts x 4 channels
RMS Power @ 2 ohms
1000 watts x 4 channels
Bridged RMS Power
2000 watts x 4 channels
Power Specifications - Full Range Channels
Peak Power @ 4 ohms
500 watts x 4 channels
Peak Power @ 2 ohms
1000 watts x 4 channels
Bridged Peak/Max Power
2000 watts x 4 channels
Amplifier Specifications
Amplifier Series
Mean Machine (Autotek)
Marine Certified
No
Amplifier Class
AB
Number of Channels
4
Total Peak Power Output
4000 watts
Total RMS Power Output
2000 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
.05%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
60 - 1200 Hz
Low-Pass Crossover Frequency
30 - 250 Hz
Signal-to-Noise Ratio
>90 dB
Bass Boost
0 - 9 dB
Bass/Gain Remote
No
Fan Cooled
No
Fuse Rating
40A x 2
Total Fuse Rating
80
Strappable
Yes
CEA-2006 Compliant
No
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Authorized Dealer
Authorized Dealer
Authorized Dealer
What is in the box?
WITB: Amplifiers
Amplifier
Paperwork
User manual
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer
