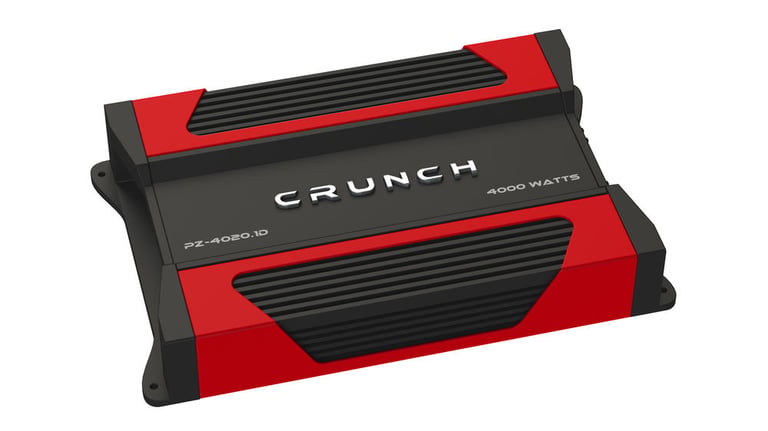

Crunch PZ-4020.1D

4000W Max (2000W RMS) Powerzone Series 1-ohm Stable Monoblock Amplifier w/ Bass Remote

Crunch
Shop all Crunch
highlight-star-icon

• 1000 Watts RMS x 1 @ 4 ohm
• 2000 Watts RMS x 1 @ 2 ohm
• 4000 Watts RMS x 1 @ 1 ohm
• Total Peak Power: 4000 Watts
• CEA-2006 Compliant/Preamp Outputs/LPF
• 0-12dB Bass Boost
• QTD Heatsink

Learn more about the pz40201d

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
72-4572 main

Metra 72-4572

Install New Speakers in select 2006-2024 vehicles from Chevrolet, GMC, Cadillac

36
-6.67%

$13.99

List price $14.99

Lowest price in 30 days
VSPTW main

NVX VSPTW

450W Peak (150W RMS) 1" V-Series Silk Dome Tweeters with External Crossovers

29
-16.67%

$49.99

List price $59.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

P1692 main

Rockford Fosgate Punch P1 P1692

300W Peak (150W RMS) 6x9" Punch Series 2 Way Coaxial 4-ohm Speakers

82
ESP69 main

NVX ESP69

480W Peak (160W RMS) 6x9" E-Series 2 Way Coaxial Car Speakers

6
-16.67%

$54.99

List price $65.99

Description


Crunch brand icon

Authorized dealer

General Features:

  • Crunch Powerzone PZ-4020.1D
  • Class-A/B Full Range 1-Ohm Stable 1-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 1000 watts x 1 chan.
    • 2 ohm: 2000 watts x 1 chan.
    • 1 ohm: 4000 watts x 1 chan.
  • Total power output: 4000 watts
  • CEA-2006 Compliant Amplifier
  • Pulse Width Modulated MOSFET power supply
  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • Mono channel operation
  • Speaker-level (high-level) inputs
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Dual speaker terminals simplify the hookup of multiple speakers
  • QTD (Quick Thermal Dispersion) Technology Heat Sink
  • Input sensitivity:
    • Low level: 6V - 0.25V
  • Frequency Response: 10 - 250 Hz
  • Total Harmonic Distortion (THD): <0.10%
  • Signal to Noise Ratio: >95dB
  • Variable high-pass filter: 60 - 1,200 Hz, 24 dB/octave
  • Variable low-pass filter: 30 - 250 Hz, 24 dB/octave
  • Subsonic filter: 10- 40Hz , 24 dB/octave
  • Variable Bass Boost: 0 to +9 dB bass boost at 45 Hz
  • Fuse Rating: 80A x 1
  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
Check out the Crunch PZ-4020.1D Owner's Manual

Loading...
Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

R169X2 main

Rockford Fosgate Prime R169X2

260W Peak (130W RMS) 6x9" Prime Series 2 Way Coaxial 4-ohm Speakers

49
REF697F main

Infinity REF697F (INFSPKRF697FUS)

600W Peak (200W RMS) 6x9" Reference Series 2-Way Coaxial 4-ohm Speakers

6
-17.65%

$139.95

List price $169.95

PNW-69CS2 main

AudioControl PNW-69CS2

250W RMS 6x9″ PNW Series 2-way 3-ohm Component Speaker System

1
-5.42%

$349.00

List price $369.00

TERMINATOR69 main

MTX Audio TERMINATOR69

240W Peak (120W RMS) 6x9" Terminator Series 2 Way Coaxial 4-ohm Speakers

1
-11.12%

$79.95

List price $89.95

NSP69 main

NVX NSP69

900W Peak (300W RMS) 6x9" N-Series 2 Way Coaxial Car Speakers

53
-16.67%

$89.99

List price $107.99

REF697CF main

Infinity REF697CF (INFSPKRF697CFUS)

750W Peak (250W RMS) 6x9" Reference Series 2-Way 3-ohm Component Speaker System

-9.68%

$279.95

List price $309.95

V69C main

Cerwin-Vega V69C

960W Peak (320W RMS) 6x9" Vega Series 2025 Edition 2-Way Component 4-ohm Speaker System


Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$449.99

List price $449.99

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(36)

$259.99

List price $335.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(38)

$209.99

List price $227.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(25)

$429.99

List price $429.99

CXA400.1 small

Kicker CXA400.1 (46CXA4001T)

• 150 watts x 1 channel @ 4 ohm
• 300 watts x 1 channel @ 2 ohm
• 400 watts x 1 channel @ 1 ohm
• Total RMS Power: 400 watts
• Class D 1 ohm Stable Monoblock Amplifier

(10)

$199.99

List price $219.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
1000 watts x 1 channel
RMS Power @ 2 ohms
2000 watts x 1 channel
RMS Power @ 1 ohm
4000 watts x 1 channel
Amplifier Specifications
Series
PowerZone Series
Amplifier Class
A/B
Number of Channels
1 - Mono
Total Peak Power Output
4000 watts
Total RMS Power Output
2000 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
<.1%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Subsonic
High-Pass Crossover Frequency
60 - 1200 Hz
Low-Pass Crossover Frequency
40 - 300 Hz
Subsonic Filter
10 - 40 Hz
Signal-to-Noise Ratio
>95 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Fuse Rating
80A x 1
Total Fuse Rating
80
Strappable
No
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
What is in the box?
WITB: Amplifiers
Amplifier
Wired gain knob (wire attached)
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

PZ-4020.1D

Weight:

10.00lbs

Internal SKU:

pz40201d

Internal Product ID:

145985
