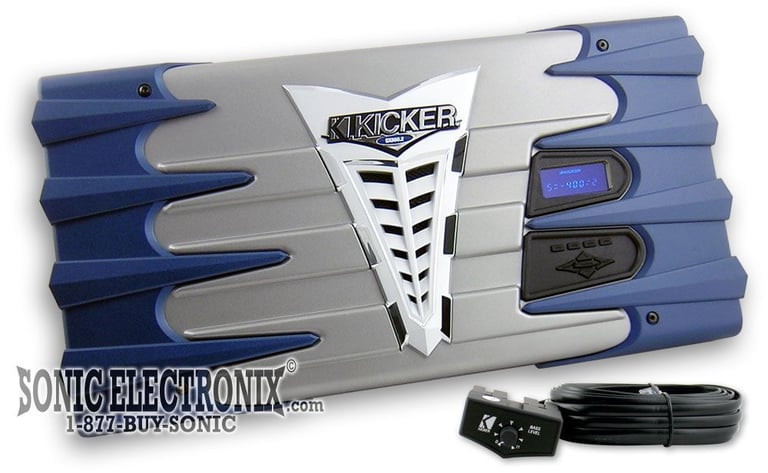

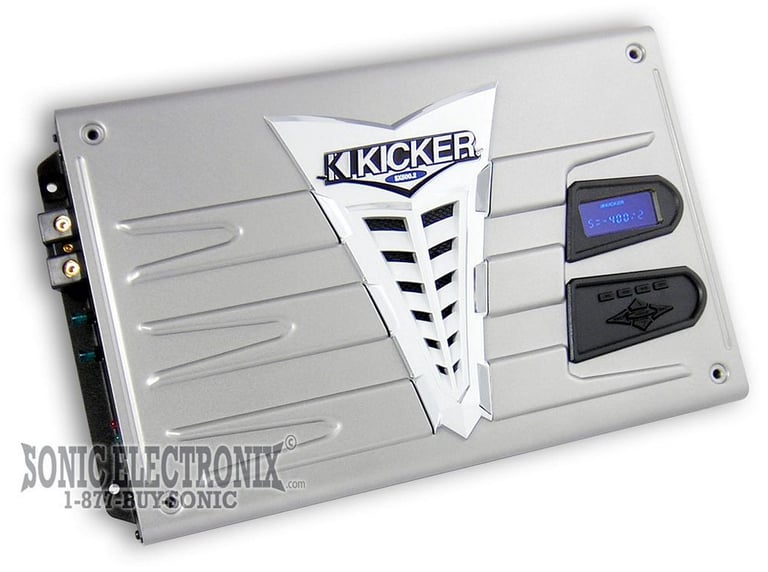

Kicker SX500.2

SX 2-Channel Amplifier with Digital Sound Processing 04SX500.2

Kicker
Shop all Kicker
Product videos
highlight-star-icon

2-Channel Amplifier with Digital Signal Processing • 250W RMS x 2 @ 2 ohm • 500W RMS x 1 @ 4 Ohm • ISIS • BLAST Port • SAMS • UltraMatch Gain Structure • Kompressor • RCA Outputs • SickBay Monitoring System

Learn more about the 04sx5002

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
70-1771 main

Metra 70-1771

Install a New Car Stereo in select 1998-2011 vehicles from Ford, Mazda, Mercury

51
95-5000B main

Metra 95-5000B Dash Kit

Install a new Double-DIN car stereo in select 2000-2006 LS and Thunderbird (Black)

1
-40.76%

$15.99

List price $26.99

99-5000 main

Metra 99-5000 Dash Kit

Install a new Single-DIN car stereo in select 2000-2006 LS and Thunderbird

3
-53.35%

$13.99

List price $29.99

95-5000S main

Metra 95-5000S Dash Kit

Install a new Double-DIN car stereo in select 2000-2006 LS and Thunderbird (Silver)

5
-40.76%

$15.99

List price $26.99

Limited time!
JBLLEGEND700 main

JBL LEGEND 700 (JBLLEGEND700)

7" Double DIN Touch Screen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto

5
-30.53%

$263.95

List price $379.95

Limited time!
DMX809S main

Kenwood eXcelon DMX809S

6.8” Double DIN Digital Multimedia Touchscreen Bluetooth Receiver with Wireless Apple CarPlay and Android Auto (SiriusXM Ready)

11
-37.63%

$499.00

List price $800.00

DPX505BT main

Kenwood DPX505BT

Double DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

18
-22.17%

$179.00

List price $230.00

iLX-507 main

Alpine iLX-507

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wireless Android Auto (SiriusXM and iDataLink Maestro Ready)

17
-17.03%

$779.95

List price $940.00

H7683 main

Cerwin Vega H7683

720W Peak (120W RMS) 6x8" HED Series 3-Way Coaxial 4-ohm Speakers

50
-16.67%

$79.99

List price $95.99

CLUB 864F main

JBL CLUB 864F (JBLSPKCB864F)

360W Peak (120W RMS) 6x8" Club Series 2 Way Coaxial 3-ohm Speakers

1
-21.44%

$109.95

List price $139.95

Product Highlights


2-Channel Amplifier with Digital Signal Processing • 250W RMS x 2 @ 2 ohm • 500W RMS x 1 @ 4 Ohm • ISIS • BLAST Port • SAMS • UltraMatch Gain Structure • Kompressor • RCA Outputs • SickBay Monitoring System

Description


Kicker brand icon

Authorized dealer

  • RMS Power Rating:
    • 125 watts x 2 chan. @ 4 Ohm
    • 250 watts x 2 chan. @ 2 Ohm
    • 500 watts x 1 chan. @ 4 Ohm bridged
  • Fully adjustable High- and low-pass crossovers with variable slope and crossover frequency
  • Fully adjustable EQ single-band parametric equalizer with variable Q (width), variable frequency and variable boost or cut
  • Adjustable channel output phase; left and right channels can be linked or independently adjusted
  • Left and right channels can be adjusted together or separately

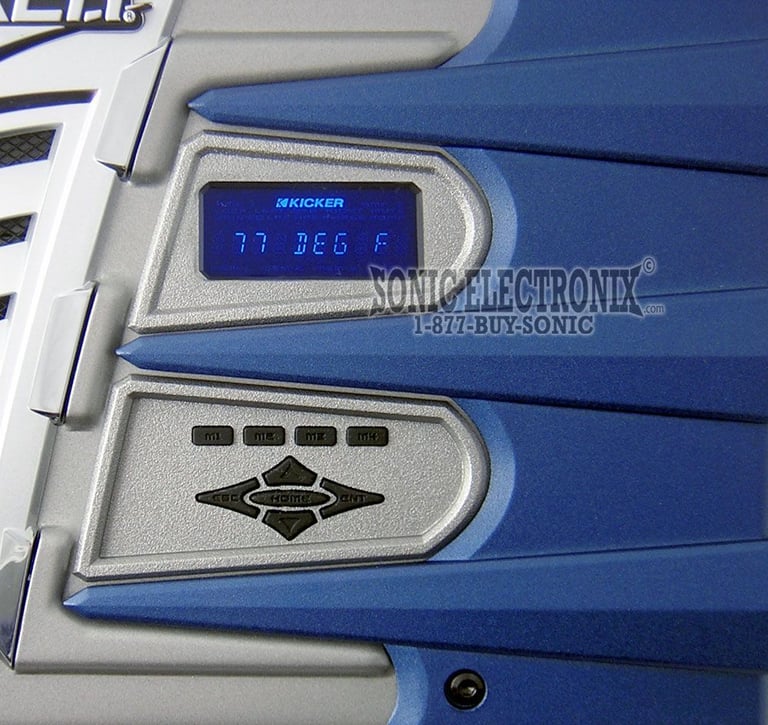

  • On-Board Diagnostics tools to troubleshoot installation problems and check amp status
  • Four-setting, user-selectable bass compressor to phatten up your sub bass and adjust to compensate for speaker size, speaker location, vehicle size or listening style
  • Low Impedance Operation
  • Protection Circuitry (Short circuit, Over-voltage, Reverse polarity, Thermal) protects amplifier from accidents, out of spec operation, and misinstallation
  • MOSFET Power Supply for high power operation

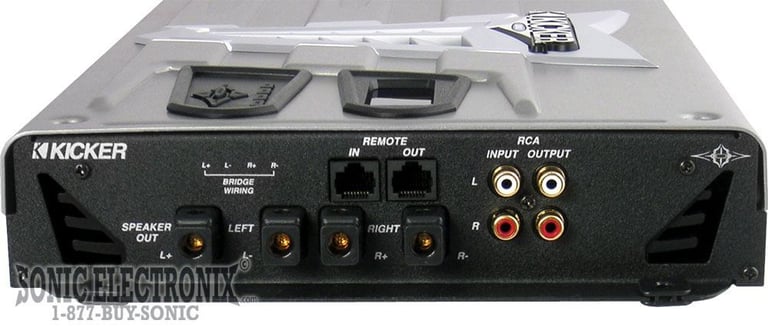

  • RCA output jacks to pass the incoming signal to another amplifier or component
  • Allows bridged mono load and a stereo load at the same time. (Not available on mono amps)

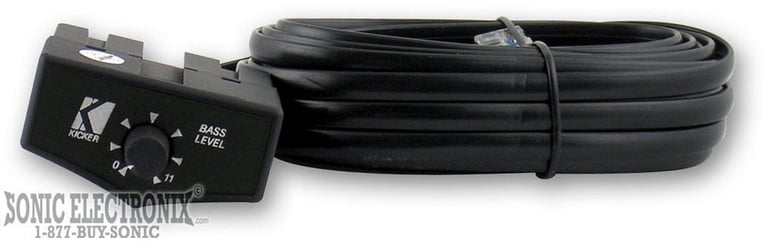

  • Remote Bass Level Control, and control of signal transfer between multiple SX amplifiers
  • Amp Strapping lets you put two mono amplifiers together into a single unit with double the power
  • Removable aluminum endcaps protect and hide all your wiring to amp for a clean installation. Leave them off if you need a few inches for clearance or if you like the way it looks.
  • Dimensions (With Endcaps): 19-1/4" L x 10" W x 2-1/2" H
  • Authorized Internet Dealer
  • 2-year Manufacturer's Warranty

Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

ATOM-900.2 PRO small

Deaf Bonce Apocalypse ATOM-900.2 PRO

• 350 watts x 2 channel @ 4 ohm
• 510 watts x 2 channel @ 2 ohm
• 900 watts x 2 channel @ 1 ohm
• Bridged: 1020 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 900 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$229.90

List price $229.90

ATOM-700.2 PRO small

Deaf Bonce Apocalypse ATOM-700.2 PRO

• 230 watts x 2 channel @ 4 ohm
• 480 watts x 2 channel @ 2 ohm
• 700 watts x 2 channel @ 1 ohm
• Bridged: 960 watts x 1 channel @ 4 ohm
• 14000 watts @ 2 ohm
• Total RMS Power: 700 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

(1)

$199.90

List price $199.90

MFA 2.420 small

Deaf Bonce MFA 2.420

• 420 watts x 2 channel @ 4 ohm
• 630 watts x 2 channel @ 2 ohm
• Bridged: 1260 watts x 1 channel @ 4 ohm
• Total RMS Power: 1260 watts
• Class D 2 ohm Stable 2-Channel Amplifier

$229.90

List price $229.90

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
125 watts x 2 channel
RMS Power @ 2 ohms
250 watts x 2 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
500 watts x 1 channel
Amplifier Specifications
Number of Channels
2-Channel
Total RMS Power Output
500 watts
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
1%
Speaker Level Inputs
No
Preamp Outputs
1 Pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
10 - 16000 Hz
Low-Pass Crossover Frequency
30 - 20000 Hz
Signal-to-Noise Ratio
100 dB
Bass Boost
-18 -- +18 dB
Remote bass/level controller
Yes

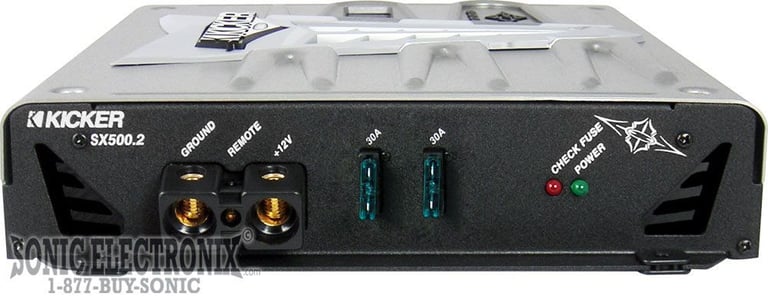

Fuse Rating
60A

Item Details


Manufacturer:

Model Number:

SX500.2

Weight:

14.65lbs

Internal SKU:

04sx5002

Internal Product ID:

1502

Product and How-to Videos


Customer Ratings & Reviews


Kicker SX500.2 thumbnail image

5 star
0%
4 star
100%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
3
Design
4
Usability
5

Customer Reviews

Sort by:

Loading...

KICKER

This is a nice amp, clean, sharp, and is definitly putting out more power than what is listed. Kicker is the way to go. I'LL NEVER USE ANYTHING ELSE BUT KICKER.

By Rajan on July 10, 2008
