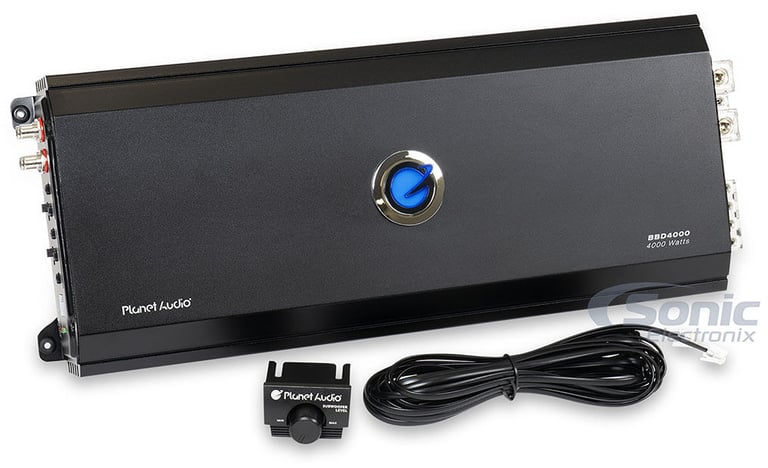

Planet Audio BBD4000

4000W Max (2000W RMS) Big Bang Series 4 ohm Stable Monoblock Amplifier w/ Remote Level Control

highlight-star-icon

• 1500 Watts RMS x 1 @ 4 ohm
• 2000 Watts RMS x 1 @ 2 ohm
• Total Peak Power: 4000 Watts
• CEA-2006 Compliant/
• 0 to 18dB Bass Boost
• Subwoofer Level Control Included

Learn more about the bbd4000

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

CVP8 main

Cerwin-Vega CVP8 (Sold Individually)

350W Peak (170W RMS) 8" CVPRO Series Pro Full Range 4-ohm Speaker

-16.67%

$49.99

List price $59.99

DMDX8 main

Diamond Audio DMDX8

390W Peak (130W RMS) 8" DMDX Series 2-Way Cocentric Coaxial Car Speakers

REF3032CFXAM main

Infinity Reference 3032cfx (REF3032CFXAM)

150W Peak (50W RMS) 3.5" Reference Series 2-Way Coaxial 3-ohm Car Speakers

14
-42.32%

$74.95

List price $129.95

JS35K main

Jensen JS35K

150W Peak (50W RMS) 3.5" Apex Series 2-Way Coaxial 4-ohm Car Speakers

Limited time!
46CSC354 main

Kicker CSC35 (46CSC354)

180W Peak (60W RMS) 3.5” CS Series 2 Way Coaxial 4-ohm Speakers

16
-30.71%

$51.96

List price $74.99

V3 main

Cerwin-Vega V3

360W Peak (120W RMS) 3" Vega Series 2025 Edition 2-Way Coaxial 4-ohm Speakers

EPICPRO8X main

AudioControl EPICPRO8X

700W Peak (500W RMS) 8" Epic Pro Series Pro Audio Midrange 4-ohm Speakers

H80C main

Cerwin-Vega H80C

900W Peak (300W RMS) 8" HED Series 2 Way Component 4-ohm Speaker System

-16.67%

$219.99

List price $263.99

P132 main

Rockford Fosgate Punch P1 P132

80W Peak (40W RMS) 3.5” Punch Series 2 Way Coaxial 4-ohm Speakers

43

Description


Planet Audio brand icon

Authorized dealer

General Features:

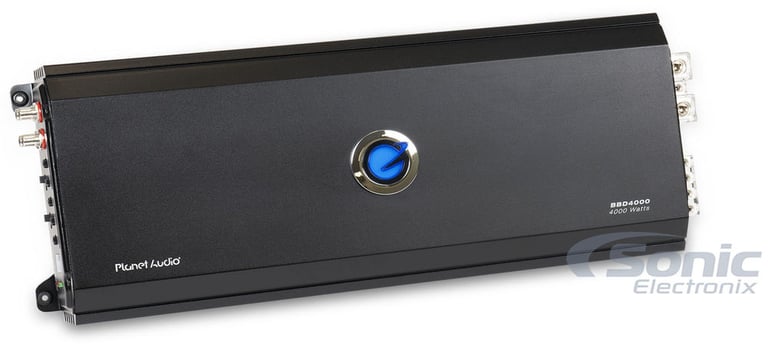

  • Planet Audio Big Bang BBD4000
  • Class-D Full Range 4-Ohm Stable Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohm: 1500 watts x 1 chan.
    • 2 ohm: 2000 watts x 1 chan.
    • 1 ohm: 3000 watts x 1 chan.
  • Total power output: 4000 watts
  • CEA-2006 Compliant Amplifier
  • Pulse Width Modulated MOSFET power supply

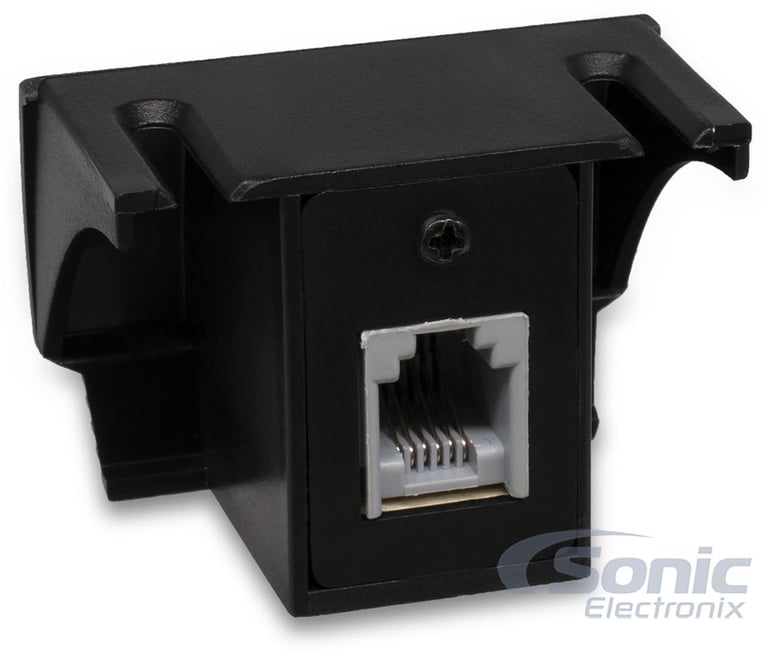

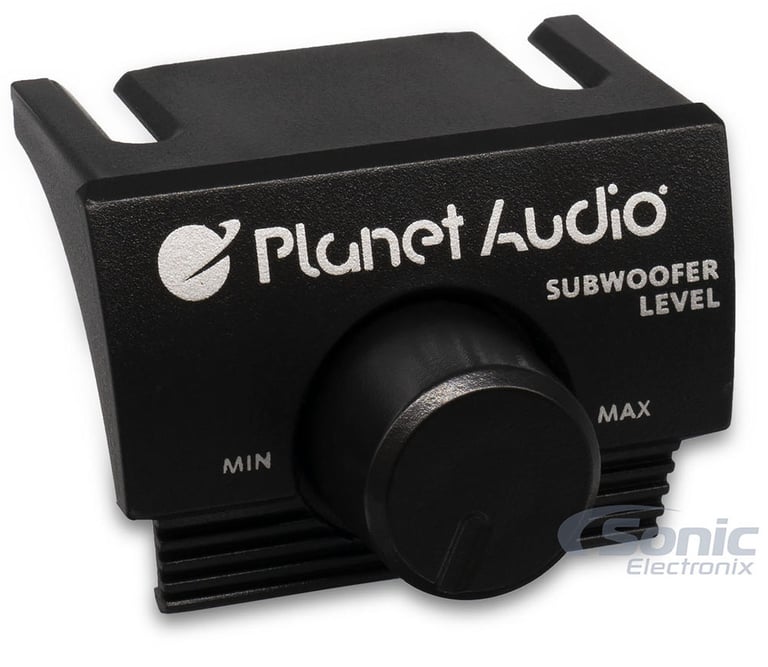

  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • Mono channel operation
  • Speaker-level (high-level) inputs
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)

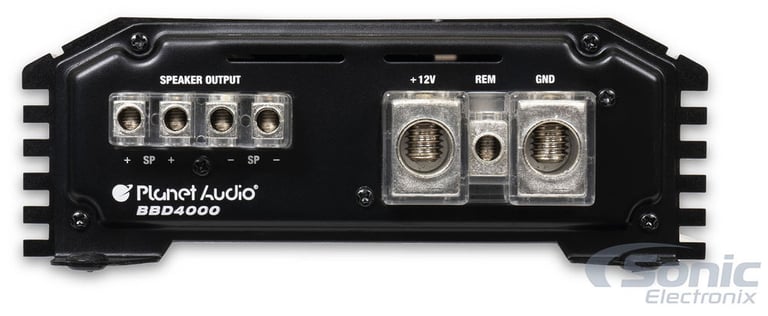

  • Dual speaker terminals simplify the hookup of multiple speakers
  • Heavy duty aluminum alloy heat-sink for extreme heat dissipation

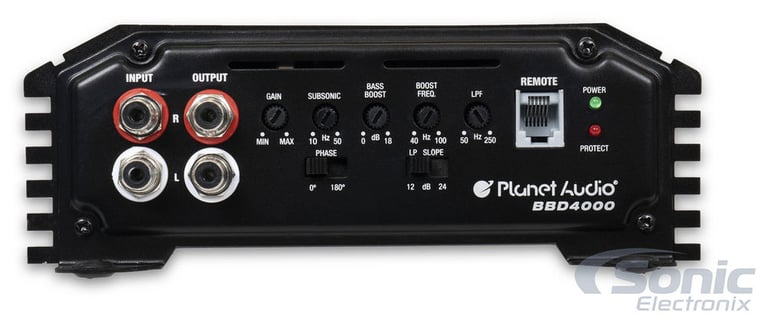

  • Input sensitivity:
    • Low level: 100 mV-4V
  • Frequency Response: 50 - 250 Hz
  • Signal to Noise Ratio: 100 dB
  • Variable low-pass filter: 50 - 250 Hz, 24 dB/octave
  • Subsonic filter: 10 - 50 Hz , 24 dB/octave
  • Variable Bass Boost: 0 to +18 dB bass boost at 50 Hz
  • Fuse Rating: 250 A x 1
  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 17.8"L x 6.9"W x 2.7"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
Check out the Planet Audio BBD4000 Owner's Manual

Product history:

Planet Audio BBD4000 thumbnail
(newest, current model)
Planet Audio BB4000.1 thumbnail
(previous model, replaced by Planet Audio BBD4000)

Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$449.99

List price $449.99

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(36)

$259.99

List price $335.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(38)

$209.99

List price $227.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(25)

$429.99

List price $429.99

CXA400.1 small

Kicker CXA400.1 (46CXA4001T)

• 150 watts x 1 channel @ 4 ohm
• 300 watts x 1 channel @ 2 ohm
• 400 watts x 1 channel @ 1 ohm
• Total RMS Power: 400 watts
• Class D 1 ohm Stable Monoblock Amplifier

(10)

$199.99

List price $219.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
1500 watts x 1 channel
RMS Power @ 2 ohms
2000 watts x 1 channel
RMS Power @ 1 ohm
3000 watts x 1 channel
Amplifier Specifications
Series
Big Bang Series
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
4000 watts
Total RMS Power Output
3000 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Subsonic
Low-Pass Crossover Frequency
50 - 250 Hz
Subsonic Filter
10 - 50 Hz
Signal-to-Noise Ratio
67 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Strappable
No
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
What is in the box?
Paperwork
User manual
WITB: Amplifiers
Amplifier

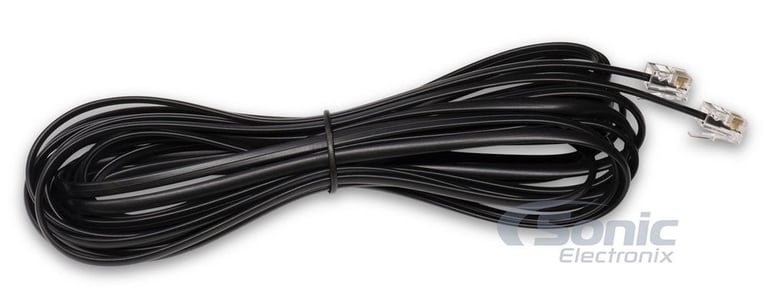

Wired gain knob (wire attached)

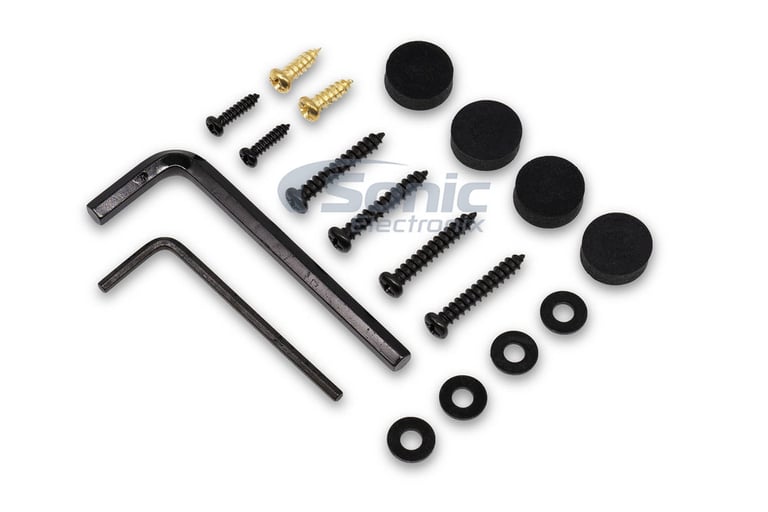

Mounting screws (4)
Washers (4)
Allen wrenches (2)
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

BBD4000

Weight:

5.00lbs

Internal SKU:

bbd4000

Internal Product ID:

150389
