Name: 2) Rockford Fosgate Punch P2D2-10
Brand: Rockford Fosgate
SKU: subcombo5
Price: 237.98 USD
Availability: Discontinued

by Rockford Fosgate

About
Wiring Guide
Similar Products
Specs & Details
Reviews
Add-ons
Related Searches

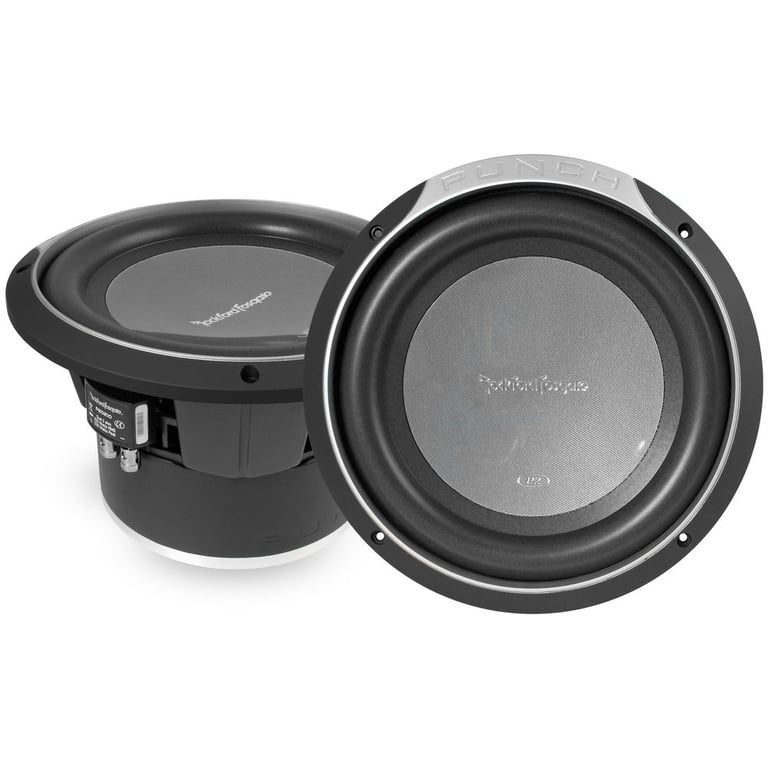

2) Rockford Fosgate Punch P2D2-10 Image 1 — 2) Rockford Fosgate Punch P2D2-10

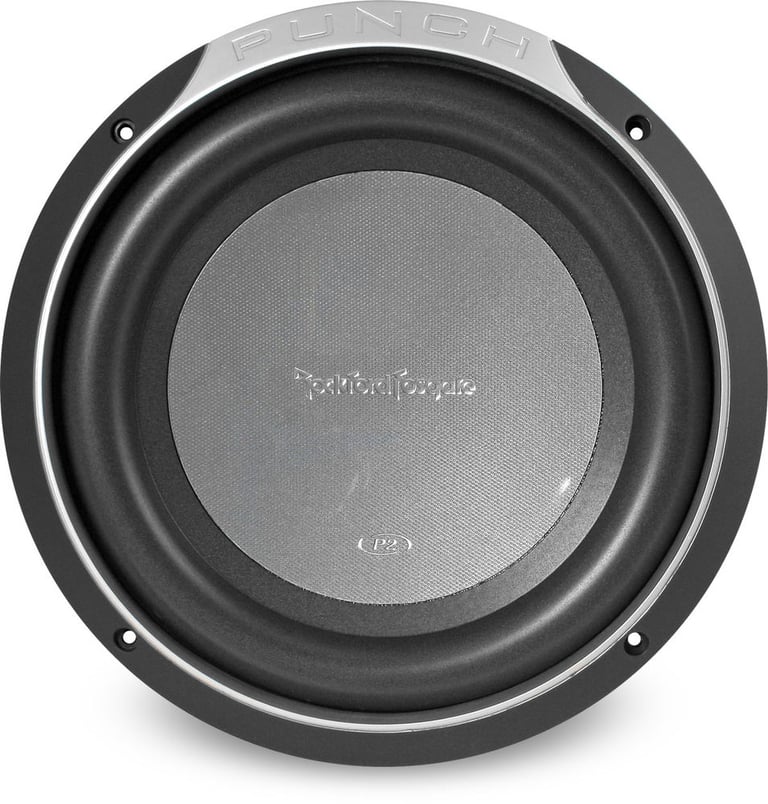

2) Rockford Fosgate Punch P2D2-10 Image 2 — 2) Rockford Fosgate Punch P2D2-10

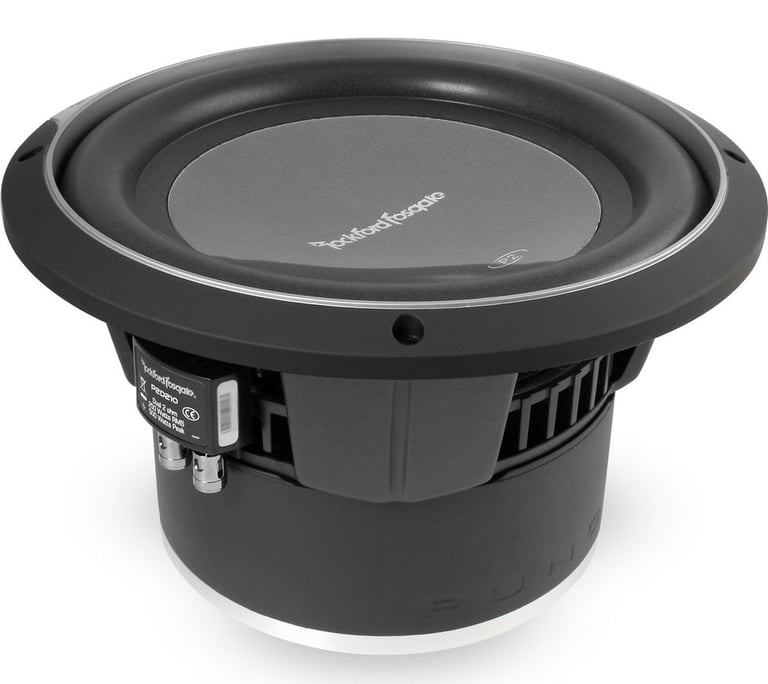

2) Rockford Fosgate Punch P2D2-10 Image 3 — 2) Rockford Fosgate Punch P2D2-10

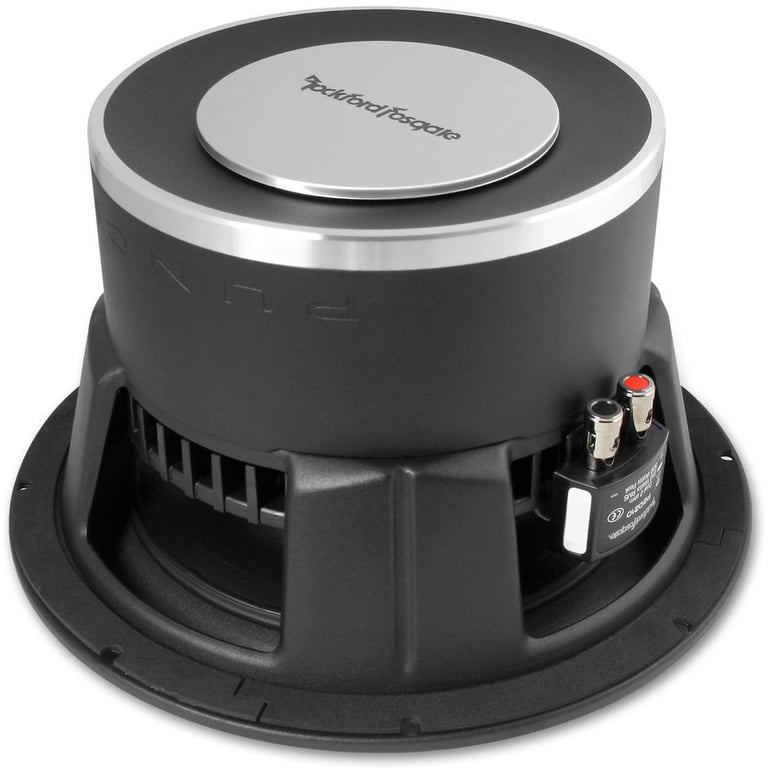

2) Rockford Fosgate Punch P2D2-10 Image 4 — 2) Rockford Fosgate Punch P2D2-10

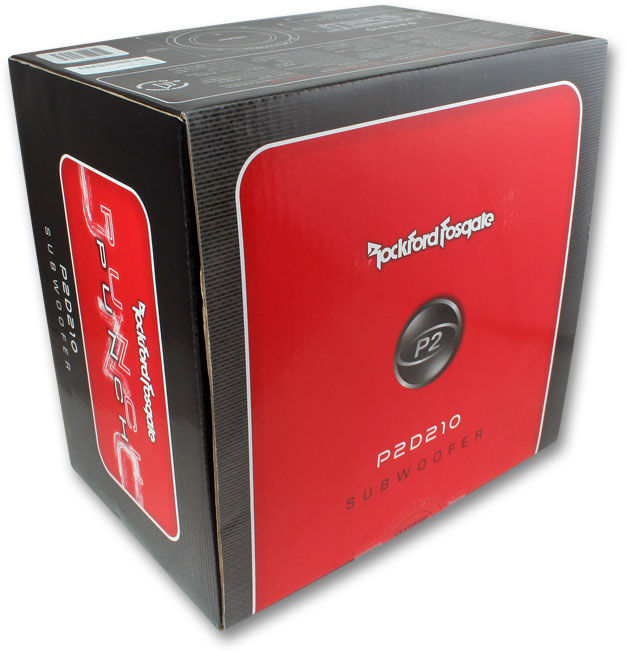

2) Rockford Fosgate Punch P2D2-10 Image 5 — 2) Rockford Fosgate Punch P2D2-10

Product highlights

• 600W Peak
• 300W RMS
• Dual 2 ohm
• Kevlar Fiber Reinforced Paper Cone
• VAST Surround
• Dual Linear Spiders
• Woven Tinsel Leads
• CEA-2031 Compliant
• Flex-Fit Basket

Learn more about the subcombo5

Other Isuzu Pickup owners bought

Description

Authorized dealer

2 Punches and You're Out!!

When it comes to car subwoofers, Rockford Fosgate raised the bar in terms of high quality affordable subwoofers. These Punch Stage 2 subwoofers are the perfect combination of price and deep bass. The new Punch Stage 2 series will crank out 400 watts of RMS power handling, giving you that nice deep bass without over powering your audio system. The face of the woofer has been upgraded with a kevlar reinforced paper cone that will provide durability and great sound quality. For those long sessions of hard hitting bass, the rubber surround has been manufactured to handle high excursion movements through out the day. With their patented technology the Rockford Fosgate P2D2-10 are the perfect match for those looking for quality bass without breaking the bank.

While built on a long standing history of performance, the punch series woofers can deliver not only output to satisfy you when you want it loud but maintain a level of sound quality for when you really want to "listen" to your music. Taking many design cues from the Power Series, Rockford Fosgate engineers continue to improve the Punch Series year after year making it one of the most sought after woofer lines for music and bass enthusiasts alike. With features like Dual tear & fatigue resistant poly-cotton spider for high strength and anodized aluminum voice coil formers to handle heat buildup in the motor structure under full power situations, these drivers are designed to perform.

Anodized Aluminum Voice Coil Former

By using an anodized aluminum voice coil former on their subwoofers, Rockford Fosgate is able to dissipate heat from the voice coil more efficiently. A hot voice coil can melt the adhesive bonds, which will lead to eventual subwoofer failure. The aluminum voice coil former acts as a heat-sink to dissipate thermal build-up on the voice coil cool during high SPL conditions.

Conforms to CEA-2031

Rockford Fosgate has built this subwoofer to conform to the CEA-2031 loudspeaker power handling industry standards. This means that you can trust the subwoofer to have the capacity to safely handle the continuous (RMS) power rating. Having a CEA-2031 power handling is important when matching a subwoofer to an amplifier because the power ratings are accurate.

Stitched Tinsel Leads

To improve the reliability and performance by reducing fatigue and possible shorting, Rockford Fosgate has stitched the tinsel leads to the spider. The multipoint periodic stitching lead wires reduce the mass of the tinsel leads to spread the stress over a greater area. This improves the reliability and performance of the subwoofer.

VAST: Vertical Attach Surround Technique

In order to increase the surface area of the cone without causing any installation issues, Rockford Fosgate designed the Vertical Attach Surround Technique (VAST). By redesigning the manner in which the surround adheres to the basket, these speakers gain up to 25% more effective radiating cone area. This improves the nominal efficiency and maximum output.

Key Benefits

10" Dual 2 ohm Punch Stage 2 Subwoofer
Power Handling:

Peak: 600 watts
RMS: 300 watts

Recommended power range: 250 - 375 watts RMS
CEA-2031 Compliant
Klippel Verified
Flex-fit Mounting pattern
Proprietary spider venting/cooling technique
StampCast basket with integrated spider venting
Sturdy 16 gauge compound bend frame geometry
High modulus Kevlar re-inforced paper-pulp cone
Semi-flexible, PVC removable protective motor cover
Multi-point high-temp/high-strength neck joint bonding technique
Tall-profile VAST Santoprene surround for larger surface area
Dual tear & fatigue resistant poly-cotton spider with woven tinsel leads
Fatigue resistant and reduced strain "stitched on" flexible lead wire design
Proprietary all metal, radially oriented compression input terminal assembly
Optimized motor magnetics with extended pole and bumped vented backplate
High temp 2.25" voice coil w/ spun-laced Nomex insulating re-inforcement collar
Die-Cast aluminum soft-touch painted trim ring allows for optional integrated grill
Stamped Mesh Grille Insert Available: Rockford Fosgate P2P3G-10

Mounting Depth: 5.92"
Cutout Diameter: 9.13"
Magnet Weight: 66.40 oz
Frequency Response: 29 - 250 Hz
Xmax: 11.0 mm
Sensitivity: 84 dB @ 1 watt / 1 meter
Recommended Ported Enclosure: 1.40ft³ @40.0 Hz
Recommended Sealed Enclosure: 0.59ft³ @46.6 Hz
Matching Amplifiers: (one driver)

Rockford Fosgate R500X1D, Series @4ohm
✔ Preferred Match
Rockford Fosgate P300X2 (bridged), Series @4ohm
✔ Preferred Match
Rockford Fosgate P400X1, Series @4ohm
Rockford Fosgate R750-1D, Series @4ohm
Rockford Fosgate P1000X1BD, Series @4ohm
✔ Preferred Match

Matching Amplifier: (two drivers)

Rockford Fosgate R500X1D, Series/Parallel @2ohm
Rockford Fosgate R750-1D, Series/Parallel @2ohm
Rockford Fosgate P1000X1BD, Series/Parallel @2ohm
✔ Preferred Match

Authorized Internet Dealer
1-year Manufacturer's Warranty

Priced Individually

TS Parameters

Fs (Hz): 29.0
Re (Ohm): 3.20
Le (mH): 3.32
Qts: 0.50
Qes: 0.54
Qms: 7.00
Cms (mm/N): 0.19
Vas (L): 35.4
Mms (g): 157.6
Mmd (g): 153.7
Rms (kg/s): 4.1
Airload (g): 3.9
No (%): 0.15
SPL (dB - 1W/1M): 84.0
BL (T*M): 13.0
*Xmax10 (mm): 11.0
Sd (cm2): 360
EBP: 54
Krm (mOhm): 0.37
Erm: 1.31
Kxm (mH): 24.3
Exm: 0.81
Rem (Ohm): 34.98

*All parameters are derived using a laser velocity measurement method and verified with actual measured Mmd and Re. All dual voice coil models are wired in series. Xmax10 represents actual effective excursion at <10% THD.
**Specifications subject to change without notice.

For more information on the Thiele and Small Parameters, visit our T/S Parameters Article

Check out the Rockford Fosgate P2D2-10 Owner's Manual

Tips for Installing the P2D2-10 Subwoofer

Product history:

	2) Rockford Fosgate Punch P2D2-10 (newest, current model)
	Rockford Fosgate Punch P2D210 (09P2D210) (previous model, replaced by 2) Rockford Fosgate Punch P2D2-10)
	Rockford Fosgate Punch P210D2 (previous model, replaced by Rockford Fosgate Punch P2D210 (09P2D210))
