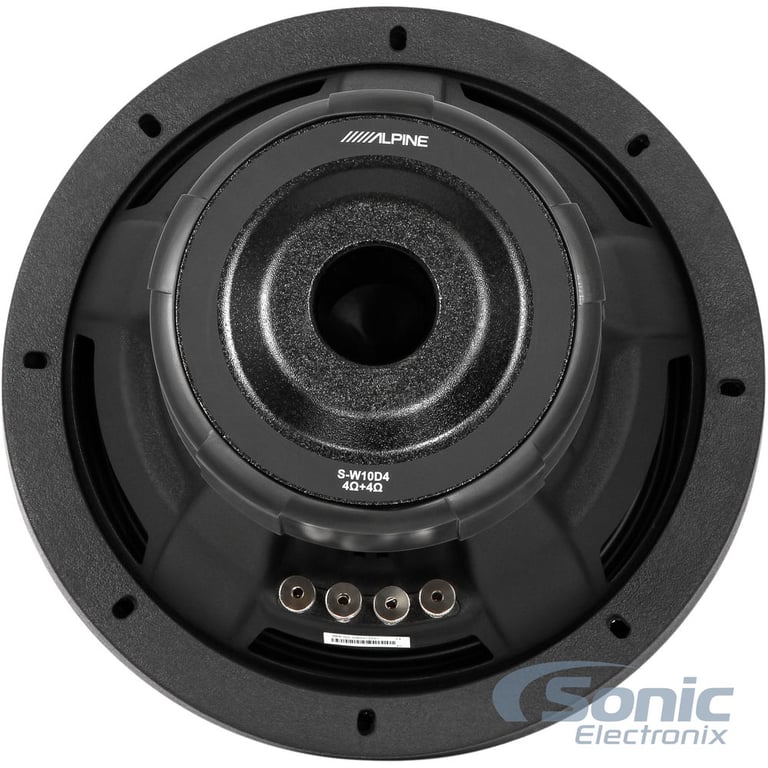

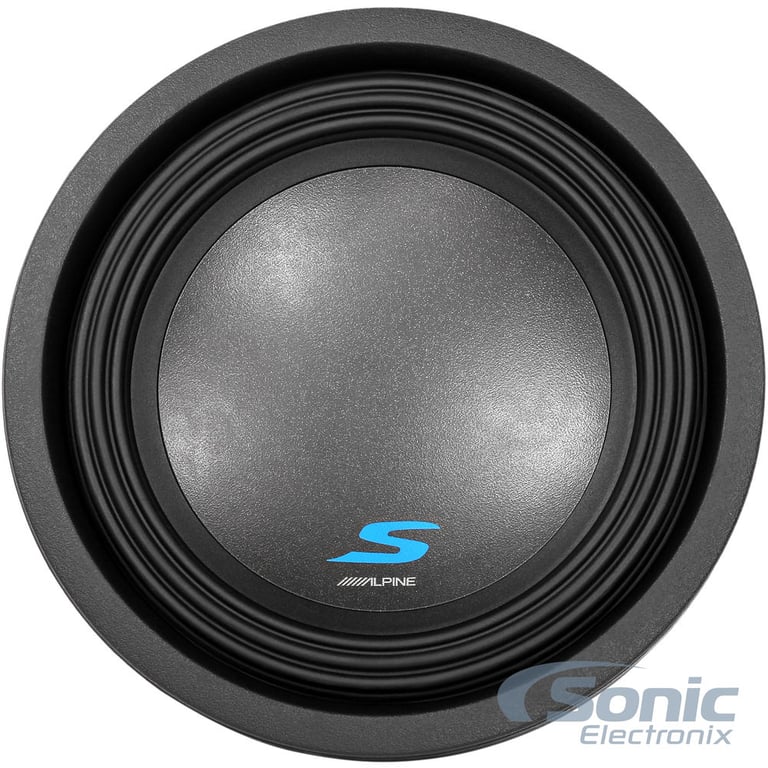

Alpine S-W10D4

1800W Max (600W RMS) 10" S-Series Dual 4 Ohm Car Subwoofer

Alpine
Shop all Alpine
highlight-star-icon

• 1800 Watts Max
• 600 Watts RMS
• Pulp/Kevlar Cone
• High Amplitude Multi-Roll (HAMR) Surround
• High Strength Steel Frame Basket
• Progressive Spider with Reinforced Layer Tinsel Leads
• 65 mm Voice Coil with High-Temp 5-Layer DVC Winding on AL Former

Learn more about the sw10d4

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

s2w10d4 thumbnail

Alpine S2-W10D4

OUR PRICE: $191.95

View item
NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
CR-6 main

American International CR-6

Connect Factory Antenna to New Aftermarket Radio in select 2002-2020 vehicles from Ford, Chevrolet, GMC

39
-73.38%

$3.99

List price $14.99

SOOFD-27C main

Crux SOOFD-27C Wiring Interface

Install new car stereo and retains accessory power and other factory features in select 2004-2014 vehicles from Ford, Lincoln, Mercury

3
-35.71%

$72.90

List price $113.40

SA68 main

Scosche SA68

Add 5-1/4" or 6-1/2" Speakers to Factory 6" x 8" Mounting Locations for select 1950-2025 vehicles from Ford, Mercury, Mazda

39
-46.70%

$7.99

List price $14.99

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

39
-33.50%

$399.00

List price $600.00

R165X3 main

Rockford Fosgate Prime R165X3

180W Peak (90W RMS) 6.5" Prime Series 3 Way Coaxial 4-ohm Speakers

206
Limited time!
DMX4710S main

Kenwood DMX4710S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM & iDatalink Maestro Ready)

18
-37.71%

$299.00

List price $480.00

PK1-168 main

MB Quart PK1-168

220W Peak (110W RMS) 5x7" / 6x8" Premium Series 2-Way 4-ohm Coaxial Car Speakers

-31.58%

$129.99

List price $189.99

Limited time!
Kappa 603CF main

Infinity Kappa 603CF (INFSPKKA603CFAM)

660W Peak (220W RMS) 6.5" Kappa Series 2 Way 3-ohm Component Speaker System

6
-28.00%

$359.95

List price $499.95

H7683 main

Cerwin Vega H7683

720W Peak (120W RMS) 6x8" HED Series 3-Way Coaxial 4-ohm Speakers

50
-16.67%

$79.99

List price $95.99

Description


Alpine brand icon

Authorized dealer

General Features:

  • 10" 4 ohm S-Series (Type-S) Subwoofer
  • Power Handling:
    • Peak: 1800 watts
    • RMS: 600 watts
  • Recommended power range: 250- 600W RMS
  • Pulp/Kevlar Cone
  • High Amplitude Multi-Roll (HAMR) Surround
  • Progressive Spider with Reinforced Layer Tinsel Leads
  • Airflow Optimized Dual Flare Pole Vent
  • High Strength Steel Frame Basket

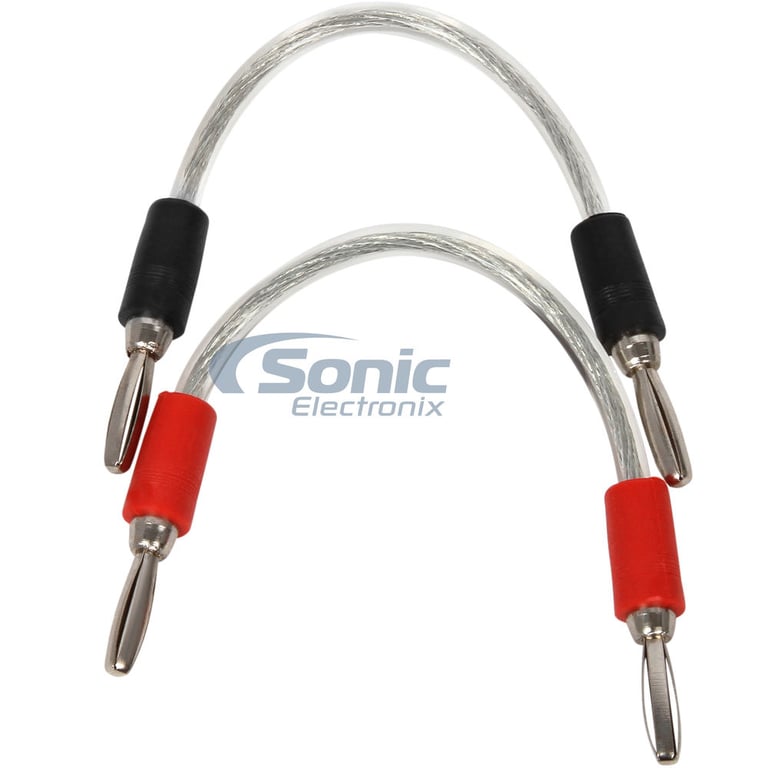

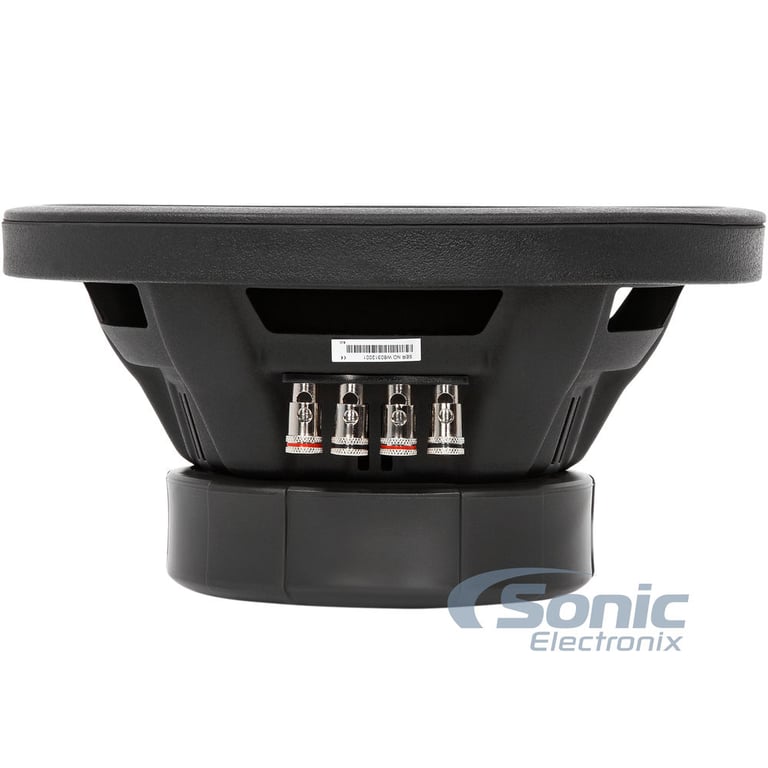

  • 8 AWG Push Terminals with VC Configuration Jumpers
  • Dual Voice Coil
  • High Grade Strontium Ferrite Magnets
  • Top-mount depth: 4-11/16"
  • Cutout diameter: 8-13/16
  • Frequency Response: 26- 200Hz
  • Sensitivity: 86.4dB
  • Resonance Frequency (Fs): 34 Hz
  • Authorized Internet Dealer
  • 1-year Sonic Electronix Warranty
  • Priced Individually

Alpine S-W10D4 owner’s manual

Product history:

Alpine S2-W10D4 thumbnail
(newest, current model)
Alpine S-W10D4 thumbnail
(previous model, replaced by Alpine S2-W10D4)
Alpine SWS-10D4 thumbnail
(previous model, replaced by Alpine S-W10D4)
Alpine SWS-1043D thumbnail
(previous model, replaced by Alpine Type-S SWS-10D4)
Alpine SWS-1042D thumbnail
(previous model, replaced by Alpine SWS-1043D)
Alpine SWS-1041D thumbnail
(previous model, replaced by Alpine SWS-1042D)
(previous model, replaced by Alpine SWS-1041D Type S 10")

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Alpine S-W10D4 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Alpine S-W10D4 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Alpine S-W10D4 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Alpine S-W10D4 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(89)

$139.99

List price $139.99

Specifications & Details


Subwoofer Specifications
Series
Type-S Series
Subwoofer Size
10"
Peak Power Handling
1800 watts
RMS Power Handling
600 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Frequency Response
26 - 200 Hz
Sensitivity
85.3 dB
Xmax (millimeters)
15 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Kevlar Reinforced Pulp Paper
Woofer Surround
HAMR
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
.58 cubic feet
Optimum Ported Box Volume
1.3 cubic feet
Top-Mount Depth (Mounting Depth)
4-11/16"
Cutout Diameter
8-13/16"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
34 Hz
Equivalent Compliance (Vas)
24.7 liters
Total Speaker Q Value (Qts)
.44
Electrical Q Value (Qes)
.48
Electrical Resistance of Voice Coil (Re)
3.8 ohm
Mechanical Q Value (Qms)
4.21
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

S-W10D4

Weight:

10.00lbs

Internal SKU:

sw10d4

Internal Product ID:

153297

Customer Ratings & Reviews


Alpine S-W10D4 thumbnail image

5 star
85%
4 star
7%
3 star
4%
2 star
4%
1 star
0%



Durability
4.6
Value
4.8
Features
4.7
Design
4.9
Usability
4.8

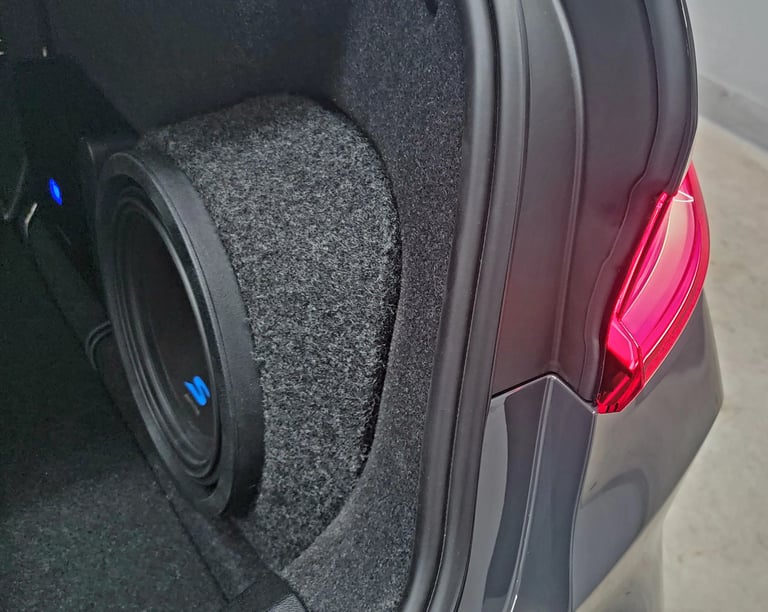

Customer Photos & Videos
