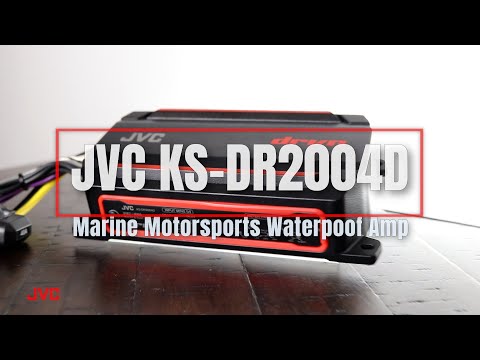

JVC KS-DR2004D

Product Details:

• DRVN Series Class D 2 ohm Stable 4-Channel-Channel Amplifier
• RMS Power Rating:
• 4 ohm: 50 watts x 4 channel
• 2 ohm: 75 watts x 4 channel
• Bridged, 4 ohm: 150 watts x 2 channel
• Total power output: 300 watts
• Thicker terminal connection points and increased wire size enables maximum current flow and higher output for better low frequency response and cleaner output.
• High Quality PMLCAP’s (Polymer Multi-Layer Capacitors) are utilized to lower distortion levels, improving the overall listening experience at higher volumes, while maintaining the integrity of the sound
• Magnetic Shielding for the output coils reduce radiated noise, delivering smooth and accurate sound
• Pulse Width Modulated MOSFET power supply
• Protection against Immersion, up to 1 m (3 feet, 3 inch) depth
• Effective against Dust-tight: Ingress of dust is not entirely prevented, but it must not enter in sufficient quantity to interfere with the satisfactory operation of the equipment
• Product deosn't corrode or fail in a saltwater environment
• Corrosion-Resistant Sealed Cast Aluminum Chassis and stainless-steel screws resist rust and corrosion while achieving the highest level of durability
• The amplifier mounting section is made of 15/64 inch die-cast material to suppress the amplification of vibration
• Drain tunnel Structure built in to prevent saltwater and sand from accumulating on the bottom to increase corrosion protection.
• IP67/IP66 Waterproof and Dustproof:
• IPX6: Protection against Powerful Water Jets
• IPX7: Protection against Immersion up to 1m
• Speaker-level (high-level) inputs
• This product passes a 3-axis multi-frequency vibration test
• Polymer Multi-Layer Capacitors are utilized to lower distortion levels
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Input sensitivity:
• 0.2 - 5.0 volts
• Frequency Response: 10 - 35,000 Hz
• Signal to Noise Ratio: 89 dB
• Fuse Rating: 40A x 1
• 10 AWG gauge power and ground wiring is recommended for installation.
• Dimensions: 7-13/16" W x 4-1/8" L x 1-15/16" H
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

JVC KSDR2004D owner’s manual
