Name: AudioControl ACM2300 (Open Box, Complete)
Brand: AudioControl
SKU: ls-acm2300-obc10
Price: 288.99 USD
Availability: Discontinued

by AudioControl

About
Specs & Details
Reviews
Add-ons
Recently Viewed
Related Searches

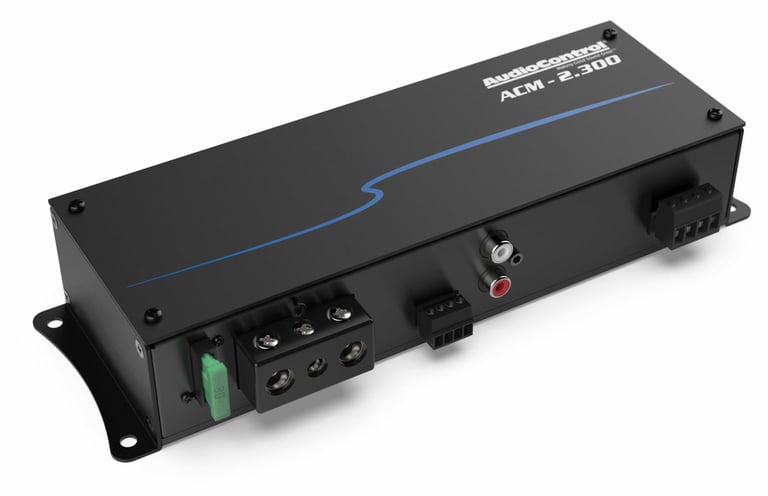

AudioControl ACM2300 (Open Box, Complete) Image 1 — AudioControl ACM2300 (Open Box, Complete)

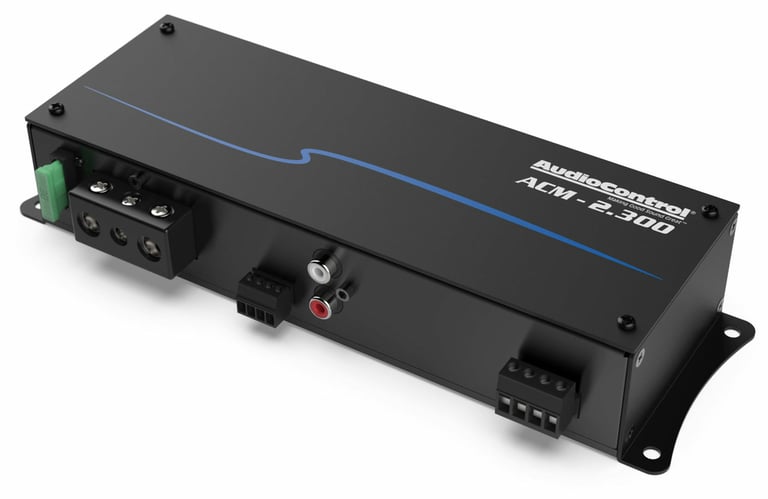

AudioControl ACM2300 (Open Box, Complete) Image 2 — AudioControl ACM2300 (Open Box, Complete)

AudioControl ACM2300 (Open Box, Complete) Image 3 — AudioControl ACM2300 (Open Box, Complete)

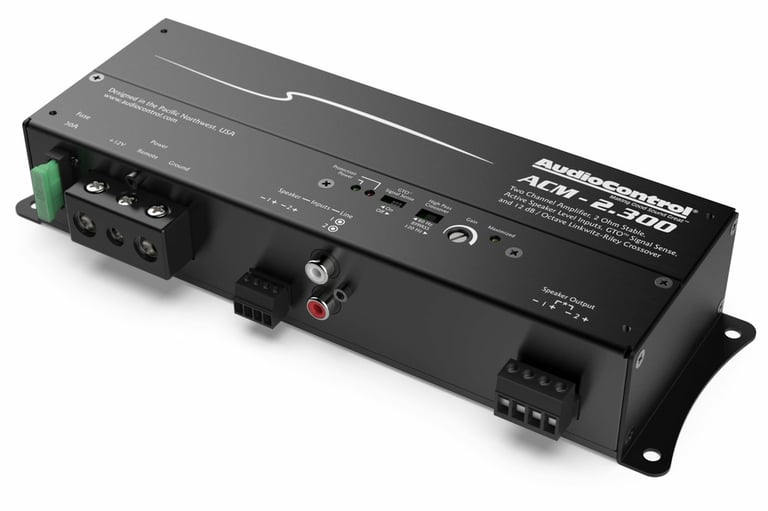

AudioControl ACM2300 (Open Box, Complete) Image 4 — AudioControl ACM2300 (Open Box, Complete)

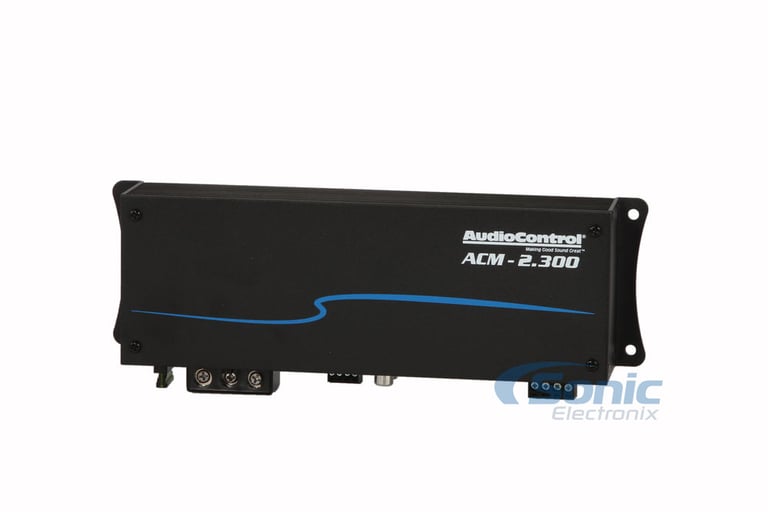

AudioControl ACM2300 (Open Box, Complete) Image 5 — AudioControl ACM2300 (Open Box, Complete)

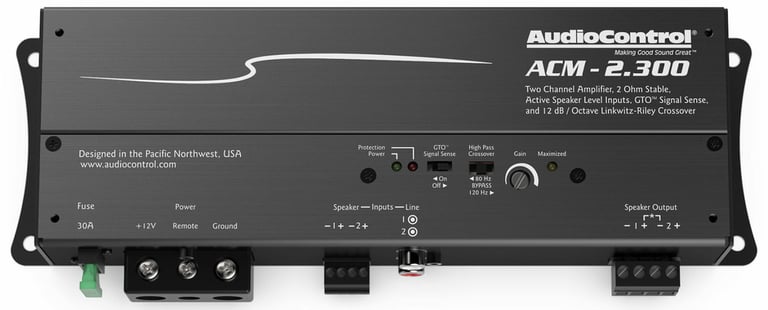

AudioControl ACM2300 (Open Box, Complete) Image 6 — AudioControl ACM2300 (Open Box, Complete)

AudioControl ACM2300 (Open Box, Complete) Image 7 — AudioControl ACM2300 (Open Box, Complete)

AudioControl ACM2300 (Open Box, Complete) Image 8 — AudioControl ACM2300 (Open Box, Complete)

Product highlights

• 75 Watts RMS x 2 @ 4 ohm
• 150 Watts RMS x 2 @ 2 ohm
• 300 Watts RMS x 1 @ 4 ohm
• Small Footprint for Flexible Mounting
• AccuBASS and GTO Signal Sense Built In
• Linkwitz-Riley Crossover
• Aluminum Heatsink
• Dimensions: 9.4" W x 3" L x 1.75" H

Learn more about the ls-acm2300-obc10

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

General Features:

AudioControl ACM Series ACM-2.300
Class-D 2 ohm Stable 2-Channel Amplifier
RMS Power Rating:

4 ohm: 75 watts x 2 chan.
2 ohm: 150 watts x 2 chan.
4 ohm, Bridged: 300 W x 1 chan.

Small footprint for flexible mounting options
GTO Signal Sense turns on the amp when signal is detected from the factory amp or stereo
Patented AccuBASS processing restores bass
Pulse Width Modulated MOSFET power supply
LED power (green) and protect (red) indicators
Soft start turn-on
Mono channel operation
Speaker-level (high-level) inputs
3-way protection circuitry (thermal, overload, and speaker short protection)
Heavy duty aluminum alloy heat-sink
Input sensitivity:

Low level: 500 mV - 6V
High level: 3V - 40V

Frequency Response: 10 - 22000Hz
Total Harmonic Distortion (THD): <.01%
Signal to Noise Ratio: 102 dB
Linkwitz-Riley Crossover
Fuse Rating: 30A x 1
8 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
Dimensions: 9.4"W x 3"L x 1.75"H
Authorized Internet Dealer
5 Year Manufacturer's Warranty

Check out the ACM-2.300 Owner's Manual

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

75 watts x 2 channel

RMS Power @ 2 ohms

150 watts x 2 channel

Bridged RMS Power

300 watts x 1 channel

Amplifier Specifications

Amplifier Class

Number of Channels

2-Channel

Total RMS Power Output

300 watts

Maximum Input Gauge Size

8 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

<.01%

Speaker Level Inputs

Yes

Fuse Rating

30A x 1

Total Fuse Rating

Warranty and Return Policy

Parts Warranty Duration

5 years

Labor Warranty Duration

5 years

Warranty Provider

Manufacturer
