Hifonics HFX12D4 12" 800 Watt Dual 4-Ohm Car Subwoofer+Mono Amplifier+Amp Kit

800W Max (400W RMS) 12" HF Series Dual 4 ohm Subwoofer Package

Hifonics
Shop all Hifonics
highlight-star-icon

• 800W Peak
• 400W RMS
• Injected Poly Light Rigid Cone
• 1" NBR Reinforced Rubber Surround
• One Piece Poly Cotton Spider
• Spade Style Speaker Terminals
• Chrome Stamped Steel Basket

Learn more about the hfx12d4_r1100m_bak42

We apologize

This item has been discontinued

Description


Hifonics brand icon

Authorized dealer

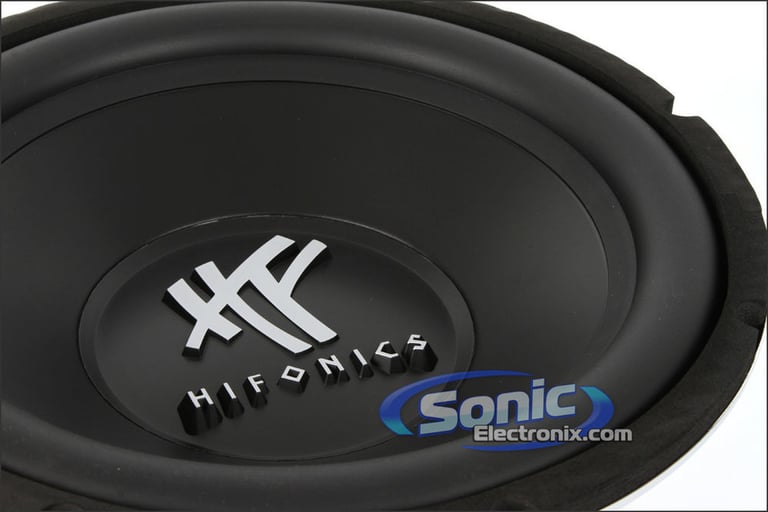

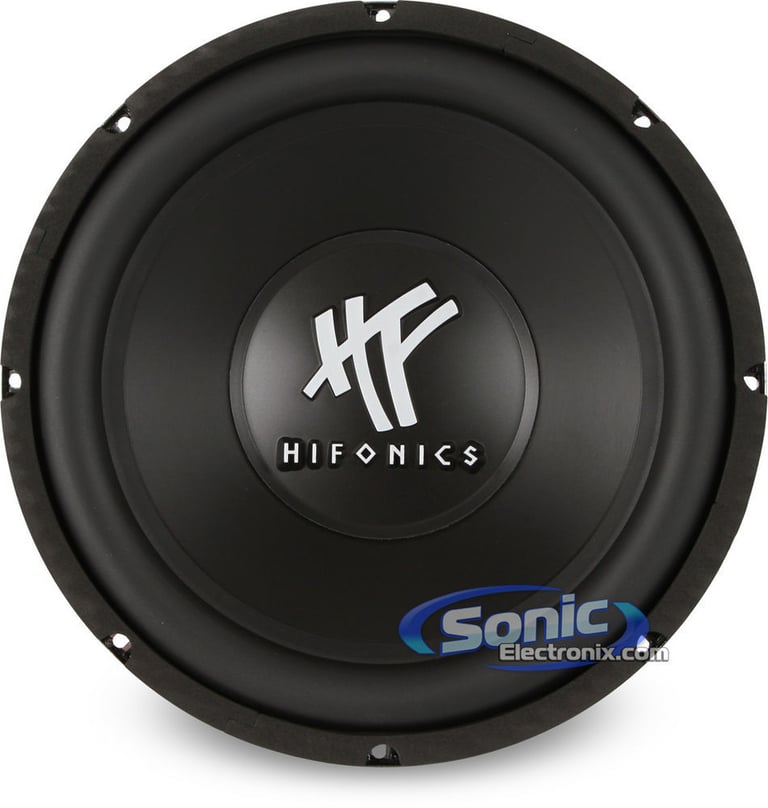

Hifonics 12" HF Series Car Subwoofer

Sonic Electronix is now carrying the Hifonics HF Series Car Audio Subwoofers. The HF Series 12" Subwoofer has a peak power rating of 800 watts and a RMS rating of 400 watts. This sub will produce some ground shaking bass and is constructed with a injected poly light rigid cone and a 1" NBR reinforced rubber surround for enhanced excursion. This woofer is also equipped with a dual 4 ohm voice coil and a large air cooled magnet assembly. Add some bumps in your trunk and enhance your cars stereo system with this Hifonics HF Series Subwoofer.

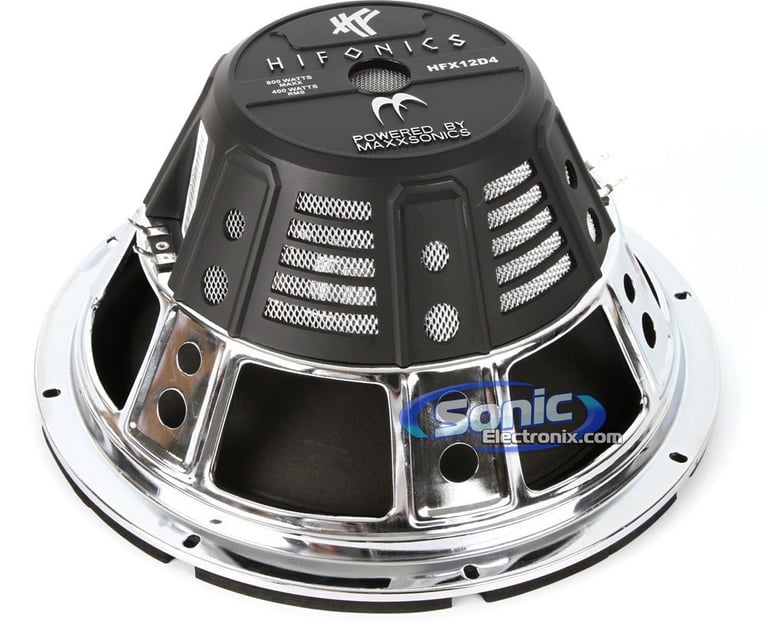

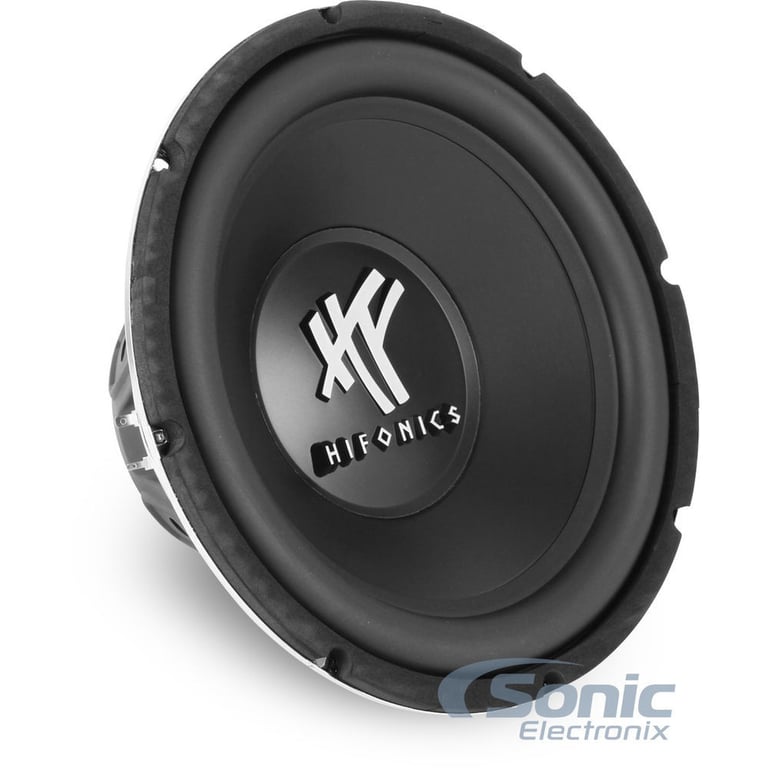

Hifonics HFX12D4

800W Peak (400W RMS) 12" HF Series Dual 4-ohm Car Subwoofer
Quantity: 1

Product Details:

  • 12" Dual 4 ohm HF Series Subwoofer
  • Power Handling:
    • Peak: 800 watts
    • RMS: 400 watts
  • Treated Foam surround
  • Poly cotton spider
  • Heavy duty powder coated steel frame
  • 2" voice coil on vented aluminum former
  • High energy motor assemply with heavy duty magnets
  • Sensitivity: 86 dB
  • Recommended sealed box volume: 1.5 cubic feet
  • Recommended ported box volume: 1.5 cubic feet
  • Top-mount depth: 5.61"
  • Cutout diameter: 10.94"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Individually

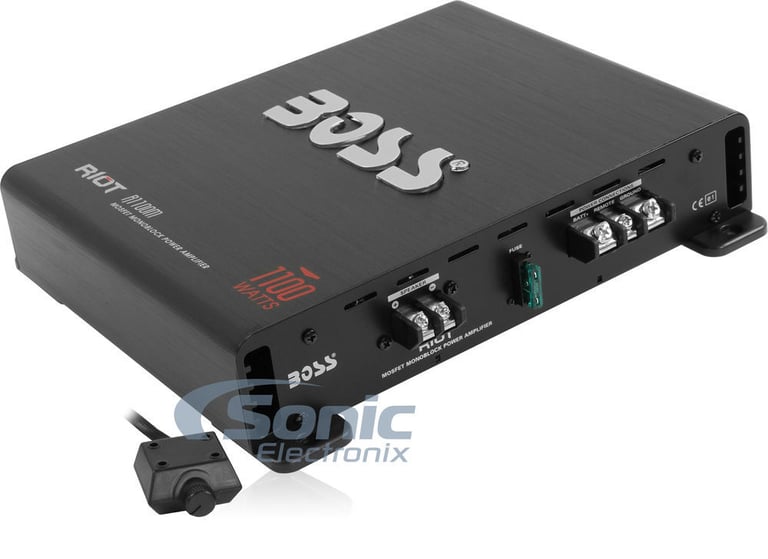

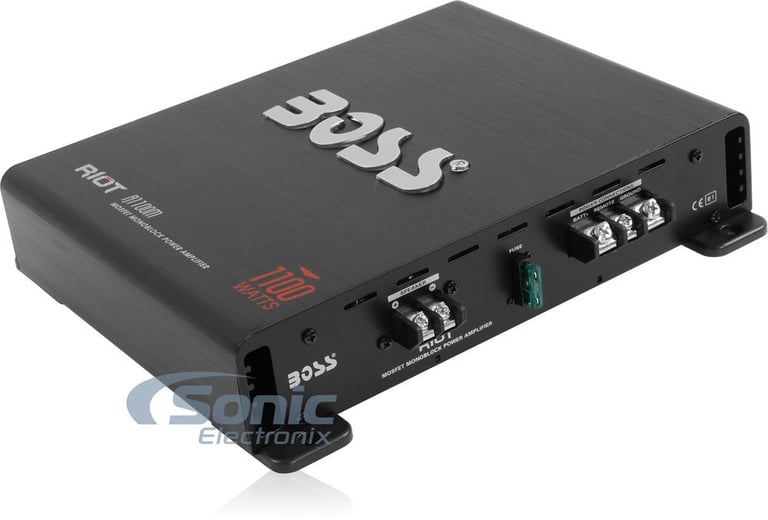

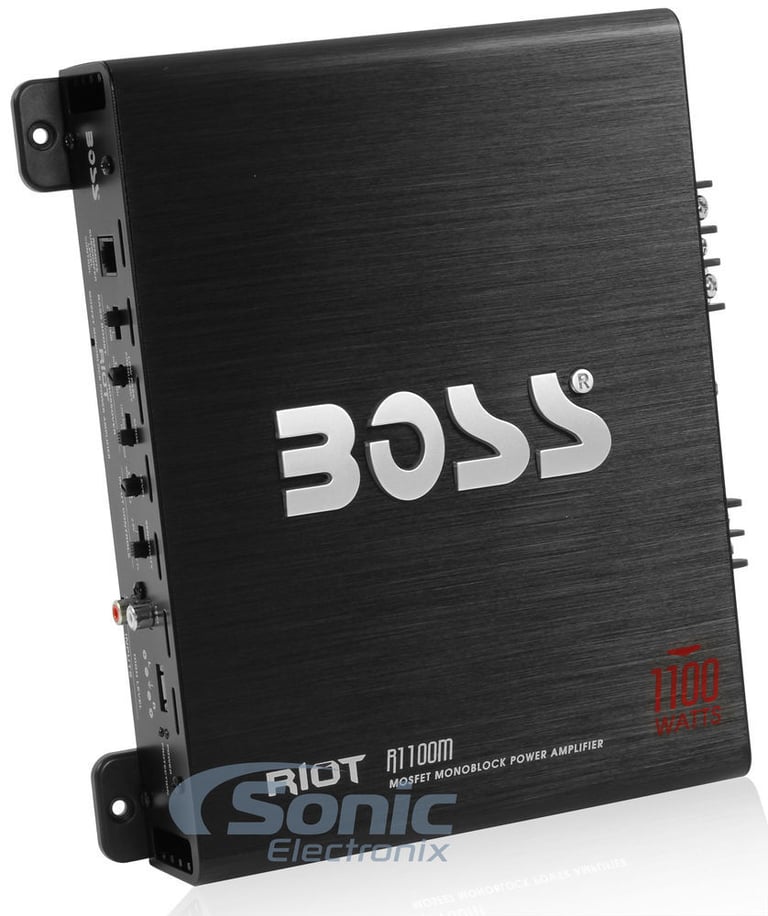

Boss R1100M Amplifier

Riot 1100 Watt, 2/4 Ohm Stable Class A/B, Monoblock with Remote Subwoofer Control
Quantity: 1

General Features:

  • Boss Riot Series R1100M
  • Class-AB FullRange 2-Ohm Stable Monoblock Amplifier
  • MAX Power Rating:
    • 4 ohm: 550 watts x 1 chan.
    • 2 ohm: 1100 watts x 1 chan.
  • RMS Power Rating:
    • 4 ohm: 413 watts x 1 chan.
    • 2 ohm: 825 watts x 1 chan.
  • Pulse Width Modulated MOSFET power supply
  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • Speaker-level (high-level) inputs
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heat-sink for extreme heat dissipation
  • Input sensitivity:
    • Low level: 100mV - 2V
    • High level: 2V - 8V
  • Frequency Response: 9 - 50,000 Hz
  • Total Harmonic Distortion (THD): 0.01%
  • Signal to Noise Ration: 102 dB
  • Selectable crossover modes: Low Pass / Full Range
  • Variable low-pass filter: 35 - 160 Hz,/octave
  • Selectable Bass Boost: 0 to +18 dB
  • Fuse Rating: 30A x 1
  • 8 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 9.13"W x 10.44"L x 2.25"H
  • Authorized Platinum Internet Dealer
  • 1 year Sonic Electronix, and 5 years Manufacturer's warranty

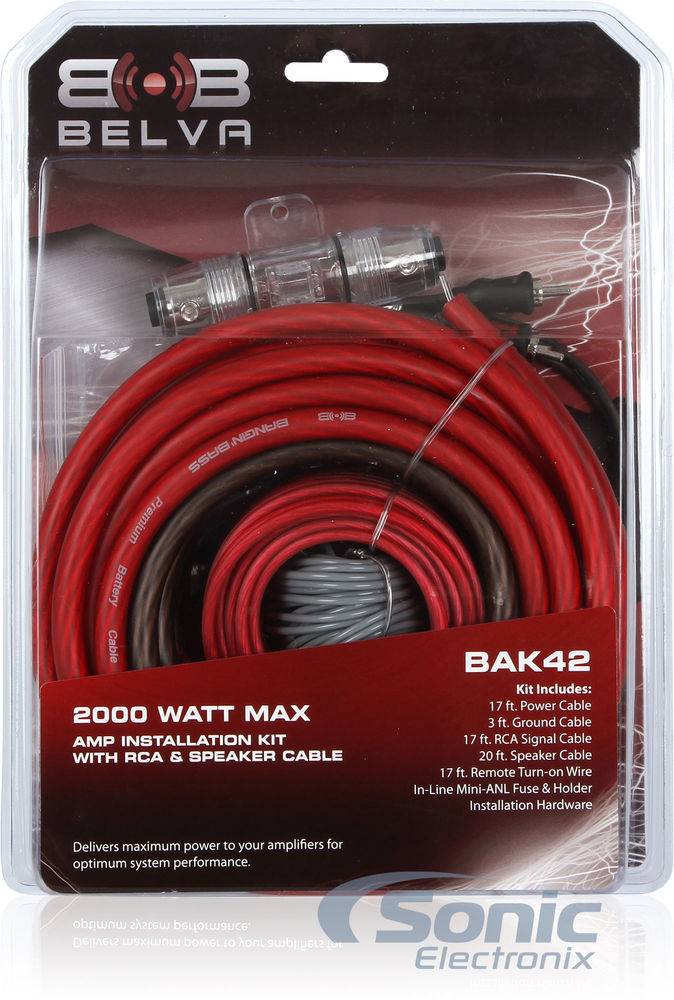

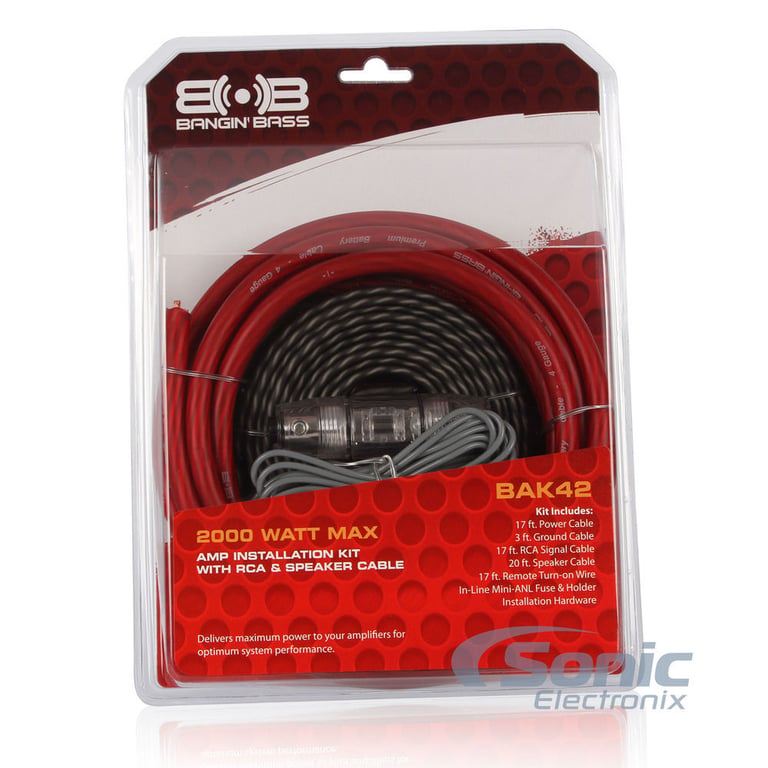

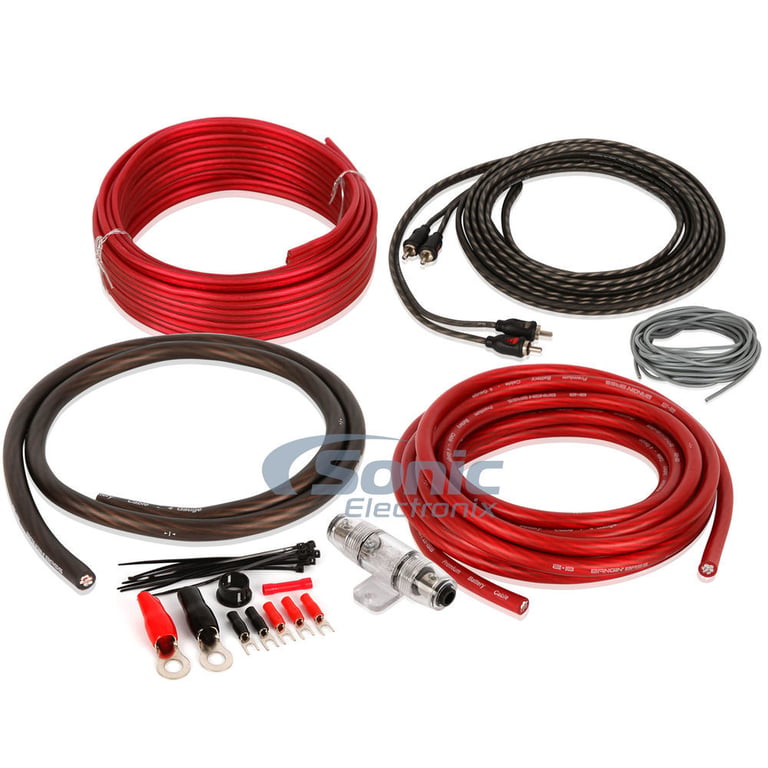

Belva BAK42BK

4 Gauge Premium (CCA) Copper Clad Aluminum Complete 2-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 1200 Watts - GRAY
Quantity: 1

Product Details:

  • 4 Gauge 2-Channel Complete Amplifier Installation Kit
  • Designed for car audio systems up to 1200 watts RMS
  • Made from 100% Copper-Clad Aluminum (CCA)
  • Satin chromed Mini-ANL fuse holder offers ideal protection for high-powered systems
  • Full spec power and speaker wire meet or exceed American Wire Gauge standards
  • RCA Interconnect Cable
  • Twisted-pair construction provides protection against interference
  • Split-tip silver-plated ends offer high-quality performance
  • Molded ends equipped with colored channel identifiers for easy recognition
  • Includes an assortment of wire termination hardware and cable ties
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Kit includes:

  1. 17 ft. Gray 4 gauge power wire
  2. 3 ft. Black 4 gauge ground wire
  3. 17 ft. Gray 18 gauge remote lead wire
  4. 20 ft. 16 gauge speaker wire
  5. One 17 ft. 2-channel twisted-par construction RCA interconnect Cable
  6. One Mini-ANL Fuse Holder with 80 amp Mini-ANL fuse
  7. One Black rubber firewall grommet
  8. Two 4 Gauge Chrome Plated ring terminals
  9. Five 16 Gauge Spade terminal
  10. One 18 Gauge Red butt connectors
  11. Ten 4" Black zip ties

Product history:

Hifonics HFX12D4 R1100M BAK42 thumbnail
(newest, current model)
Hifonics HFi12D4 thumbnail
(previous model, replaced by Hifonics HFX12D4 12" 800 Watt Dual 4-Ohm Car Subwoofer+Mono Amplifier+Amp Kit)
Hifonics HF12D4 thumbnail
(previous model, replaced by Hifonics HFi12D4)

Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

MBQBRO-302 small

MB Quart MBQBRO-302

• 12" Amplified Loaded Subwoofer System
• 400 watts peak
• Built-In class D amplifier
• Variable bass boost
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

$679.99

List price $899.99

RTP8A small

MTX Audio RTP8A

• 8" Amplified Loaded Subwoofer System
• 120 watts RMS (360 watts Peak)
• Built-In amplifier
• Variable bass boost
• Speaker-Level Inputs
• EBC wired remote bass level control

(8)

$199.95

List price $219.95

W10S4_2, BXD3K, BAK42BK small

(2) Alpine W10S4 10" Bass Subwoofers + Belva 3000W Amplifier + 4 Gauge Amp Kit

• 750W Max
• 250W RMS
• Polypropylene-Mica cone
• High-excursion poly-foam surround
• High-strength custom steel frame
• Progressive Wavelit Ribs (P.W.R.) cone design

(82)

$364.88

List price $489.98

TNP212D2 small

MTX Audio TNP212D2

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
MTX TN250/1 amplifier included
• Selectable bass boost
• Speaker-level (high-level) inputs (adapter included)
• Wired remote bass level control

(156)

$369.95

List price $399.95

BPKG212v2 small

Belva BPKG212v2 Dual 12" Bass Package

• Works with both Factory and Aftermarket Audio Systems
• Dual 12" Belva Subwoofers
• Monoblock Amp with Bass Knob
• Ported Enclosure
• Complete Amp Wiring Kit

(82)

$279.99

List price $323.99

C1500C-07A small

MTX C1500C-07A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

Specifications & Details


Subwoofer Specifications
Series
HF Series
Subwoofer Size
12"
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
RMS Power Handling
400 watts
Peak Power Handling
800 watts
Woofer Surround
Rubber
Woofer Composition
Injected poly light rigid
Minimum Sealed Box Volume
1.25 cubic feet
Maximum Sealed Box Volume
1.25 cubic feet
Minimum Ported Box Volume
1.6 cubic feet
Maximum Ported Box Volume
2.0 cubic feet
Sensitivity
87.25 dB
Frequency Response
Not specified by manufacturer
Xmax (millimeters)
6.5 mm
Top-Mount Depth (Mounting Depth)
5-5/8"
Cutout Diameter
10-15/16"
Recommended Enclosure Type
Ported / Vented
Sealed
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

HFX12D4 R1100M BAK42

Weight:

17.85lbs

Internal SKU:

hfx12d4_r1100m_bak42

Internal Product ID:

154273
