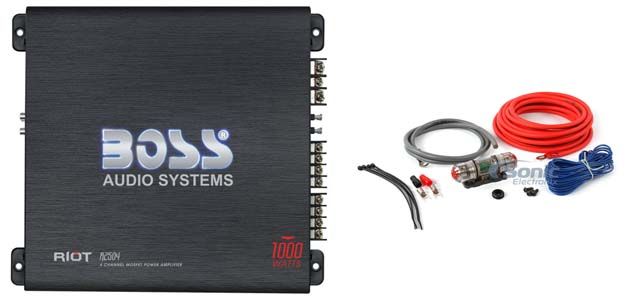

BOSS Audio R2504 Amplifier + Remote + Amplifier Kit

1000W Max (750W RMS) 2-Ohm Stable 4-Channel Full Range Amplifier w/ Remote Level Control Package

Boss
Shop all Boss
highlight-star-icon

• 94 Watts RMS x 4 @ 4 ohm
• 188 Watts RMS x 4 @ 2 ohm
• 375 Watts RMS x 2 @ 4 ohm, Bridged
• Total Peak Power: 1000 Watts
• Variable Low Pass Filter
• 0 - 18dB Bass Boost
• Aluminum Heatsink
• Dimensions: 11.57" W x 10.43" L x 2.25" H

Learn more about the boss-r2504_tc4kit8b

We apologize

This item has been discontinued


Loading...
SB-GM-4GSUVCNSL/10TW1 main

JL Audio Stealthbox® SB-GM-4GSUVCNSL/10TW1

Custom fit subwoofer enclosure for select 2015-2021 vehicles from Chevrolet, Cadillac, GMC with Front Bucket Seats and Factory Console

2

$1,249.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Description


Boss brand icon

Authorized dealer

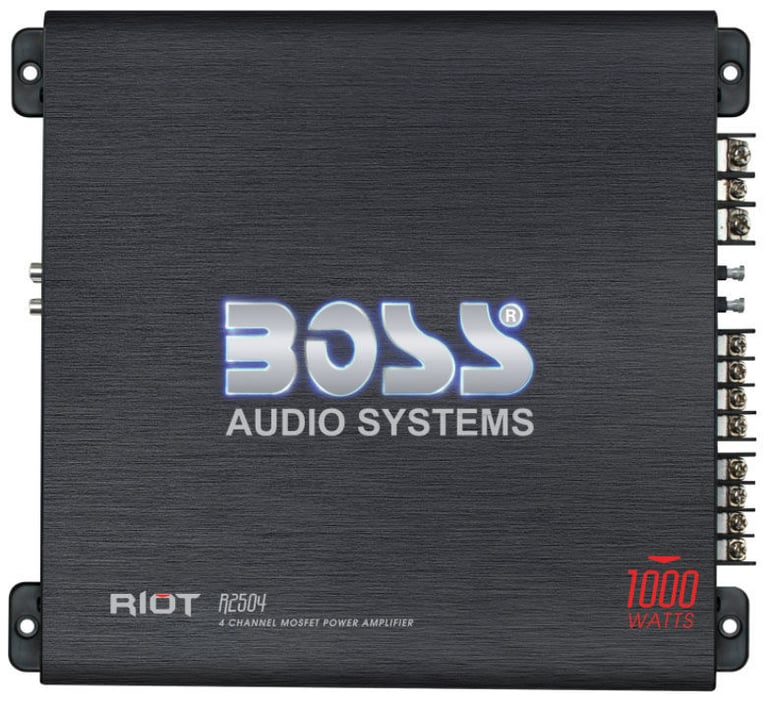

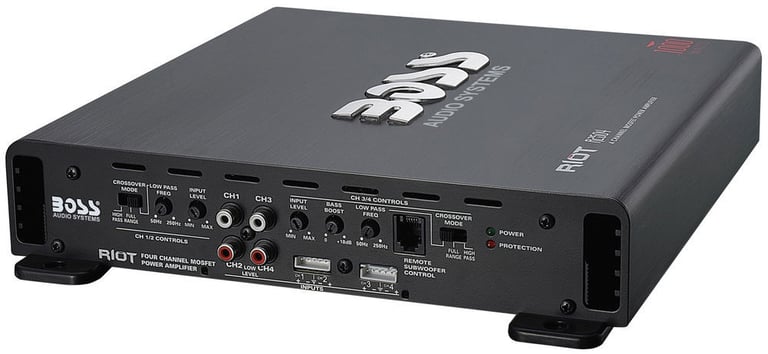

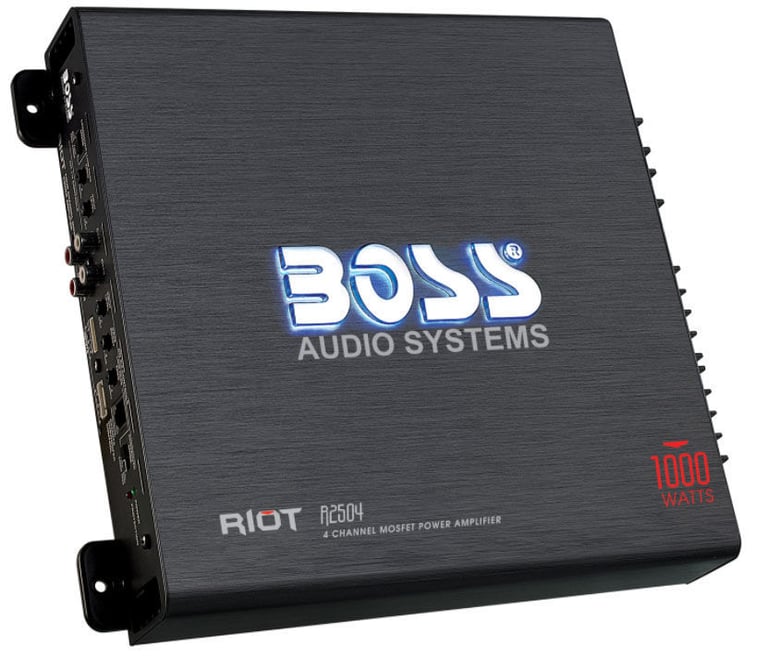

Boss R2504

1000W Max (750W RMS) Riot Series Class A/B 2-Ohm Stable 4-Channel Full Range Amplifier w/ Remote Level Control
Quantity: 1

General Features:

  • Boss Riot Series R2504
  • Class-A/B Full Range 2-ohm Stable 4-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 94 watts x 4 chan.
    • 2 ohm: 188 watts x 4 chan.
    • 1 ohm: ------------N/A------------
    • Bridged, 4 ohm: 375 watts x 2 chan.
  • Total power output: 1000 watts
  • Pulse Width Modulated MOSFET power supply

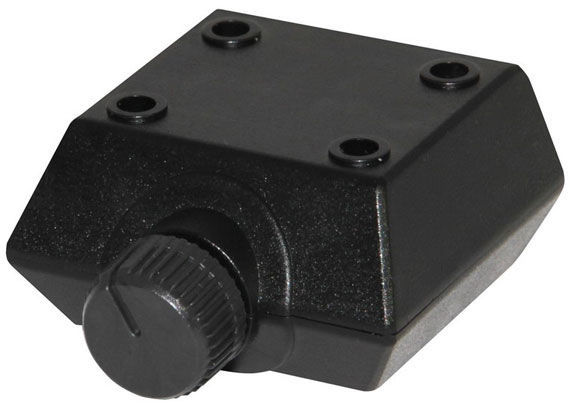

  • Wired remote bass level control included

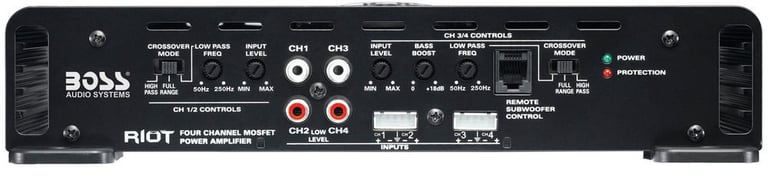

  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • 4/3/2 or Mono channel operation
  • Speaker-level (high-level) inputs
  • 3-way protection circuitry (thermal, overload, and speaker short protection)

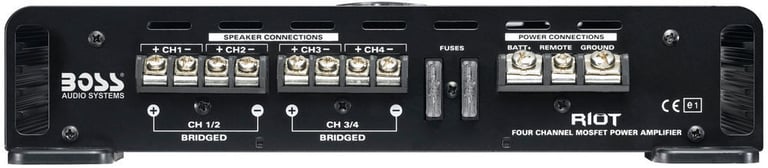

  • Dual speaker terminals simplify the hookup of multiple speakers
  • Heavy duty aluminum alloy heat-sink
  • Input sensitivity: variable
  • Frequency Response: 9 - 50000 Hz
  • Total Harmonic Distortion (THD): .01%
  • Signal to Noise Ratio: 102 dB
  • High-pass filter: Fixed, 80Hz
  • Variable low-pass filter: 50-250Hz
  • Variable Bass Boost: 0 to +18 dB bass boost
  • Fuse Rating: 25A x 2
  • 8 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 11.57"W x 10.43"L x 2.25"H
  • Authorized Internet Dealer
  • 3 Year Manufacturer's Warranty
Boss R2504 owner’s manual

Belva BAK82BL

8 Gauge Premium (CCA) Copper Clad Aluminum Complete 2-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 600 Watts - BLUE
Quantity: 1

Product Details:

  • Complete 8 Gauge 2-Channel Amplifier Installation Kit
  • Designed for car audio systems up to 600 watts RMS
  • Premium Powerflex power and ground wire provides optimal power transfer
  • Belva CCA wire is made from 30% copper while the competition uses only 10%
  • Helical Twist Construction Audio Interconnect RCA cables minimize noise and interference
  • MINI-ANL Fuse holder with a 60 amp fuse offers ideal protection for high powered systems
  • Complies to American Wire Gauge standards
  • Also available in Red
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

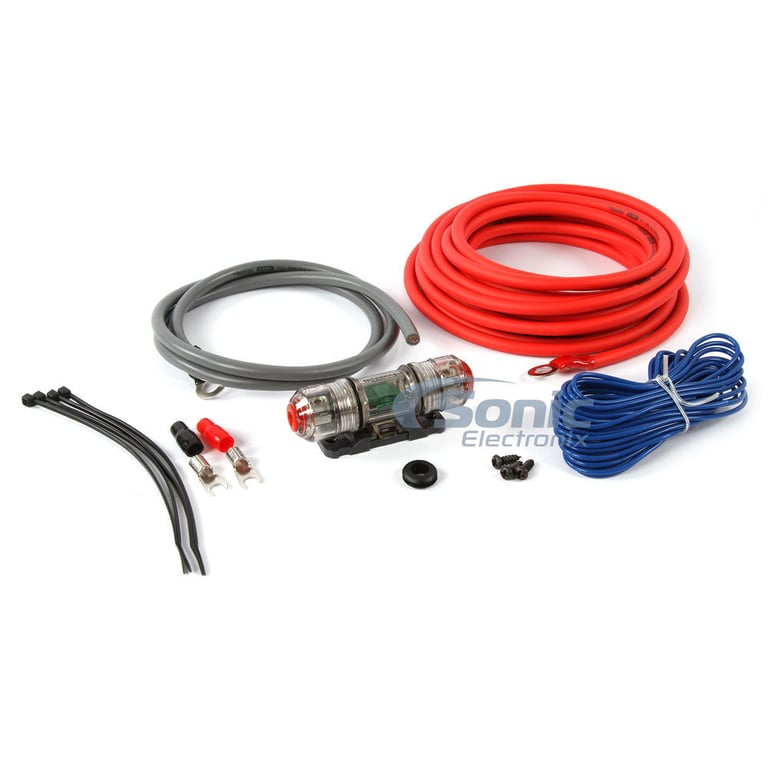

Kit includes:

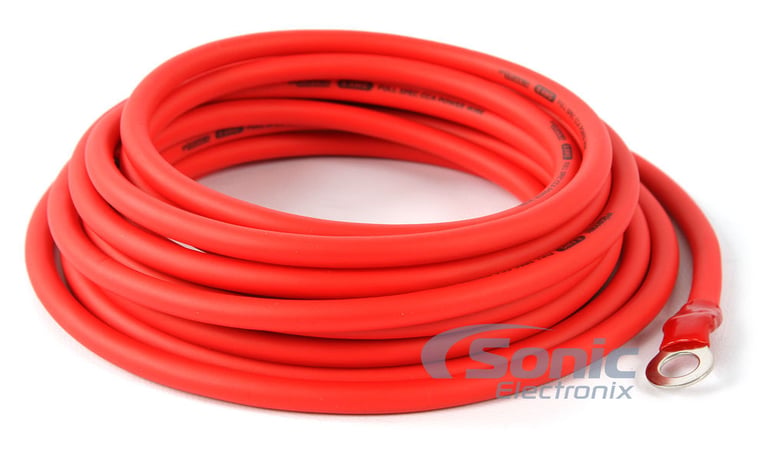

  1. 17 ft. (5.2 meters) Blue 8 gauge power wire

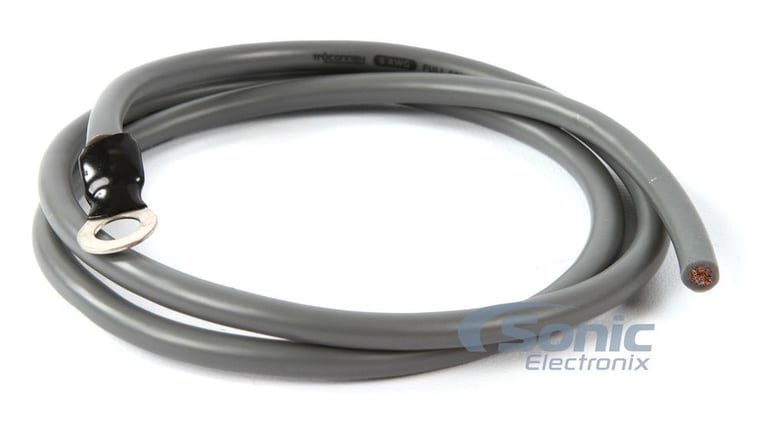

  2. 3 ft. (.91 meters) Black 8 gauge ground wire

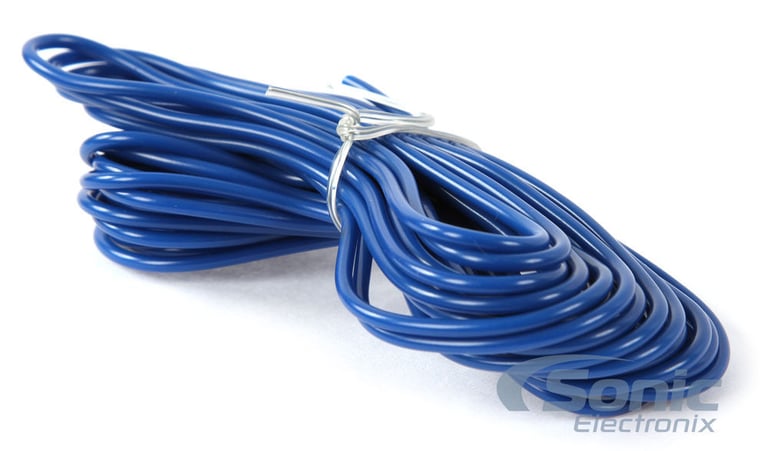

  3. 17 ft. (5.2 meters) Gray 18 gauge remote lead wire
  4. 17 ft. (5.2 meters) Helical Twist 2-channel RCA interconnect cable
  5. 20 ft. (6.1 meters) 16 Gauge Speaker cable

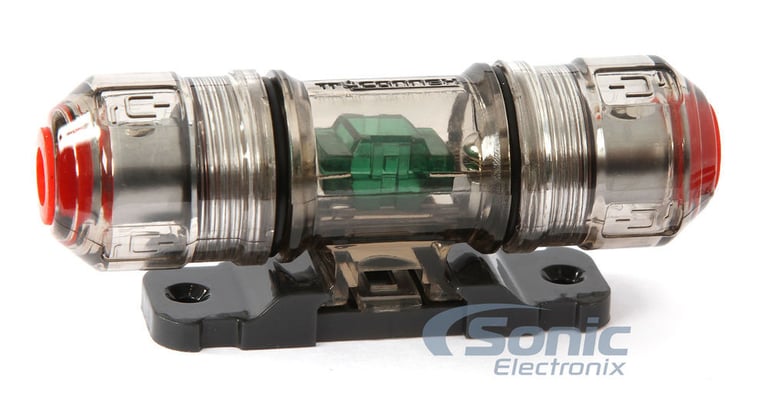

  6. One MINI-ANL Fuse Holder with a 60 amp fuse
  7. One Black rubber firewall grommet
  8. One 8 Gauge Blue chrome plated ring terminals
  9. One 8 Gauge Black chrome plated ring terminal
  10. Three 18 Gauge Blue Spade terminal
  11. Two 18 Gauge Black Spade terminal
  12. One 18 Gauge Red butt connector
  13. Ten 4" Black zip ties
