Boss R2504

1000W Max (750W RMS) Riot Series Class A/B 2-Ohm Stable 4-Channel Full Range Amplifier w/ Remote Level Control

Boss
Shop all Boss
highlight-star-icon

• 94 Watts RMS x 4 @ 4 ohms
• 188 Watts RMS x 4 @ 2 ohms
• 375 Watts RMS x 2 @ 4 ohms, Bridged
• Total Peak Power: 1000 Watts
• Variable Low Pass Filter
• 0 - 18dB Bass Boost
• Aluminum Heatsink
• Dimensions: 11.57" W x 10.43" L x 2.25" H

Learn more about the boss-r2504

We apologize

This item has been discontinued

Description


Boss brand icon

Authorized dealer

General Features:

  • Boss Riot Series R2504
  • Class-A/B Full Range 2-ohm Stable 4-Channel Amplifier
  • RMS Power Rating:
    • 4 ohms: 94 watts x 4 chan.
    • 2 ohms: 188 watts x 4 chan.
    • 1 ohm: ------------N/A------------
    • Bridged, 4 ohms: 375 watts x 2 chan.
  • Total power output: 1000 watts
  • Pulse Width Modulated MOSFET power supply

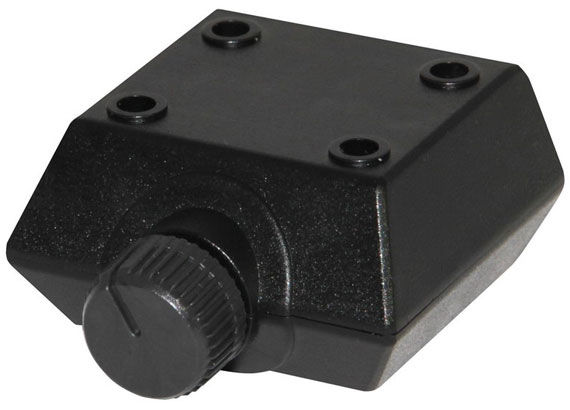

  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • 4/3/2 or Mono channel operation
  • Speaker-level (high-level) inputs
  • 3-way protection circuitry (thermal, overload, and speaker short protection)

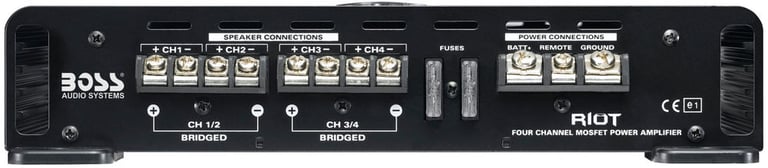

  • Dual speaker terminals simplify the hookup of multiple speakers
  • Heavy duty aluminum alloy heat-sink
  • Input sensitivity: variable
  • Frequency Response: 9 - 50000 Hz
  • Total Harmonic Distortion (THD): .01%
  • Signal to Noise Ratio: 102 dB
  • High-pass filter: Fixed, 80Hz
  • Variable low-pass filter: 50-250Hz
  • Variable Bass Boost: 0 to +18 dB bass boost
  • Fuse Rating: 25A x 2
  • 8 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 11.57"W x 10.43"L x 2.25"H
  • Authorized Internet Dealer
  • 3 Year Manufacturer's Warranty
Boss R2504 owner’s manual

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
94 watts x 4 channel
RMS Power @ 2 ohms
188 watts x 4 channel
Bridged RMS Power
375 watts x 2 channel
Amplifier Specifications
Series
Riot Series
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
1000 watts
Total RMS Power Output
750 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
.01%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Low-Pass Crossover Frequency
50 - 250 Hz
Signal-to-Noise Ratio
102 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Fuse Rating
25A x 2
Total Fuse Rating
50
Warranty and Return Policy
Parts Warranty Duration
3 years
Labor Warranty Duration
3 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

R2504

Weight:

7.30lbs

Internal SKU:

boss-r2504

Internal Product ID:

137511
