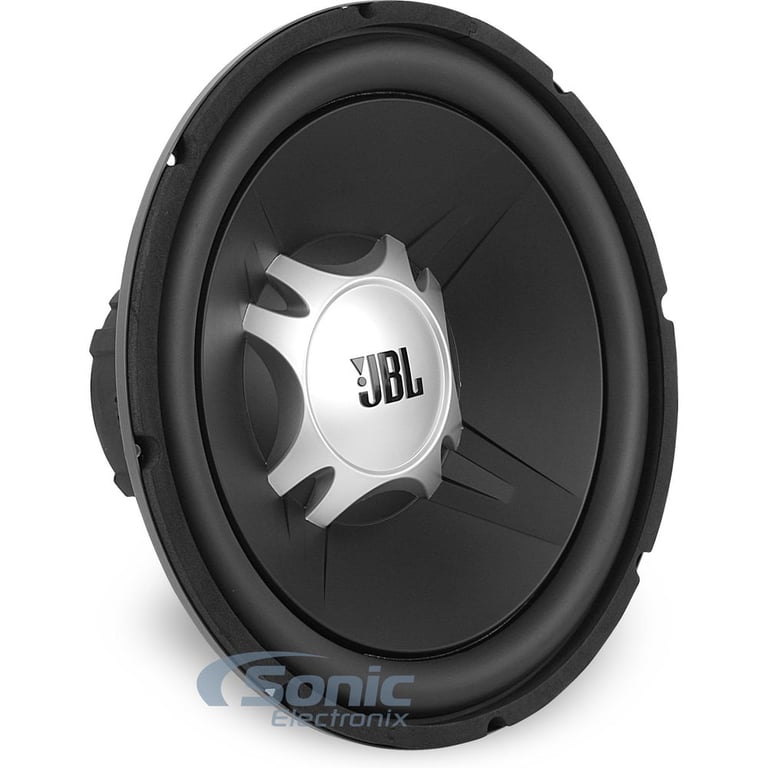

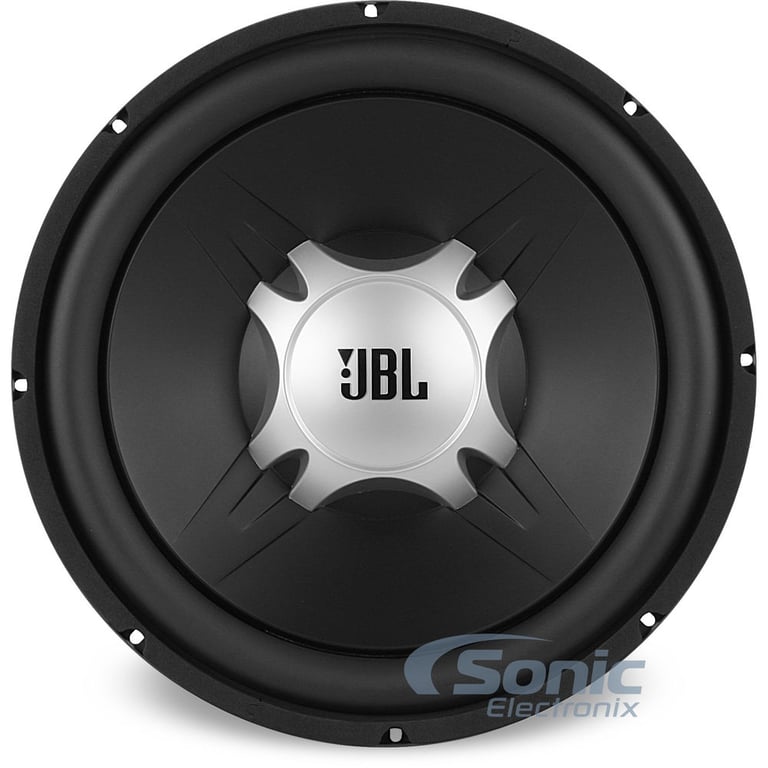

JBL GT5-15

300W 15" GT Series Single 4 ohm Subwoofer

JBL
Shop all JBL
Product videos
highlight-star-icon

• 1200W Peak
• 300W RMS
• Single 4 Ohm
• Polypropylene Cone
• Rubber Surround
• Rubber-Coated Tinsel Leads
• Dual-Stacked Oversized Magnets
• Sensitivity: 92dB

Learn more about the gt515

We apologize

This item has been discontinued


Loading...
72-5602 main

Metra 72-5602

Install New Front Kick Panel Speakers in select 2009-2024 vehicles from Ford, Mazda, Lincoln

43
-20.01%

$11.99

List price $14.99

82-5605 main

Metra 82-5605

6" to 6.75" Kick Panel Speaker Adapter Bracket for select 2009-2024 vehicles from Ford, Lincoln, Alfa Romeo

28
-28.13%

$22.99

List price $31.99

82-5606 main

Metra 82-5606

6x9" Front Door Speaker Bracket for select 2015-2025 vehicles from Ford, Lincoln

15
-48.62%

$16.95

List price $32.99

KIT-FTR1 main

iDataLink Maestro KIT-FTR1 Dash Kit

Double DIN Stereo Dash Kit and Harness for select 2015-2022 vehicles from Ford (Requires MRR or MRR2 module)

-17.65%

$279.99

List price $339.99

AP4-FD21 main

PAC AP4-FD21

Amplifier Integration Interface for select 2011-2025 vehicles from Ford with Premium Sony Audio Systems

6
-16.03%

$419.00

List price $499.00

APSUB-FD21 main

PAC APSUB-FD21

Amplifier and Subwoofer Integration Interface for select 2011-2019 vehicles from Ford with Premium Sony Systems

1
-27.36%

$239.00

List price $329.00

AXABH-FD1 main

Axxess AXABH-FD1

Amplifier Bypass Harness for select 2011-2017 vehicles from Ford with Sony Amplified

1
-11.77%

$29.99

List price $33.99

82-FD1 main

Metra 82-FD1

Ford 2011-2020 Speaker Adapter Kit - Front or Rear

10
-38.81%

$20.80

List price $33.99

FSB1501 main

PAC FSB1501

6", 6.5", 6.75", or 6x9" Speaker Mounting Adapters for select 2015-2021 F-150 and F-250 Super Duty and F-350 Super Duty

-20.41%

$39.00

List price $49.00

SB-F-F150SPRCB/10TW3 main

JL Audio Stealthbox® SB-F-F150SPRCB/10TW3

Custom-Fit Loaded 10" Subwoofer Enclosure for select 2015-2025 vehicles from Ford

$1,349.99

Product Highlights


• 1200W Peak
• 300W RMS
• Single 4 Ohm
• Polypropylene Cone
• Rubber Surround
• Rubber-Coated Tinsel Leads
• Dual-Stacked Oversized Magnets
• Sensitivity: 92dB

Description


JBL brand icon

Authorized dealer

Big Bass

For anyone who likes to crank it up in the car, the JBL® high-output GT5-15 subwoofer is the real deal. The JBL GT5-15 subwoofer features a single 4-ohm voice coil and a vented motor structure, and offers 1200 watts of peak power handling. The GT5-15 also features JBL’s newest design, combining classic elements with modern ones.

All-New Design

The GT5-15 follows the design of the more-expensive JBL subwoofers, combining classic elements with modern ones.


Significant Power Handling Capabilities

The GT5-15 handles as much as 300W/1200W (RMS/Peak) • With its fully vented motor structure and rubber-coated tinsel leads, the GT5-15 is able to withstand even the most intense bass assault.

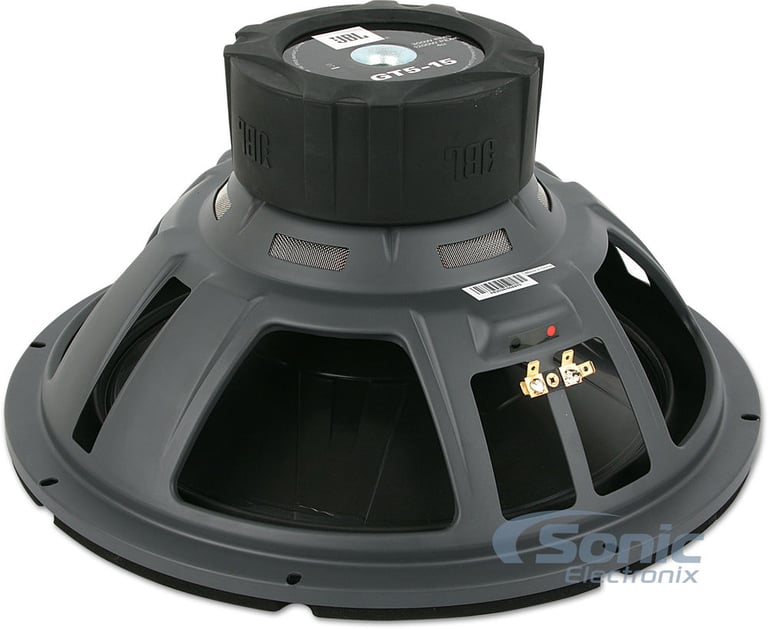

Dual-Stacked, Oversized Magnets

Unlike competing entry-level subwoofers, the GT5-15 is based on a solid motor structure featuring two large magnets covered by the classic JBL rubber ring.





The Sound of quality

Sonic Electronix, one of the leaders in car audio, recently visited Harman, the premium global audio and infotainment group, at their research and development locations in Northridge, California and Detroit, Michigan. The purpose of these visits was to utilize and combine the powerful brand of Harman and the industry leading knowledge behind Sonic Electronix to begin working together on developing future car audio projects.


General Features:

  • 15" Single 4 Ohm GT Series Subwoofer
  • Power Handling:
    • Peak: 1200 watts
    • RMS: 300 watts
  • Recommended power range: 150 - 300 watts RMS
  • Impedance: Single 4 Ohm

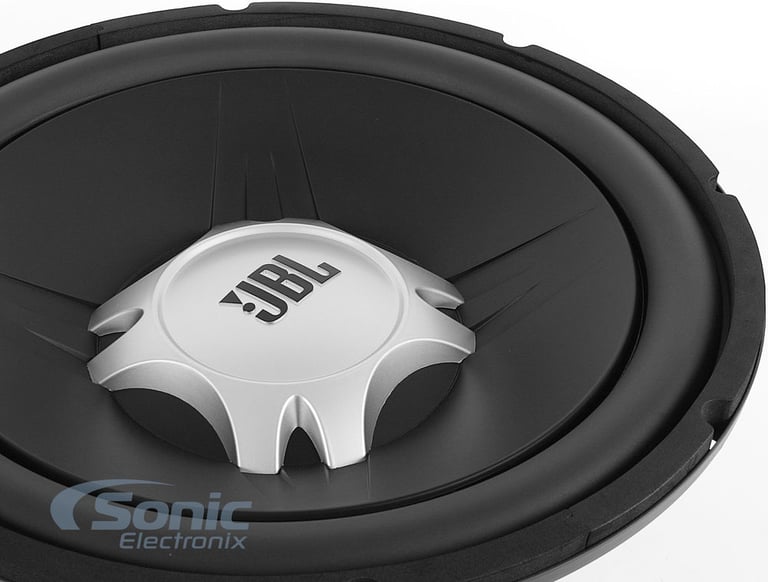

  • Polypropylene cone woofer
  • Rubber surround
  • Completely vented motor structure

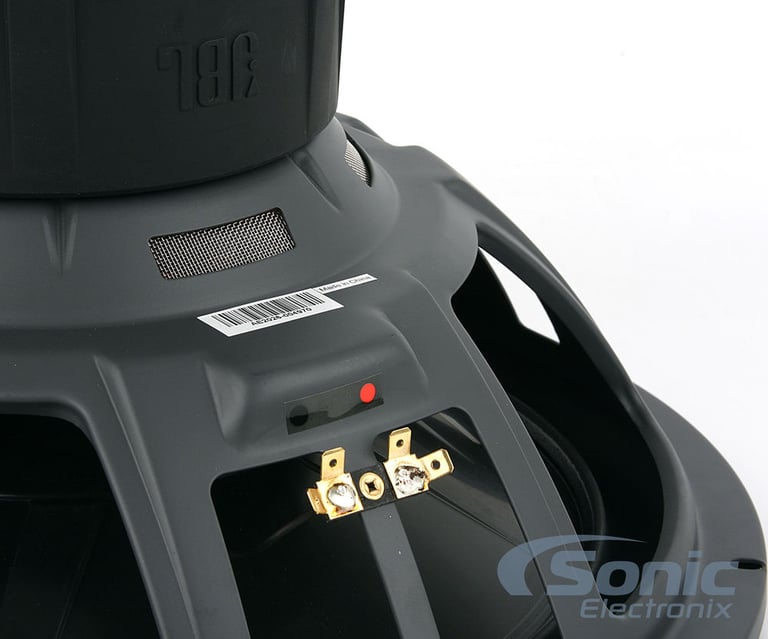

  • Rubber-coated tinsel leads
  • Single 4 Ohm voice coil
  • Dual-stacked oversized magnets
  • Frequency response: 25-400 Hz
  • Sensitivity: 92 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
Tips for Installing the your subwoofer


Subwoofer Wiring Guide


Wiring Guide to Wire 1 JBL GT5-15 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 JBL GT5-15 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 JBL GT5-15 Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 JBL GT5-15 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
F-150EX-09A main

MTX F-150EX-09A

250W RMS Loaded Single 10" Amplified Sealed Enclosure for select 2009-2015 F-150

R2-DB8V-TRK main

Alpine R2-DB8V-TRK

2000W Peak (700W RMS) Loaded Dual 8" R-Series Vented Truck Enclosure for select 2007-2024 vehicles from Ford, Jeep, Ram

1
-16.67%

$999.95

List price $1200.00

F-150C-09A main

MTX F-150C-09A

250W RMS Loaded Single 10" Amplified Sealed Enclosure for select 2009-2015 F-150

LVE-FRD-150CCG12-D12S main

NVX BOOST Box - 2009-2018 Ford F-150 Super Crew Cab - LVE-FRD-150CCG12-D12S

For select 2009-2018 F-150 Super Crew Cab - Dual 12" 800W RMS Loaded Down Firing BOOST Sealed Truck Enclosure

-18.98%

$349.99

List price $431.99

SBX-F-150-SCDBL/12TW3 main

JL Audio Stealthbox® SBX-F-150-SCDBL/12TW3

Loaded Dual 12" Sealed Fiberglass Enclosure for select 2009-2026 vehicles from Ford

$2,199.99

SB-F-F150SPRCB/10TW3 main

JL Audio Stealthbox® SB-F-F150SPRCB/10TW3

Custom-Fit Loaded 10" Subwoofer Enclosure for select 2015-2025 vehicles from Ford

$1,349.99

LVE-FRD-150CECG12-D12S main

NVX BOOST Box - 2009-2018 Ford F-150 Super Cab - LVE-FRD-150CECG12-D12S

For select 2009-2018 F-150 Extended Cab - Dual 12" 800W RMS Loaded Down Firing BOOST Sealed Truck Enclosure

-18.92%

$359.99

List price $443.99

S2-DB8V-TRK main

Alpine S2-DB8V-TRK

600W Peak (300W RMS) Loaded Dual 8" Vented Enclosure for select 2007-2024 vehicles from Jeep, GMC, Ford

-16.67%

$849.95

List price $1020.00

SB-F-150-SPRCRW/13TW5v2/BK main

JL Audio Stealthbox® SB-F-150-SPRCRW/13TW5v2/BK

Custom fit subwoofer enclosure for select 2009-2025 vehicles from Ford (Black)

$1,549.99

SB-F-150-SPRCRW/13TW5v2/TN main

JL Audio Stealthbox® SB-F-150-SPRCRW/13TW5v2/TN

Custom fit subwoofer enclosure for select 2009-2025 vehicles from Ford (Camel)

$1,399.99


Best selling similar products

DB-SA305 D1 small

Deaf Bonce Apocalypse DB-SA305 D1

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Pressed Paper Cone
• Foam Surround
• Impedance: Dual 1 ohm
• Mount depth: 7.85"
• Sensitivity: 88.30 dB

(1)

$399.90

List price $399.90

DB-SA255 D2 small

Deaf Bonce Apocalypse DB-SA255 D2

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Pressed Paper Cone
• Foam Surround
• Impedance: Dual 2 ohm
• Mount depth: 7.4"
• Sensitivity: 87.50 dB

(1)

$259.90

List price $259.90

VCW152v3 small

NVX VCW152 Version 3 (VCW152v3)

• Peak Power: 3000 watts
• RMS Power: 1500 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 8.19"
• Sensitivity: 88 dB (1W/1m)

(39)

$259.99

List price $311.99

YSW154 small

NVX YSW154

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 4 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 7.47"
• Sensitivity: 85 dB

(3)

$129.99

List price $167.99

XCW151 small

NVX XCW151

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 1 ohm
• Enhanced Woven Fiber Paper Composite Cone
• Custom High Roll Foam Surround
• 30 mm Xmax (One Way)
• Sensitivity: 87.3 dB

(1)

$599.99

List price $659.99

ZV715D1 small

Sundown Audio Z-15 v.7 D1 15" (Z15V7D1)

• Peak Power: 7000 watts
• RMS Power: 3500 watts
• Impedance: Dual 1 ohm
• Treated Paper Cone
• Treated Foam Surround
• Sensitivity: 91.58 dB

$1364.99

List price $1559.99

EXL-XX15.4DHE small

DS18 EXL-XX15.4DHE

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 4 ohm
• Paper Cone
• Foam Surround
• Mount depth: 8.86"
• Sensitivity: 88 dB

$599.95

List price $599.95

EXL-XX15.2DHE small

DS18 EXL-XX15.2DHE

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Paper Cone
• Foam Surround
• Impedance: Dual 2 ohm
• Mount depth: 8.86"
• Sensitivity: 88 dB

$599.95

List price $599.95

L7S152 small

Kicker L7S152 (44L7S152)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 2 ohm
• Injection Molded Polypropylene Cone
• Ribbed Santoprene Surround
• Mount depth: 8 11/16"
• Sensitivity: 88.56 dB

(11)

$383.96

List price $509.99

49L7X152 small

Kicker L7X152 (49L7X152)

• RMS Power: 1000 - 2000 watts
• Impedance: Dual 2 ohm
• Double-pressed pulp Cone
• UV-resistant Santoprene Surround
• Mount depth: 11-9/16"

(2)

$799.99

List price $899.99

Specifications & Details


Subwoofer Specifications
Series
GT5 Series
Subwoofer Size
15"
Peak Power Handling
1200 watts
RMS Power Handling
300 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2"
Frequency Response
25 - 400 Hz
Sensitivity
92 dB
Xmax (millimeters)
14.5 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Silver
Woofer Composition
Polypropylene
Woofer Surround
Rubber
Magnet Structure
Double Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
1.5 cubic feet
Maximum Sealed Box Volume
2.0 cubic feet
Minimum Ported Box Volume
3.5 cubic feet
Maximum Ported Box Volume
4.5 cubic feet
Top-Mount Depth (Mounting Depth)
7-5/16"
Cutout Diameter
14"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
27.30 Hz
Equivalent Compliance (Vas)
106.5 liters
Total Speaker Q Value (Qts)
0.67
Electrical Q Value (Qes)
0.76
Electrical Resistance of Voice Coil (Re)
3.63 ohm
Mechanical Q Value (Qms)
5.70
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

JBL

Model Number:

GT5-15

Weight:

20.00lbs

Internal SKU:

gt515

Internal Product ID:

16026

Product and How-to Videos


  • Harman International: The Pursuit of Great Sound
  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?
  • How to Install a Car Subwoofer in a Box

Customer Ratings & Reviews


JBL GT5-15 thumbnail image

5 star
69%
4 star
31%
3 star
0%
2 star
0%
1 star
0%



Durability
4.8
Value
4.9
Features
4.3
Design
4.6
Usability
4.9

Customer Reviews

Sort by:

Loading...

AMAZING! POUNDS LIKE NO OTHER! GET THESE!

I bought two of these from Sonic and put them in my Integra. They're in a cheap-o box made of 1/2 MDF and running off the Power Acoustik BAMF-2000/1D amp. OH MY GOD! These are OFF THE HOOK! I got the loudest sound system at my school. Awesome sound quality too! If you're on a budget and you're looking for some SLAP, get these with the amp I mentioned. YOU WON'T BE DISAPPOINTED!

By Aaron on May 13, 2009

21 found this helpful


Fantastic. I highly recommend these.

I bought this subwoofer to run it by itself almost a year ago now. I have it running at 350rms 800peak in a ported box in the back of my hatchback.. It's still running great. This sub hits fantastic. Absolutely shakes the car. It's like having a back massager in my chair. If you're on a budget, this is the best boom for your buck.

By Rachel on February 19, 2010

20 found this helpful


Great Woofers!

I have 3 of these hooked up with a JBL amp in an enclosed box. Great sound quality and VERY loud. You cannot go wrong with JBL!

By Isaac on September 28, 2009

20 found this helpful


very great speckers

The JBL GT5-15 subwoofers are very outstanding. everything I was looking for and more.

By michael on October 18, 2010

20 found this helpful


the best sound ever

I have 2 of these and they shake like hell, it's the best bass speakers ever.

By sound boy on October 12, 2012

16 found this helpful


Get more BUMP for your buck

For the price, you can't find a better sub. My car was rockin when I put this bad boy in and it was so clear and crisp when the bass hit

By @Frankthatank on September 27, 2011

17 found this helpful


Pound'n away!!

Push'n with 1000 watt Gorilla amp,sounds great!! Does just what it's supposed to!!

By Nitromike on December 19, 2012

16 found this helpful


DO IT!

This subwoofer is amazing. I own one of these and can't complain, I've had it for over a year now and it still handles the daily abuse I give it. It can hit so hard that I've broke the seals on my box twice. Place it in the recommended 1.5 cubic foot sealed enclosure and you will have no need to complain. I install my own and "wow" my friends song after song with this sub.

By Nate on May 5, 2011

15 found this helpful


4 years later...

I was just taking a trip down memory lane, looking up the specs of my beloved subs and had to leave my two cents. I have had two of these puppies bumping 1800 watts through my car for four years now and have loved it. I have them in a double slotted enclosure and they never fail to impress and inspire. These subwoofers have shaped my life! Friends bring their ipods with them when we take trips in my car and everyone knows that in my car you roll down the windows, turn up the bass, and enjoy the ride. These subs are durable, beautiful, deep, and give a thick bass sound. I hope you find yourself inspired to drop a note of praise four years down the road as well.

By Rachel on August 4, 2012

14 found this helpful


Good Bang for your buck

I have 3 of these on a kicker zx1000.1 in my ford ranger and it beats. For the price you cant go wrong.

By Zack on October 6, 2011

14 found this helpful




F8E262-BLU small

Belkin F8E262 (Blue)

Waverest Gel Mouse Pad

$11.99

List price $16.99

AEB917 small

Aroma AEB917

Stainless Steel Egg Boiler with Timer and Indicator Cooks 7 Eggs

$17.99

List price $24.99

HT38R-U small

Holmes HT38R-U Tower Fan

Holmes Ht38r-u Tower Fan with Remote Control

$34.99

List price $0.00

VTR104 small

Blackbox DVR Records Audio & Video w/ 1.3MP Camera

BOYO Vision VTR104

$99.99

List price $399.99

D3 TOWER PIANO WHITE small

DLS D3 Tower (Piano White)

Pair of Tower D Series Floorstanding Speakers in Piano White Finish (10-13001PW)

$1700.00

List price $1700.00

No picture

Imperial MW1128

$9.99

List price $29.95

6130 small

West Bend 6130

1200W Raclette Party Grill w/ 8 Raclette Dishes, 8 Spatulas & More!

$64.26

List price $89.99

GT5-12D small

JBL GT5-12D

275W 12" GT Series Dual 4 ohm Subwoofer

(12)

$69.95

List price $119.99

FD-39 small

Nesco FD-39

500W Expandable Food Dehydrator w/ Top Mounted Fan & 4 Dehydration Trays

$44.95

List price $52.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2015 Ford F-150

1998 Mazda MPV

1997 Audi A8

2009 Ford Edge

2010 Mazda 5

2011 Saab 9-3X

1981 Cadillac DeVille

Vehicle
Store
Delete

2004 Harley Davidson FXSTD/I Softail Deuce

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
