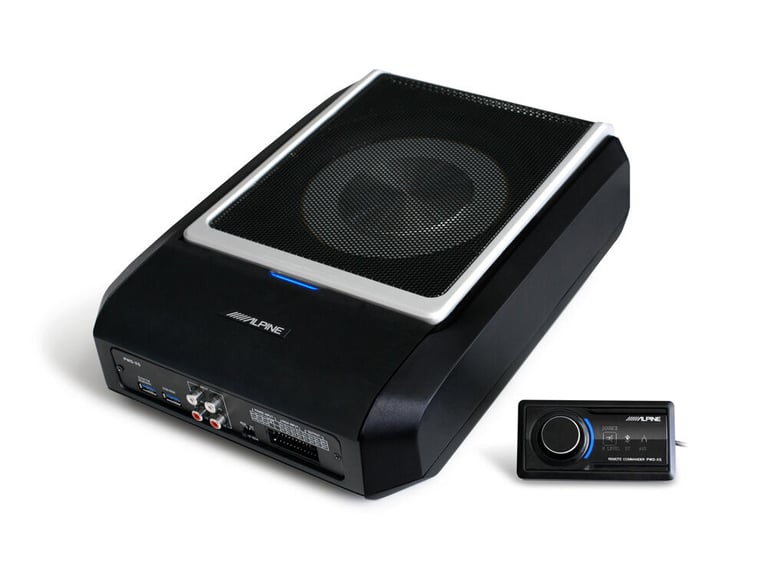

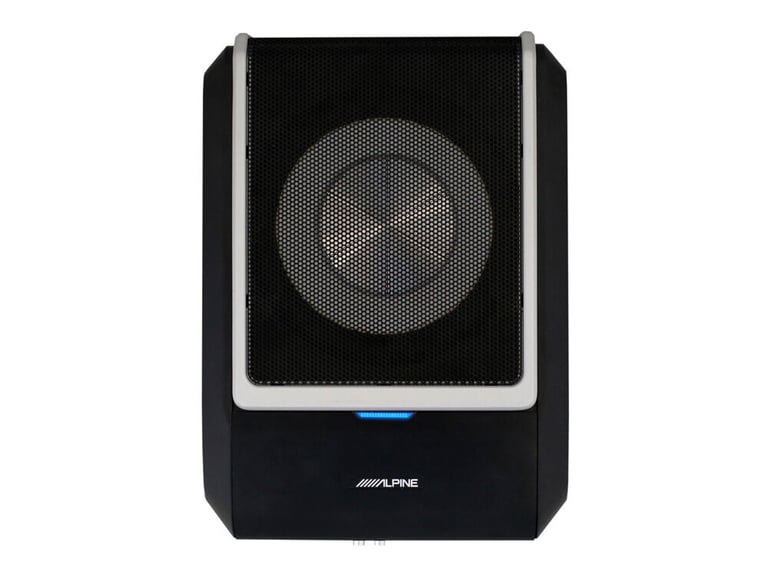

Alpine PWD-X5

Powered Compact Subwoofer Enclosure with Built-in Amplifier & Digital Sound Processor (DSP)

Alpine
Shop all Alpine
highlight-star-icon

• 25W x 4 + 165W x 1 RMS / 50W x 4 + 240W x 1 Max
• Compact installation
• Extensive sound tuning functions
• Wide connectivity options
• Wired Remote Control
• Bluetooth Audio Streaming

Learn more about the pwdx5

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
72-5601 main

Metra 72-5601

Install New Speakers in select 1998-2024 vehicles from Ford, Lincoln, Mercury

7
-10.01%

$8.99

List price $9.99

NSP68 main

NVX NSP68

540W Peak (180W RMS) 6x8" N-Series 2 Way Coaxial Car Speakers

59
-16.67%

$79.99

List price $95.99

FRING68 main

NVX FRING68

Universal 6x8" or 5x7" Self-Adhesive Foam Speaker Baffle Ring Kit (Pack of 2)

12
-46.68%

$15.99

List price $29.99

REF3032CFXAM main

Infinity Reference 3032cfx (REF3032CFXAM)

150W Peak (50W RMS) 3.5" Reference Series 2-Way Coaxial 3-ohm Car Speakers

28
-38.45%

$79.99

List price $129.95

Limited time!
TS-G6820S main

Pioneer TS-G6820S

500W Peak (80W RMS) 6x8" G-Series 2-way 4-ohm Coaxial Car Speakers

4
-23.09%

$49.99

List price $65.00

R168X2 main

Rockford Fosgate Prime R168X2

220W Peak (110W RMS) 6x8" Prime Series 2 Way Coaxial 4-ohm Speakers

47
Stadium 862F main

JBL Stadium 862F

600W Peak (200W RMS) 6x8" Stadium Series 2-way Coaxial 3-ohm Speakers

5
-16.67%

$249.95

List price $299.95

Rockford Fosgate Punch Pro PPS4-8 (Sold Individually)

250 Peak (125W RMS) 8” Punch Pro Series Pro-Audio 4-ohm Speaker

19

Crunch CS5768CX

500W Peak (100W RMS) 5x7"/6x8" CS Series 2-Way Coaxial 4-ohm Car Speakers

13
-11.77%

$29.99

List price $33.99

Limited time!

Infinity Kappa 683XF (INFSPKKA683XFAM)

600W Peak (200W RMS) 6x8" Kappa Series 2-Way Coaxial 3-ohm Car Speakers

3
-32.13%

$223.95

List price $329.95

Description


Alpine brand icon

Authorized dealer

All-in-one sound upgrade for any vehicle

This very unique sound system upgrade product includes a high-performance Digital Sound Processor (DSP), 4-channel amplifier for your front and rear door speakers, as well as an ultra-flat active subwoofer.

What's Included?

  • Digital Sound Processor
  • Ultra-flat active subwoofer
  • 4-channel amplifier
  • Full wiring kit with main fuse, installation brackets, wired remote control, external Bluetooth dongle
  • FREE tuning software and smartphone app available for download online


Product Details:

  • Alpine PWD-X5
  • Powered Compact Subwoofer Enclosure with Built-in Amplifier & Digital Sound Processor (DSP)
  • Power Output:
    • RMS: 25W x 4 + 165W x 1
    • Peak: 50W x 4 + 240W x 1
  • Easily installed under the front seat of many vehicles, and in the trunk of hatchbacks or coupes
  • Stream music from your smartphone to your radio
  • Built-in 10-band Parametric EQ, digital time correction and digital crossover

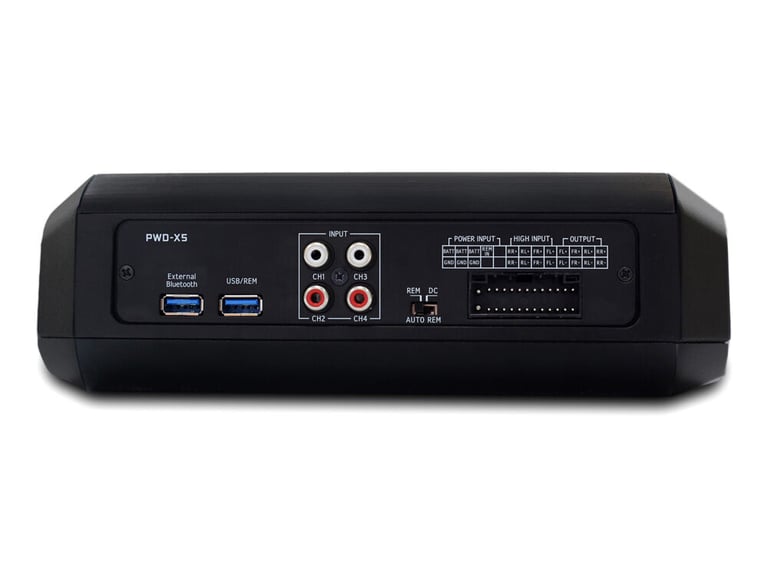

  • 2 USB ports used for the included external Bluetooth dongle and to connect the wired remote control and PC for setup
  • Optional: Control your sound with Alpine Companion smartphone app (available Google Play and the Apple App Store free of charge)
  • Comes with everything you need to install it
  • Authorized Internet Dealer
  • 1-year Sonic Electronix Warranty

Technical Specifications

  • Signal-to-noise ratio: ≥80dB
  • Bass boost: -12dB~+12dB
  • Frequency response: 20Hz~20KHz
  • Input impedance: Low-level input: 20KΩ; high-level input: 100Ω
  • Phase selection: 0°/180°
  • Remote ON: DC high-level /REM input activation
  • Operating temperature: -10~60°C
  • Storage temperature: -40~85°C
  • Power source: DC 14.4V (9V~16V) negative ground
  • Activate REM input: Options of high-level activation (H1+/H3+) and ACC activation for selection
  • Activate REM output: +12V activation voltage output (0.5A)
  • Stand-by current: 750mA
  • Net weight: 11.8 lbs
  • Measurements: 13-13/16” L x 9-11/16” W x 3-3/16” H

What's in the box?

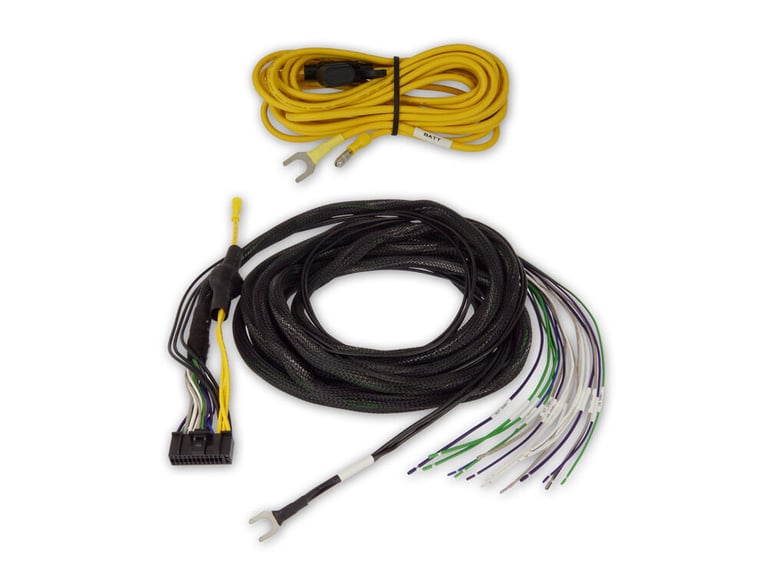

  • Full wiring kit with high-quality power cables (4.5 meters) and main fuse
  • Installation brackets
  • Wired remote control
  • External Bluetooth dongle

Owner's Manual Download

Click here to Download the PC Software for PWD-X5
