Name: Audiobahn A4075HCT
Brand: Audiobahn
SKU: a4075hct
Price: 349.99 USD
Availability: Discontinued

by Audiobahn

About
Specs & Details
Product Videos
Reviews
Add-ons
Similar Products
Related Searches

Product videos

Product highlights

2400W Max, High Current Series 4-Channel Amplifier with Bass Remote • 1200W RMS @ 1 ohm • 600W RMS @ 2 ohms • 300W RMS @ 4 ohms • Blue Illuminated VU Meter • Beautiful Chrome Design Heatsink • S/N Ratio: 100dB • Bass Boost: 0-18dB

Learn more about the a4075hct

Product Highlights

Description

2400W Max, High-Current 4-Channel Car Amplifier
RMS Power Rating:

75 watts x 4 chan. @ 4 ohms
150 watts x 4 chan. @ 2 ohms
225 watts x 4 chan. @ 1 ohm
Bridged:

160 watts x 2 chan. @ 4 ohms
300 watts x 2 chan. @ 2 ohms
600 watts x 2 chan. @ 1 ohm

Max Power Output: 2400 watts @ 1 ohm

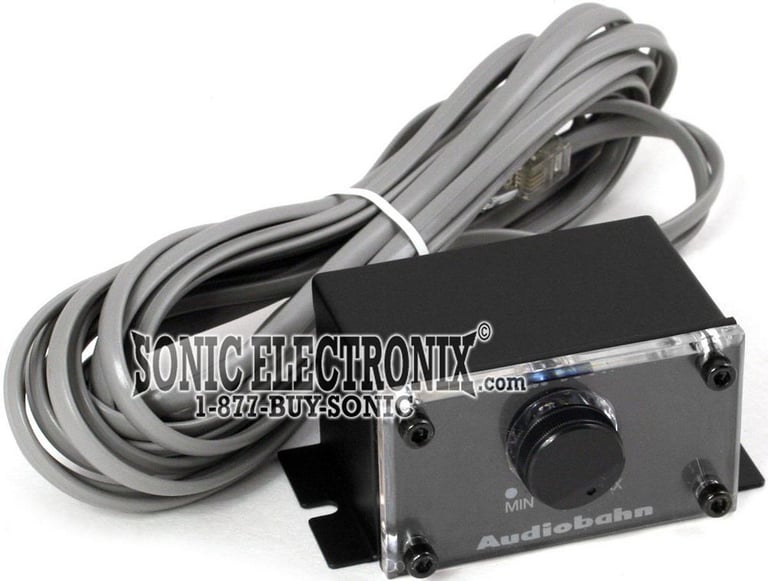

Wired Remote Bass Level Control Included with Blue Illuminated Knobs
- Also illuminates red to indicate when amplifier is clipping
High-Current, Non-Regulated Power Supply
Preamp Outputs
Cobalt Blue LED Illuminated Heat Sink Design (on/off switch for your preference)
Thermal Regulated, Air Induction Dual Cooling Fans
Double Sided PCB (Circuit Board)
High Gloss Chrome Plated Finish
Unique, Clean Chrome Fire/Flame Design
Blue Illuminated VU Meters Indicating Output Response

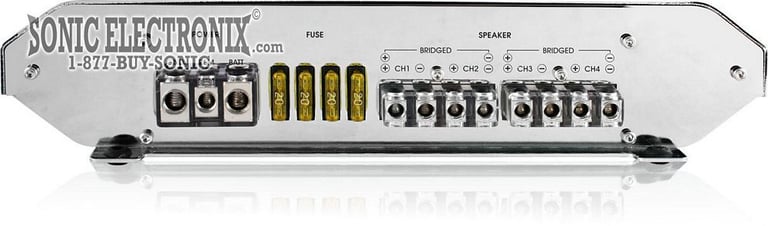

Clear Power and Speaker Connectors
Variable Bass Boost: 0-18dB @ 40-100Hz
Variable Low-Pass Crossover: 40-120Hz
Variable High-Pass Crossover: 50-750Hz
Variable Subsonic Filter: 20-50Hz
Signal-to-Noise Ratio: 100dB
Frequency Response: 10Hz-40kHz
THD: 0.05%
Channel Separation: 50dB
Input Sensitivity: 200mV - 8V
4-gauge power and ground leads recommended. Contact us for information regarding a discount on a select amplifier kit when purchased together.
Dimensions: 16-1/8" L x 11-15/16" W x 2-1/2" H
- Note: Flames add an additional 1" to the height
1-year SonicElectronix.com warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

75 watts x 4 channel

RMS Power @ 2 ohms

150 watts x 4 channel

RMS Power @ 1 ohm

225 watts x 4 channel

Bridged RMS Power

600 watts x 2 channel

Amplifier Specifications

Number of Channels

4-Channel

Total Peak Power Output

2400 watts

Total RMS Power Output

1200 watts

Minimum Impedance Unbridged

1 ohms

Minimum Impedance Bridged

1 ohm

THD at Rated RMS Power

0.05%

Speaker Level Inputs

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)
Full (AP)

High-Pass Crossover Frequency

50 - 750 Hz

Low-Pass Crossover Frequency

40 - 120 Hz

Subsonic Filter

20 - 50 Hz

Signal-to-Noise Ratio

100 dB

Channel Separation

50 dB

Bass Boost

0 - 18 dB

Remote bass/level controller

Yes

Fuse Rating

20A x 4

Warranty and Return Policy
