Name: JBL GTO24001 Open Box
Brand: JBL
SKU: LS-gto24001-OB
Price: 399.99 USD
Availability: Discontinued

by JBL

About
Specs & Details
Product Videos
Reviews
Add-ons
Recently Viewed
Related Searches

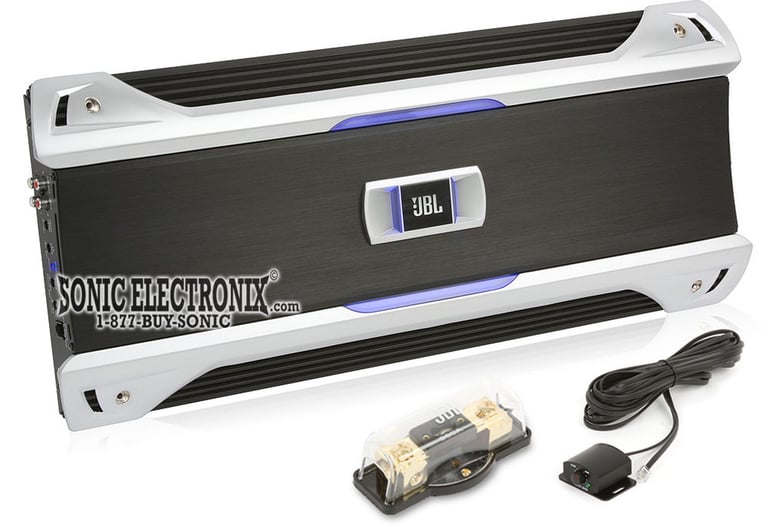

JBL GTO24001 Open Box Image 1 — JBL GTO24001 Open Box

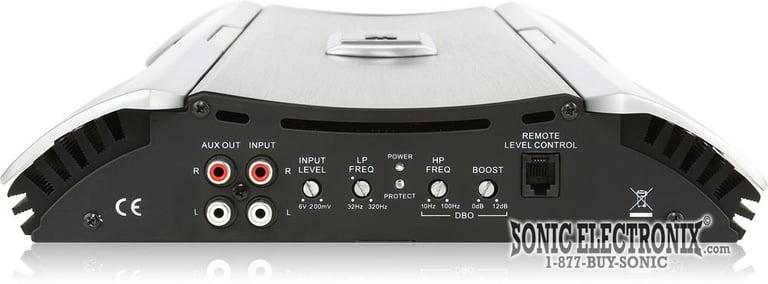

JBL GTO24001 Open Box Image 2 — JBL GTO24001 Open Box

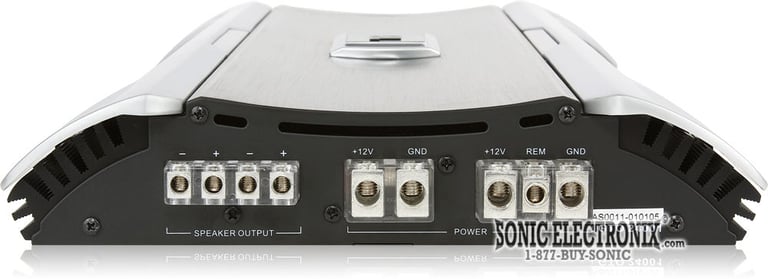

JBL GTO24001 Open Box Image 3 — JBL GTO24001 Open Box

JBL GTO24001 Open Box Image 4 — JBL GTO24001 Open Box

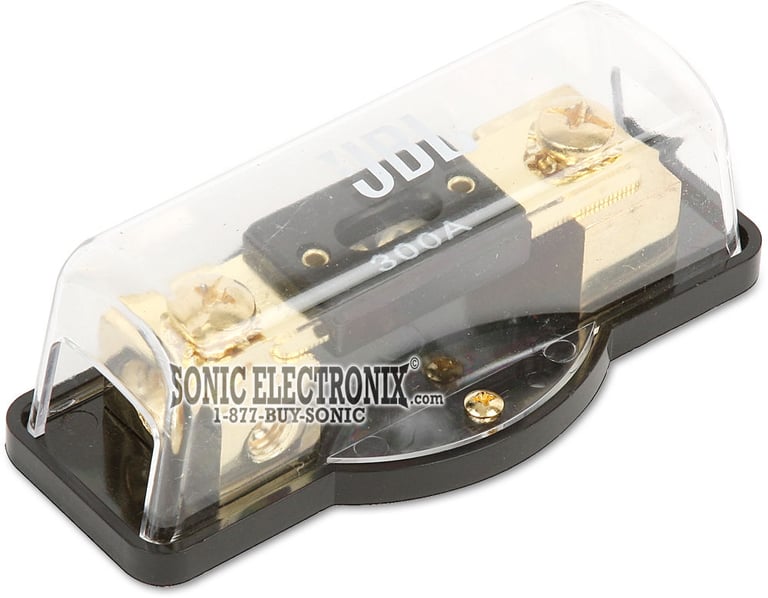

JBL GTO24001 Open Box Image 5 — JBL GTO24001 Open Box

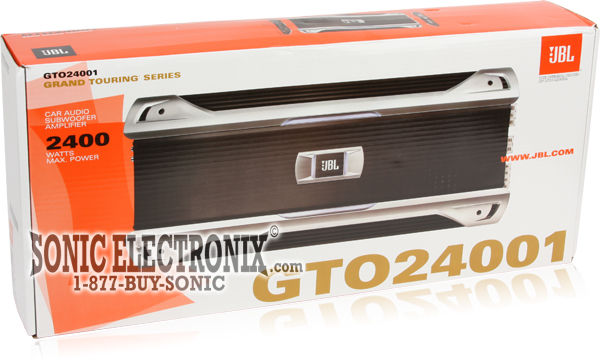

JBL GTO24001 Open Box Image 6 — JBL GTO24001 Open Box

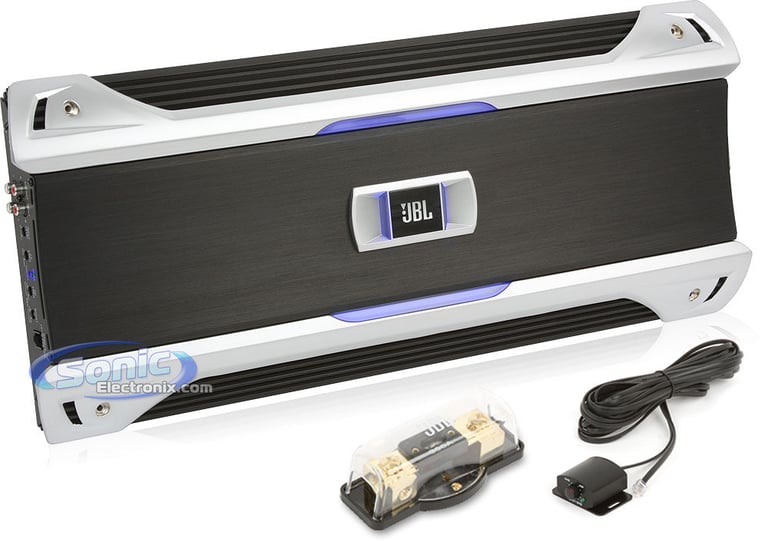

JBL GTO24001 Open Box Image 7 — JBL GTO24001 Open Box

JBL GTO24001 Open Box Image 8 — JBL GTO24001 Open Box

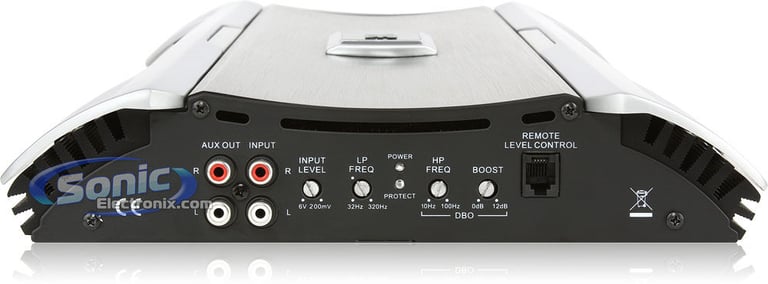

JBL GTO24001 Open Box Image 9 — JBL GTO24001 Open Box

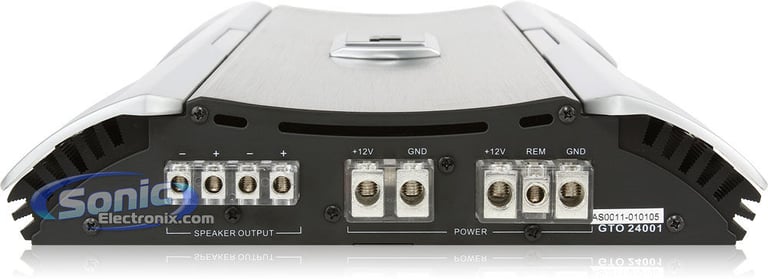

JBL GTO24001 Open Box Image 10 — JBL GTO24001 Open Box

JBL GTO24001 Open Box Image 11 — JBL GTO24001 Open Box

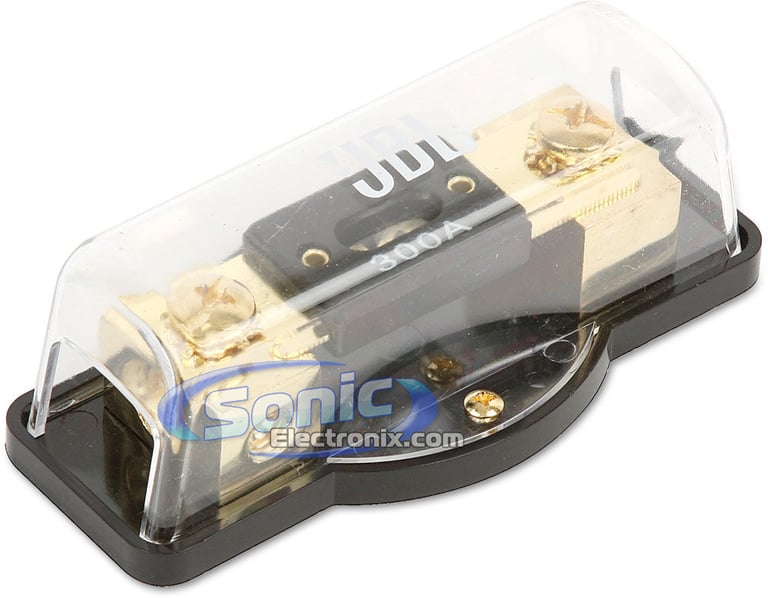

JBL GTO24001 Open Box Image 12 — JBL GTO24001 Open Box

Product videos

Product highlights

GTO Series Single-Channel Subwoofer Car Amplifier • 1750W x 1 Chan. @ 4 ohm • 2400 watts x 1 Chan. @ 2 ohm • Tuned Bass EQ • Preamp RCA Outputs • Wired Bass Remote • Heavy Duty Heatsink

Learn more about the LS-gto24001-OB

Product Highlights

GTO Series Single-Channel Subwoofer Car Amplifier • 1750W x 1 Chan. @ 4 ohm • 2400 watts x 1 Chan. @ 2 ohm • Tuned Bass EQ • Preamp RCA Outputs • Wired Bass Remote • Heavy Duty Heatsink

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Introducing the JBL GTO24001 amplifier. New to the Grand Touring Series, this amp has been engineered to ensure optimum power delivery into numerous impedances with low distortion. It comes outfitted with a variable 12dB-per-octave electronic crossover, which allows optimal subwoofer tuning based on location and accompanying loudspeaker components. It also includes the JBL Dynamic Bass Optimization Circuit, which provides variable filtering with adjustable Q below 100Hz. This circuit allows for tuning of any enclosure to any vehicle. Full-range preamp outputs are provided, facilitating multiple-amplifier hookups without the need for high-loss Y-adapters or signal splitters. The GTO24001 also includes a remote bass-level control for on-the-fly bass-output changes.

The GTO24001 also features Direct-Connect, which allows use of up to 4-gauge power and ground cable to ensure enough juice is being delivered. Direct-Connect speaker terminals are also used, eliminating the need for additional adapters or special fittings. Common-dimension amplifier footprints are used on all GTO models, providing two common dimensions for ultraclean multiple-amplifier-model installations.

Open Box GTO Series Single-Channel Subwoofer Car Amplifier
Almost Half The Price As New!!!
RMS Power Rating:

4 ohm: 1750 watts x 1 chan.
2 ohm: 2400 watts x 1 chan.

MOSFET power supply

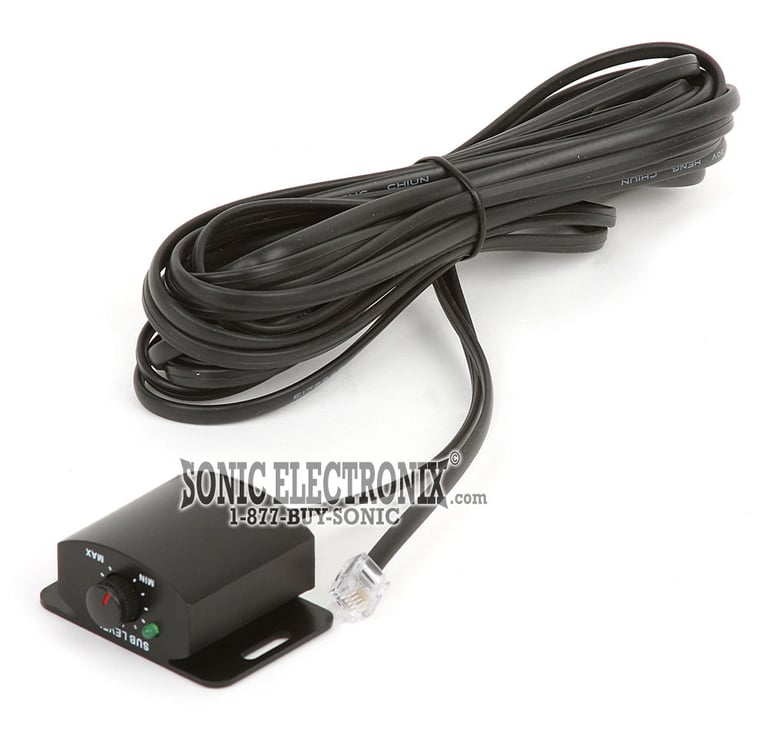

Wired remote bass level control included
LED power indicators
Tuned Bass EQ (0-12 dB bass boost)
Single channel operation
1 Set of preamp RCA outputs
Heavy duty aluminum alloy heatsink for maximum heat dissipation
RCA level inputs
Screw terminals
Variable high-pass filter (10-100 Hz, 24 dB/octave)
Variable low-pass filter (32-320 Hz, 24 dB/octave)
CEA-2006 compliant amplifier
Frequency response: 20-330 Hz
Dimensions: 24-7/8"L x 10-3/8"W x 2"H
1/0-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
1-year SonicElectronix.com warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

1750 watts x 1 channel

RMS Power @ 2 ohms

2400 watts x 1 channel

Amplifier Specifications

Amplifier Class

Number of Channels

1 - Mono

Total RMS Power Output

2400 watts

Maximum Input Gauge Size

1/0 AWG

Minimum Impedance Unbridged

2 ohm

THD at Rated RMS Power

0.5%

Speaker Level Inputs

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)

High-Pass Crossover Frequency

10 - 100 Hz

Low-Pass Crossover Frequency

32 - 320 Hz

Signal-to-Noise Ratio

97 dB

Bass Boost

0 - 12 dB

Remote bass/level controller

Yes

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Sonic Electronix
