SPL S3-10H

10" Dual 4 ohms S3 Series Subwoofer (S310H)

SPL
Shop all SPL
Product videos
highlight-star-icon

10" S3 Series Subwoofer • Dual 4 ohm • 1800 Watts Peak • 600 Watts RMS • Reinforced Polypropylene Cone • 2.5" BAEISV Aluminum voice coil • 140 oz. Magnet • Dual Stacked Magnets

Learn more about the s310h

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

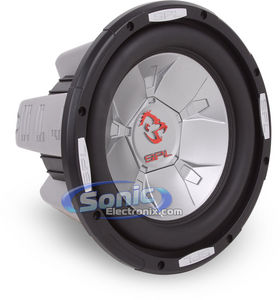

sp310 thumbnail

SPL SP3-10

OUR PRICE: $69.99

View item
NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
72-6514-12 main

Metra 72-6514-12

Install New Speakers in select 1999-2026 vehicles from Dodge, Ram, Jeep

7
-14.30%

$11.99

List price $13.99

NSP69 main

NVX NSP69

900W Peak (300W RMS) 6x9" N-Series 2 Way Coaxial Car Speakers

53
-16.67%

$89.99

List price $107.99

51KSC3504 main

Kicker KSC35 (51KSC3504)

200W Peak (100W RMS) 3.5" KS Series 2 Way Coaxial 4-ohm Speakers

4
-11.11%

$79.99

List price $89.99

Limited time!
46CSC354 main

Kicker CSC35 (46CSC354)

180W Peak (60W RMS) 3.5” CS Series 2 Way Coaxial 4-ohm Speakers

39
-30.71%

$51.96

List price $74.99

NSP35 main

NVX NSP35

200W Peak (70W RMS) 3.5" N-Series 2 Way Coaxial Car Speakers

55
-16.67%

$49.99

List price $59.99

Product Highlights


10" S3 Series Subwoofer • Dual 4 ohm • 1800 Watts Peak • 600 Watts RMS • Reinforced Polypropylene Cone • 2.5" BAEISV Aluminum voice coil • 140 oz. Magnet • Dual Stacked Magnets

Description


SPL brand icon

Authorized dealer

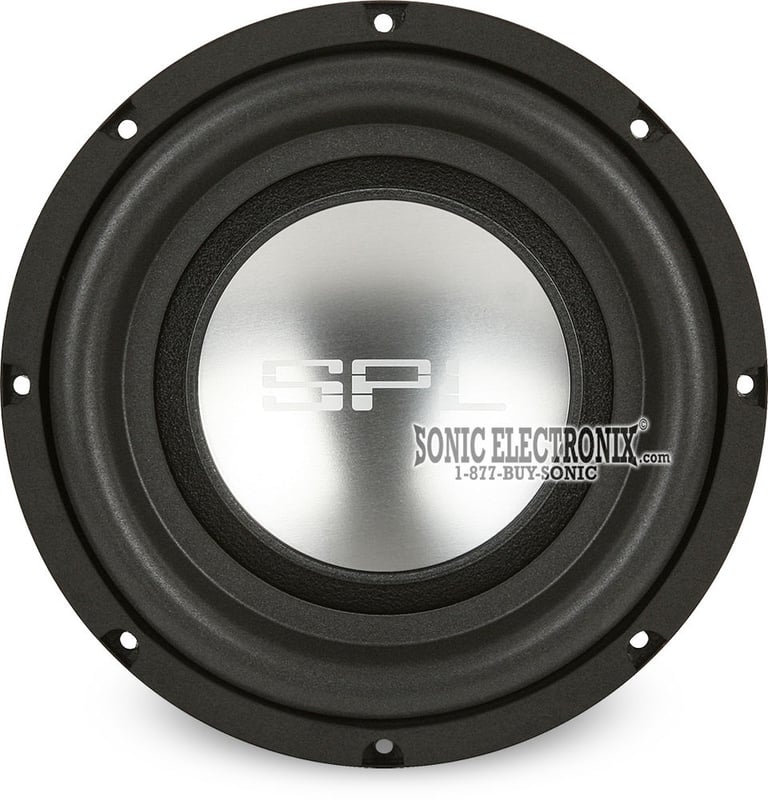

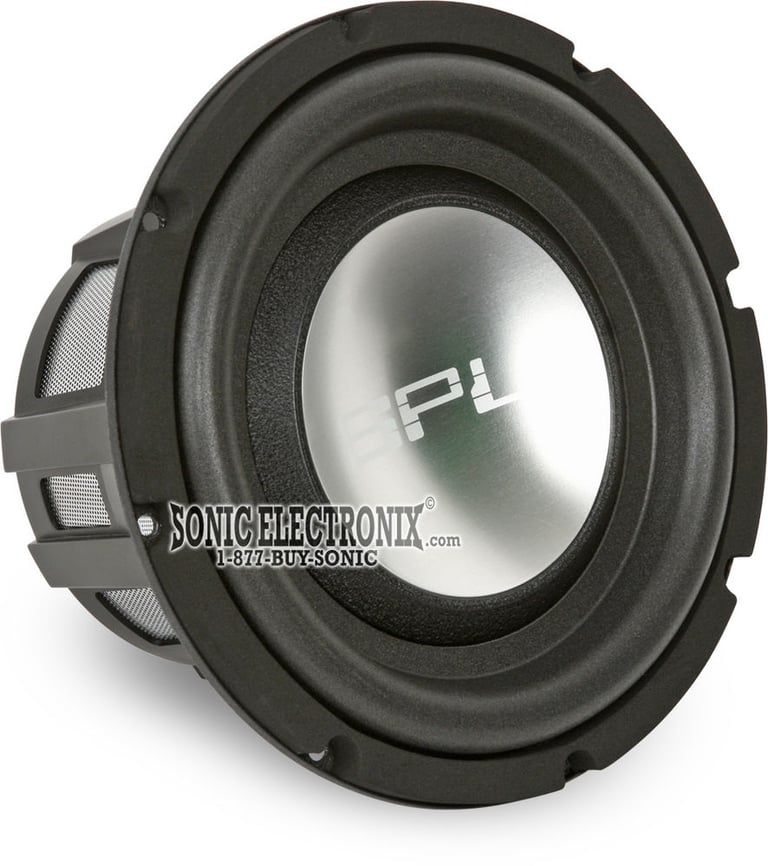

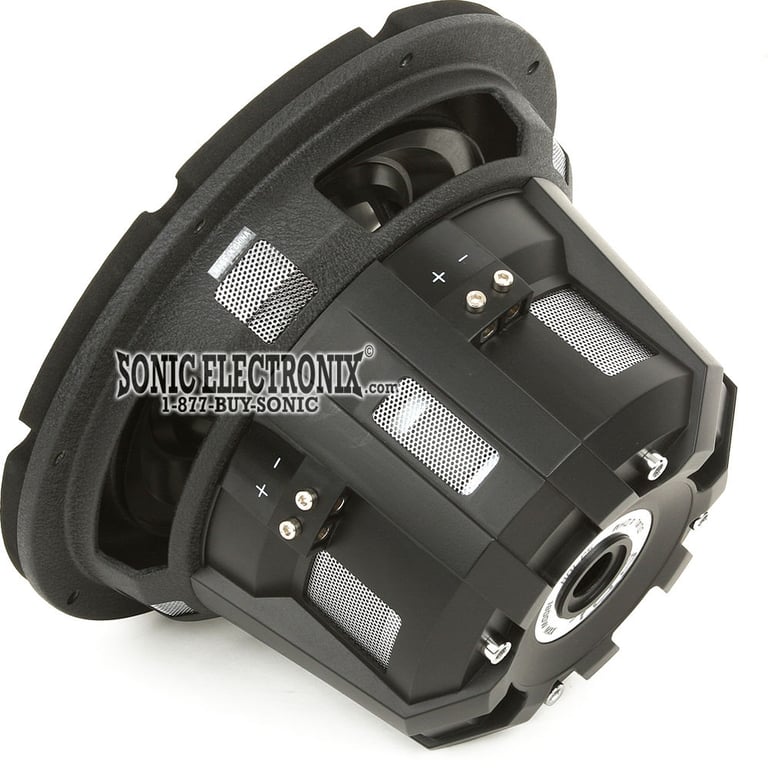

Rock and Roll or Rump to your favorite jams with the new S3 woofers from SPL. Great looks and performance, with an aluminum dust cap and polypropylene injected lightened cone to provide stunning looks but still keep the structural integrity needed to keep up to par with the massive motor structure bolted to the sleek basket design. The S3 is made to be the leader of the pack!!

  • 10" Dual 4 ohm S3 Series Subwoofer
  • Power Handling:
    • Peak: 1800 watts
    • RMS: 600 watts
  • Impedance: Dual 4 ohm
  • Reinforced polypropylene cone
  • 2.5" BAEISV Aluminum voice coil
  • 140 oz. Magnet
  • Dual stacked magnets
  • Sensitivity: 81 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Product history:

SPL SP3-10 thumbnail
(newest, current model)
SPL S3-10H thumbnail
(previous model, replaced by SPL SP3-10)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 SPL S3-10H Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 SPL S3-10H Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 SPL S3-10H Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 SPL S3-10H Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

R169X2 main

Rockford Fosgate Prime R169X2

260W Peak (130W RMS) 6x9" Prime Series 2 Way Coaxial 4-ohm Speakers

49
REF697F main

Infinity REF697F (INFSPKRF697FUS)

600W Peak (200W RMS) 6x9" Reference Series 2-Way Coaxial 4-ohm Speakers

6
-17.65%

$139.95

List price $169.95

PNW-69CS2 main

AudioControl PNW-69CS2

250W RMS 6x9″ PNW Series 2-way 3-ohm Component Speaker System

1
-5.42%

$349.00

List price $369.00

TERMINATOR69 main

MTX Audio TERMINATOR69

240W Peak (120W RMS) 6x9" Terminator Series 2 Way Coaxial 4-ohm Speakers

1
-11.12%

$79.95

List price $89.95

JS35K main

Jensen JS35K

150W Peak (50W RMS) 3.5" Apex Series 2-Way Coaxial 4-ohm Car Speakers

Limited time!
P1V2-25 main

Rockford Fosgate Punch P1V2-25

300W Peak (150W RMS) 2.5" Punch P1 Series 3 Way Coaxial 4-ohm Speakers

-25.93%

$159.99

List price $215.99

NSP69 main

NVX NSP69

900W Peak (300W RMS) 6x9" N-Series 2 Way Coaxial Car Speakers

53
-16.67%

$89.99

List price $107.99


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(89)

$139.99

List price $139.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(15)

$189.95

List price $159.95

R2-W10D2 small

Alpine R2-W10D2

• Peak Power: 2250 watts
• RMS Power: 750 watts
• Impedance: Dual 2 ohm
• Kevlar Reinforced Pulp Paper Cone
• High-Amplitude Multi-Roll (HAMR) Surround
• Mount depth: 5.92"
• Sensitivity: 82.3 dB

(3)

$319.95

List price $480.00

Specifications & Details


Subwoofer Specifications
Subwoofer Size
10"
Peak Power Handling
1800 watts
RMS Power Handling
600 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Sensitivity
81 dB
Xmax (millimeters)
14.5 mm
Woofer Composition
Polypropylene
Recommended Enclosure Specifications
Recommended Enclosure Type
Bandpass
Ported / Vented
Sealed
Top-Mount Depth (Mounting Depth)
8-7/8"

Item Details


Manufacturer:

SPL

Model Number:

S3-10H

Weight:

10.00lbs

Internal SKU:

s310h

Internal Product ID:

16187
