Phoenix Gold RX212S

400W Peak (200W RMS) 12" Single 4-ohm Car Subwoofer

highlight-star-icon

• Peak Power: 400 watts
• RMS Power: 200 watts
• Impedance: Single 4 ohm
• Mount depth: 5.7"
• Sensitivity: 87.1 dB

Learn more about the rx212s

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

44
-16.69%

$149.95

List price $180.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

Description


Phoenix Gold brand icon

Authorized dealer

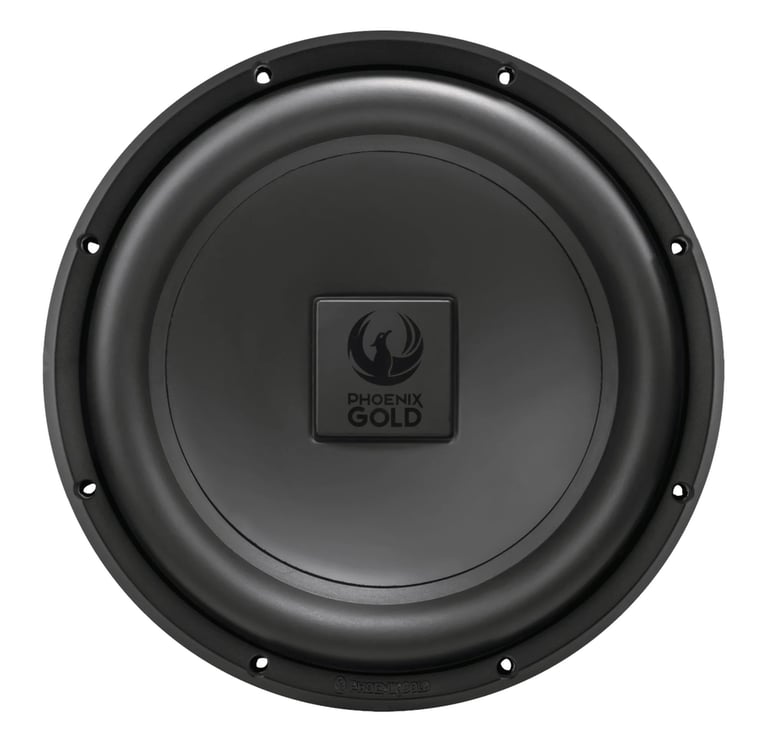

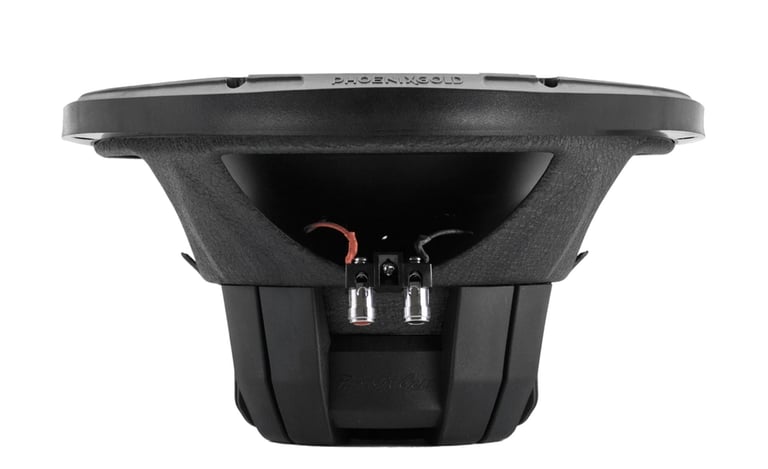

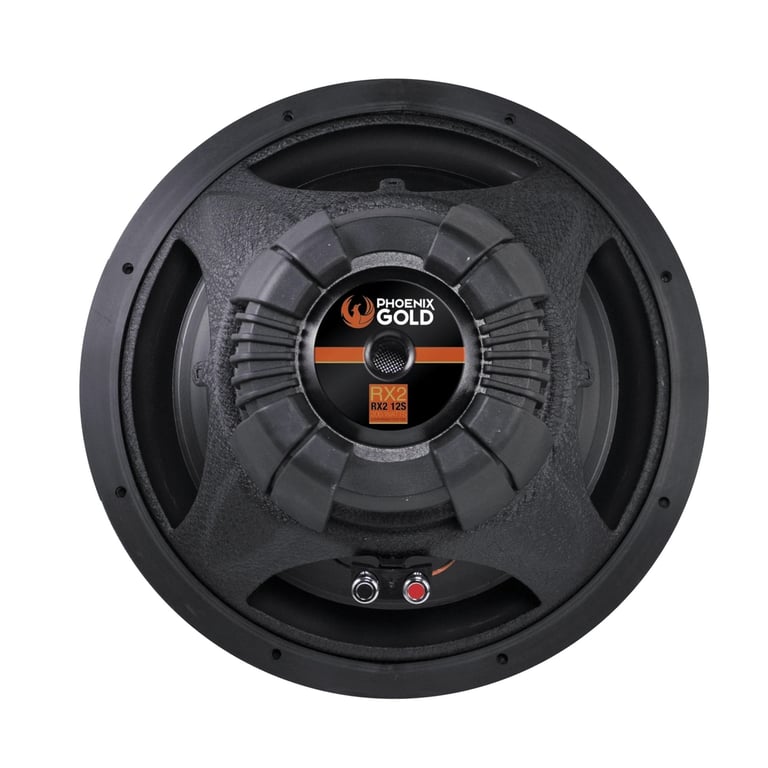

Phoenix Gold RX212S

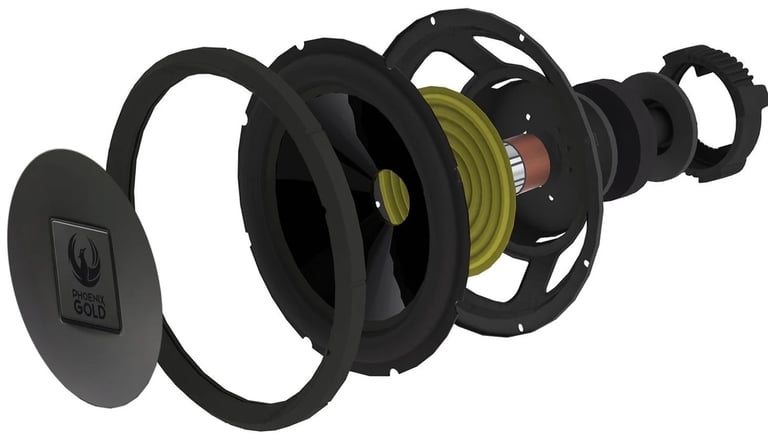

The RX212S is a 12 inch 200Watt Single 4-Ohm Subwoofer designed to give high performance at a great value. Where most entry line woofers feature 1.5 voice coils, Phoenix Gold RX2 subwoofers feature long wound 2.0 coils which allows for 25mm of peak to peak excursion. This results in an ability to create deep, accurate bass in vented or sealed enclosures.


Product Details:

  • 12" Single 4 ohm RX2 Series Subwoofer
  • Power Handling:
    • Peak: 400 watts
    • RMS: 200 watts
  • KlaraForm Vented Former technology reduces distortion by reducing heat and resistance
  • UNICAP Technology provides a stiff piston for pronounced SPL
  • Phoeniroll Surround Technology promotes linear motion
  • Torriform Voice Coil Technology effectively dissipates heat and minimizes distortion
  • Nickel-plated 12-gauge speaker terminal
  • Optimized for sealed or vented enclosures
  • Powder-coated anti-resonant steel basket
  • High excursion CAE/CAD motor design
  • 2" voice coil
  • 25 mm Xmax
  • Frequency Response:
  • Resonance Frequency (Fs): 28 Hz
  • Sensitivity: 87.1 dB
  • Recommended sealed box volume: 1 cubic feet - 1.4 cubic feet
  • Recommended ported box volume: 2 cubic feet - 20 cubic feet
  • Top-mount depth: 5.7"
  • Cutout diameter: 11.10"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Individually

PDF IconPhoenix Gold RX212S owner’s manual

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Phoenix Gold RX212S Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Phoenix Gold RX212S Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Phoenix Gold RX212S Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Phoenix Gold RX212S Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(25)

$949.99

List price $949.99

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(94)

$239.99

List price $287.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$79.99

List price $139.95

SW-M12D2 small

Sundown Audio M-12 D2 12" (M12D2)

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• High Roll Foam Surround
• Mount depth: 10.88"
• Sensitivity: 80.6 dB

(1)

$599.99

List price $719.99

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

YSW122 small

NVX YSW122

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 2 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 6.5"
• Sensitivity: 85 dB

(3)

$149.99

List price $227.99

12TW3-D4 small

JL Audio 12TW3-D4

• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Rubber Surround
• Mount depth: 3.5"
• Sensitivity: 84.11 dB

(20)

$569.99

List price $569.99

Specifications & Details


Subwoofer Specifications
Series
RX2 Series
Subwoofer Size
12"
Peak Power Handling
400 watts
RMS Power Handling
200 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2"
Sensitivity
87.1 dB
Xmax (millimeters)
25 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
1 cubic feet
Optimum Sealed Box Volume
1.25 cubic feet
Maximum Sealed Box Volume
1.4 cubic feet
Minimum Ported Box Volume
2 cubic feet
Optimum Ported Box Volume
21.75 cubic feet
Maximum Ported Box Volume
20 cubic feet
Top-Mount Depth (Mounting Depth)
5.7"
Cutout Diameter
11.10"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
28 Hz
Equivalent Compliance (Vas)
69.35 liters
Total Speaker Q Value (Qts)
0.43
Electrical Q Value (Qes)
0.46
Electrical Resistance of Voice Coil (Re)
3.4 ohm
Mechanical Q Value (Qms)
6.6
What is in the box?
Paperwork
User manual
WITB: Subwoofers
Subwoofer
Mounting screws (4)
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

RX212S

Weight:

12.00lbs

Internal SKU:

rx212s

Internal Product ID:

165359
