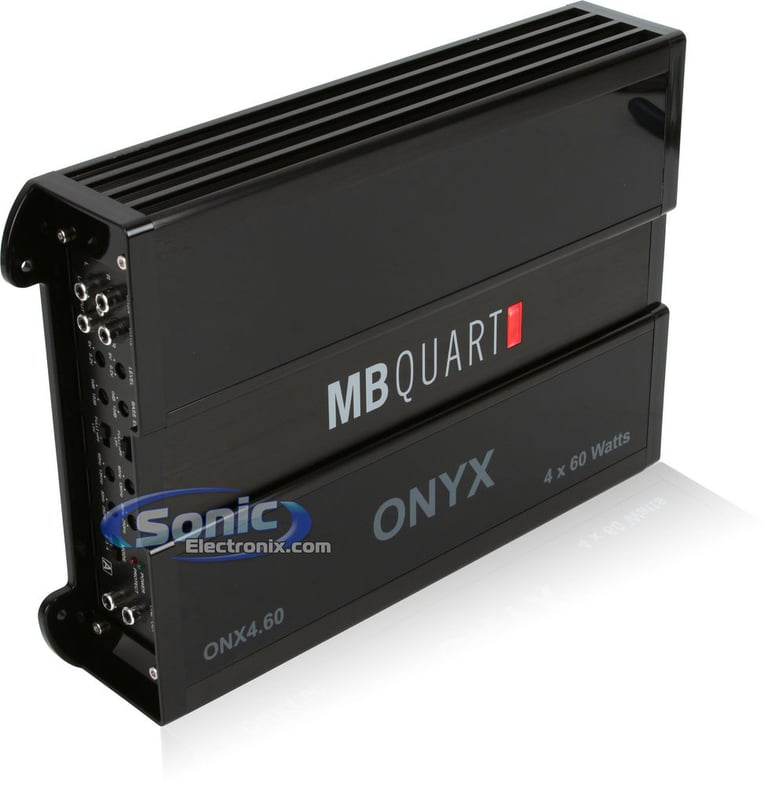

MB Quart ONX4.60

480W RMS, ONYX Series 4-Channel Amplifier (ONX-4.60)

MB Quart
Shop all MB Quart
Product videos
highlight-star-icon

ONYX Series 4-Channel Class A/B Car Amplifier • 120W x 4 Chan @ 2 Ohm • 60W x 4 Chan @ 4 Ohm • Unbalanced RCA Input Jack • Preamp RCA Outputs • 4-Way System Protection Circuitry • Piano Black Gloss Finish

Learn more about the onx460

We apologize

This item has been discontinued


Loading...
APSUB-CH41 main

PAC APSUB-CH41

Amplifier and Subwoofer Integration Interface for select 2013-2024 vehicles from Ram, Jeep, Dodge

-27.36%

$239.00

List price $329.00

72-6514 main

Metra 72-6514

Install New Speakers in select 1999-2026 vehicles from Dodge, Ram, Jeep

70
-37.52%

$9.99

List price $15.99

AXABH-CH2 main

Axxess AXABH-CH2

Amplifier Bypass Harness for select 2007-2021 vehicles from Ram, Dodge, Jeep

2
-11.77%

$29.99

List price $33.99

AP4-CH41 main

PAC AP4-CH41 R.2

Amplifier Integration Interface for select 2013-2023 vehicles from Ram, Jeep, Dodge

4
-16.03%

$419.00

List price $499.00

51KRDL7T102 main

Kicker KRDL7T10 (51KRDL7T102)

1000W RMS Loaded Dual 10" Sealed Truck Enclosure for select 2002-2024 vehicles from Ram, Dodge

1
-10.53%

$849.99

List price $949.99

SB-D-QDRAMD/10TW1 main

JL Audio Stealthbox® SB-D-QDRAMD/10TW1

Custom fit subwoofer enclosure for select 2002-2024 vehicles from Ram, Dodge

3

$1,699.99

AXSUB-CH5 main

Axxess AXSUB-CH5

Active 2-Channel Line Output Converter and Subwoofer Data Interface for select 2014-2026 vehicles from Ram, Jeep, Dodge

-10.04%

$205.99

List price $228.99

72-7902 main

Metra 72-7902

Install New Speakers in select 1990-2024 vehicles from Ram, Dodge, Jeep

19
-28.59%

$9.99

List price $13.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

Product Highlights


ONYX Series 4-Channel Class A/B Car Amplifier • 120W x 4 Chan @ 2 Ohm • 60W x 4 Chan @ 4 Ohm • Unbalanced RCA Input Jack • Preamp RCA Outputs • 4-Way System Protection Circuitry • Piano Black Gloss Finish

Description


MB Quart brand icon

Authorized dealer

Success is a Measurement of Quality and Power

The success of any car audio amplifier depends on system quality and construction, ease of installation and configuration, and sound enhancing features. MB Quart engineers built the all new Onyx series amplifiers from the ground up to be an affordable amplifier with the audiophile and performance enthusiast in mind. This series is composed of value-packed class A/B amplifiers that boast affordability without sacrifice to power or quality. All Onyx Amplifiers come clothed in a beautiful new age piano black finish which accents interiors and brings a whole new level of sophistication to swallow. To match, the line of Onyx Speakers shows off the same piano black finish applied to their polypropylene cone woofers. It’s a perfect match every time.

Speaking of features, Onyx amplifiers bring the full tuning spectrum to your fingertips with variable high-pass, low-pass and subsonic filters built-in. To increase endurance, MB Quart designed Onyx amplifiers with military grade printed circuit boards and built-in system diagnostics that keep these amps running strong. High speed MOSFET output devices are used in the power supply to give you the best watts-per-dollar ratio. It’s not hard to see how success has been written all over these amplifiers, though with a piano finish that looks that good, we know you will be staring.

  • ONYX Series 4-Channel Class A/B Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 60 watts x 4 chan.
    • 2 ohm: 120 watts x 4 chan.
    • Bridged, 4 ohm: 240 watts x 2 chan.
  • CEA-2006 compliant amplifier
  • PWM (Pulse Width Modulated) MOSFET power supply

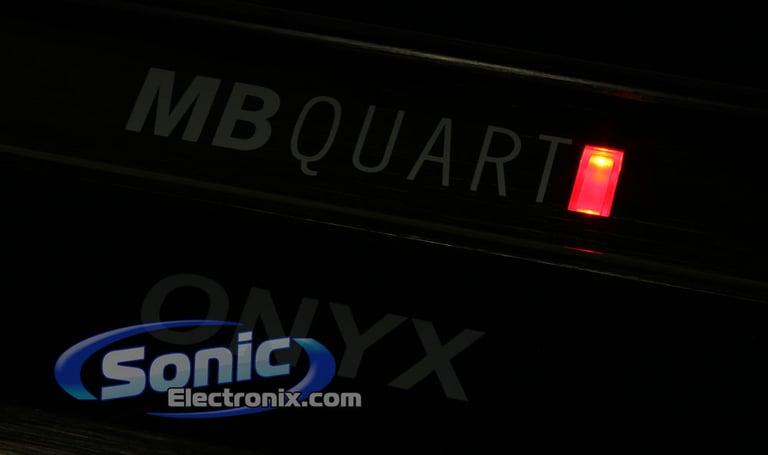

  • LED power (green) and protect (red) indicators

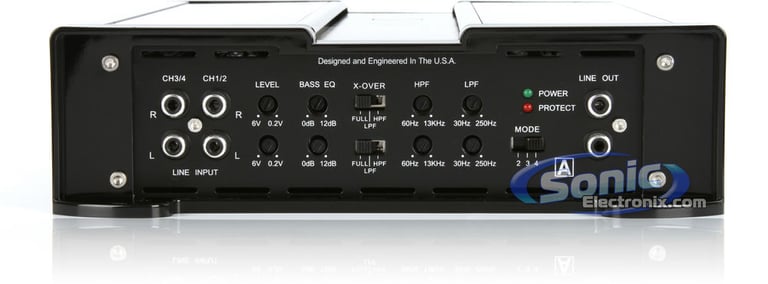

  • Variable Bass Boost (0 to +12 dB bass boost at 45 Hz
  • 4/3/2 channel operation
  • Unbalanced RCA input jack
  • Preamp RCA outputs to daisy chain multiple amps
  • 4-Way System Protection circuitry (DC, thermal, overload, and speaker short protection)
  • Piano black gloss finish with illuminated logo
  • Heavy duty aluminum alloy convection heatsink for superb heat dissipation
  • Silver-plated RCA level inputs

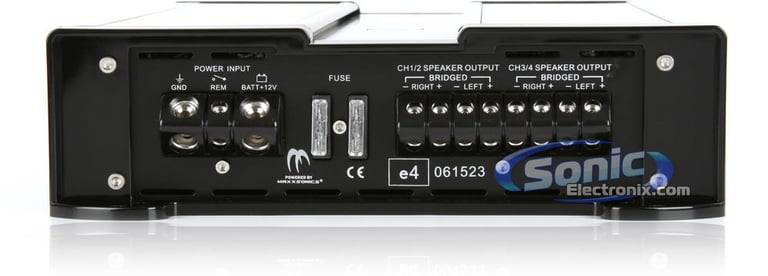

  • Silver-plated screw terminals
  • Input sensitivity:
    • Low level: 200mV-6V
  • Variable high-pass filter (60-13,000 Hz, 24 dB/octave)
  • Variable low-pass filter (30-250 Hz, 24 dB/octave)
  • Damping factor: >180
  • Frequency response: 10-45,000 Hz
  • Dimensions: 13-11/16"L x 9"W x 2-1/2"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Loading...
51KRDL7T102 main

Kicker KRDL7T10 (51KRDL7T102)

1000W RMS Loaded Dual 10" Sealed Truck Enclosure for select 2002-2024 vehicles from Ram, Dodge

1
-10.53%

$849.99

List price $949.99

SB-D-QDRAMD/10TW1 main

JL Audio Stealthbox® SB-D-QDRAMD/10TW1

Custom fit subwoofer enclosure for select 2002-2024 vehicles from Ram, Dodge

3

$1,699.99

51KTDL7T102 main

Kicker 51KTDL7T102

1000W RMS Loaded Dual 10" Sealed Truck Enclosure for select 2011-2024 vehicles from Ram

-10.53%

$849.99

List price $949.99

SB-D-QDRAM/10W3v3 main

JL Audio Stealthbox® SB-D-QDRAM/10W3v3 (Open Box, Like New)

Custom fit subwoofer enclosure for select 2002-2024 vehicles from Ram, Dodge

1

$1,249.99

51KR_46CXA_RCT_XK42_NK_49K main

Kicker KRDL7T10 Sub Enclosure + CXA1200.1 Amp + Remote w/ Free Amp Install Kit

1000W RMS Dual 10" Sealed Truck Enclosure, 1200W RMS Class D Monoblock Amp, Wired Bass Remote, 4 Gauge OFC Amp Kit, and 2 Koozies

158
-18.40%

$1,290.01

List price $1580.93

51KRDL_NDA15_XK42_NK_KK main

Kicker KRDL7T10 Subwoofer Enclosure + NVX NDA15001 Amp w/ Free Amp Install Kit

1000W RMS Loaded Dual 10 inch Sealed Truck Enclosure, 1500W RMS Class D Monoblock Amplifier with Bass Remote, 4 Gauge OFC Wiring Kit and Koozies

138
-24.94%

$1,050.02

List price $1398.94

51KTDL7_NDA15_XK42_NK_49K main

Kicker 51KTDL7T102 + NVX NDA15001 w/ Free Amp Install Kit

1000W RMS Loaded Dual 10" Sealed Truck Enclosure with 1500W RMS Class D Monoblock Car Amplifier, 4 Gauge OFC Wiring Kit, and Koozies

137
-24.94%

$1,050.02

List price $1398.94

EXCL-RAMBASS.DF/21-UP.LD main

DS18 EXCL-RAMBASS.DF/21-UP.LDPKG

2400W Peak (1200W RMS) Loaded Dual 10" Sealed Enclosure and Amplifier Package for select 2021-2024 2500 and 3500 and 1500

-16.67%

$2,039.95

List price $2447.99

51L7T_CXA12_ARCT_XK42_NK_KK main

Kicker 51KTDL7T102 Enclosure + CXA1200.1 Amp w/ Free Amp Install Kit

Kicker 1000W RMS Loaded Dual 10" Sealed Truck Enclosure, 1200W RMS Monoblock Amp, Bass Remote, NVX 4-Gauge OFC Wiring Kit, and Koozies

157
-18.40%

$1,290.01

List price $1580.93

BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5

Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$379.99

List price $379.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(24)

$279.99

List price $335.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
60 watts x 4 channel
RMS Power @ 2 ohms
120 watts x 4 channel
Bridged RMS Power
240 watts x 2 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Total RMS Power Output
480 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.05%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
60 - 13,000 Hz
Low-Pass Crossover Frequency
30 - 250 Hz
Signal-to-Noise Ratio
>92 dB
Channel Separation
>80 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
No
Fuse Rating
25A x 2
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

ONX4.60

Weight:

9.00lbs

Internal SKU:

onx460

Internal Product ID:

23877

Product and How-to Videos


Customer Ratings & Reviews


MB Quart ONX4.60 thumbnail image

5 star
80%
4 star
10%
3 star
10%
2 star
0%
1 star
0%



Durability
4.6
Value
4.8
Features
4.8
Design
4.5
Usability
4.6

Customer Reviews

Sort by:

Loading...

Works great for me

I really like this amp. After having bad luck with a couple of other brands, I went with this one. Loud and clear. No noise. The amp looks great, and includes a nice mb quart sticker, and a small cleaning cloth. The piano black is prone to fingerprints.

The only con I can give is that if I push it hard for long enough, I get a faint burning electronics smell. I have never backed off the volume when I smell it, and I have never had any smoke associated with the smell. It could be some extra dielectric grease burning off. It has never gone into protection.

Overall, I am very satisfied. It has decent power for the price.

By Oshea on September 26, 2012

9 found this helpful


good buyy

I have this amp running my Rockford fosgate power series component speakers. And they sound loud and clear! I have to turn the gain only half way up! Before the sound is piercing!

By LINK on September 11, 2011

9 found this helpful


Totally Awesome

I was really wanting to get the MB Quart REF 4.80 to drive my mids and highs, as I already have the MB Quart REF 1.800 driving my subs. Unfortunately, that amp has been discontinued. In my search, I ended up calling MB Quart directly to try and get this amp, as it was no longer offered for sale by Sonic. In speaking with them, they told me try one of their Authorized Online Retailers, and Sonic was first on their list. I mentioned to the CSR that I already tried Sonic and it was unavailable. I then called MB Quart up again, and they reccomended the ONYX 4.60 to meet my needs. My main concern was having a quality amplifier which was also CEA 2006 compliant. Sonic had this amplifier in stock, and with their Low Price garuantee, I was able to pick this great amp up for a great price. How great is that! I currently have this amplifier driving 2 sets of the MB Quart ONYX OTK-30 Widesphere Tweeters and 2 sets of the Rockford Fostgate Power Series T-1682 6 x 8 coaxials, all of which I picked up from Sonic at a great price also. Totally Awesome are the only words that I can come up with for this amp's perfomance on this set up, it really made my mids and highs come to life. It also relieved stress off my head unit's pre-amp to deliver a more full and true signal to my subs. The sound comparison of head unit powered vs. amped with the ONYX 4.60 is totally awesome. It is like the difference between night and day. Additionally, I added Dynamat to the speaker install and everything is controlled by a Pioneer AVH-P3300BT head unit to deliver 120 clean, clear, crisp RMS watts to these components. There is nothing negative regarding this amps perfomance, but MB Quart could have left the red chicklet logo unilluminated, as this does throw off the beautiful gloss black appearance of the amp. That doesn't really matter though, as this amp is built to perform, appeasing the ears, not the eyes. For my subs, I have 2 10" Alpine SWS-1023's driven by the MB Quart REF 1.800. Everyone is amazed when they look inside my F-250 Crew Cab, as they are expecting to see a whole gamut of speakers and amps, but they are surprised to see that everything looks stock with the exception of the head unit! When everyone asks "How did you do it?" I just say Sonic! and I'm not talking about the drive-in either, LOL. Thanks SonicElectronix.com!

By Mark on April 2, 2012

6 found this helpful


Not Quite right for me.

The amp fit the right price, good power 120watts at 2ohms more than enough for my infinity reference components (90 watts rms) Seemed to have good build Quaility but i recieved an unclean signal while using the amp. no alternator whine or ground loop noise just an overall muddy sound. i checked ground and rcas which where both good. i just couldn't get it to sound crisp and clear. Components sounded better on the 20rms from the headunit alone. Maybe the ticket for some but not for me. Have a Polk Pa660 now and its crystal clear with less power!

By Randum on February 28, 2013

5 found this helpful


Great

After I had this thing installed properly it makes my speakers that much better! I have it powering 4 infinity kappa 6x9 speakers and I would highly recommend this amp!

By KC on February 21, 2013

7 found this helpful


Great

Used this amp for a sound upgrade in my boat, drives pair of 6.5 Polk components and one Polk 10" sub. Sound is loud and clear.

By tomas on February 21, 2011

6 found this helpful


Perfect Amp!

I just finished installing this amp to power my MB Quart ONX216 components and RF 12" Sub. All I can say is that it gives just the right amount of juice my speakers need. I was worried at first that it won't be enough to power everything since I had friends who had 4-channel Hifonics amps that would overheat and shut off after playing hard but this one I have no issues at all.

By Michael on September 10, 2012

5 found this helpful


Absolutly amazing product

I was very skeptical about this amp because MB Quart used to be a great company until maxxsonics got ahold of it. All of mb quarts products are still good as long as you get a good batch. Anyways, this amp is absolutely amazing! It sounds beautiful powering my 4 Rockford Fosgate p152 coaxials in my jeep cheeokee Xj. It powers them perfectly and has rich mids, crisp highs and clean clear mid bass. Amazing bang for your buck! And goes beautifully with my RE Audio SEX10d4 and MB Quart ONX1.1000d. Looks great but the light just kills the nice glossy black look. These amps have a lot of setting to tune to your personal preference. Overall great product!

By Jake on July 14, 2011

5 found this helpful


After I bought this, every amp I've bought has been an MB Quart

MB quart has done a great job with the Onyx line, and this amp is no exception, even though its not CEA compliant. The ratings are true, and from hooking it up to a friends speakers, i'm pretty sure it can put out 70+ if properly tuned on a good day.

My only gripes are that the angled terminals are kind of a pain to use once you mount the amp, and the 4AWG terminals are 4AWG, exactly, there is no extra room for wire in there, and the light blows the classy piano black scheme

By Doug on March 15, 2011

5 found this helpful


Another Great MB Quart product!

I have owned several MB Quart products including this MB Quart ONX4.60 amp. I have the front 2 channels running my mids & highs and the rear channel bridged mono running a 15" Kicker Comp. Sub. Sounds Great, Great Product & Great Price!!!!

By steve on July 17, 2012

5 found this helpful




SI823 small

Stinger SI823

3 Ft 2-Channel 8000 Series Audiophile Grade RCA Interconnect Cable

(11)

$34.99

List price $69.00

SI4817 small

Stinger SI4817

17 Ft 4000 Series Video Composite Cable

$14.99

List price $39.00

16-PRD500.1 small

Memphis 16-PRD500.1

500 watts, Class D Monoblock Amplifier

(5)

$219.99

List price $399.99

V 1000.4 small

Massive Audio V 1000.4

1000W 4-Channel Volt Series Class A/B Car Amplifier

(2)

$119.00

List price $359.95

SI92YF small

Stinger SI92YF

2-Channel 9000 Series Premium RCA Audio Y-Adapter Cable, 2 Female to 1 Male

(1)

$239.00

List price $299.00

CDX-GT920U small

Sony CDX-GT920U

In-Dash AM/FM, CD, MP3, WMA, AAC, AAD Player with Front Aux and USB Inputs

(5)

$159.99

List price $359.99

MEX-BT2800 small

Sony MEX-BT2800

In-Dash CD, MP3, WMA, AM/FM Receiver with Built-in Hands-Free Bluetooth and Front Aux-in

(6)

$106.99

List price $159.99

AVN4430 small

Eclipse AVN4430 (AVN-4430)

In-Dash DVD/CD/MP3/WMA/USB Receiver with Detachable 4.3" Tom-Tom Navigation and Built-in Bluetooth

(19)

$289.99

List price $849.99

AVN6620 small

Eclipse AVN6620 / AVN62D

Double DIN 7" TFT-LCD Touchscreen DVD/CD/MP3 Receiver with GPS Navigation System (AVN-6620)

$549.99

List price $1599.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2014 Chevrolet Sonic

2017 Audi A3

2012 Toyota Prius C

2021 Ram 2500

2003 Saab 9-3

2004 Ford Freestar

1975 Ford Bronco

2000 Dodge Caravan

2009 Dodge Avenger

2011 Audi A4

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
