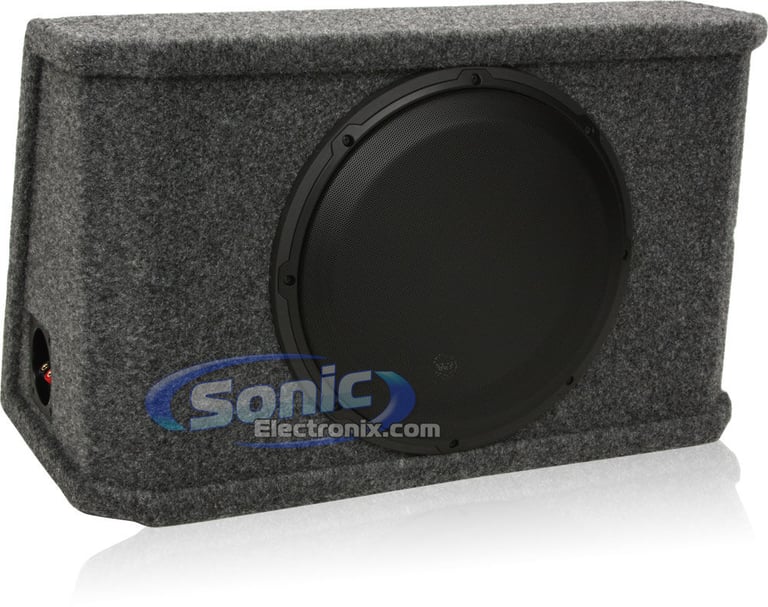

JL Audio CS112RG-W3v3

1 12" 12W3v3-4 Subwoofers Loaded in a PowerWedge W3v3 Sealed Enclosure with Grille Included

JL Audio
Shop all JL Audio
highlight-star-icon

• One 12" W3v3 sub loaded in a PowerWedge W3v3 enclosure
• Rear firing
• Grey carpet finish
• 2 ohm Final Impedance
• Steel mesh grilles included

Learn more about the cs112rgw3v3

We apologize

This item has been discontinued


Loading...
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

43
-16.69%

$149.95

List price $180.00

43DSC504 main

Kicker DSC50 (43DSC504)

400W Peak (100W RMS) 5.25" DS Series 2-way 4-ohm Coaxial Car Speakers (DSC504)

17
-11.77%

$74.99

List price $84.99

Description


JL Audio brand icon

Authorized dealer

W3v3 Sealed PowerWedge Systems from JL Audio

These JL Audio PowerWedge systems have defined value in engineered low-frequency systems for over ten years. The newest models deliver enhanced power handling and are smaller than previous models, thanks to the W3v3 subwoofer drivers. Built in JL's Miramar, Florida factory, utilizing state-of-the-art CNC woodworking equipment, PowerWedge™ systems feature top-quality MDF construction, steel-mesh grilles, five-way binding post connectors, high-grade automotive carpeting and JL Audio ECS internal wiring.

These compact systems are ideal for a variety of vehicle sizes and deliver tight, powerful bass that will please any audiophile. The rear-firing PowerWedge systems feature an angled back panel to allow the driver to fire toward the back of the vehicle with minimal loss of trunk or hatch space. You will not be disappointed in these Powerwedge systems from JL!

Subwoofer Specifications:

  • 1 12" 12W3v3-4 Subwoofers Loaded in a PowerWedge W3v3 Sealed Enclosure with Grille Included
  • Power Handling:
    • Peak: 1000 watts
    • RMS: 500 watts
  • Final Impedance: 2 ohm
  • Mineral-filled polypropylene upper cone with a metallic JL Audio medallion logo gives the W3's a whole new, classy and sophisticated look
  • NBR (Nitrile Butadiene Rubber) surround
  • DMA-optimized, long linear excursion capability to virtually eliminate distortion and increase sound output
  • Perform outstanding in compact sealed or ported enclosures
  • DMA (Dynamic Motor Analysis) modeling to deliver unsurpassed dynamic stability and low-distortion operation within intended power range
  • Sensitivity: 87 dB
  • Free Air Resonance (Fs): 28.28 Hz
  • Electrical "Q" (Qes): 0.553
  • Mechanical "Q" (Qms): 6.936
  • Total Speaker "Q" (Qts): 0.512
  • Equivalent Compliance (Vas): 2.729 cu. ft (not recommended box size)
  • Xmax Linear Excursion: 0.510 in. / 13.0 mm
  • Driver Displacement: 0.071 cu. ft.
  • 1-year SonicElectronix.com warranty (Subwoofers only)

Enclosure Specifications:

  • PowerWedge W3v3 Sealed Enclosure with Grille Included
  • Sealed, rear-firing
  • Made from high quality MDF construction
  • Steel mesh grille for the ultimate protection
  • Dark gray carpet
  • Weight: 30.4 lbs. (13.8 kg)
  • Dimensions: 11-3/4"D1 x 6-3/4"D2 x 24"W x 14-1/4"H
