Name: Pioneer GM-6400F R/B
Brand: Pioneer
SKU: LS-gm6400f-RB
Price: 124.99 USD
Availability: Discontinued

by Pioneer

About
Specs & Details
Product Videos
Reviews
Add-ons
Recently Viewed
Related Searches

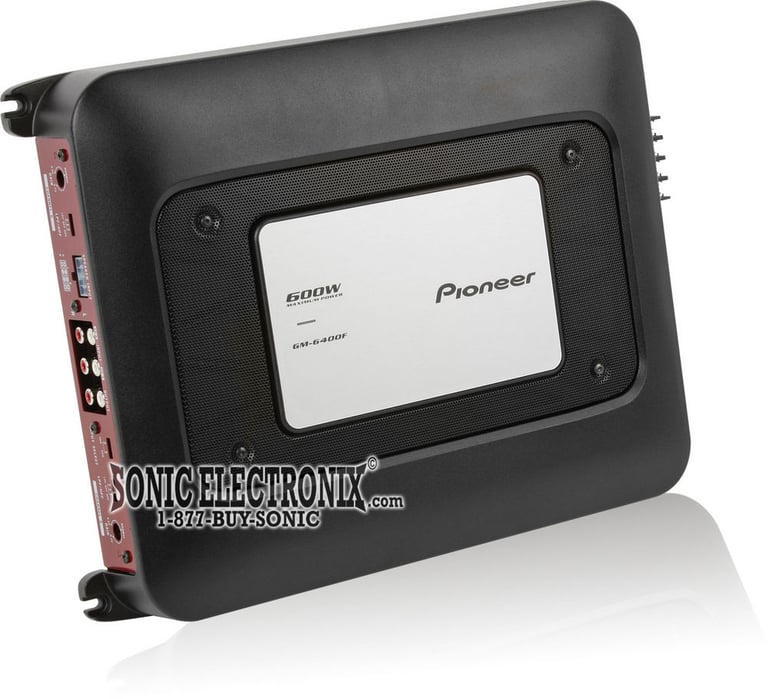

Pioneer GM-6400F R/B Image 1 — Pioneer GM-6400F R/B

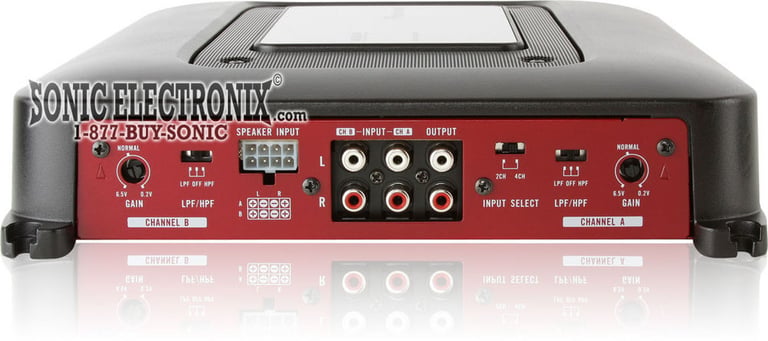

Pioneer GM-6400F R/B Image 2 — Pioneer GM-6400F R/B

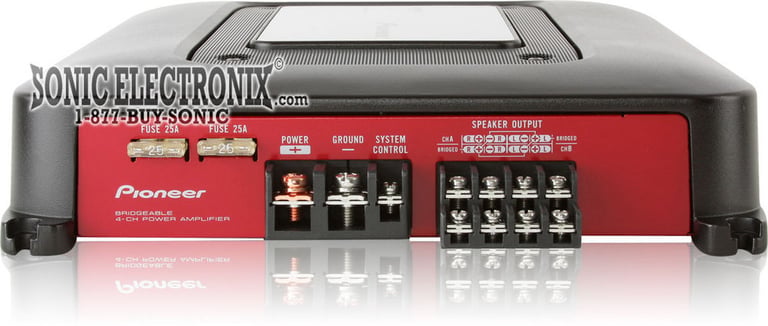

Pioneer GM-6400F R/B Image 3 — Pioneer GM-6400F R/B

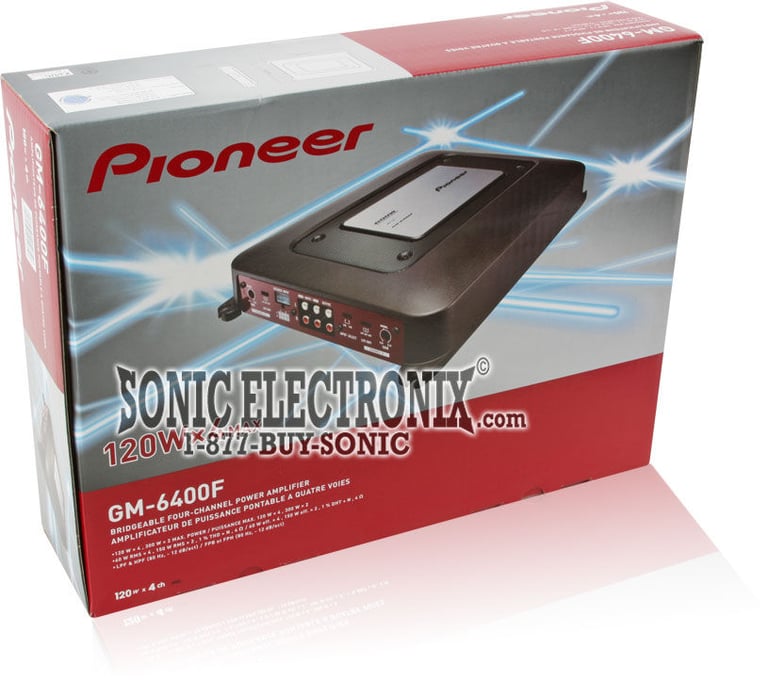

Pioneer GM-6400F R/B Image 4 — Pioneer GM-6400F R/B

Product videos

Product highlights

GM Series • Bridgeable 4-Channel • Class AB Amplifier • 60 Watts RMS x4 Channel @ 4 ohm • 75 Watts RMS x 4 Channel @ 2 ohm • Speaker Level Inputs • LPF/HPF Crossovers • Gain Caution Feature • H Shaped Chassis

Learn more about the LS-gm6400f-RB

Product Highlights

Description

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

Is your system showing it's full potential? Pioneer is constantly finding ways to make amplifier technology better. With added design features like the H-Shaped chassis, inherited from their top of the line PRS amplifiers, their improved GM-Series prove how you can add cutting edge technology and more power to your system without breaking the bank. Pioneer's Gain Control Caution feature will automatically reduce the amplifier's output until the headunit volume is decreased to acceptable levels. It feels good to have Pioneer in your vehicle.

GM Series 4-Channel Class AB Car Amplifier
RMS Power Rating:

4 ohm: 60 watts x 4 chan.
2 ohm: 75 watts x 4 chan.
Bridged, 4 ohm: 150 watts x 2 chan.

Max power output: 600 watts
PWM Regulated MOSFET power supply
LED power indicators
4/3/2 channel operation
Built-in crossover LPF/HPF (front/rear independent)
Variable high-pass filter (cut off frequency: 80 Hz, -12 dB/octave)
Variable low-pass filter (cut off frequency: 80 Hz, -12 dB/octave)
Built-in speaker level inputs
Hi-volt (400mV ~ 6.5v) input level control
Exclusive H shaped chassis and heatsink
Gain control caution feature helps prevent damage to speakers
CEA-2006 compliant amplifier
Frequency response: 10-50,000 Hz
Dimensions: 8-1/2"L x 2-1/2"W x 13-5/8"H
4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
90 Day SonicElectronix.com warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

60 watts x 4 channel

RMS Power @ 2 ohms

75 watts x 4 channel

Bridged RMS Power

150 watts x 2 channel

Amplifier Specifications

Amplifier Class

A/B

Number of Channels

4-Channel

Total Peak Power Output

600 watts

Total RMS Power Output

300 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

0.03%

Speaker Level Inputs

Yes

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)

Signal-to-Noise Ratio

95 dB

Channel Separation

70 dB

Remote bass/level controller

Fuse Rating

25A x 2

Warranty and Return Policy

Parts Warranty Duration

90 days

Labor Warranty Duration

90 days

Warranty Provider

Sonic Electronix
