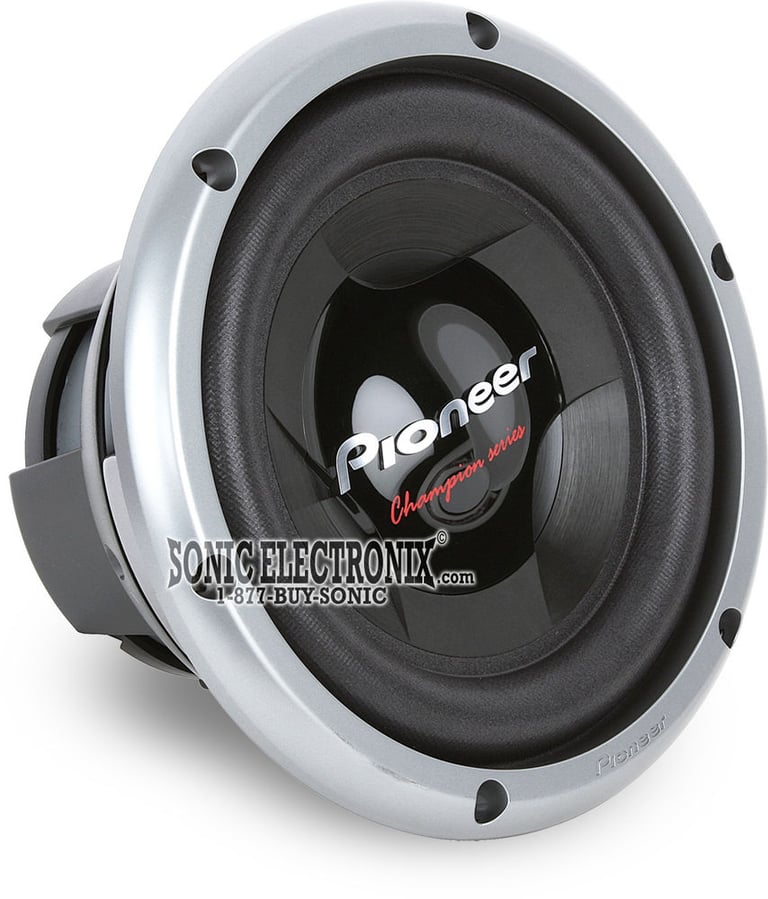

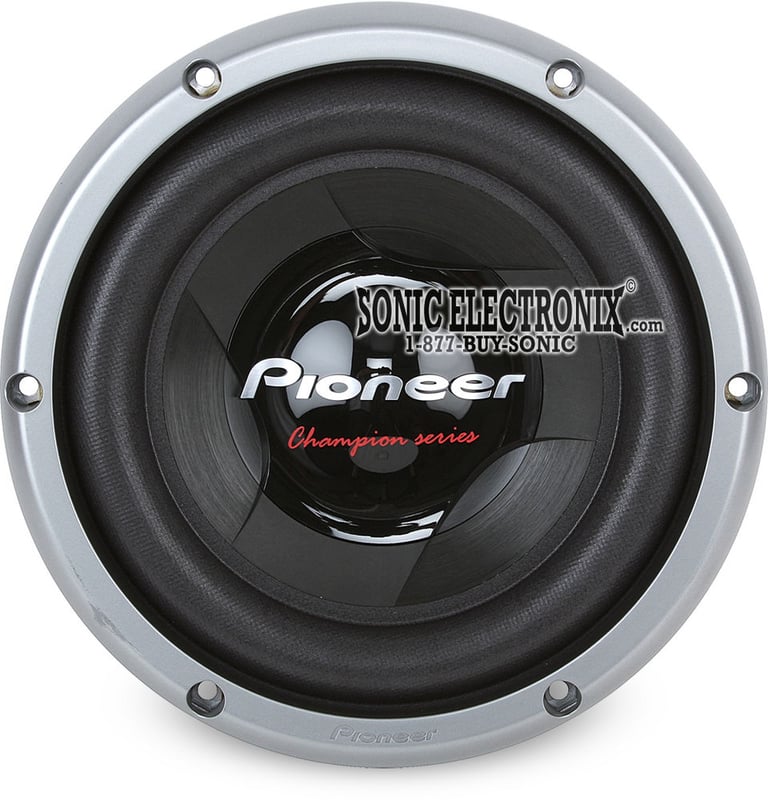

Pioneer TS-W258D2

10" Dual 2 ohm Champion Series Subwoofer

Pioneer
Shop all Pioneer
Product videos
highlight-star-icon

10" Champion Series Subwoofer • 1200 Watts Max • 350 Watts RMS • Dual 2 Ohm • Interlaced Basalt/Carbon Fiber Reinforced IMPP Cone • Three-Layer Fiber Woven Surround • High-Power (74oz) Magnet • Conex Spider

Learn more about the tsw258d2

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
CR-6 main

American International CR-6

Connect Factory Antenna to New Aftermarket Radio in select 2002-2020 vehicles from Ford, Chevrolet, GMC

39
-73.38%

$3.99

List price $14.99

Limited time!
Stadium GTO860C main

JBL Stadium GTO860C

600W Peak (200W RMS) 6x8" Stadium GTO Series 2-Way Component Speaker System

3
-25.94%

$199.95

List price $269.99

Product Highlights


10" Champion Series Subwoofer • 1200 Watts Max • 350 Watts RMS • Dual 2 Ohm • Interlaced Basalt/Carbon Fiber Reinforced IMPP Cone • Three-Layer Fiber Woven Surround • High-Power (74oz) Magnet • Conex Spider

Description


Pioneer brand icon

Authorized dealer

  • 10" Dual 2 ohm Champion Series Subwoofer
  • Power Handling:
    • Peak: 1200 watts
    • RMS: 350 watts
  • Impedance: Dual 2 ohm
  • Interlaced basalt/carbon fiber reinforced IMPP cone
  • Cone reinforcement arcs
  • Wide roll, three-layer fiber woven radial surround
  • Standard top plate
  • Stamped basket with magnet cover
  • 4-Layer long voice coil
  • Double mass high-power (74oz) magnet
  • Frequency response: 20-180 Hz
  • Mounting depth: 5-5/8"

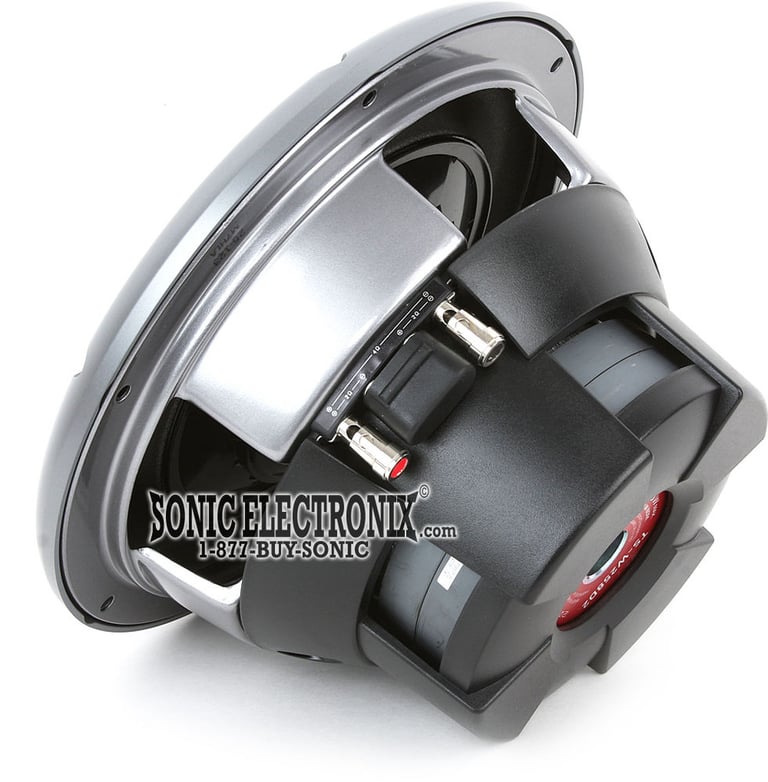

  • Integrated single-sided silver compression wire terminals
  • Conex damper (spider)
  • Molded gasket
  • Phenol resin coated glass cloth voice coil bobbin
  • Copper voice coil wire
  • 1-year SonicElectronix.com warranty

Product history:

Pioneer TS-W258D2 thumbnail
(newest, current model)
Pioneer TS-W257D2 thumbnail
(previous model, replaced by Pioneer TS-W258D2)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Pioneer TS-W258D2 Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Pioneer TS-W258D2 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Pioneer TS-W258D2 Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 Pioneer TS-W258D2 Subwoofers

2 Channel Amp

4 Channel Amp


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(89)

$139.99

List price $139.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(15)

$189.95

List price $159.95

R2-W10D2 small

Alpine R2-W10D2

• Peak Power: 2250 watts
• RMS Power: 750 watts
• Impedance: Dual 2 ohm
• Kevlar Reinforced Pulp Paper Cone
• High-Amplitude Multi-Roll (HAMR) Surround
• Mount depth: 5.92"
• Sensitivity: 82.3 dB

(3)

$319.95

List price $480.00

Specifications & Details


Subwoofer Specifications
Subwoofer Size
10"
Peak Power Handling
1200 watts
RMS Power Handling
350 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Frequency Response
20 - 180 Hz
Sensitivity
90 dB
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Carbon Fiber
Woofer Surround
Fiber Woven Radial
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Sealed
Minimum Sealed Box Volume
0.65 cubic feet
Maximum Sealed Box Volume
1.25 cubic feet
Top-Mount Depth (Mounting Depth)
5-5/8"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

TS-W258D2

Weight:

14.50lbs

Internal SKU:

tsw258d2

Internal Product ID:

16651

Product and How-to Videos


Customer Ratings & Reviews


Pioneer TS-W258D2 thumbnail image

5 star
81%
4 star
19%
3 star
0%
2 star
0%
1 star
0%



Durability
4.8
Value
4.9
Features
4.6
Design
4.6
Usability
4.9

Customer Reviews

Sort by:

Loading...

preety good

The following review is for TS-W1008D2, which is a part of the bundle you are viewing.

this sub hits pretty good i think pioneer over rated the rms because i am rms 300 and it seems like it distorts when its turned up allot but dont get me wrong it it pretty dang good for its money

By Tyler on February 5, 2010

24 found this helpful


Great Speakers

The following review is for TS-W1008D2, which is a part of the bundle you are viewing.

These speakers are the only one's that I use in my partybus. Would use anything else for the money!!!!

By theo on December 9, 2010

20 found this helpful


very happy

The following review is for TS-W1008D2, which is a part of the bundle you are viewing.

This woofer is very good, so good in fact my amp blew first.

By Timothy on December 8, 2010

20 found this helpful


Awesome subs.

The following review is for TS-W1008D2, which is a part of the bundle you are viewing.

I have two of these subwoofers in a dual vented box wired in series, then in parallel, both getting 200w rms ea from a mono Pioneer GM-D7500M amplifier. It's been about a month now and they're fully broke in. They sound amazing, and bump freakin hard in my 89 Corolla trunk. Best subwoofer for the price range, you wont be disappointed. I have them tuned around 80hz. Great product, and definitely wont find it cheaper anywhere else!

By Ryan on November 4, 2010

20 found this helpful


Rediculous

The following review is for TS-W1008D2, which is a part of the bundle you are viewing.

Dude these subs are ridiculous I just got them two days ago I hooked them up to my alpine 760 watt amp and these things r shaking my windows. You cant beat these speakers for the price

By aaron on January 24, 2011

19 found this helpful


great sub

The following review is for TS-W1008D2, which is a part of the bundle you are viewing.

I have one of these in a ported box tuned to 44 hz with a Sony xplod amp wired to 4 ohms pushin 330 rms. Took about a week and a half to break in and is now hitting like a college brawl.

Somebody asked today if I had 12's in my trunk and was surprised that it was one 10 inch sub. I'm planning on buying another before the price goes up again.

By killa priest on January 12, 2011

20 found this helpful


Very Good Sub

The following review is for TS-W1008D2, which is a part of the bundle you are viewing.

I have two of these subs in a ported enclosure in my extended cab nissan and the enclosure is tuned to about 37hz. They perform great and I get compliments on how they sound all the time. Pioneer builds a great product for the price and you won't be dissatisfied with this sub if your looking for a good entry level sub.

By Richard on December 29, 2010

19 found this helpful


Best 10's ive ever had

The following review is for TS-W1008D2, which is a part of the bundle you are viewing.

after going through some kenwoods with no luck i found these on this website and these are the only subs i get now (mainly because i only have 10 inch boxes haha) but nonetheless these are great subs. Given adequate power and such (i used 280 watts) they didn't distort as far as i can tell and are very loud (for what they are). My car windows and mirrors rattle (with ease) with 2 of these in a sealed box. Also having dual voice coils allows lots of wiring options. There's much louder subwoofers out there but for low powered 10 inch's they're well worth the 65$. Good stuff

By A Dude on June 13, 2010

19 found this helpful


very nice item

The following review is for TS-W1008D2, which is a part of the bundle you are viewing.

I would buy another one just like it if I had to. Loved it!

By dave on February 19, 2011

18 found this helpful


sweet sub

The following review is for TS-W1008D2, which is a part of the bundle you are viewing.

I purchased this sub about 6 months ago. I have it in a .8 cubic foot seal box. Powered by a Kicker kx 250.2 bridged to 4 ohms at 310 watts rms. The bass hits hard and tight. Sound great up to about 3/4 volume. It might sound better at higher volume in a ported box. A great value

By Jake on January 27, 2011

18 found this helpful




KKP 3 12 small

Ground Shaker KKP 3 12

12" Triple Ported/Vented Pro Solo-Baric Subwoofer Enclosure

$179.95

List price $299.95

101KPRO small

10" Round Hole, Long Rear Slot Ported Enclosure for Most 10" Subwoofers

(101RP)

(13)

$64.99

List price $129.99

DVD-514 small

Coby DVD-514

Super Slim 5.1 Channel Progressive Scan DVD Player with DVD+/-R/RW Playback and Remote

(1)

$49.99

List price $79.99

No picture

Pioneer DDJ-WeGO-V

Compact DJ Controller VIOLET w Pulse Control

$299.00

List price $0.00

DDJ-WeGO-W small

Pioneer DDJ-WeGO-W

Compact DJ Controller WHITE w Pulse Control

$279.00

List price $0.00

10W7AE-3 small

JL Audio 10W7AE-3

750W RMS 10" W7AE Series Single 3-ohm Car Subwoofer

(43)

$1199.99

List price $1199.99

XIV45 small

NVX XIV45

16.4 ft (5 meter) 4-Channel V-Series RCA Audio Interconnect Cable

(27)

$16.99

List price $29.99

BG-12 small

GS Audio BG-12

Universal 12" Subwoofer Grille

(62)

$11.99

List price $24.99

DDJ-WeGO-K small

Pioneer DDJ-WeGO-K

Compact DJ Controller BLACK w Pulse Control

(1)

$299.00

List price $0.00

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2008 Ford Escape Hybrid

2015 Chevrolet Malibu

2012 Land Rover Range Rover

1982 Mercury LN7

2019 Audi SQ5

1986 Subaru GL

2023 Volvo V60

2016 BMW M3

1980 Dodge Colt

2003 Hyundai Santa Fe

Vehicle
Store
Delete

2011 Harley Davidson FLTRSE3 CVO Road Glide

2007 Harley Davidson FXST/I Softail Standard

Vehicle
Store
Delete

2015 Can-Am Commander 1000 XT-P

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
