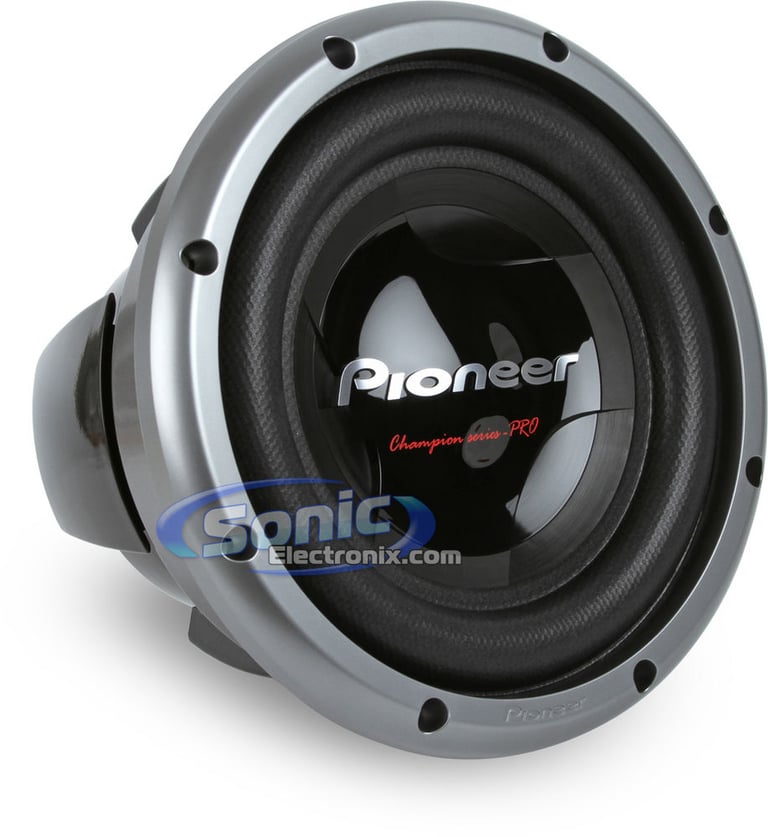

Pioneer TS-W3002D4

12" Dual 4 ohm Champion PRO Series Car Subwoofer

Pioneer
Shop all Pioneer
Product videos
highlight-star-icon

• 3500W Peak
• 1000W RMS
• Basalt/Carbon Fiber Reinforced IMPP Cone
• Dual 4 Ohm
• Double Stacked (110oz) Magnet
• Fiber Woven Aramid Radial With Honeycomb Cloth Surround

Learn more about the tsw3002d4

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

tsw3003d4 thumbnail

12" Pioneer TS-W3003D4 600W RMS

OUR PRICE: $89.99

View item

Loading...
82-HD2 main

Metra 82-HD2

Speaker Adapter & Harness Kit for select 2006-2023 vehicles from Honda, Acura (Front & Rear Speakers)

2
-51.17%

$20.99

List price $42.99

MPK 165.3 main

Hertz MPK165.3

440W Peak (220W RMS) 6.5" Mille PRO Series 2-Way 4 Ohm Component Speaker System

2
-14.90%

$599.99

List price $705.00

JBL Stage3 637F (STAGE3637FAM)

270W Peak (90W RMS) 6.5" Stage3 Series 3-Way Coaxial 3-Ohm Speakers

2
-18.19%

$89.95

List price $109.95

Product Highlights


• 3500W Peak
• 1000W RMS
• Basalt/Carbon Fiber Reinforced IMPP Cone
• Dual 4 Ohm
• Double Stacked (110oz) Magnet
• Fiber Woven Aramid Radial With Honeycomb Cloth Surround

Description


Pioneer brand icon

Authorized dealer

Champion Series PRO: Powerful by Design

Introducing the series that changed the way Pioneer makes subwoofers: The Pioneer Champion PRO Series. The patented technologies behind the PRO series of subwoofers bridge the gap between quality bass and an affordable price. They feature an air suspension system that creates a spring-like effect and a compressed air chamber within the subwoofer. The result is powerful, deep bass. They are developed to utilize the air space surrounding the subwoofer so that they can be installed in smaller boxes, yet still retain that solid low bass. For the Champion PRO series of subwoofer, Pioneer uses high-grade materials that will last a long time. The wide-roll 3-layer fiber radial surround improves the power handling of the sub, while reduces the distortion. At the bottom of the chassis sits two double-stacked magnets to provide excellent power and response. The Pioneer Champion PRO series delivers incredible booming bass that is loud, powerful, and accurate.

Subwoofer Features:
  • 12" Dual 4 ohm Champion PRO Series Subwoofer
  • Power Handling:
    • Peak: 3500 watts
    • RMS: 1000 watts
  • Impedance: Dual 4 ohm

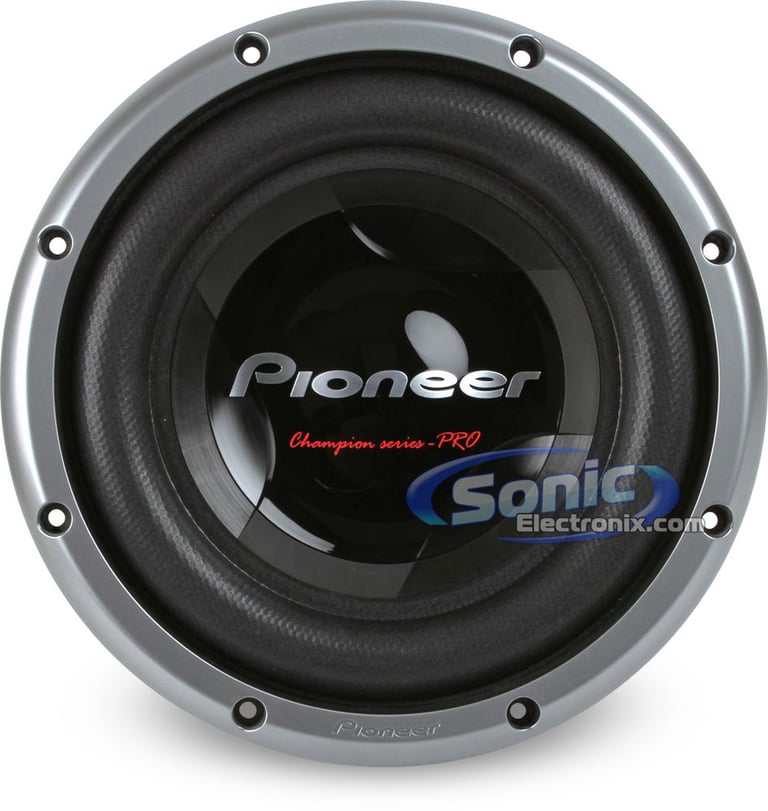

  • Interlaced basalt/carbon fiber reinforced IMPP cone
  • Wide-roll, 3-layer fiber woven aramid radial with honeycomb cloth surround
  • Phenol resin coated glass cloth bobbin
  • Copper voice coil wire
  • Dual 4-layer, long voice coil
  • Double stacked (110oz) magnet
  • Frequency response: 20-150 Hz
  • Sensitivity: 90 dB

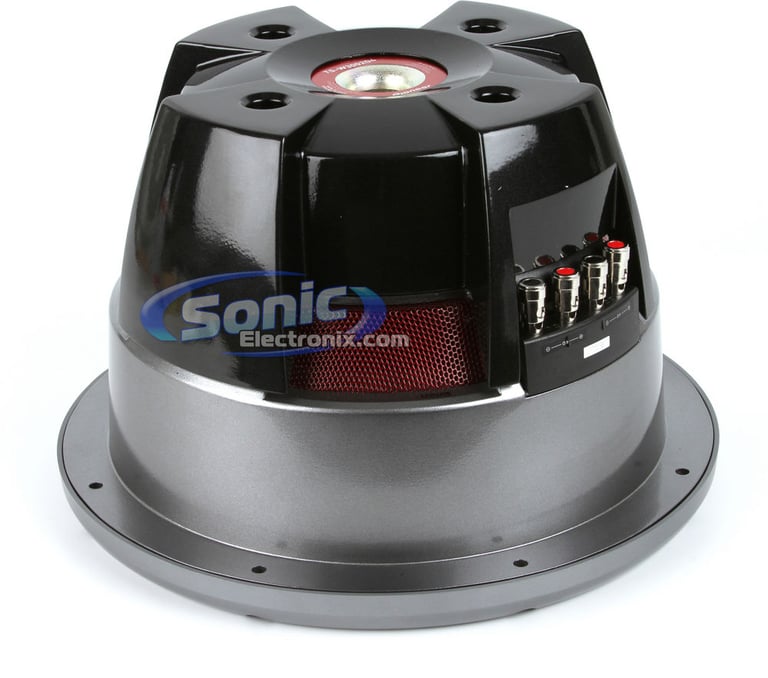

  • Aluminum die-cast rigid chassis basket design
  • 1-Piece rubber gasket
  • Integrated single-sided silver compression wire terminals
  • Mounting Depth: 7-1/2"
  • 1-year SonicElectronix.com warranty

Note: This Champion PRO Series subwoofer was formerly a Premier piece. It is now shipped in a standard Pioneer box. Please note that the subwoofer is exactly the same and will preform equal to the former Pioneer Premier subwoofer.

Product history:

Pioneer TS-W3003D4 thumbnail
(newest, current model)
Pioneer TS-W3002D4 thumbnail
(previous model, replaced by 12" Pioneer TS-W3003D4 600W RMS)
Pioneer TS-W3001D4 thumbnail
(previous model, replaced by Pioneer TS-W3002D4)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Pioneer TS-W3002D4 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Pioneer TS-W3002D4 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Pioneer TS-W3002D4 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Pioneer TS-W3002D4 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(25)

$949.99

List price $949.99

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(94)

$239.99

List price $287.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$79.99

List price $139.95

SW-M12D2 small

Sundown Audio M-12 D2 12" (M12D2)

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• High Roll Foam Surround
• Mount depth: 10.88"
• Sensitivity: 80.6 dB

(1)

$599.99

List price $719.99

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

YSW122 small

NVX YSW122

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 2 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 6.5"
• Sensitivity: 85 dB

(3)

$149.99

List price $227.99

12TW3-D4 small

JL Audio 12TW3-D4

• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Rubber Surround
• Mount depth: 3.5"
• Sensitivity: 84.11 dB

(20)

$569.99

List price $569.99

Specifications & Details


Subwoofer Specifications
Series
Champion PRO Series
Subwoofer Size
12"
Peak Power Handling
3500 watts
RMS Power Handling
1000 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Frequency Response
20 - 150 Hz
Sensitivity
90 dB
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Carbon Fiber
Woofer Surround
Wide-Roll 3-Layer Fiber Radial
Subwoofer Grille
Optional (Accessory required and sold separately)
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
.50 cubic feet
Maximum Sealed Box Volume
1.0 cubic feet
Minimum Ported Box Volume
0.8 cubic feet
Maximum Ported Box Volume
1.6 cubic feet
Top-Mount Depth (Mounting Depth)
7-1/2"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

TS-W3002D4

Weight:

28.50lbs

Internal SKU:

tsw3002d4

Internal Product ID:

16665
