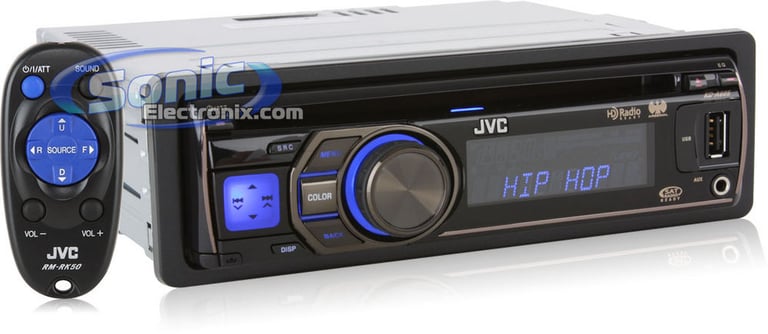

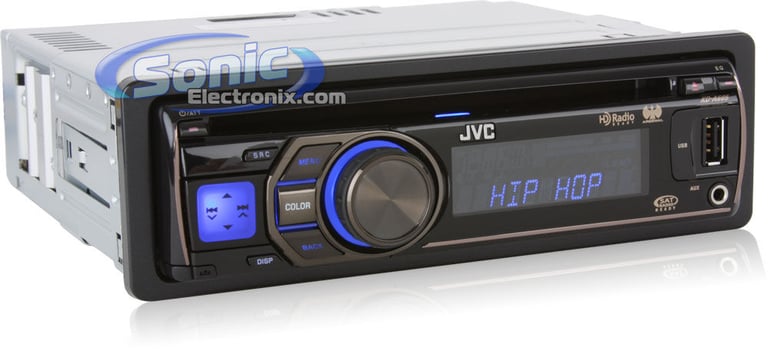

JVC KD-A605

In-Dash AM/FM, CD, MP3, WMA Receiver with Front Auxiliary, USB input, and Variable Illumination Display

JVC
Shop all JVC
Product videos
highlight-star-icon

In-Dash AM/FM, CD, MP3, WMA Receiver • Front 3.5mm Auxiliary Input • Front USB Input • Detachable Face • Bluetooth Ready • HD Radio Ready • SIRIUS Satellite Radio Ready • iPod And iPhone Controls Built In

Learn more about the kda605

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

kda625 thumbnail

JVC Arsenal KD-A625

OUR PRICE: $109.99

View item

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Club 620F main

JBL Club 620F (SPKCB620FAM)

330W Peak (110W RMS) 6.5" Club Series 2-way 3-ohm Shallow Mount Coaxial Car Speakers

2
-38.48%

$79.95

List price $129.95

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

Product Highlights


In-Dash AM/FM, CD, MP3, WMA Receiver • Front 3.5mm Auxiliary Input • Front USB Input • Detachable Face • Bluetooth Ready • HD Radio Ready • SIRIUS Satellite Radio Ready • iPod And iPhone Controls Built In

Description


JVC brand icon

Authorized dealer

General Features:

  • In-Dash AM/FM, CD, MP3, WMA Receiver with Front Auxiliary, USB input, and Variable Illumination Display
  • iPod USB direct connectivity via your standard iPod-to-USB connection cable allows you to charge, control, and playback your iPod through the receiver and stereo system.
    • New 2-way control capability allows your iPod playback features (play/pause/browse/etc) to be controlled via your car stereo controls or the iPod itself. Previous stereos only allowed control through the stereo when the iPod was connected.*

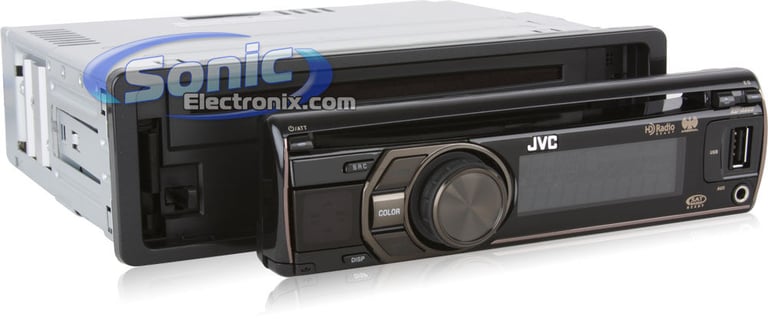

  • Detachable face
  • Variable color illuminated display

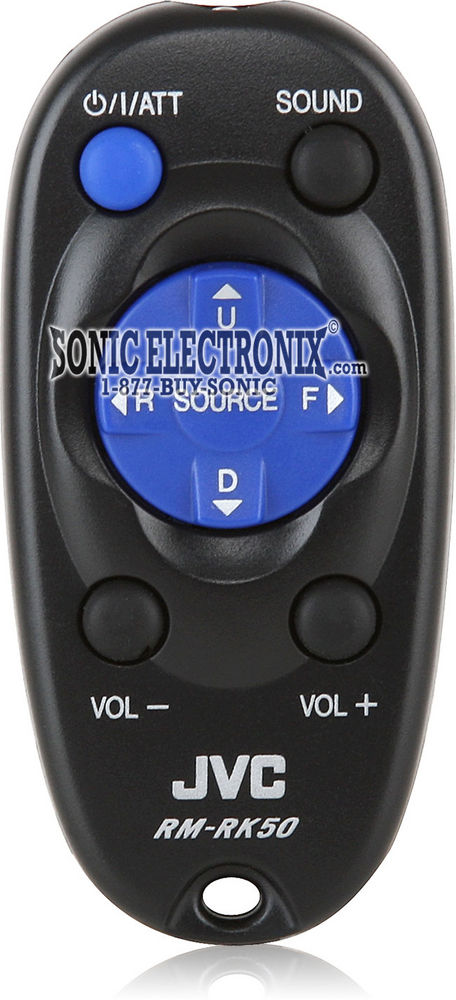

  • Wireless remote control included
  • Blue button lighting
  • Dimming feature
  • MOSFET amplifier
  • CEA-2006 compliant amplifier
  • Power Output:
    • Peak: 50 watts x 4 channels
    • RMS: 20 watts x 4 channels
  • CD Text Display
  • MP3 ID3 Tag Display (Title/Artist/Album)
  • Authorized Internet Dealer
  • 2-year Manufacturer's warranty

Playback and Audio Features:

  • Playback of CD, CD-R, CD-RW, MP3, and WMA
  • HS-IVi tuner with 18FM/6AM presets
  • European switchable tuner
  • Stereo/mono switch for FM tuner
  • Source-specific volume control
  • 3-Band parametric iEQ
  • COMPU play
  • 24-bit DAC
  • Volume attenuator
  • Loudness control
  • Balance and fade control

Expandability Options:

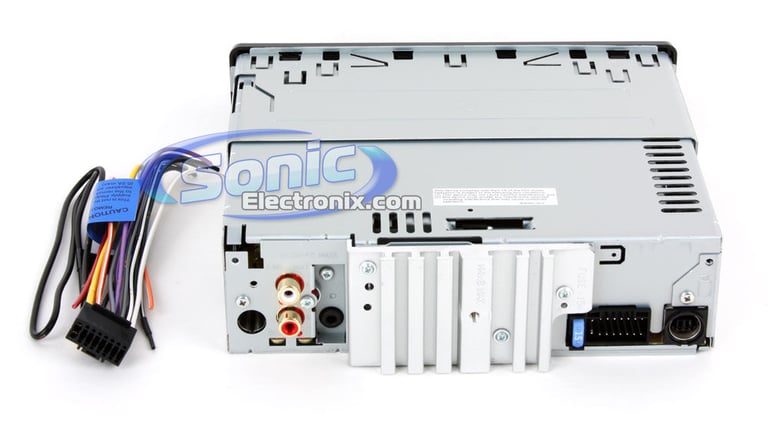

  • 1 Pair of 5V gold-plated preamp outputs (Rear/Subwoofer Switchable)
  • Bluetooth Ready: JVC KS-BTA200 required and sold separately
  • HD Radio Ready: JVC KT-HD300 required and sold separately
  • SIRIUS Satellite Radio Ready: The JVC Sirius Satellite Radio Package is required and sold separately
  • iPod/iPhone Ready: USB-to-iPod cable will work with most iPods. The JVC KS-PD100 iPod adapter is required for a limited number of older iPods, please view the JVC compatibility list to see if your iPod will require the KS-PD100.
  • Front-panel auxiliary input: 3.5mm (headphone jack) allows connection to portable media devices such as MP3 players, etc.
  • Front-panel auxiliary input: USB Port allows connection to portable media devices such as MP3 players, etc.
  • Rear auxiliary input: RCA Audio Input
  • Compatible with a portable hard drive
  • CD Changer controls (compatible with the JVC CH-X1500 CD/MP3 changer)
  • Steering Wheel Control Ready: PAC SWI-JACKv1 required and sold separately
*iPod 2-way Control Capabilities: All iPods, including the iPhones and iPod Touch, will allow 2-way control mode when connected via USB-to-iPod cable, except for the following iPods:
  • 1G iPod Nano: Does not function properly in iPod mode when using 2-Way iPod control. There is no problem in head-unit mode.
  • 5G iPod: Does not function properly in iPod mode when using 2-Way iPod control. There is no problem in head-unit mode.
  • iPod Nano 2G: In order for the iPod to function properly, the iPod software must be updated. Version 1.1.3 and up should function properly.
  • Any iPod connected through the KS-PD100 will not allow 2-way controls and can only be controlled through the stereo once connected.

Any iPods/iPhones released after February 3, 2009 have not been tested by the manufacturer and/or Sonic Electronix for compatibility. Therefore we do not guarantee compatibility in regards to, but not limited to: playback, video, charging, and response time.

Product history:

JVC KD-A625 thumbnail
(newest, current model)
JVC KD-A615 thumbnail
(previous model, replaced by JVC Arsenal KD-A625)
JVC KD-A605 thumbnail
(previous model, replaced by JVC Arsenal KD-A615)

Best selling similar products

BV850ACP small

Boss Elite BV850ACP

• Double DIN Bluetooth Digital Multimedia Receiver
• 6.75" Capacitive Touchscreen Display
• Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 10-band Digital Equalizer
• Includes backup camera

(5)

$329.99

List price $329.99

DAX800XR_MRR_S8FO1 small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(39)

$1383.97

List price $2029.97

KWZ1000AW_MRR_FLFO1_S small

JVC KW-Z1000AW Direct-Fit Digital Receiver Package

• Bluetooth Digital Multimedia Receiver for select Ford vehicles
• 10.1" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(37)

$1883.96

List price $2282.96

DAX800XR small

Kenwood eXcelon DAX800XR

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for select 2011-2022 vehicles from GMC, Chevrolet, Nissan
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(1)

$999.00

List price $1500.00

KWZ1000AW_MRR2_FLFO1 small

JVC KW-Z1000AW Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for select 2011-2023 vehicles from Ford
• 10.1" Capacitive Touchscreen Display
• Supports wireless Apple CarPlay and wireless Android Auto
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM and iDataLink Ready

(7)

$1601.80

List price $2348.97

DAX1050XR_MRR_FLCH2_D small

Kenwood eXcelon DAX1050XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 10.1" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(37)

$1883.97

List price $2479.97

DMH-1800NEX small

Pioneer DMH-1800NEX

• Double DIN Bluetooth Digital Multimedia Receiver
• 6.8" WVGA Display
• Apple CarPlay and Android Auto Compatible
• 3 sets of 2 volts preamp outputs
• 13-Band Customizable Graphic Equalizer
• SiriusXM Satellite Radio Ready
• Easy to use graphic user interface

(2)

$349.99

List price $420.00

iLX-W650 small

Alpine iLX-W650

• Double DIN Bluetooth Digital Multimedia Receiver
• 7" Capacitive Touchscreen Display Display
• Wired Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 3-Band Graphic / 9-Band Parametric Equalizer
• SiriusXM Satellite Radio Ready

(123)

$329.95

List price $349.95

DAX800XR_MRR_S8GM1_8 small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(38)

$1456.96

List price $2074.96

Specifications & Details


In-Dash Receiver Specifications
Receiver Size
Single DIN
Anti-Theft Security
Detachable Faceplate
Wireless Remote
Yes
Peak Power Output
50 watts x 4 channel
RMS Power Output
20 watts x 4 channel
Preamp RCA Outputs
1 Set (2-channel)
Dedicated Subwoofer Preamp RCA Output
Yes
Preamp Voltage
5 volts
Built-In Equalizer
3-band parametric equalizer with preset tone curves
Display Type
Dot-Matrix Text Display
Expandability Features
Inputs
Auxiliary (Front)
Steering Wheel Control Compatible
Yes (Accessory required and sold separately)
Tuner
AM/FM Tuner
Yes
FM Presets
18
AM Presets
6
Warranty and Return Policy
Parts Warranty Duration
2 years
Labor Warranty Duration
2 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

JVC

Model Number:

KD-A605

Weight:

3.96lbs

Internal SKU:

kda605

Internal Product ID:

17367
